Waitaha Details

PropertyValue
Rupture Count7,077
Ruptures Above Sect Min Mag7,071
Ruptures w/ Nonzero Rates67
Magnitude Range[6.64, 8.48]
Length Range[13, 600] km
Total Rate5.5912275E-5 /yr
Multi-Fault Rate5.5912275E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults145

Table Of Contents

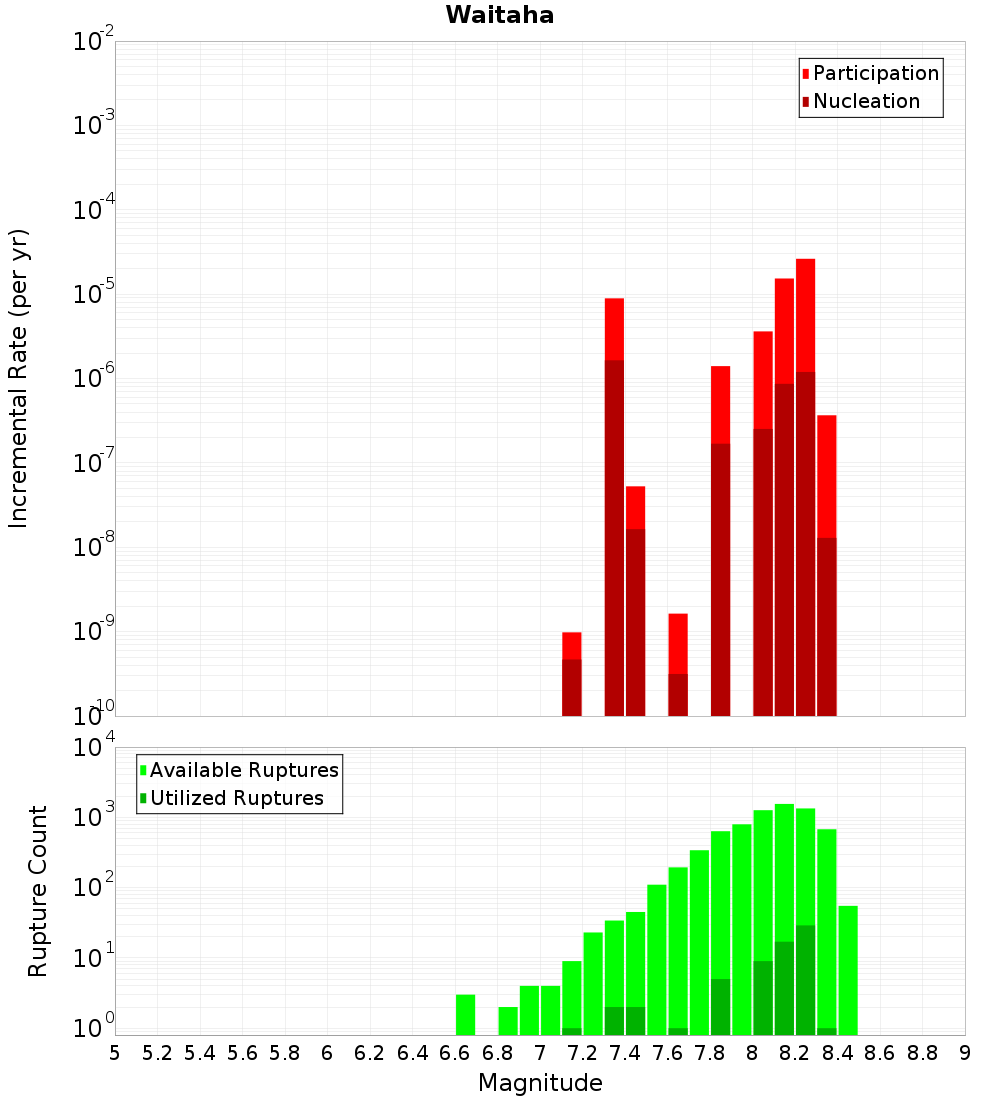

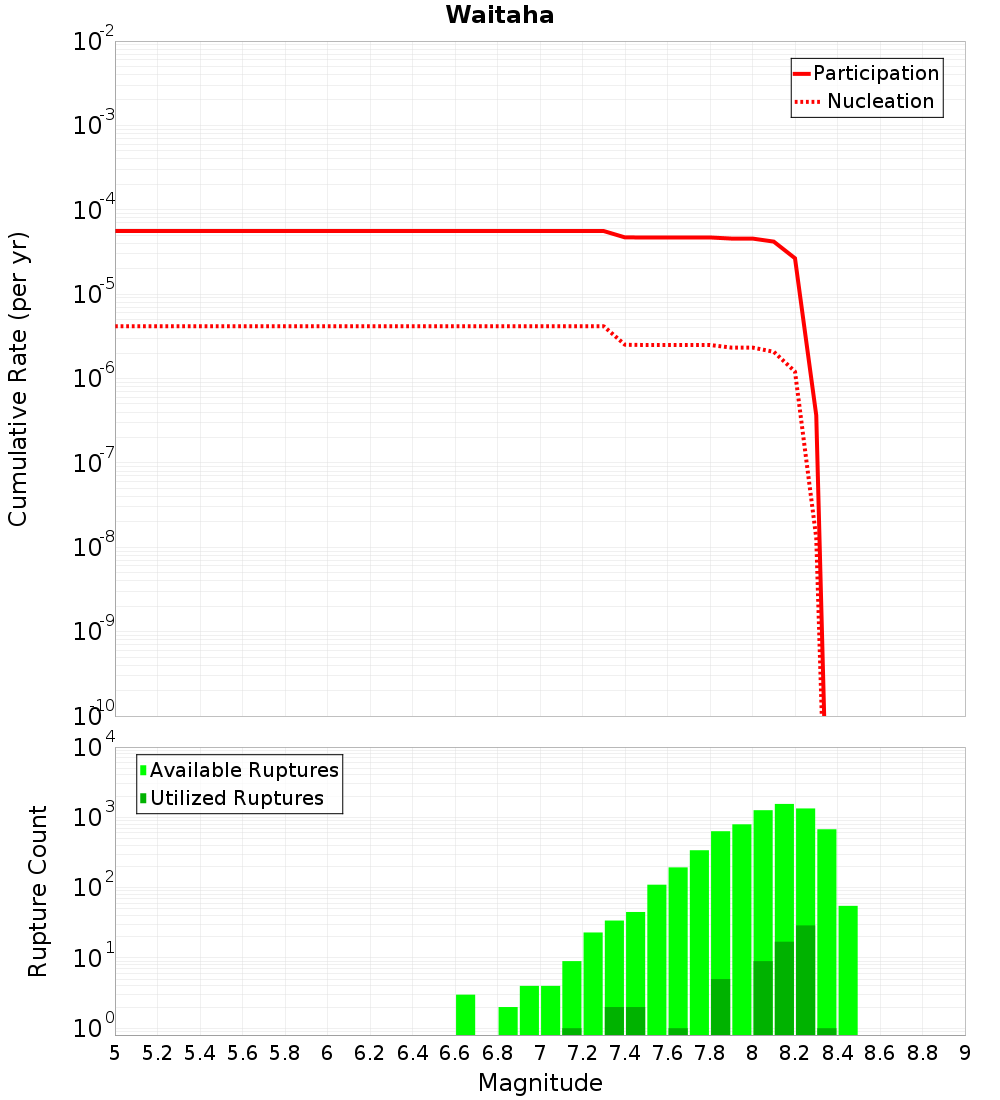

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

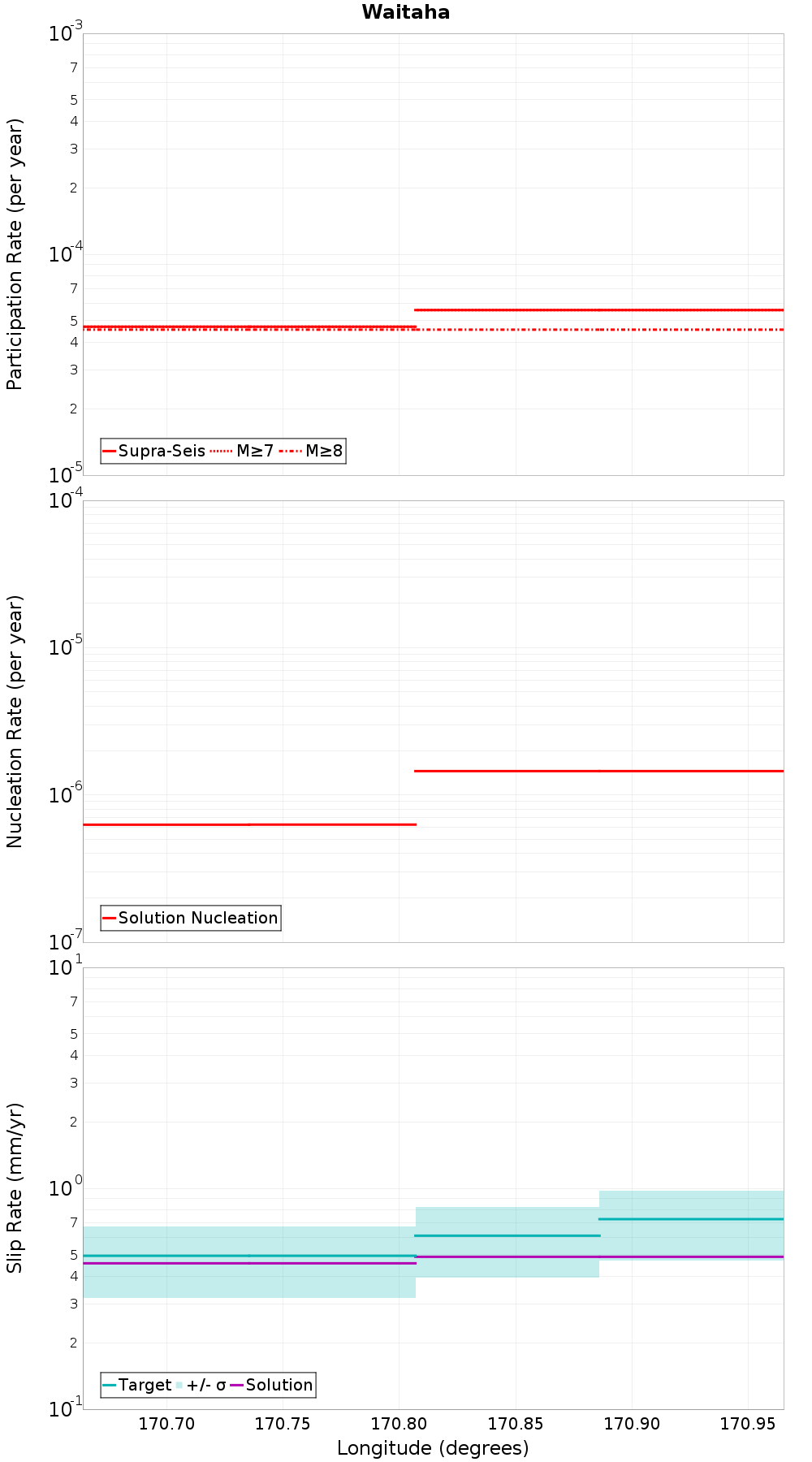

Along-Strike Values

(top)

Along-strike plot

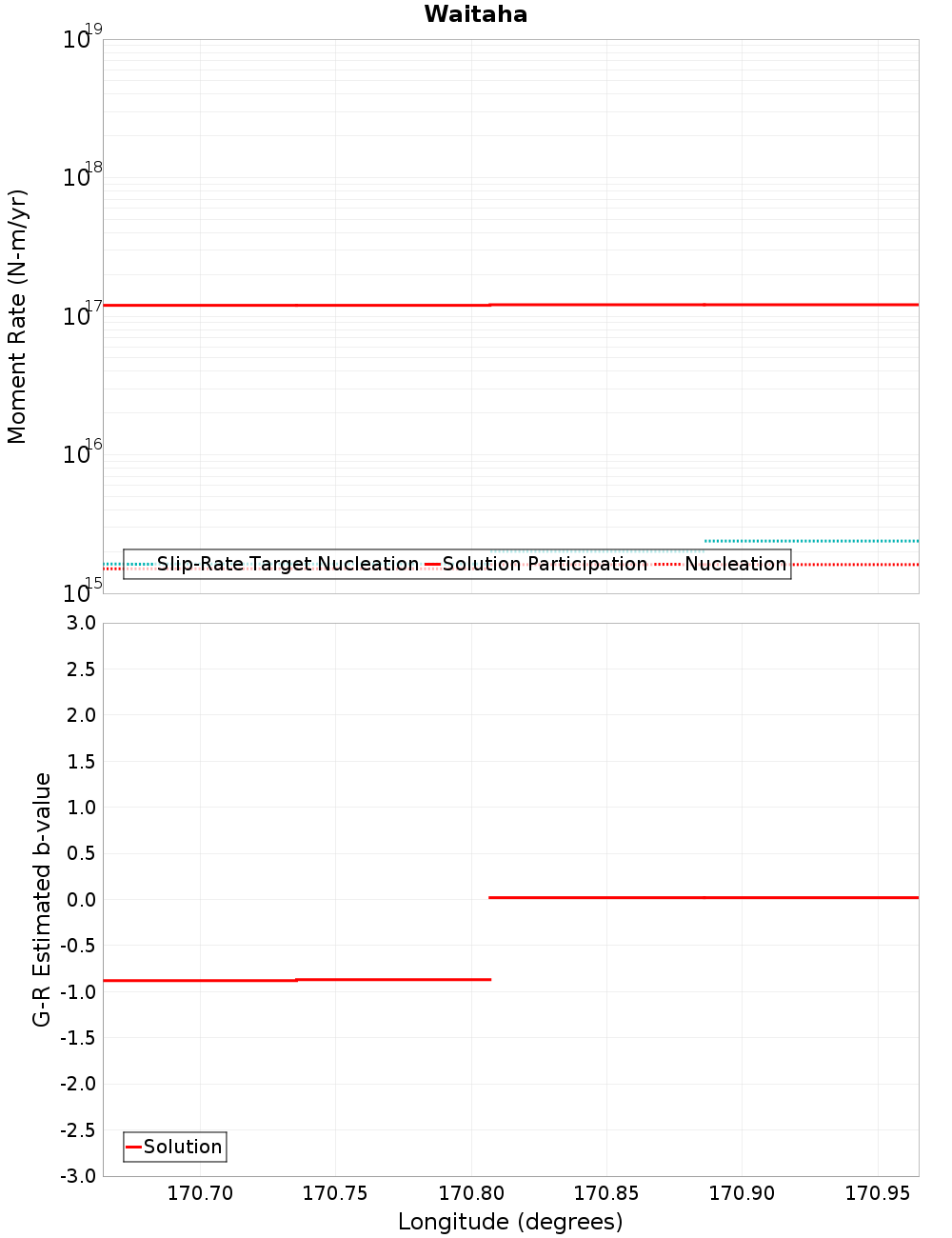

Moment-Rates and b-Values

(top)

Along-strike plot

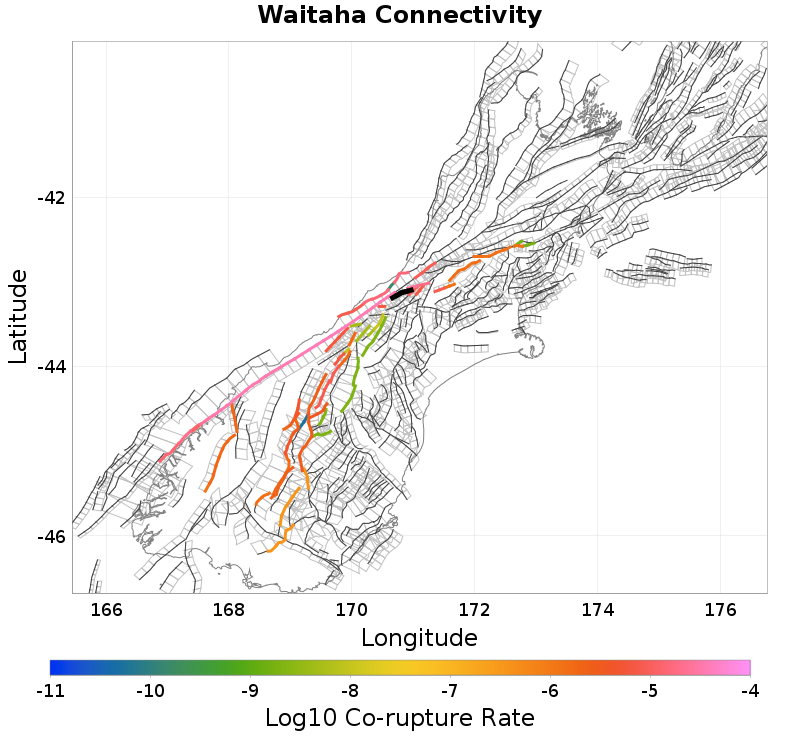

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mungo, 0.07 km away
Alpine: Jacksons to Kaniere, 0.08 km away
Lord Range, 0.26 km away
Mathias, 0.29 km away
Hohonu South, 0.4 km away
Observation, 3.91 km away
Jagged, 7.89 km away
Jollie Range, 8.98 km away
Veil Stream, 11.03 km away
Mistake - Rolleston, 13.29 km away
Mt Adams, 14.73 km away

Mungo, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count1,743
Co-rupture Rate3.0284327E-5

Alpine: Jacksons to Kaniere, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count3,790
Co-rupture Rate4.7995458E-5

Lord Range, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count546
Co-rupture Rate8.966861E-6

Mathias, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count422
Co-rupture Rate6.9167154E-6

Hohonu South, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count5,481
Co-rupture Rate3.1155658E-5

Observation, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Jagged, 7.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Jollie Range, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Veil Stream, 11.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Mistake - Rolleston, 13.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0

Mt Adams, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count576
Co-rupture Rate6.793332E-6
