Alderman West 5 Details
| Property | Value |
|---|---|
| Rupture Count | 58 |
| Ruptures Above Sect Min Mag | 41 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.68, 7.38] |
| Length Range | [19, 96] km |
| Total Rate | 8.929915E-5 /yr |
| Multi-Fault Rate | 3.2825195E-5 /yr (36.76%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

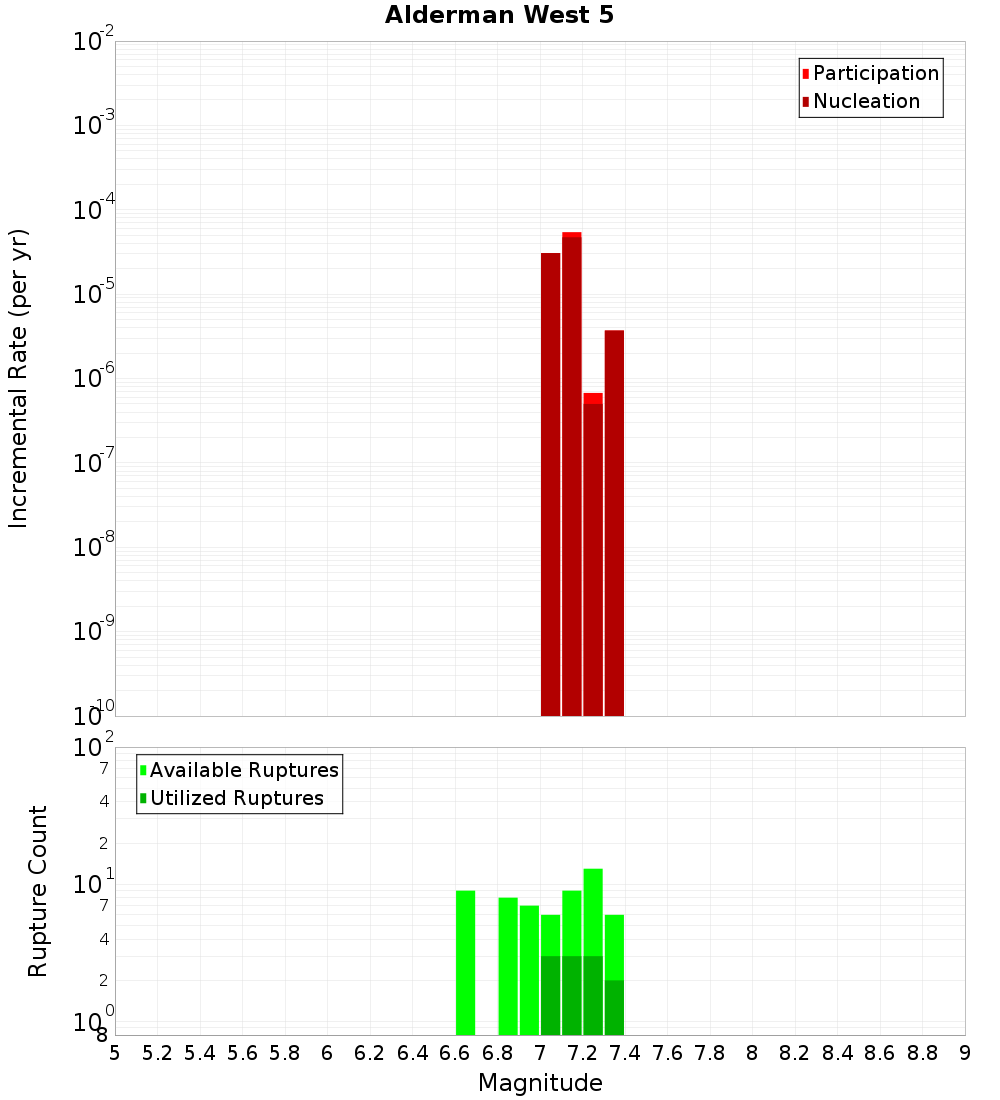

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

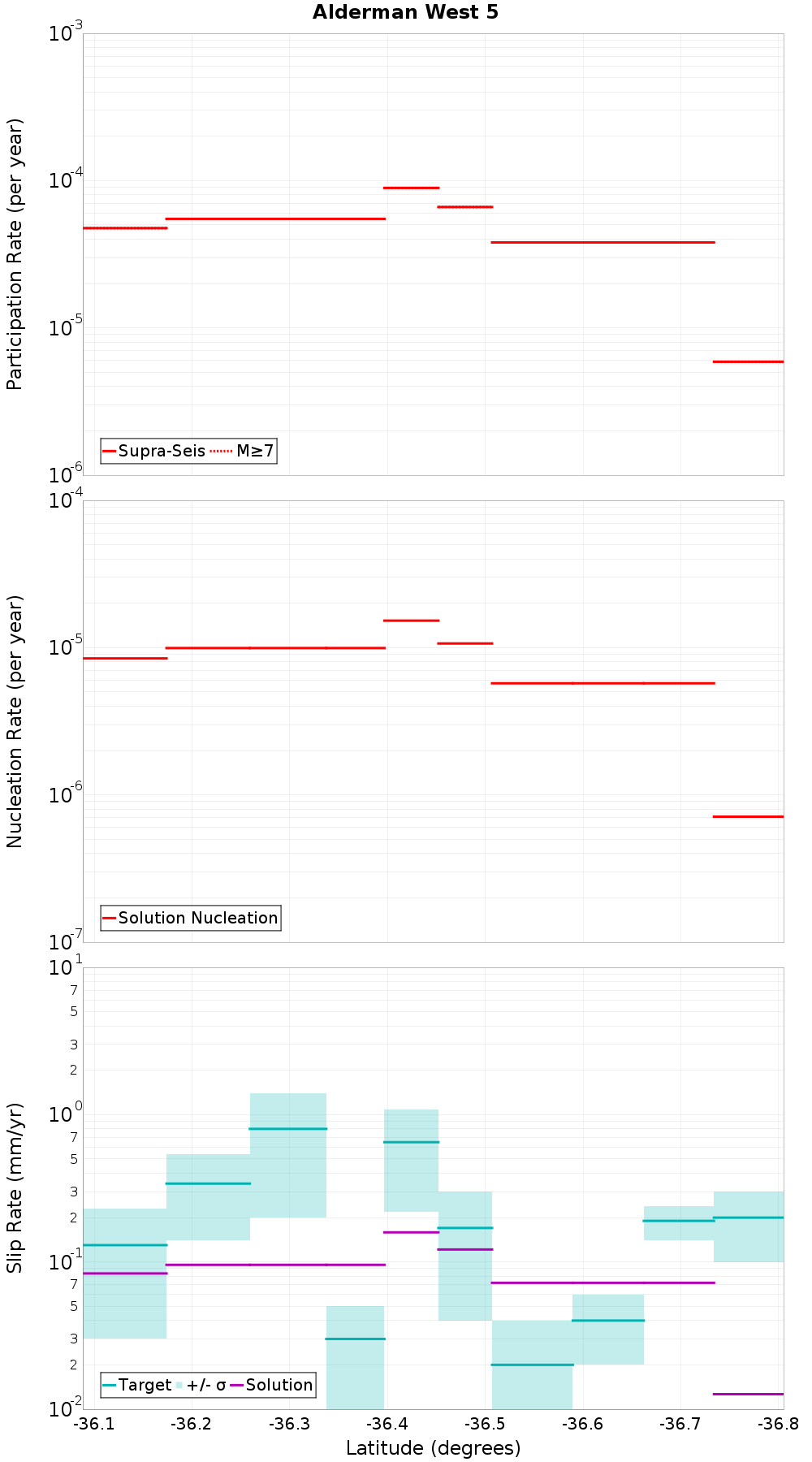

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alderman West 6, 0.23 km away |
Alderman West 6, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 3.2825195E-5 |
