Bidwill Details

Property	Value
Rupture Count	1,630
Ruptures Above Sect Min Mag	1,627
Ruptures w/ Nonzero Rates	30
Magnitude Range	[6.52, 8.25]
Length Range	[15, 615] km
Total Rate	5.9673366E-5 /yr
Multi-Fault Rate	5.9673366E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	113

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

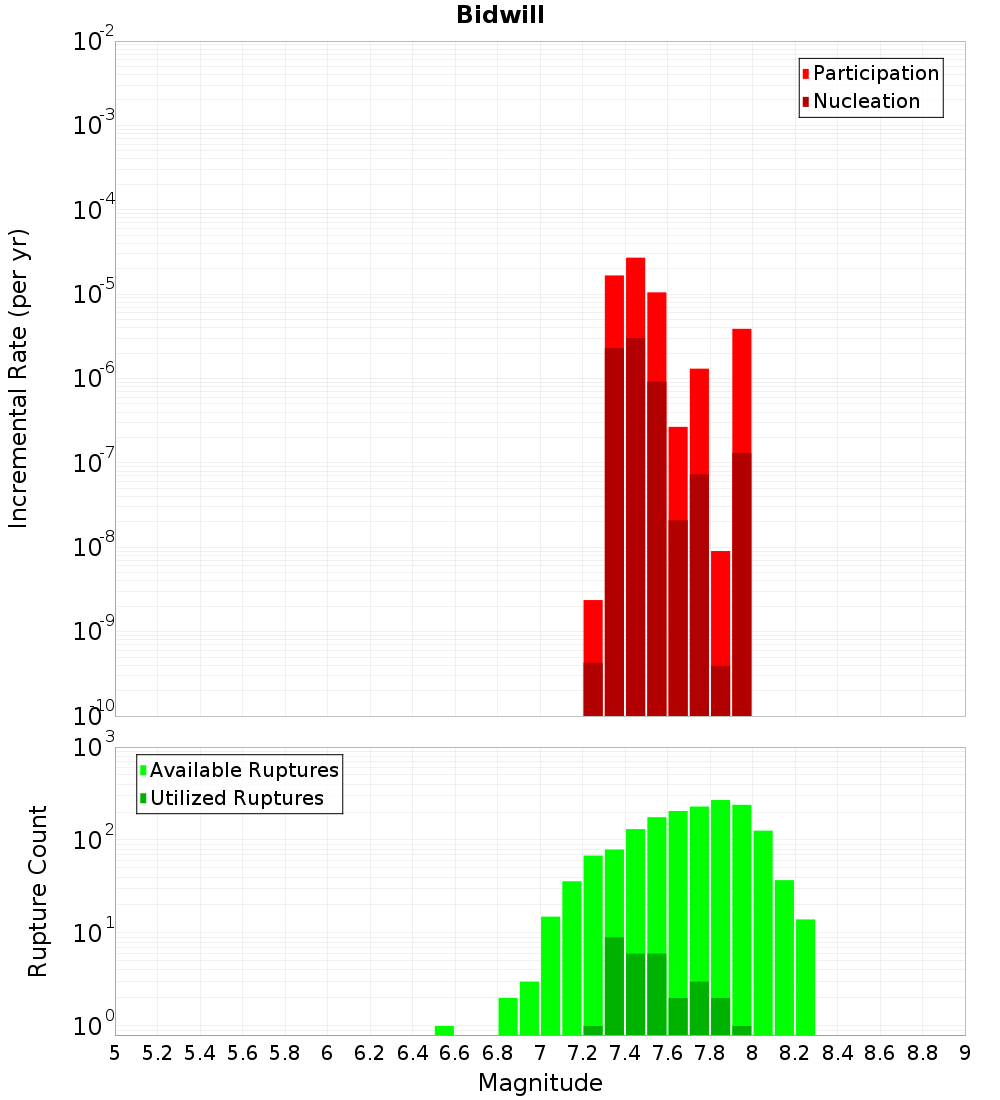

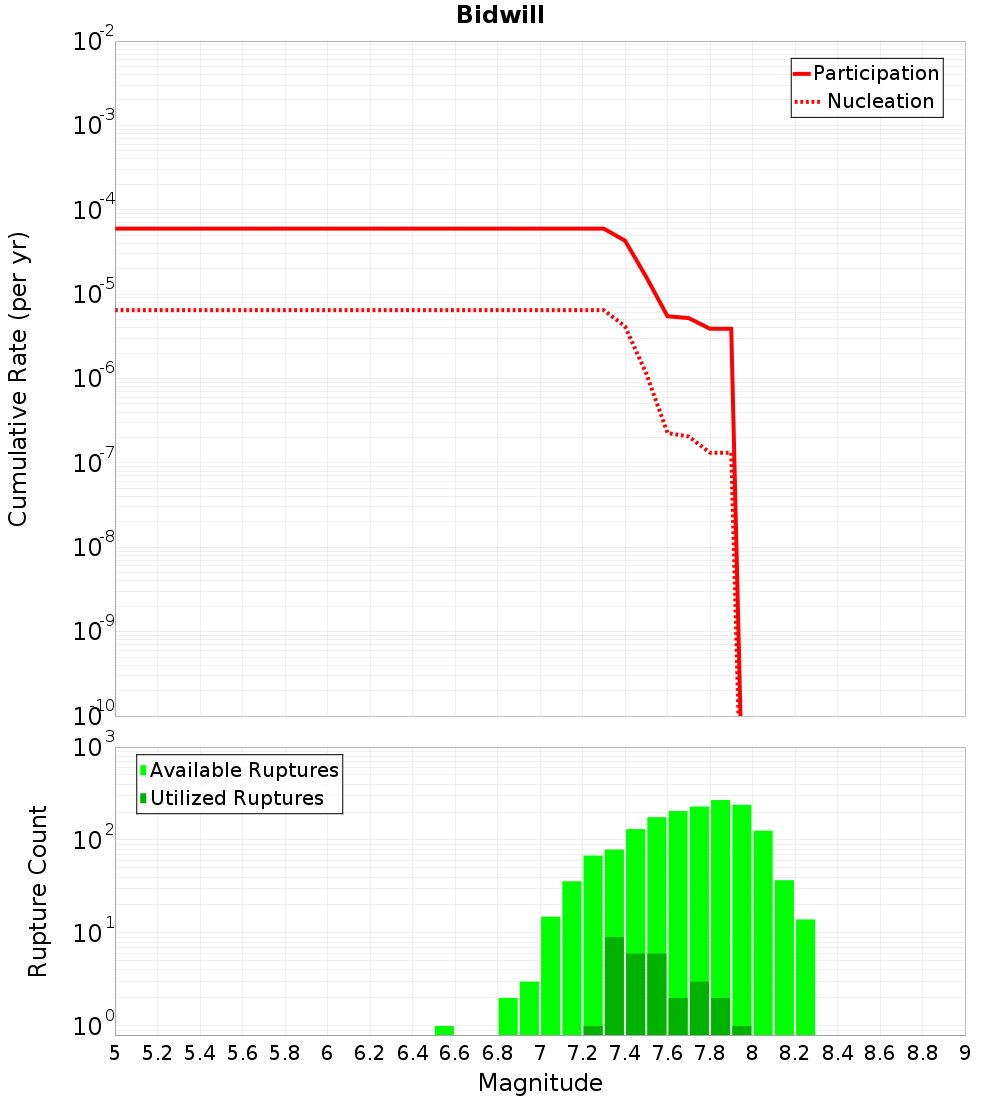

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

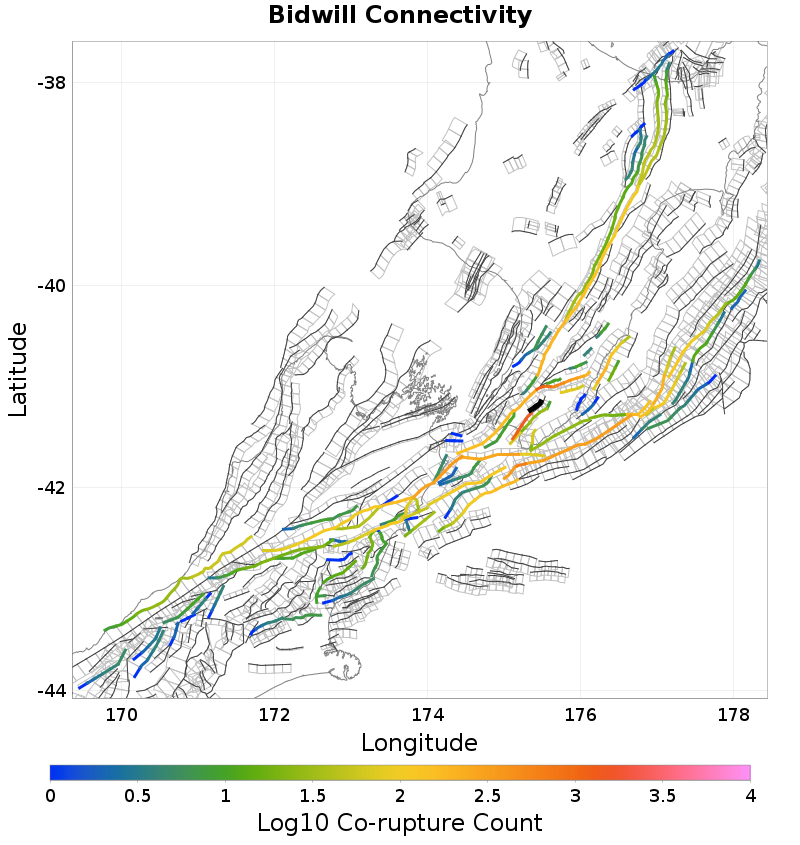

Connectivity

Nearby Sections

Fault Section
Martinborough, 2.26 km away
Carterton, 3.31 km away
Otaraia, 3.57 km away
Wellington Hutt Valley: 5, 6 km away
Dry River - Huangarua: 2, 7.05 km away
Dry River - Huangarua: 1, 7.05 km away
Wairarapa: 2, 7.72 km away
Masterton, 8.19 km away
Dry River - Huangarua: 3, 8.48 km away
Wairarapa: 3, 10.11 km away

Martinborough, 2.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Carterton, 3.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,138
Co-rupture Rate	4.5021985E-5

Otaraia, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,448
Co-rupture Rate	5.9560767E-5

Wellington Hutt Valley: 5, 6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 2, 7.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	2.7879656E-7

Dry River - Huangarua: 1, 7.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	false
Co-rupture Count	88
Co-rupture Rate	4.1599114E-6

Wairarapa: 2, 7.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	false
Co-rupture Count	235
Co-rupture Rate	1.3856781E-10

Masterton, 8.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	0.0

Dry River - Huangarua: 3, 8.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0

Wairarapa: 3, 10.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
