Fisherman 3 Details

PropertyValue
Rupture Count138
Ruptures Above Sect Min Mag136
Ruptures w/ Nonzero Rates20
Magnitude Range[6.89, 7.86]
Length Range[20, 194] km
Total Rate7.7814126E-5 /yr
Multi-Fault Rate7.7814126E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults20

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

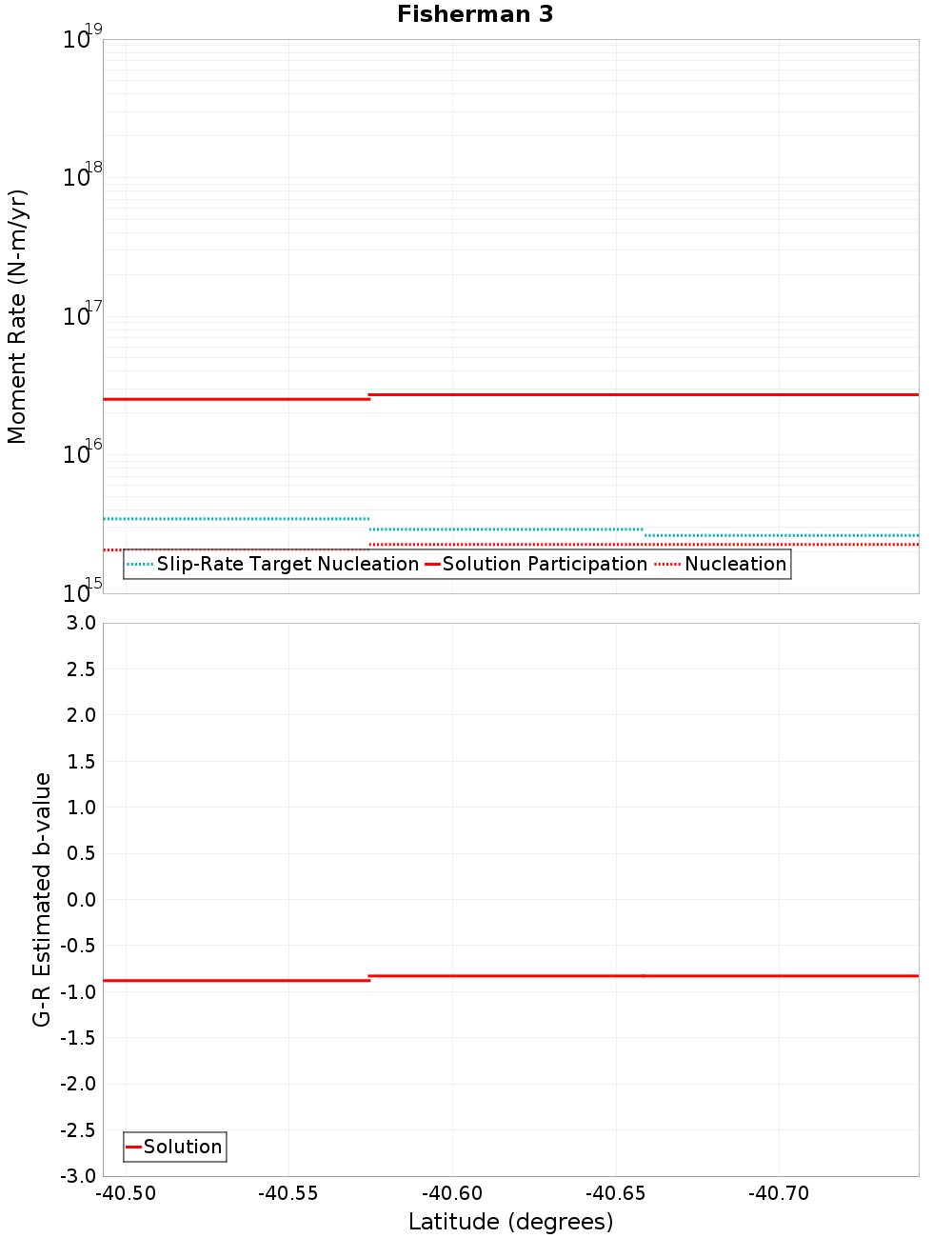

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mascarin, 0.14 km away
Onepoto, 0.22 km away
Otaheke North, 0.89 km away
Fisherman 2, 1.22 km away
Rangitikei Offshore 1, 2.73 km away
Poroutawhao, 6.52 km away
Otaheke South, 6.67 km away
Okupe 1, 8.66 km away
Himatangi, 12.21 km away
Levin Anticline, 13.23 km away

Mascarin, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Onepoto, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate1.8668357E-5

Otaheke North, 0.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?true
Directly Connected?true
Co-rupture Count48
Co-rupture Rate6.998484E-5

Fisherman 2, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate2.111688E-5

Rangitikei Offshore 1, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate7.970201E-6

Poroutawhao, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 6.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate2.5373274E-13

Okupe 1, 8.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate1.0057362E-5

Himatangi, 12.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate4.4387147E-5

Levin Anticline, 13.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate5.3176204E-6
