Northern Ohariu Details

Property	Value
Rupture Count	10,218
Ruptures Above Sect Min Mag	10,214
Ruptures w/ Nonzero Rates	139
Magnitude Range	[6.87, 8.47]
Length Range	[22, 1,031] km
Total Rate	2.6744654E-4 /yr
Multi-Fault Rate	2.6744654E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	140

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

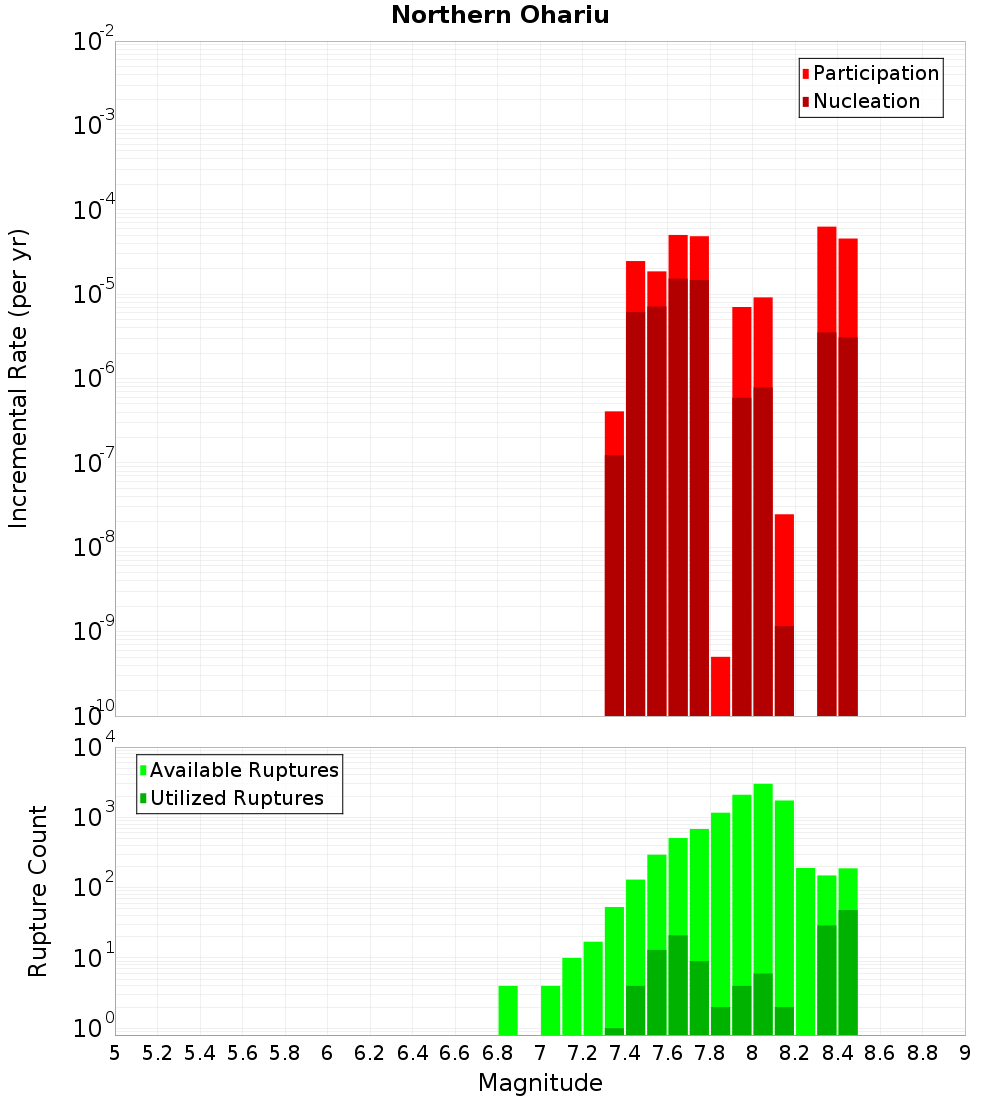

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

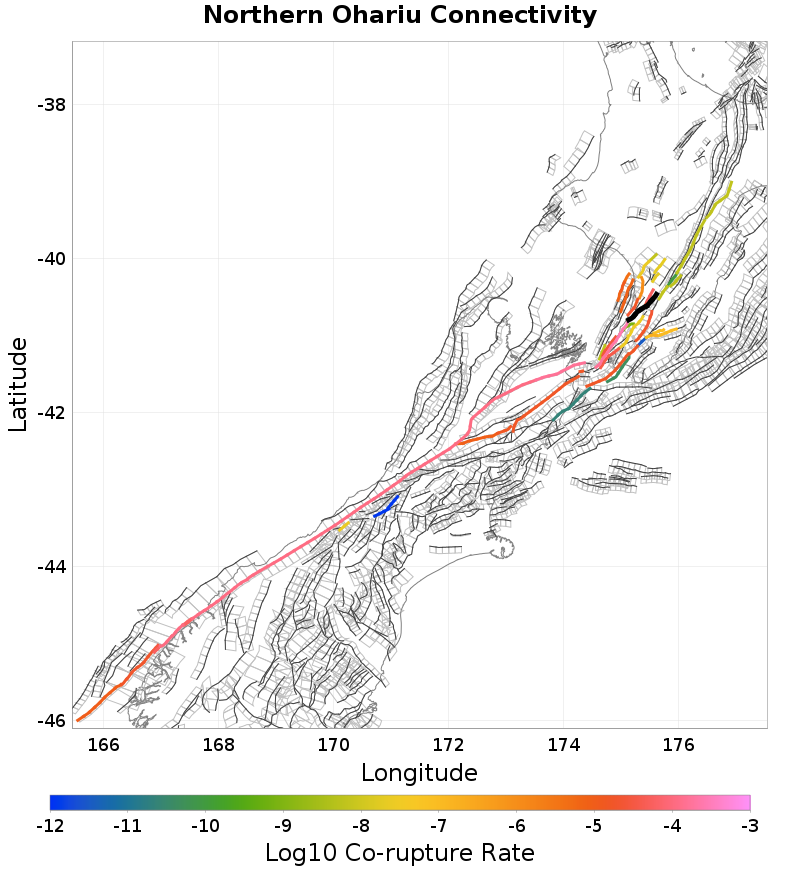

Connectivity

Nearby Sections

Fault Section
Tokomaru, 0.33 km away
Wellington: Tararua 3, 1.84 km away
Wellington: Pahiatua, 2.46 km away
Levin Anticline, 4.08 km away
Ohariu, 4.32 km away
Gibbs, 6.81 km away
Poroutawhao, 6.82 km away
Otaki Forks: 2, 7.03 km away
Otaki Forks: 1, 7.28 km away
Otaheke North, 11.55 km away
Otaheke South, 11.86 km away
Rangitikei Offshore 1, 12.12 km away
Pohangina, 13.14 km away

Tokomaru, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	true
Co-rupture Count	594
Co-rupture Rate	5.2700754E-5

Wellington: Tararua 3, 1.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,409
Co-rupture Rate	2.2142205E-5

Wellington: Pahiatua, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	true
Co-rupture Count	8,204
Co-rupture Rate	6.202323E-9

Levin Anticline, 4.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu, 4.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	true
Co-rupture Count	5,917
Co-rupture Rate	2.7776588E-4

Gibbs, 6.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	false
Co-rupture Count	284
Co-rupture Rate	8.69131E-10

Poroutawhao, 6.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	true
Co-rupture Count	191
Co-rupture Rate	2.1971986E-5

Otaki Forks: 2, 7.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,667
Co-rupture Rate	2.4663796E-8

Otaki Forks: 1, 7.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	false
Co-rupture Count	1,868
Co-rupture Rate	2.716703E-8

Otaheke North, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaheke South, 11.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Rangitikei Offshore 1, 12.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pohangina, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTMuMHVBaHlL
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	0.0
