Takapu Details
| Property | Value |
|---|---|
| Rupture Count | 31 |
| Ruptures Above Sect Min Mag | 26 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.80, 7.70] |
| Length Range | [19, 106] km |
| Total Rate | 2.3446257E-5 /yr |
| Multi-Fault Rate | 2.3446257E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

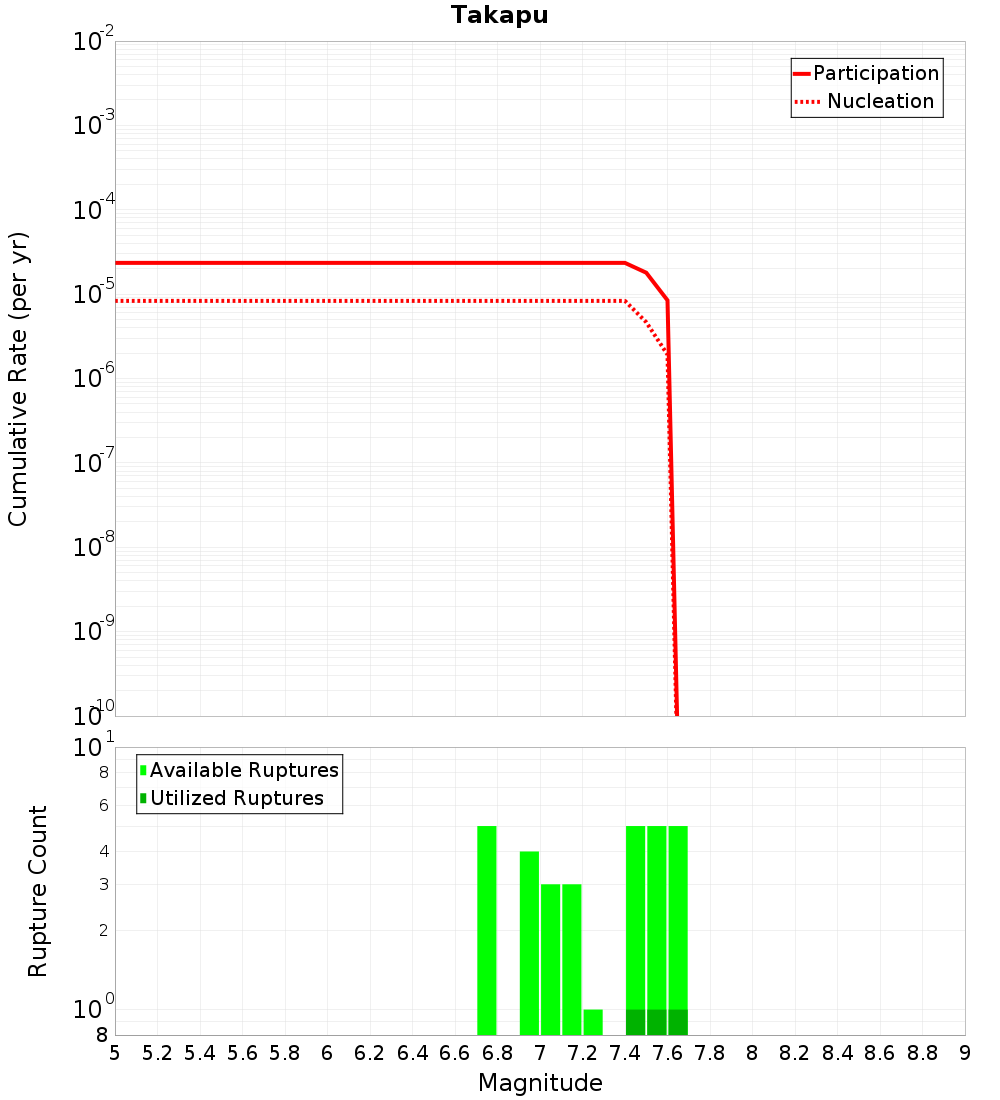

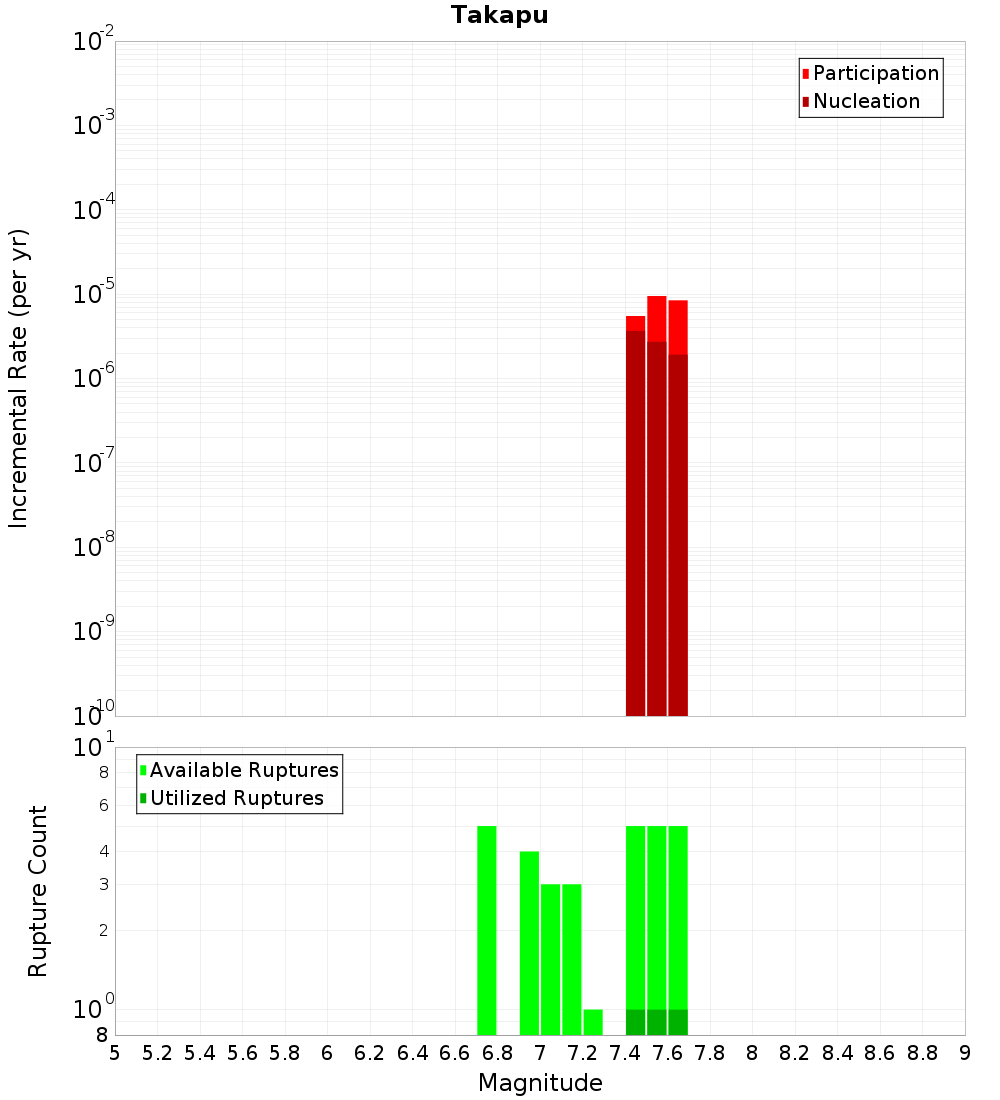

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

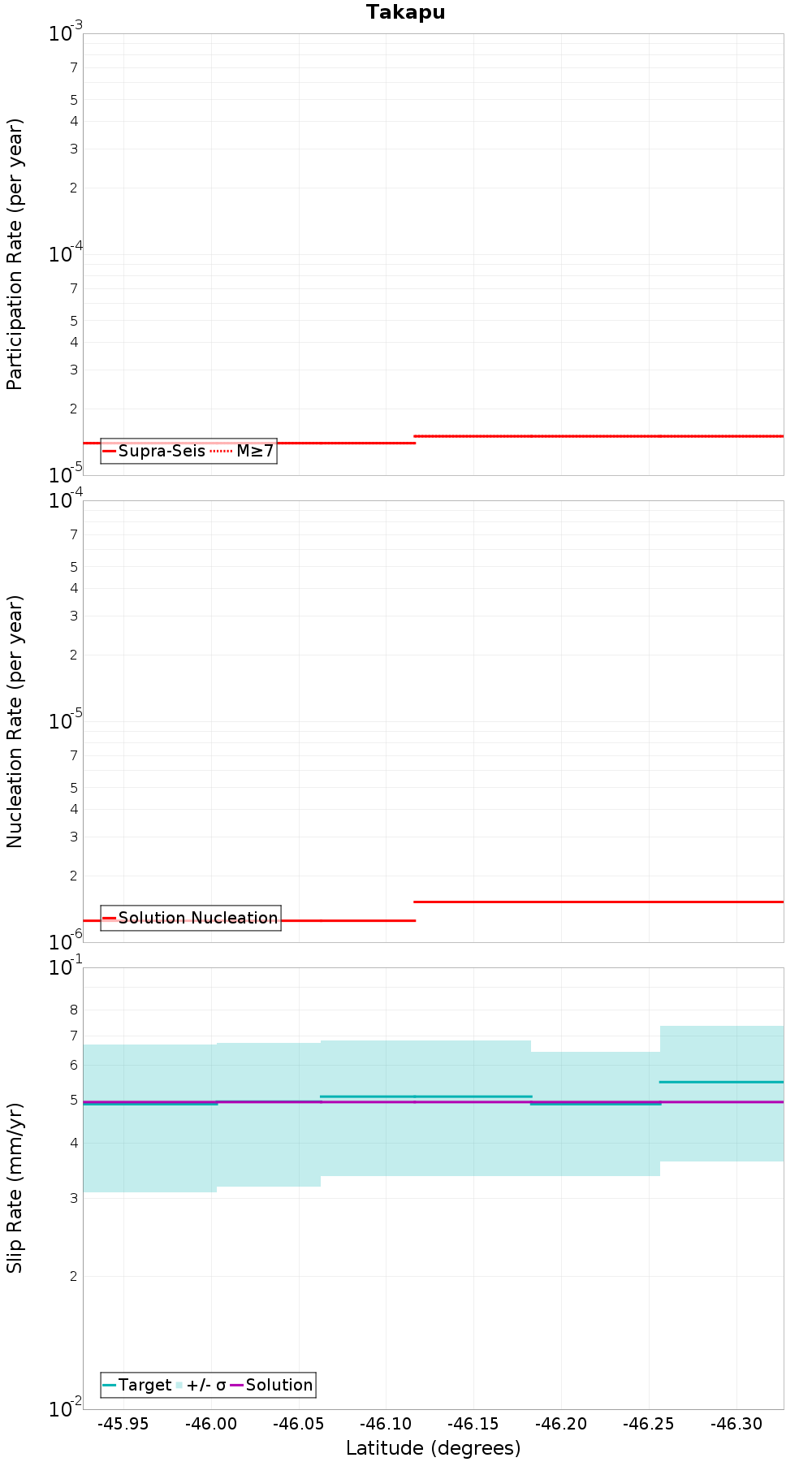

Along-Strike Values

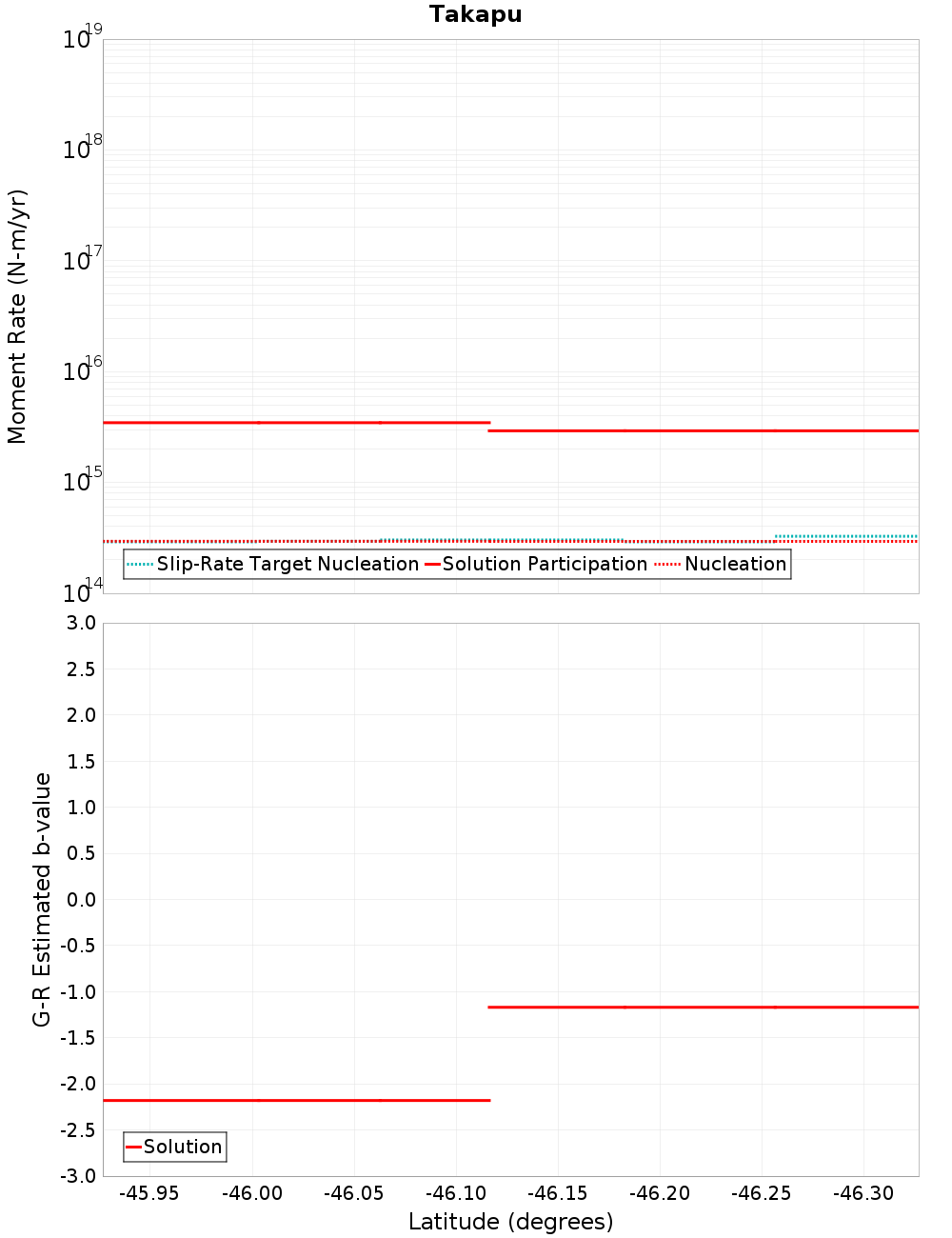

Moment-Rates and b-Values

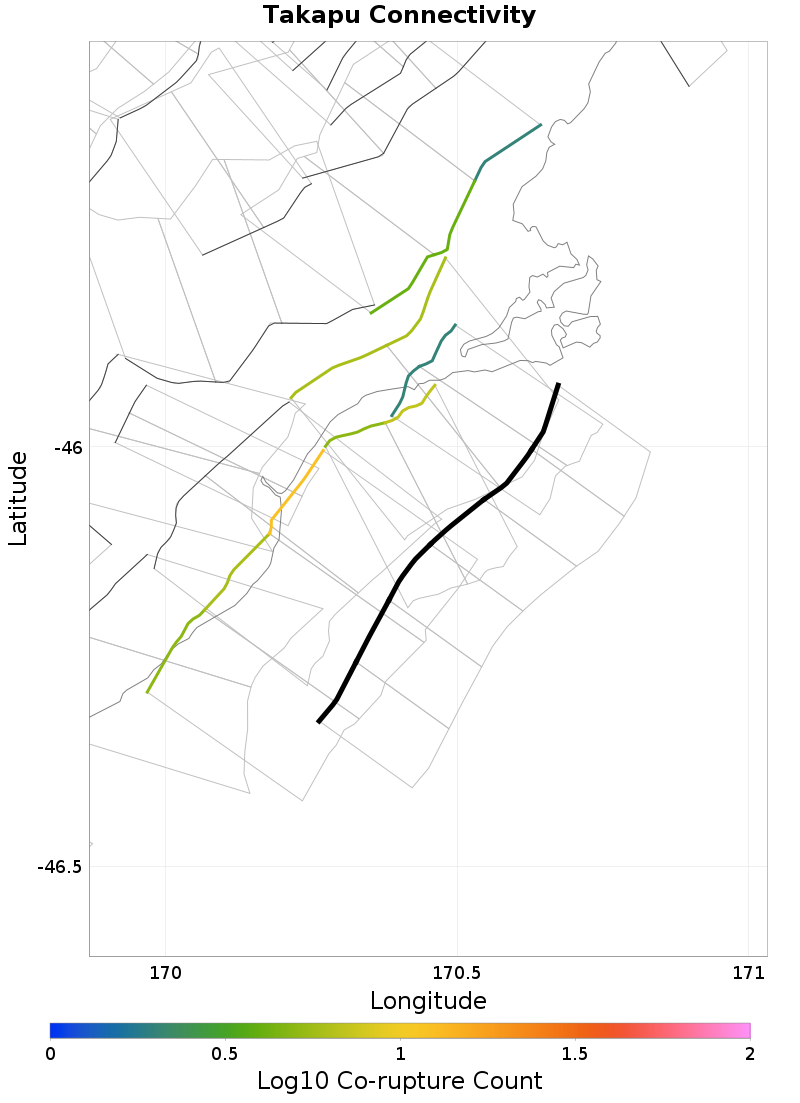

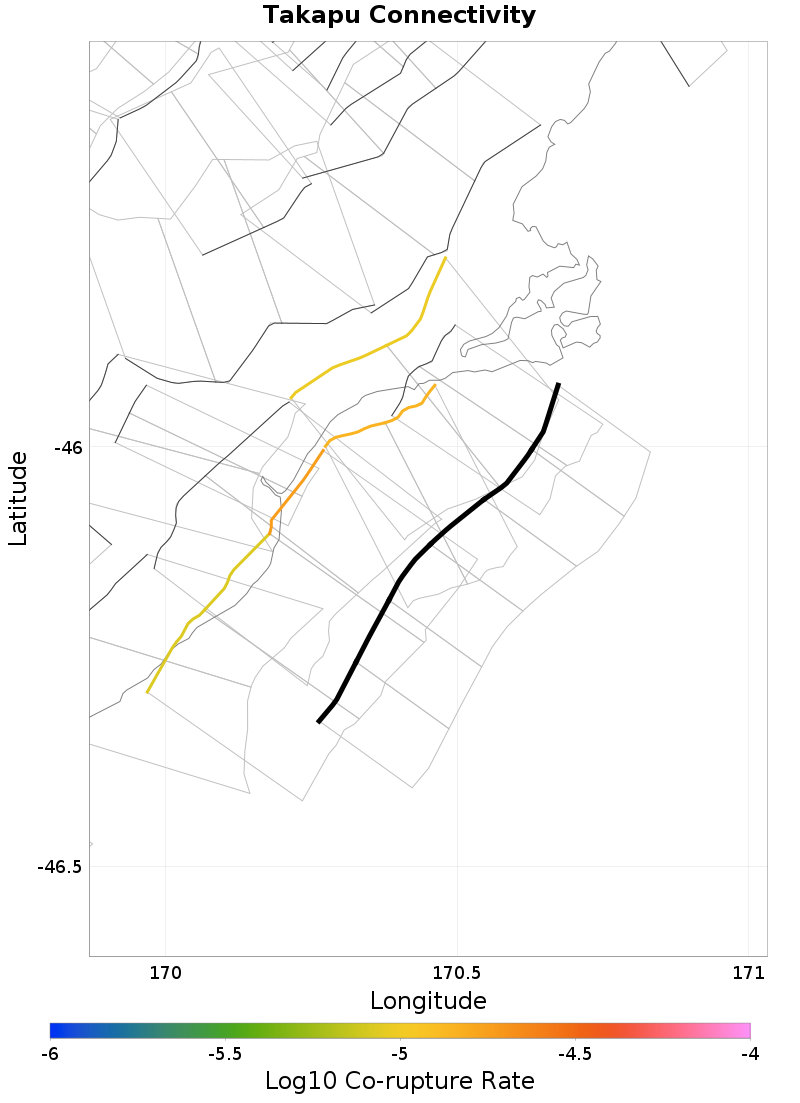

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Green Island, 10.64 km away |
| Kaikorai, 11.17 km away |
| Akatore, 12.82 km away |
| Titri North, 15.38 km away |
| Titri Central, 18.86 km away |
Green Island, 10.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMGhZY2l4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.39491585E-5 |
Kaikorai, 11.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMGhZY2l4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Akatore, 12.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMGhZY2l4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.7941544E-5 |
Titri North, 15.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMGhZY2l4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 9.497098E-6 |
Titri Central, 18.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMGhZY2l4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
