Uruti Point Details

PropertyValue
Rupture Count944
Ruptures Above Sect Min Mag939
Ruptures w/ Nonzero Rates11
Magnitude Range[6.44, 8.22]
Length Range[12, 495] km
Total Rate2.103254E-4 /yr
Multi-Fault Rate2.103254E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults59

Table Of Contents

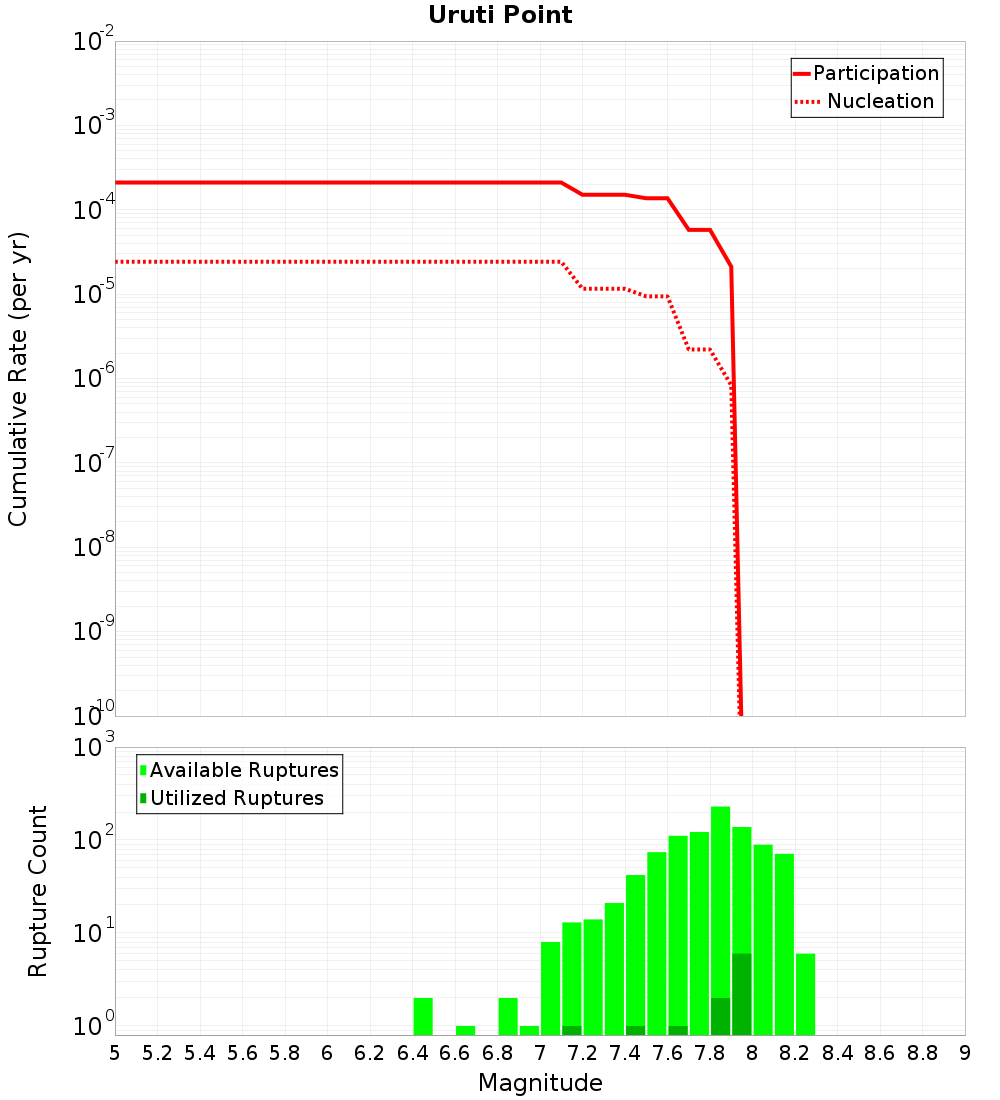

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

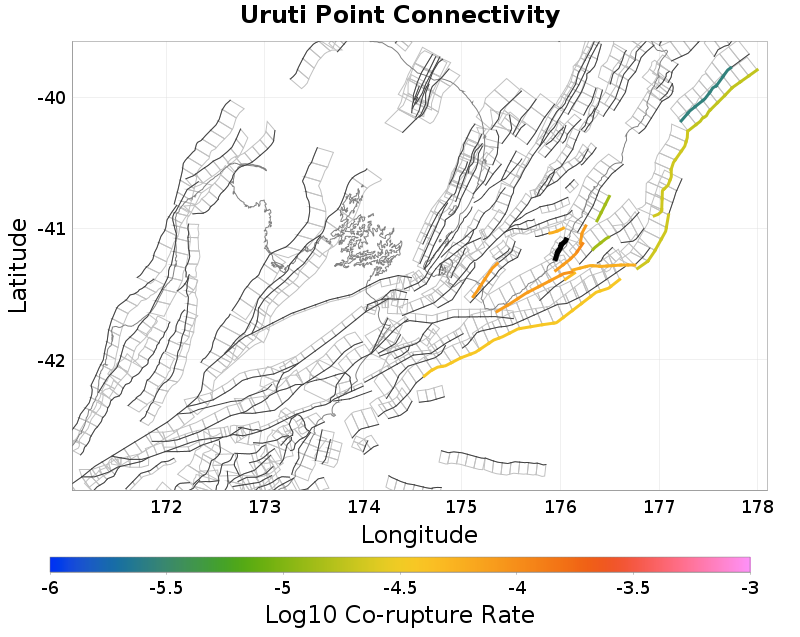

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Riversdale, 0.2 km away
Riversdale North, 3.13 km away
Palliser - Kaiwhata, 3.6 km away
Kaumingi, 8.98 km away
Honeycomb, 9.04 km away
Mataikona, 11.35 km away
Carterton, 12.06 km away
Whareama Bank, 12.23 km away
Uruti Basin, 17.49 km away
Masterton, 19.9 km away

Riversdale, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMHpqWGI3
Connected?true
Directly Connected?true
Co-rupture Count384
Co-rupture Rate1.6724184E-4

Riversdale North, 3.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMHpqWGI3
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate7.9043944E-5

Palliser - Kaiwhata, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMHpqWGI3
Connected?true
Directly Connected?true
Co-rupture Count721
Co-rupture Rate9.026272E-5

Kaumingi, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMHpqWGI3
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate5.987166E-5

Honeycomb, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMHpqWGI3
Connected?true
Directly Connected?true
Co-rupture Count181
Co-rupture Rate4.6599675E-5

Mataikona, 11.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMHpqWGI3
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate0.0

Carterton, 12.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMHpqWGI3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whareama Bank, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMHpqWGI3
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.3591334E-5

Uruti Basin, 17.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMHpqWGI3
Connected?true
Directly Connected?false
Co-rupture Count283
Co-rupture Rate5.7818455E-5

Masterton, 19.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NTQuMHpqWGI3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
