Glenbrook Details
| Property | Value |
|---|---|
| Rupture Count | 7 |
| Ruptures Above Sect Min Mag | 4 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.57, 7.16] |
| Length Range | [12, 47] km |
| Total Rate | 1.980087E-5 /yr |
| Multi-Fault Rate | 1.980087E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

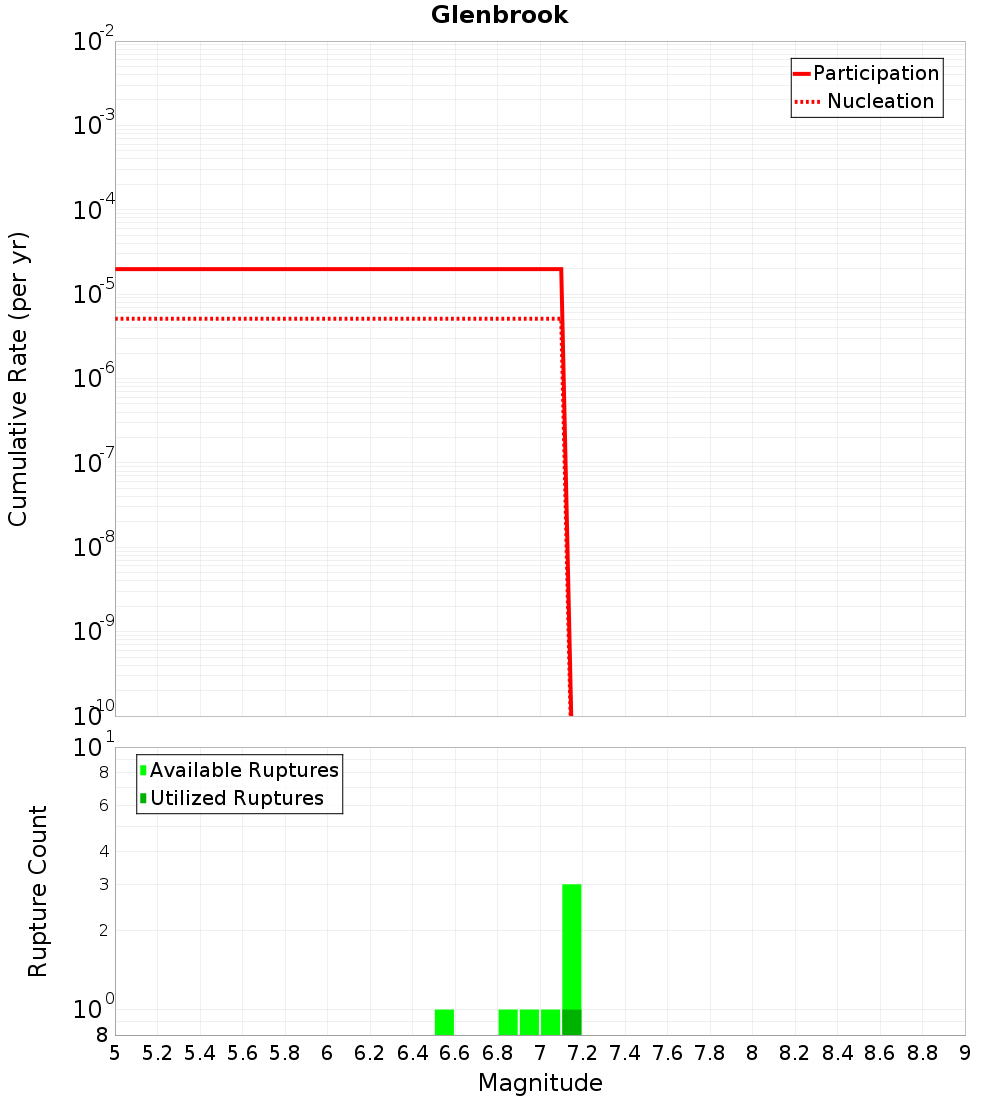

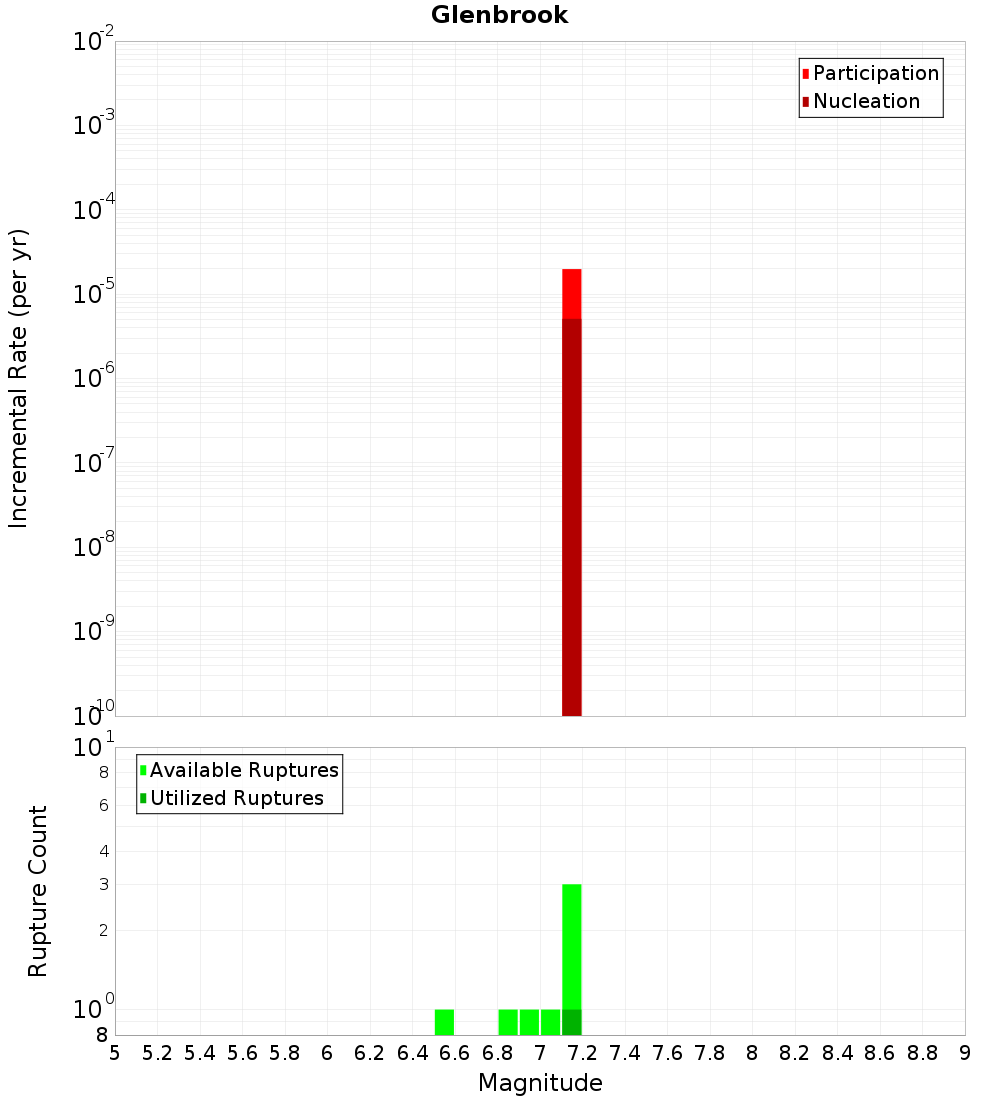

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

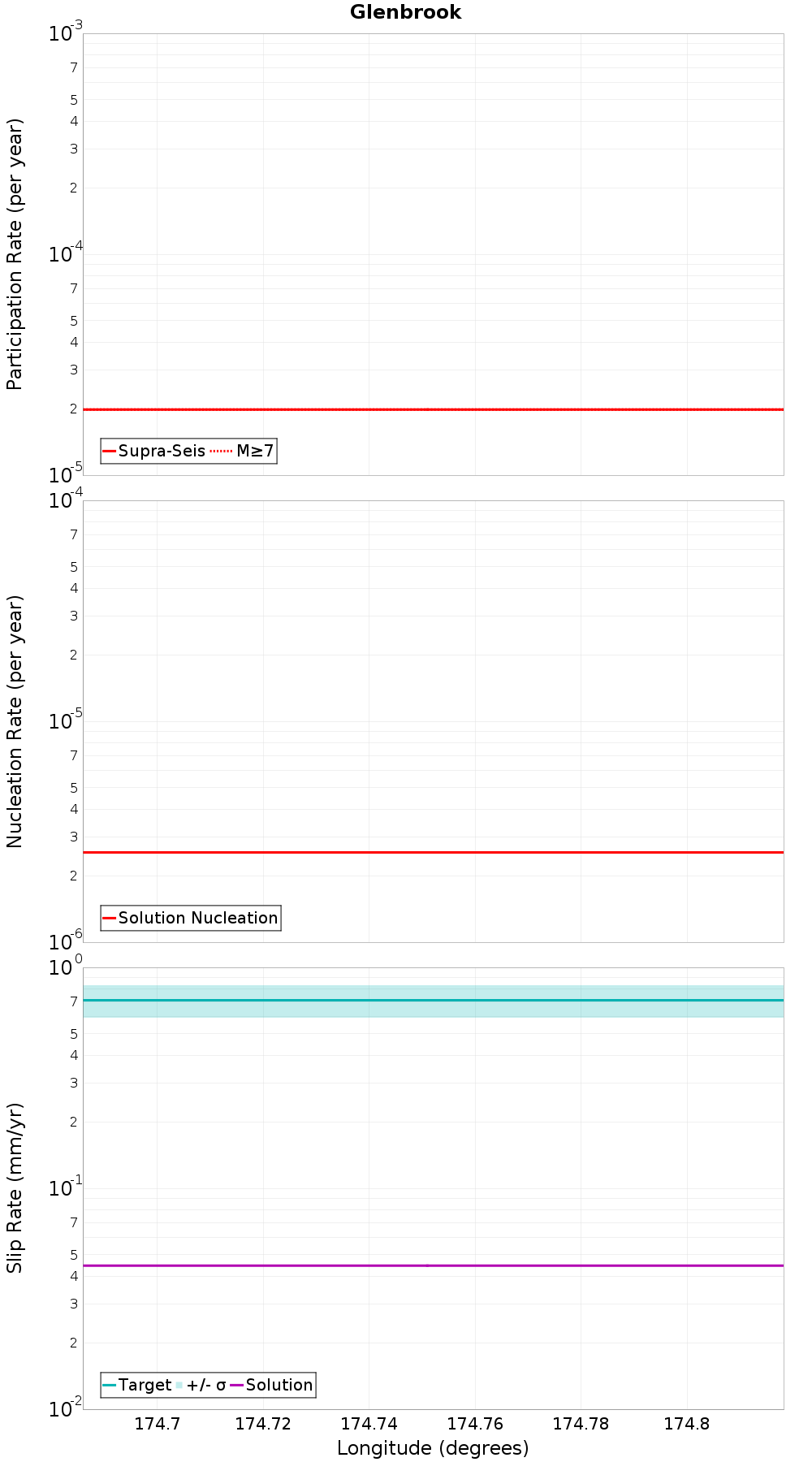

Along-Strike Values

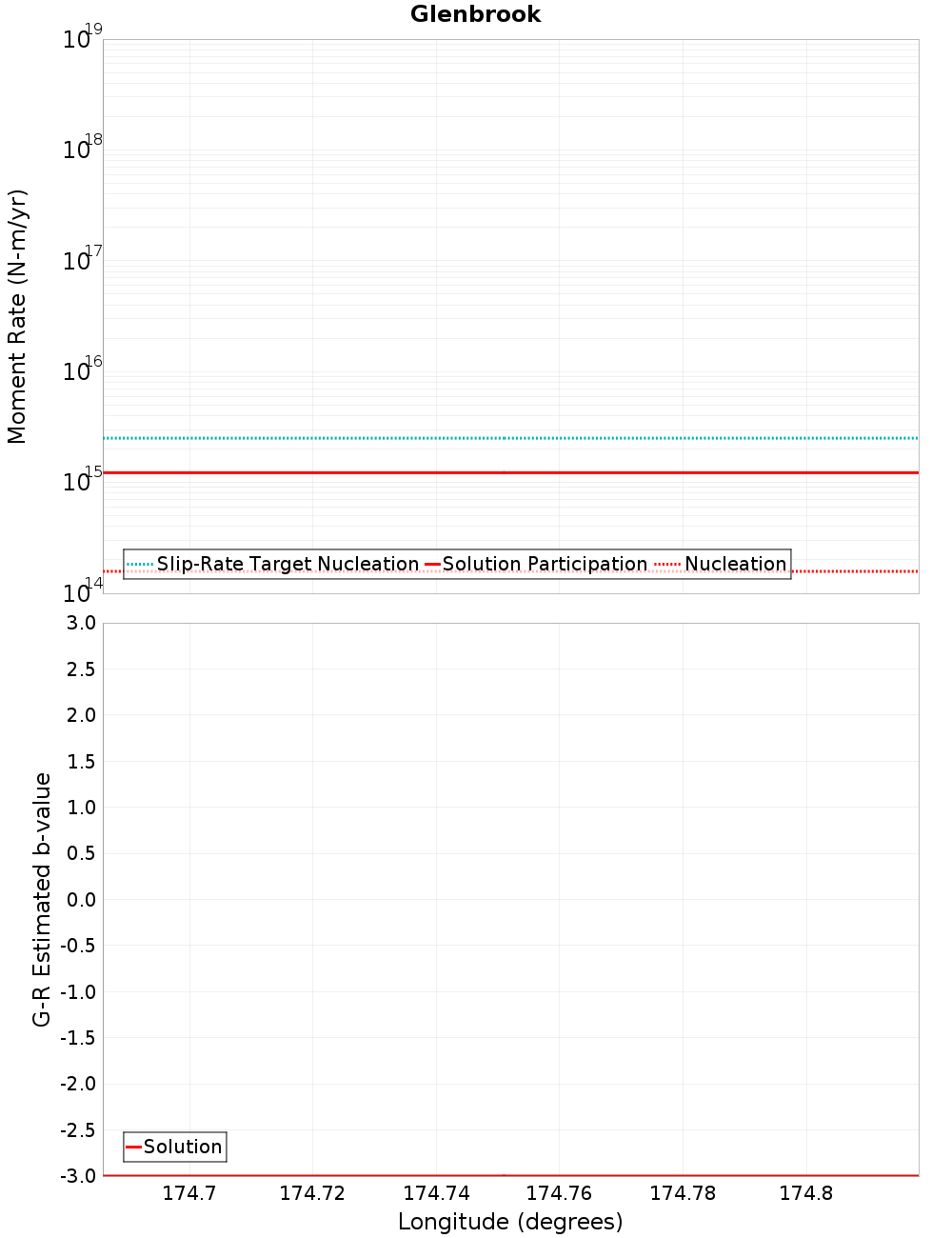

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| St Stephens, 0.54 km away |
| Drury, 5.17 km away |
| Pukekohe, 9.86 km away |
| Aka Aka, 12.76 km away |
| Wairoa North, 15.61 km away |
| Pokeno, 16.68 km away |
St Stephens, 0.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Drury, 5.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 1.980087E-5 |
Pukekohe, 9.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Aka Aka, 12.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairoa North, 15.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.980087E-5 |
Pokeno, 16.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
