Point Gibson Details

PropertyValue
Rupture Count273
Ruptures Above Sect Min Mag265
Ruptures w/ Nonzero Rates8
Magnitude Range[6.66, 8.01]
Length Range[17, 285] km
Total Rate2.3456529E-4 /yr
Multi-Fault Rate2.3456529E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults24

Table Of Contents

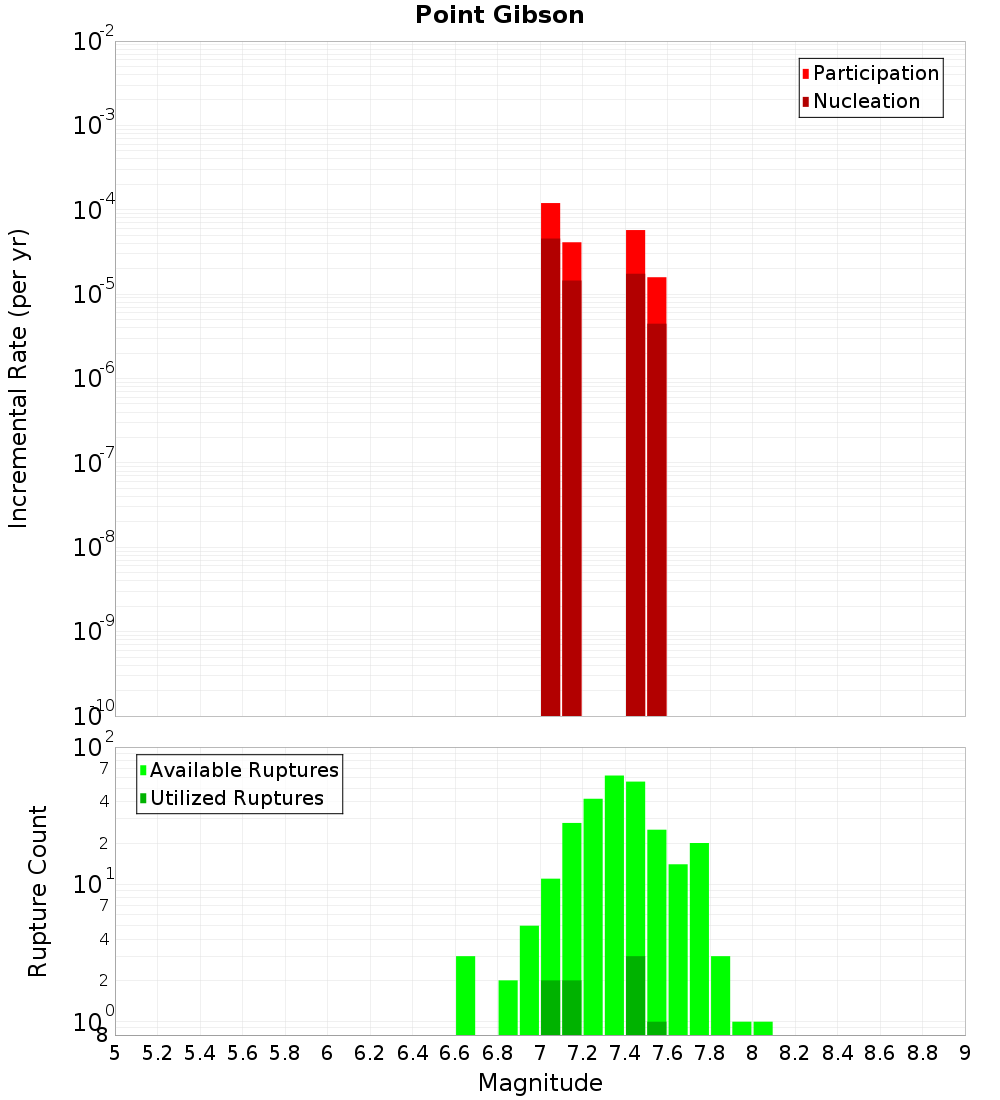

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

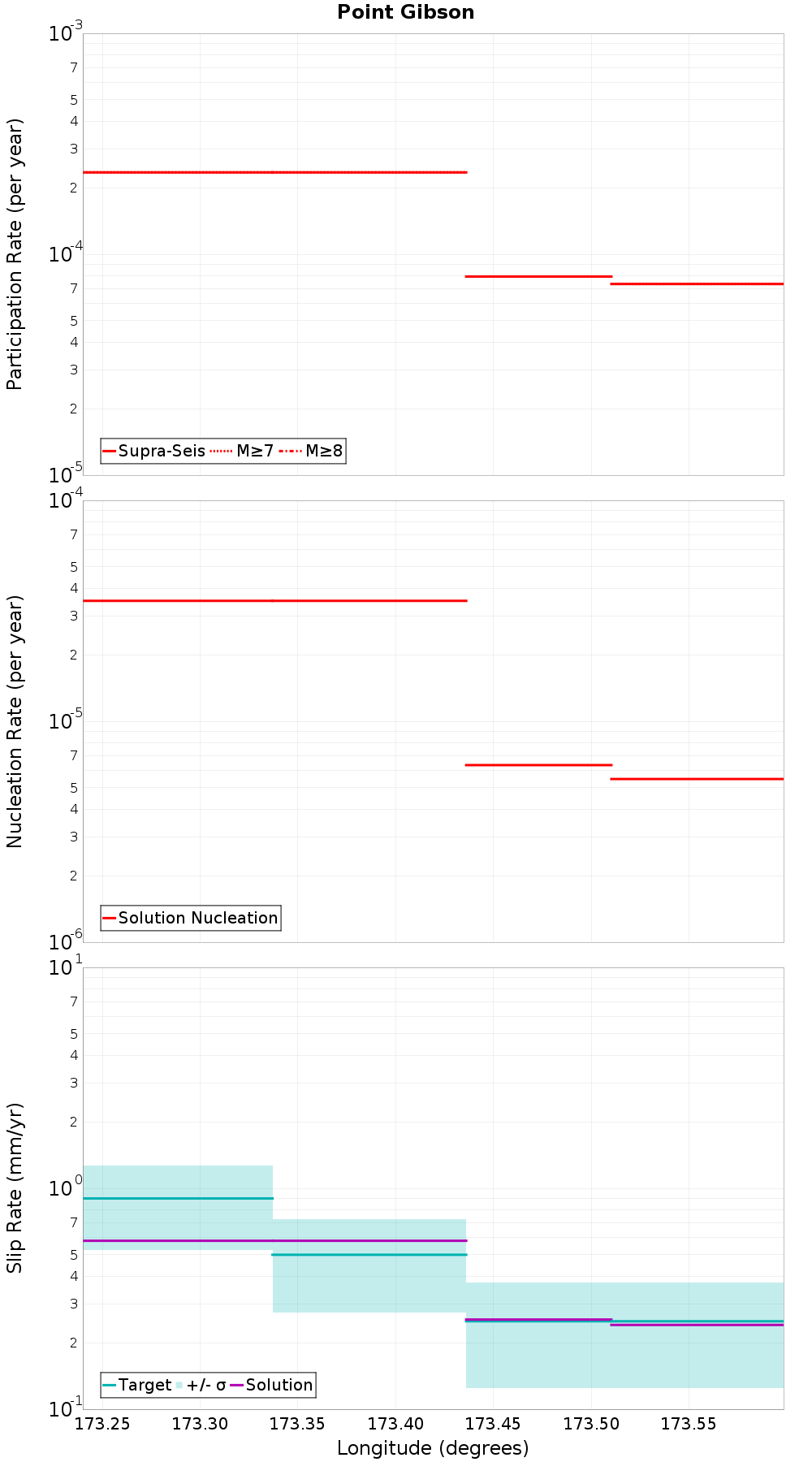

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

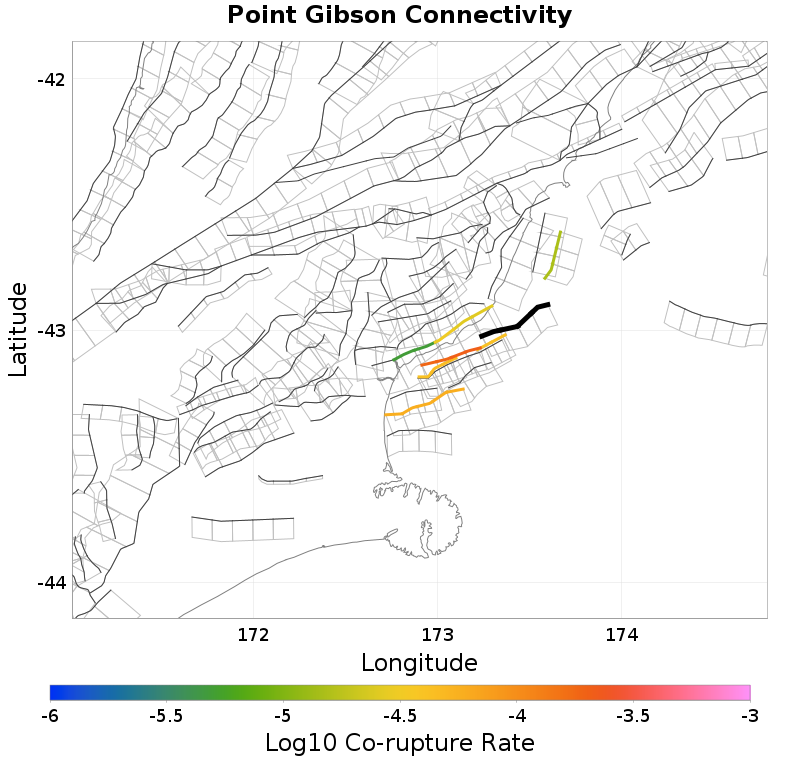

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 11, 2.05 km away
Leithfield - NCVI - NCVII, 3.66 km away
AmberBlyth, 4.29 km away
Motunau, 4.6 km away
OmihiLwrHuru, 9.05 km away
North Canterbury Shelf 4, 10.06 km away
Conway Trough East, 11.43 km away
Hawkswood, 11.9 km away
North Canterbury Shelf 2, 14.3 km away
Conway Trough West, 14.94 km away
Kaiwara South, 16.82 km away
Alexander, 19.75 km away

North Canterbury Shelf 11, 2.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate4.2524487E-5

Leithfield - NCVI - NCVII, 3.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count81
Co-rupture Rate0.0

AmberBlyth, 4.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count135
Co-rupture Rate3.0796466E-5

Motunau, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count125
Co-rupture Rate2.3456529E-4

OmihiLwrHuru, 9.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

North Canterbury Shelf 4, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

Conway Trough East, 11.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate1.4935125E-5

Hawkswood, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

North Canterbury Shelf 2, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate4.5691915E-5

Conway Trough West, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Kaiwara South, 16.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 19.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
