Rangitaiki 2 Details

PropertyValue
Rupture Count11,038
Ruptures Above Sect Min Mag11,035
Ruptures w/ Nonzero Rates58
Magnitude Range[6.66, 8.28]
Length Range[13, 557] km
Total Rate1.8173008E-4 /yr
Multi-Fault Rate1.8173008E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults81

Table Of Contents

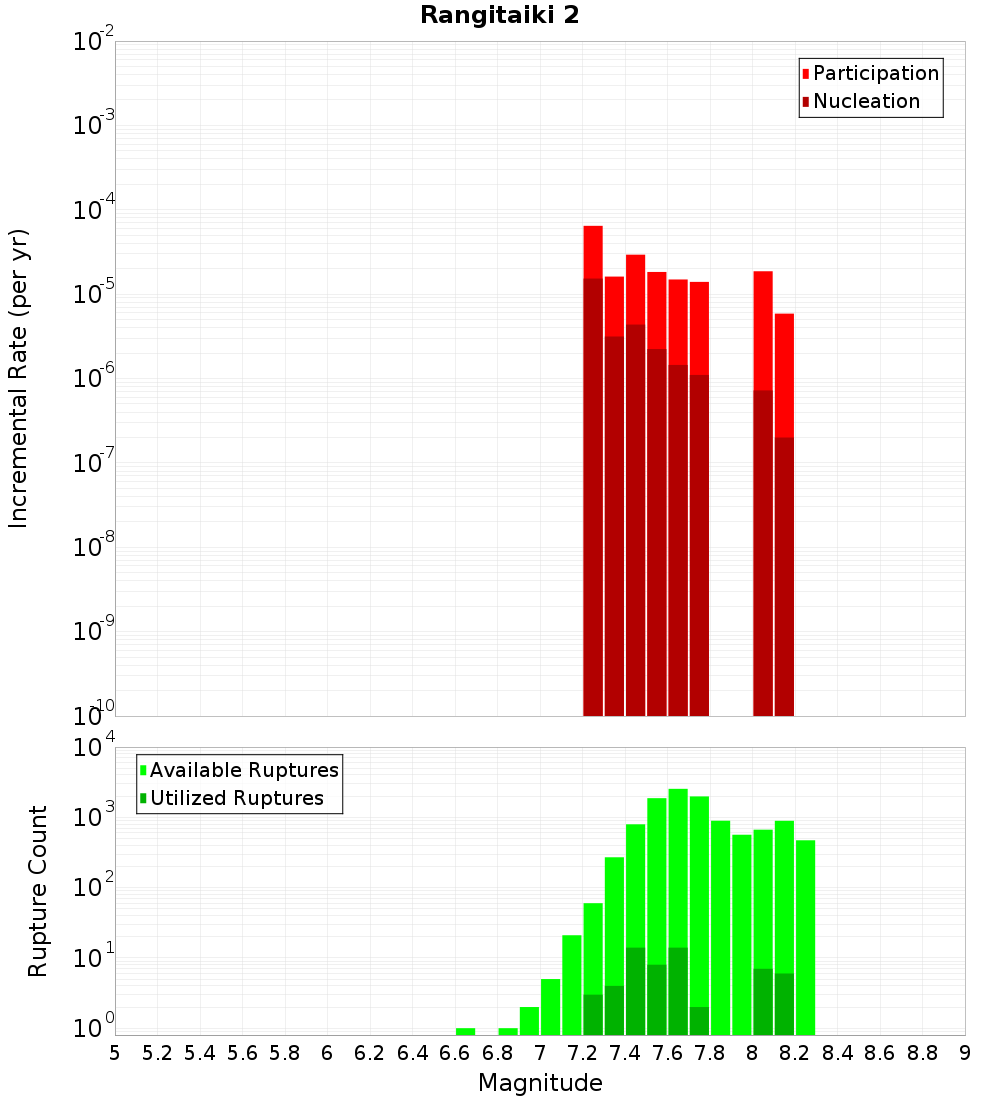

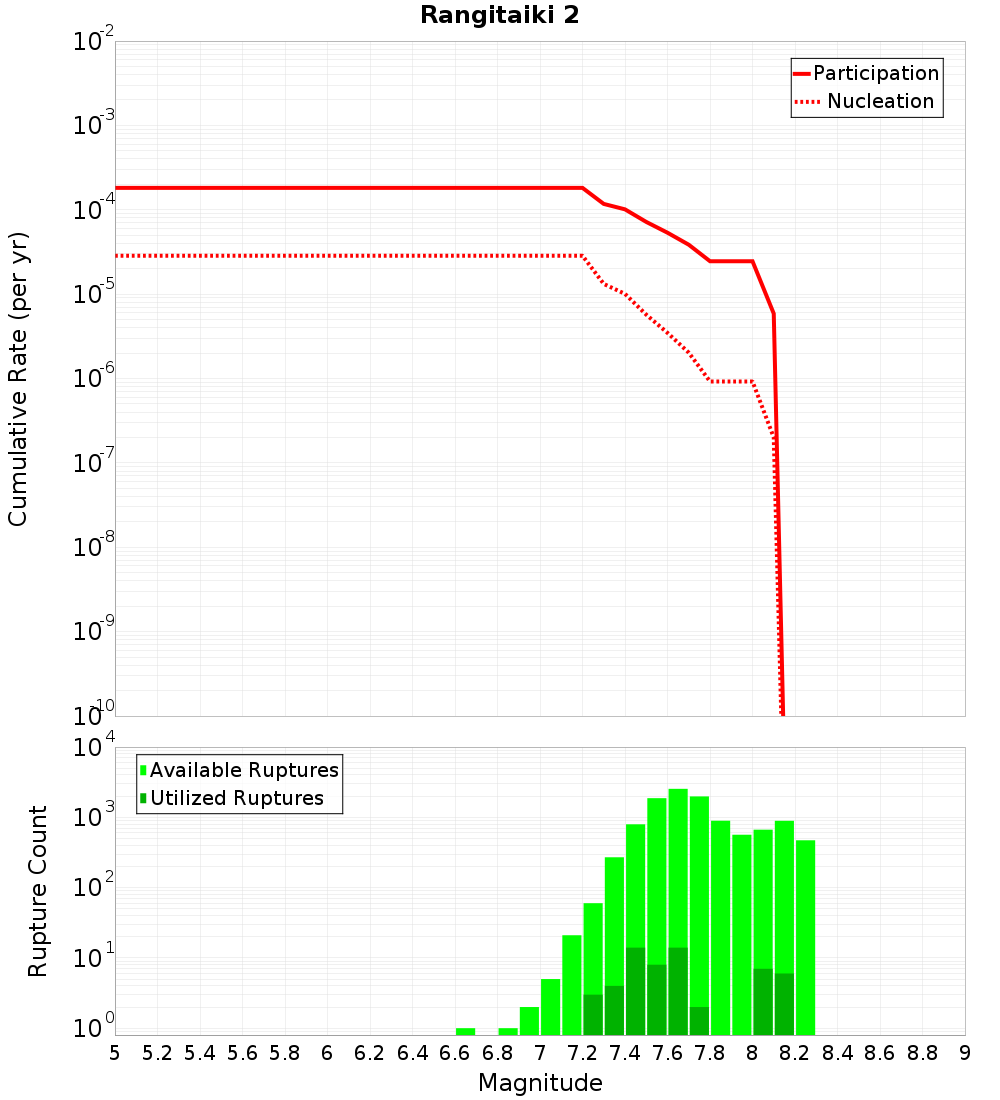

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

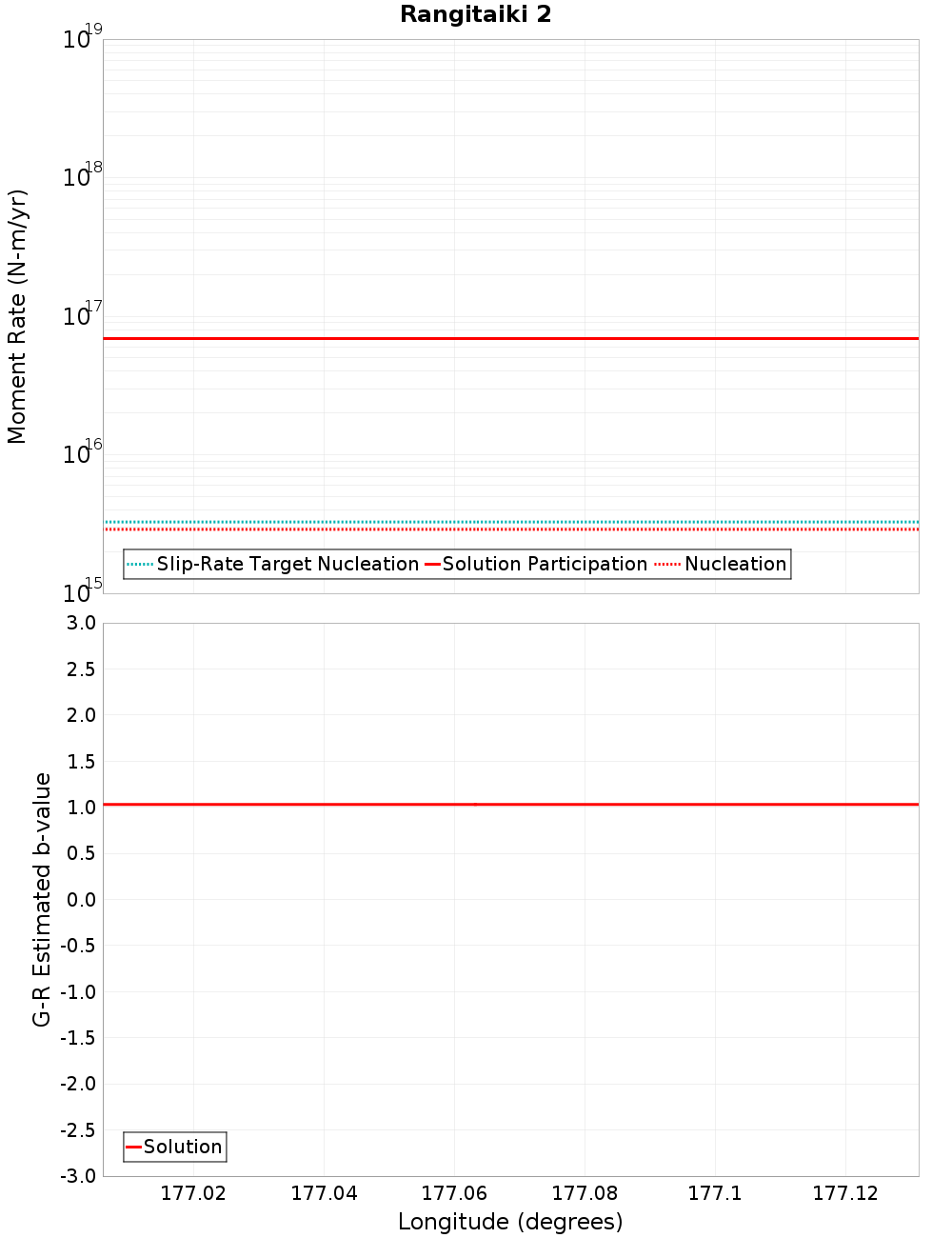

Moment-Rates and b-Values

(top)

Along-strike plot

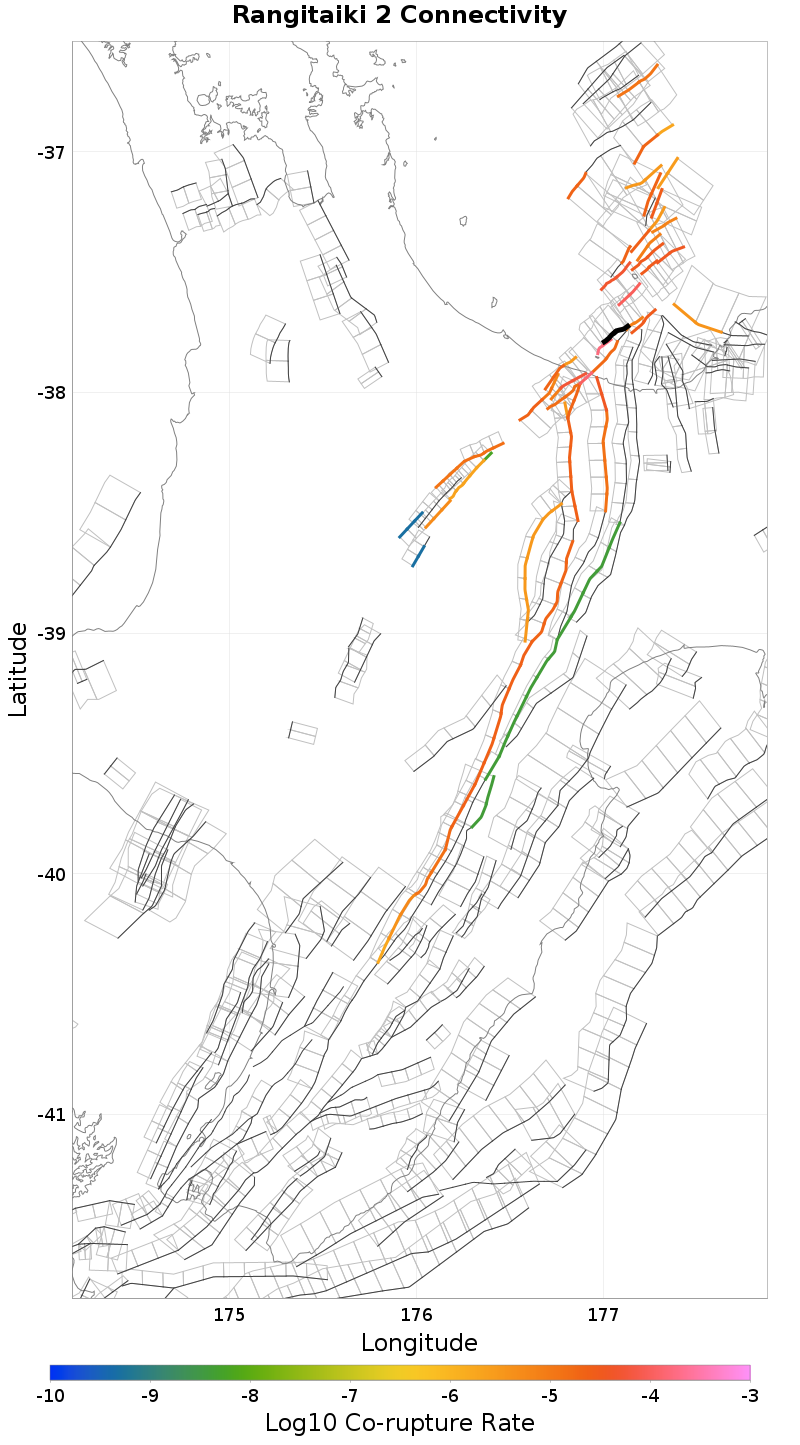

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohiwa 1, 0.42 km awayOhae 1, 14.97 km away
Whakaari 4, 0.45 km awayOpotiki 3, 15.11 km away
Rangitaiki 1, 0.74 km awayMatata, 15.14 km away
White Island 1, 0.77 km awayTe Arawa 1, 16.46 km away
White Island 2, 2.66 km awayWhakatane: North, 16.94 km away
Waimanawa - Waikaremoana, 6.46 km awayOtakiri, 17.19 km away
Calypso 2, 8.01 km awayVolkner 3, 17.97 km away
Waimana: North, 9.4 km awayOhae 2, 19.04 km away
Edgecumbe Coastal, 14.83 km awayTuatoru 1, 19.16 km away
Waiotahi: North, 14.87 km away

Ohiwa 1, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count3,225
Co-rupture Rate8.333891E-6

Whakaari 4, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count6,385
Co-rupture Rate5.0800176E-5

Rangitaiki 1, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count2,166
Co-rupture Rate1.6432714E-4

White Island 1, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count8,702
Co-rupture Rate1.7402941E-5

White Island 2, 2.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count2,173
Co-rupture Rate2.9533989E-5

Waimanawa - Waikaremoana, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?true
Co-rupture Count1,561
Co-rupture Rate9.724946E-5

Waimana: North, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count5,750
Co-rupture Rate1.4222159E-4

Waiotahi: North, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate0.0

Ohae 1, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count304
Co-rupture Rate0.0

Matata, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count3,687
Co-rupture Rate2.0613967E-5

Te Arawa 1, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count4,291
Co-rupture Rate3.17811E-5

Whakatane: North, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count1,073
Co-rupture Rate3.644176E-5

Otakiri, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count651
Co-rupture Rate5.5145934E-5

Volkner 3, 17.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count401
Co-rupture Rate2.1861792E-5

Ohae 2, 19.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 19.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?true
Directly Connected?false
Co-rupture Count1,252
Co-rupture Rate3.0264184E-5
