Wairau Details
| Property | Value |
|---|---|
| Rupture Count | 27,376 |
| Ruptures Above Sect Min Mag | 27,363 |
| Ruptures w/ Nonzero Rates | 31 |
| Magnitude Range | [6.80, 8.63] |
| Length Range | [20, 1,119] km |
| Total Rate | 3.5553097E-4 /yr |
| Multi-Fault Rate | 3.5553097E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 100 |
Table Of Contents

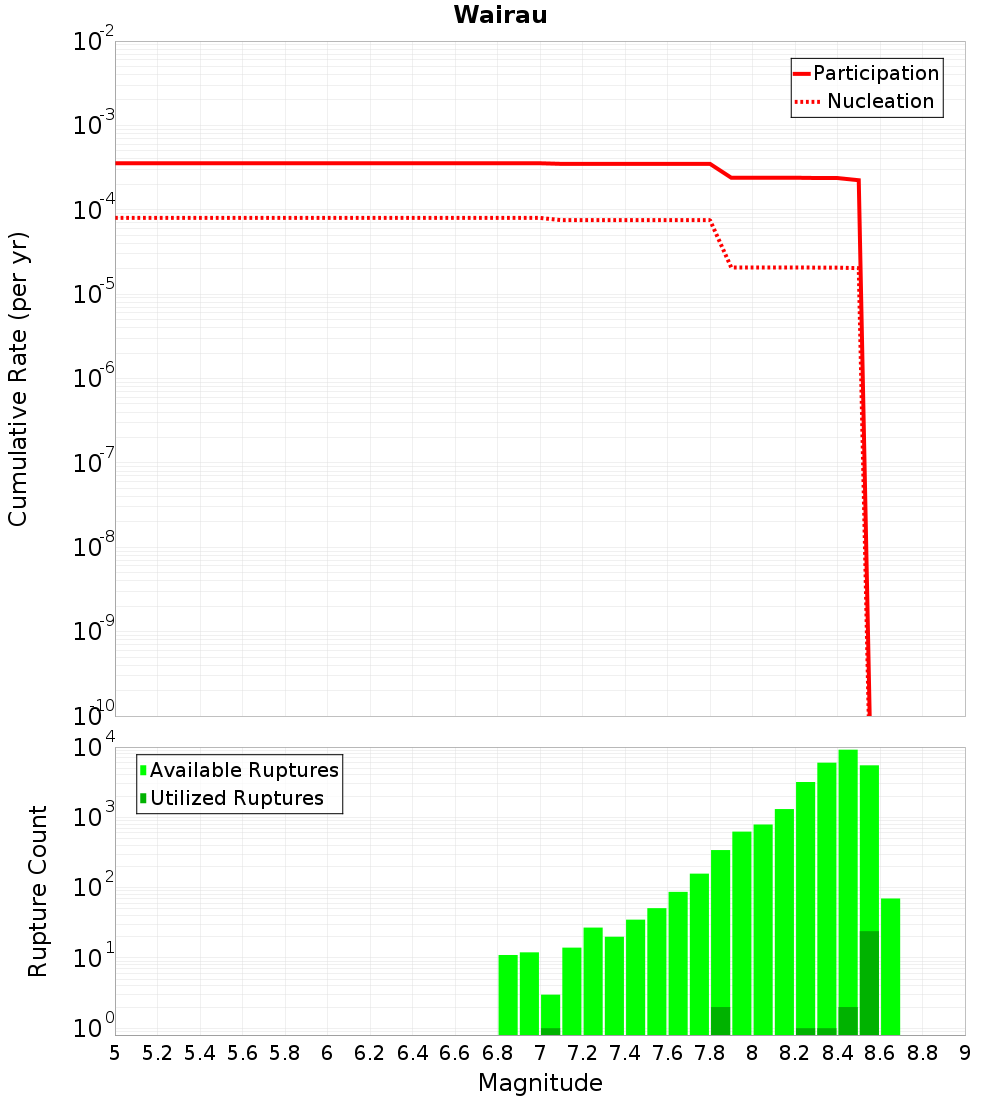

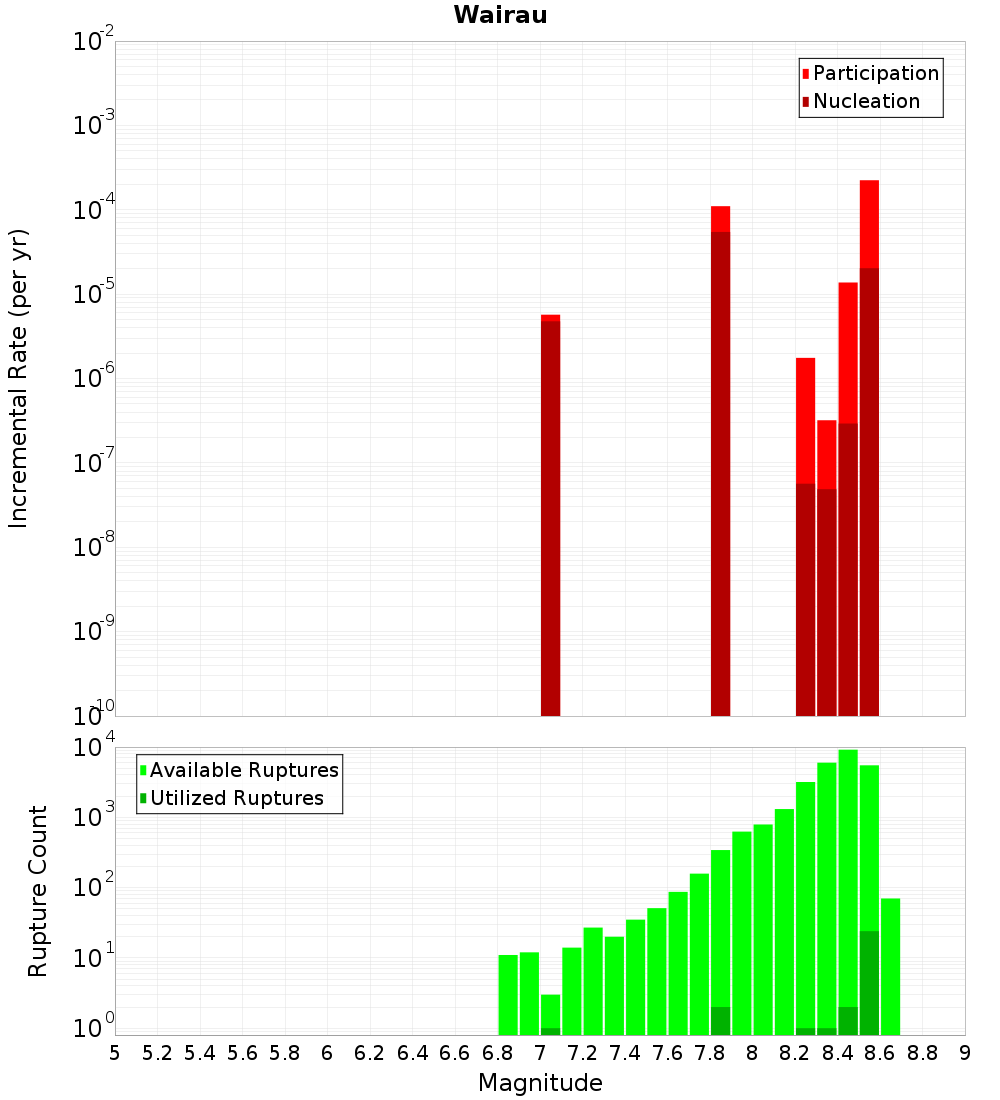

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

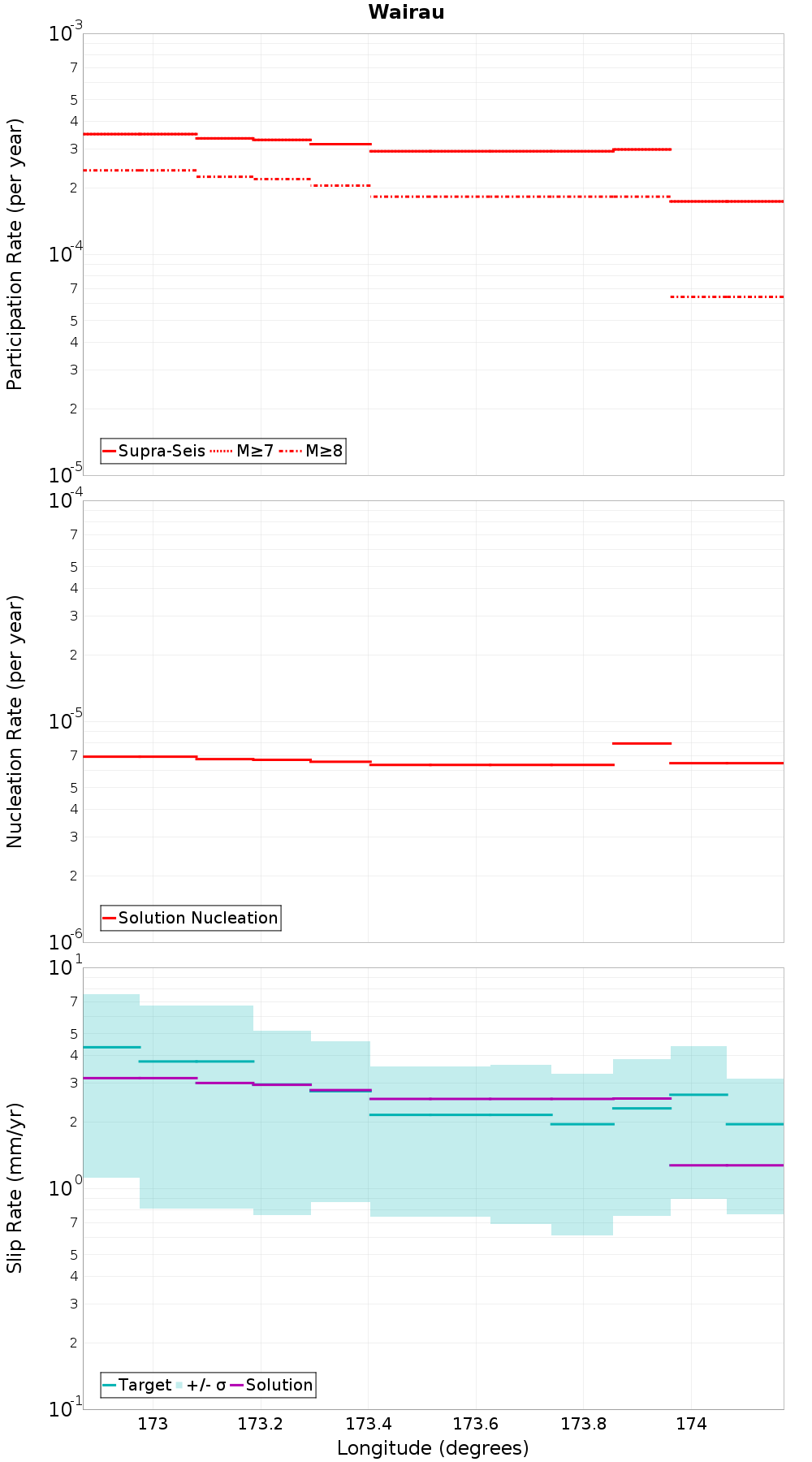

Along-Strike Values

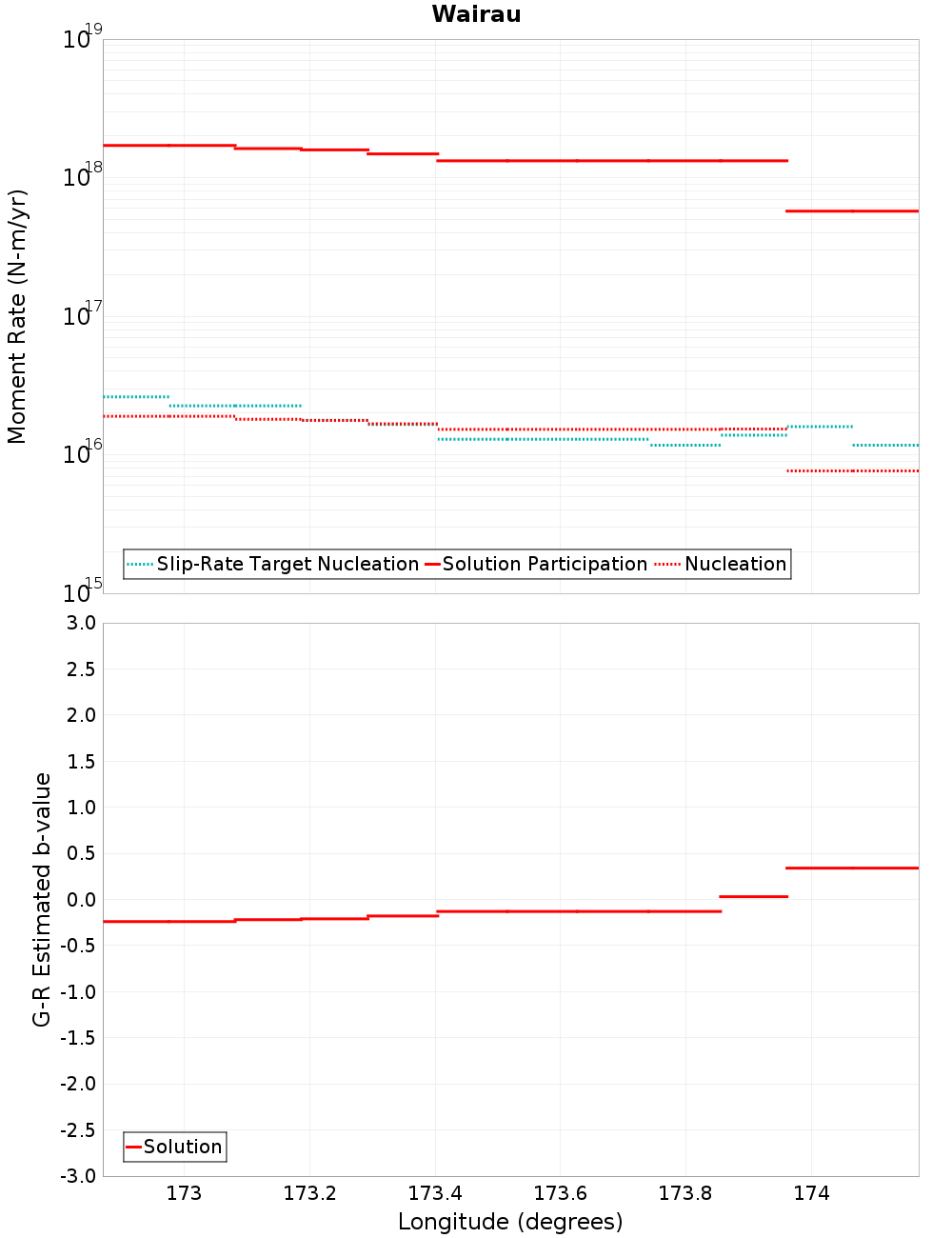

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Wairau 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18,998 |
| Co-rupture Rate | 6.411476E-5 |
Whangamoa, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Alpine: Springs Junction to Tophouse, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 25,103 |
| Co-rupture Rate | 3.4982432E-4 |
Flaxmore - Waimea - Tahunanui, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,456 |
| Co-rupture Rate | 1.5492053E-5 |
Tutaki, 7.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 79 |
| Co-rupture Rate | 1.10224726E-4 |
Awatere: Northeast 1, 11.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 745 |
| Co-rupture Rate | 0.0 |
Awatere: Northeast 2, 12.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,430 |
| Co-rupture Rate | 1.1800696E-4 |
Cloudy 2, 12.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 105 |
| Co-rupture Rate | 5.478463E-6 |
Cloudy 1, 12.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 378 |
| Co-rupture Rate | 5.478463E-6 |
Wairau 3, 13.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 1, 14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 728 |
| Co-rupture Rate | 1.3033097E-4 |
Vernon 2, 14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Ruby Bay - Moutere, 14.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 3, 15.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 3, 15.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18,667 |
| Co-rupture Rate | 6.411476E-5 |
Ohariu South 1, 16.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 4, 17.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 143 |
| Co-rupture Rate | 0.0 |
