Wheao: North Details

Property	Value
Rupture Count	16,903
Ruptures Above Sect Min Mag	16,901
Ruptures w/ Nonzero Rates	23
Magnitude Range	[6.57, 8.39]
Length Range	[11, 692] km
Total Rate	5.0648123E-5 /yr
Multi-Fault Rate	5.0648123E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	84

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

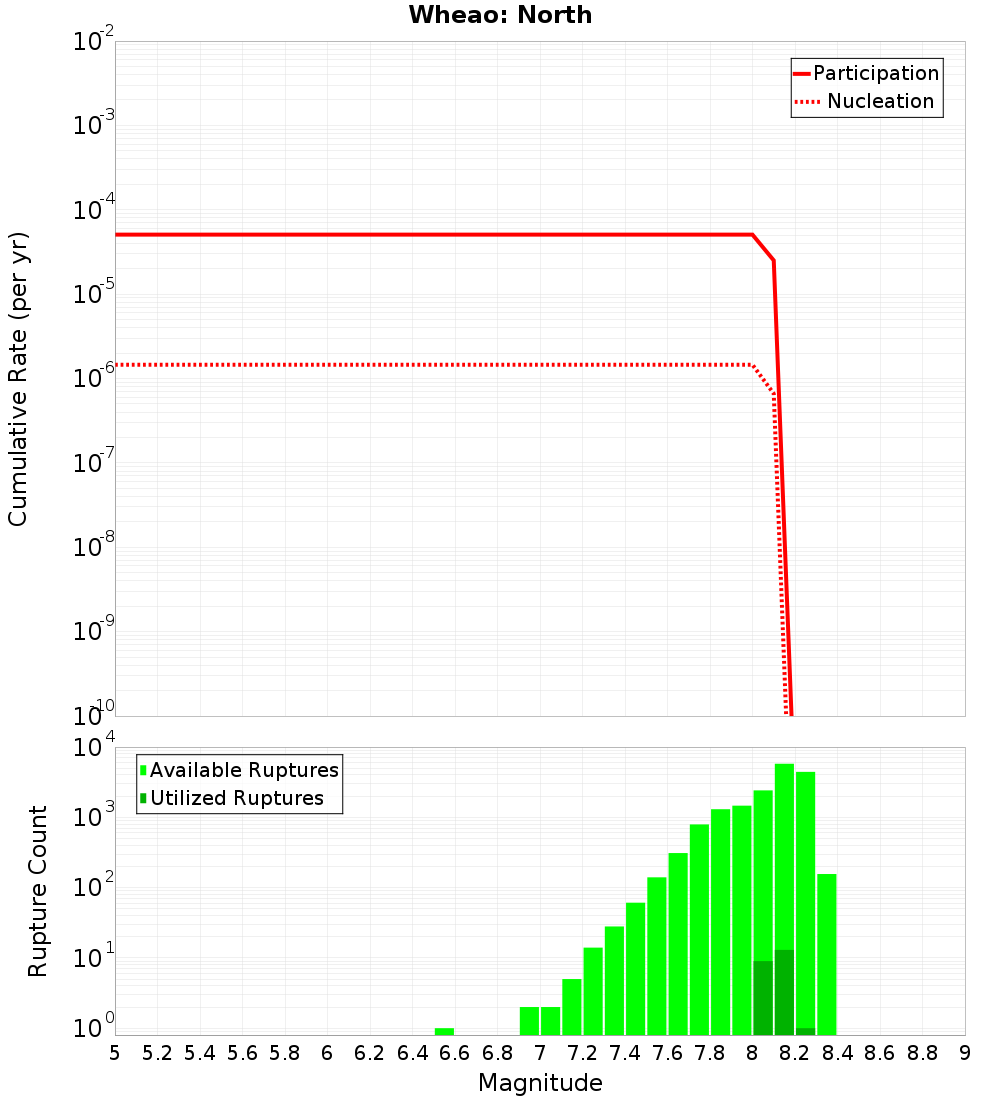

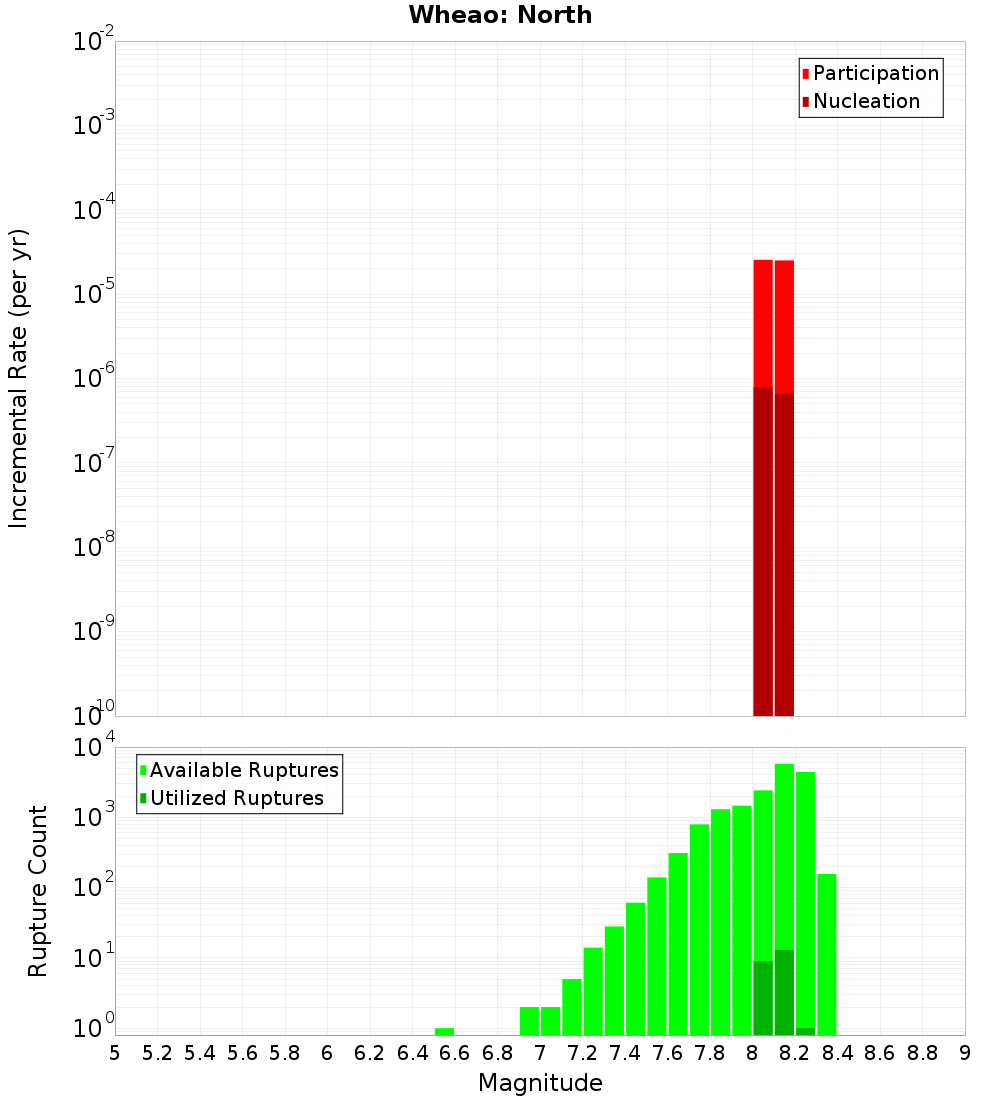

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wheao: South, 0 km away
Te Whaiti North, 0 km away
Te Whaiti South, 0 km away
Waiohau: North, 2.44 km away
Waiohau: South, 10.36 km away
Whakatane: North, 17.55 km away

Wheao: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?	true
Directly Connected?	true
Co-rupture Count	16,570
Co-rupture Rate	5.0648123E-5

Te Whaiti North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Whaiti South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiohau: North, 2.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?	true
Directly Connected?	true
Co-rupture Count	16,355
Co-rupture Rate	5.0648123E-5

Waiohau: South, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 17.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NjIuMEZqTkpH
Connected?	true
Directly Connected?	false
Co-rupture Count	122
Co-rupture Rate	0.0
