OmihiLwrHuru Details

PropertyValue
Rupture Count423
Ruptures Above Sect Min Mag416
Ruptures w/ Nonzero Rates8
Magnitude Range[6.76, 7.87]
Length Range[18, 238] km
Total Rate1.8665908E-4 /yr
Multi-Fault Rate1.8665908E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults29

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

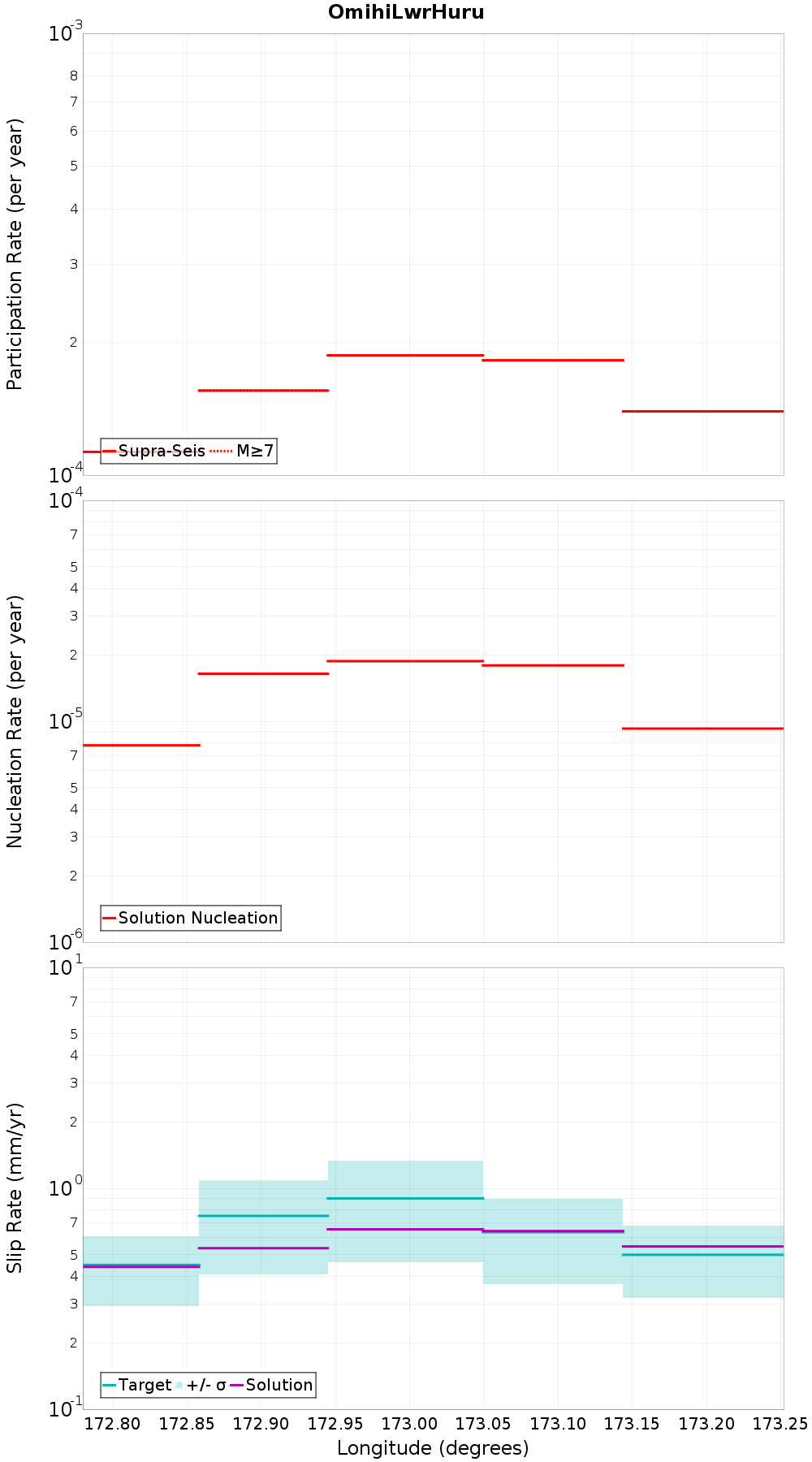

Along-Strike Values

(top)

Along-strike plot

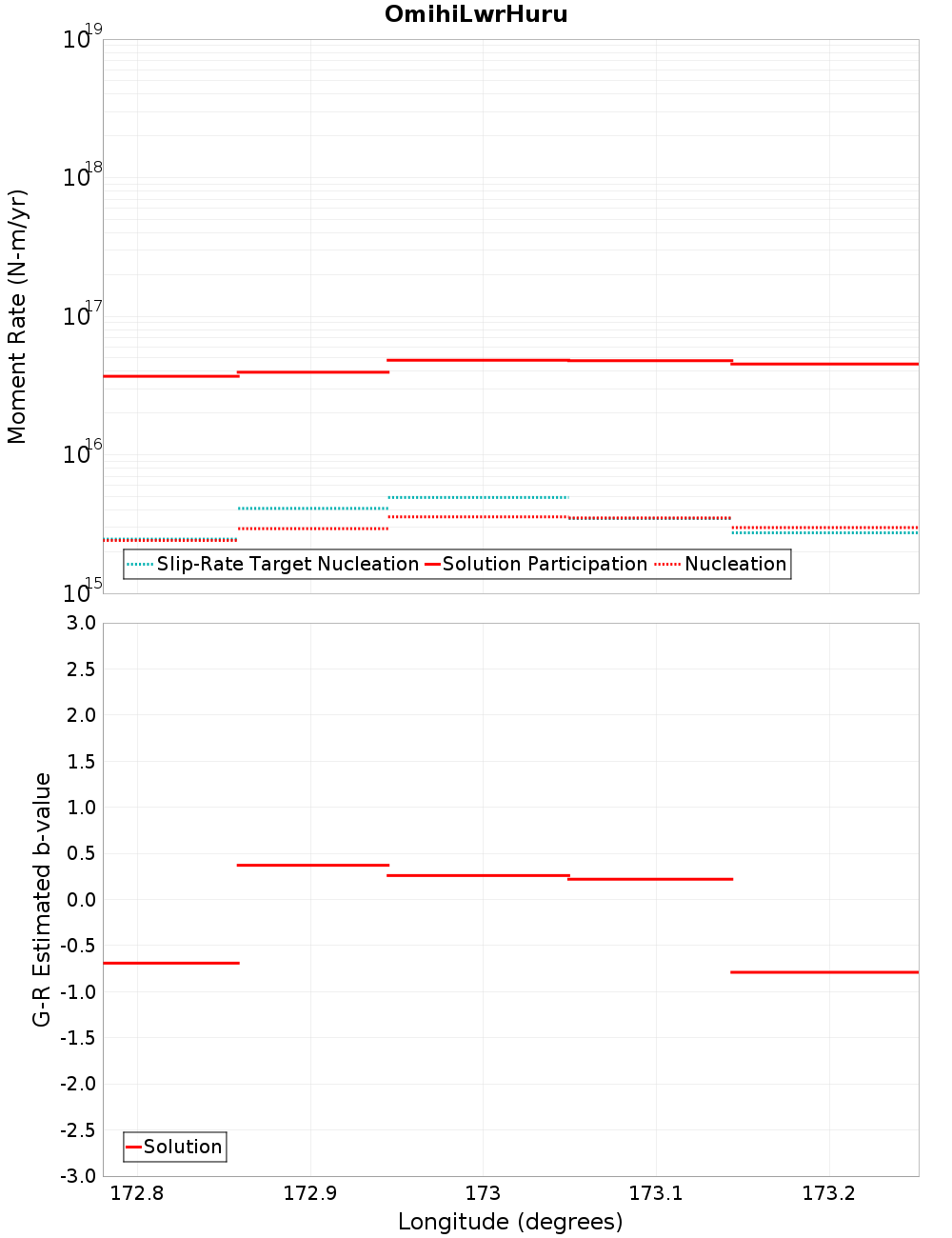

Moment-Rates and b-Values

(top)

Along-strike plot

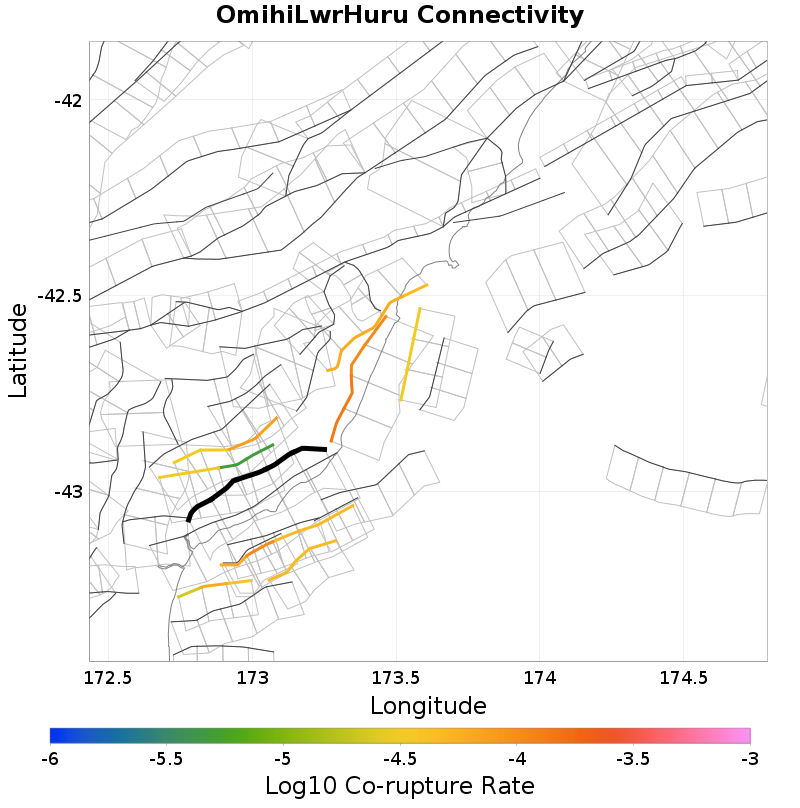

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Boby Stream, 0.79 km awayNorth Canterbury Shelf 2, 11.23 km away
AmberBlyth, 1.98 km awayLowry, 11.55 km away
Kaiwara South, 3.01 km awayNorth Canterbury Shelf 11, 11.78 km away
Hawkswood, 3.06 km awayDoctors, 12.16 km away
Alexander, 6.66 km awayWaikuku, 14.73 km away
Motunau, 8.85 km awayLeonard Mound, 16.28 km away
Point Gibson, 9.05 km awayBalmoral, 18.15 km away
Kaiwara North, 10.71 km awayNorth Canterbury Shelf 4, 19.34 km away
Leithfield - NCVI - NCVII, 11.17 km away

Boby Stream, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

AmberBlyth, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate0.0

Kaiwara South, 3.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate3.601399E-5

Hawkswood, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?true
Co-rupture Count362
Co-rupture Rate1.3939875E-4

Alexander, 6.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate7.377396E-5

Motunau, 8.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Point Gibson, 9.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Kaiwara North, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate0.0

Leithfield - NCVI - NCVII, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?true
Co-rupture Count82
Co-rupture Rate1.0813494E-4

North Canterbury Shelf 2, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate0.0

Lowry, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate0.0

North Canterbury Shelf 11, 11.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Doctors, 12.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Waikuku, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate6.09648E-5

Leonard Mound, 16.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Balmoral, 18.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 4, 19.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate4.7170135E-5
