Wellington Hutt Valley: 3 Details

PropertyValue
Rupture Count4,525
Ruptures Above Sect Min Mag4,523
Ruptures w/ Nonzero Rates13
Magnitude Range[6.58, 8.28]
Length Range[11, 541] km
Total Rate3.1740093E-4 /yr
Multi-Fault Rate3.1740093E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults75

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

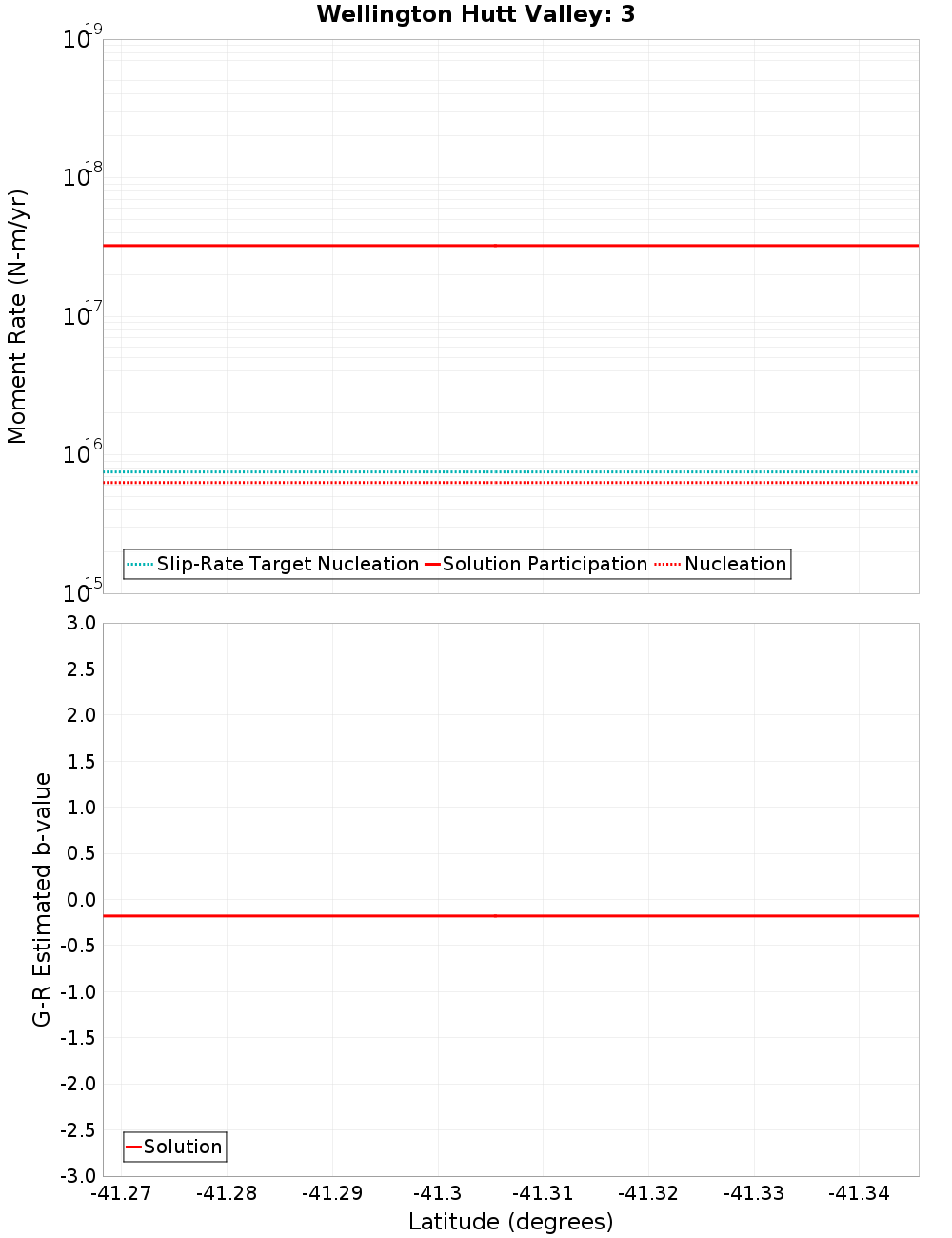

Moment-Rates and b-Values

(top)

Along-strike plot

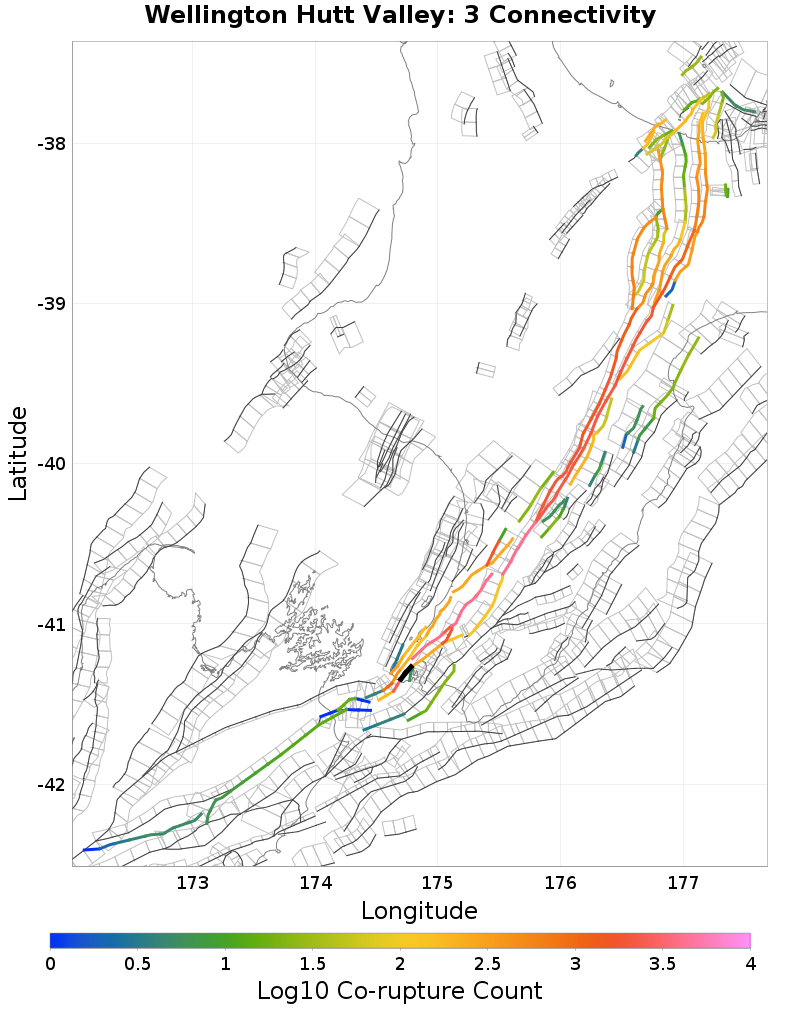

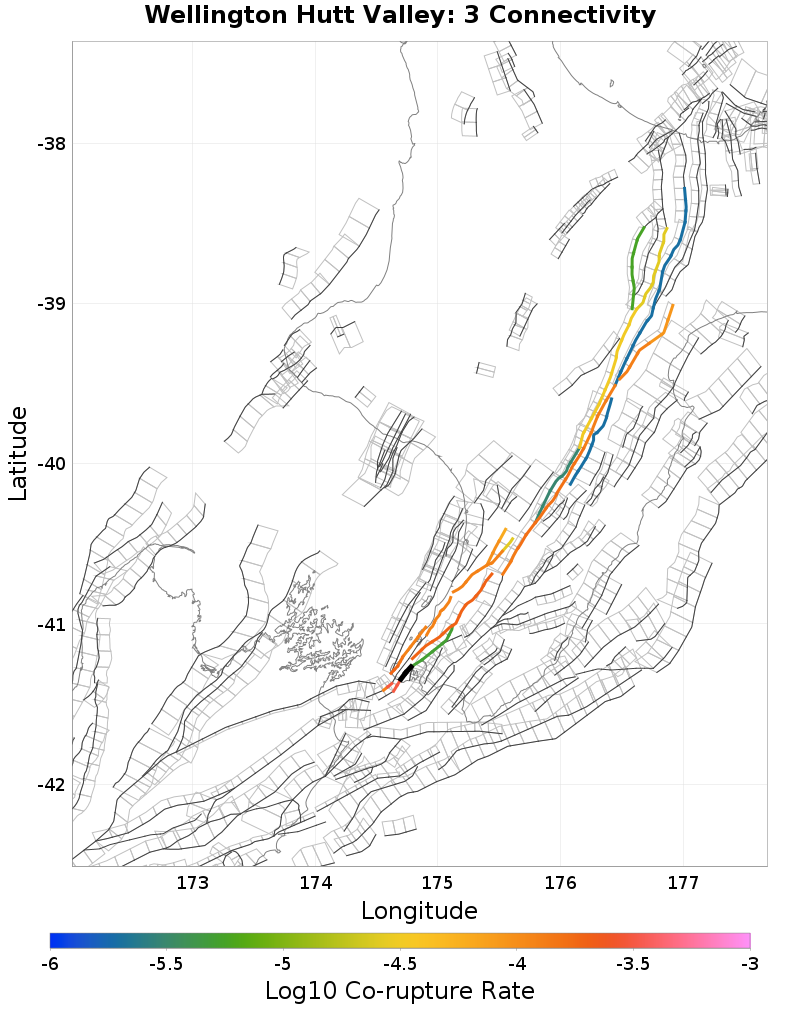

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 2, 0 km awayShepherds Gully - Mana, 7.84 km away
Wellington Hutt Valley: 4, 0 km awayWellington Hutt Valley: 1, 8.44 km away
Whitemans Valley, 1.35 km awayPukerua - Shepherds Gully: 3, 8.98 km away
Aotea - Evans Bay, 1.42 km awayWairarapa: 1, 12.73 km away
Ohariu, 3.96 km awayOkupe 1, 13.49 km away
Moonshine, 5.8 km awayOhariu South 1, 13.74 km away
Ohariu South 2, 6.81 km awayOtaheke South, 16.13 km away
Pukerua - Shepherds Gully: 1, 7.12 km awayWairarapa: Needles, 16.88 km away
Pukerua - Shepherds Gully: 2, 7.12 km awayWairau 3, 17.76 km away
Wharekauhau, 7.29 km away

Wellington Hutt Valley: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?true
Co-rupture Count2,692
Co-rupture Rate3.1740093E-4

Wellington Hutt Valley: 4, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count254
Co-rupture Rate5.021582E-6

Whitemans Valley, 1.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 1.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Ohariu, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?true
Co-rupture Count613
Co-rupture Rate1.21148994E-4

Moonshine, 5.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?true
Co-rupture Count3,981
Co-rupture Rate1.9123036E-4

Ohariu South 2, 6.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count1,079
Co-rupture Rate3.1237933E-4

Pukerua - Shepherds Gully: 1, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count323
Co-rupture Rate1.8316723E-4

Pukerua - Shepherds Gully: 2, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count225
Co-rupture Rate1.4605634E-4

Wharekauhau, 7.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Shepherds Gully - Mana, 7.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Wellington Hutt Valley: 1, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 3, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate1.21148994E-4

Wairarapa: 1, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 13.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 1, 13.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Otaheke South, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 16.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wairau 3, 17.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHF0a0JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
