Hillfoot Details

PropertyValue
Rupture Count272
Ruptures Above Sect Min Mag269
Ruptures w/ Nonzero Rates5
Magnitude Range[7.10, 8.25]
Length Range[27, 351] km
Total Rate1.13722635E-4 /yr
Multi-Fault Rate1.13722635E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults35

Table Of Contents

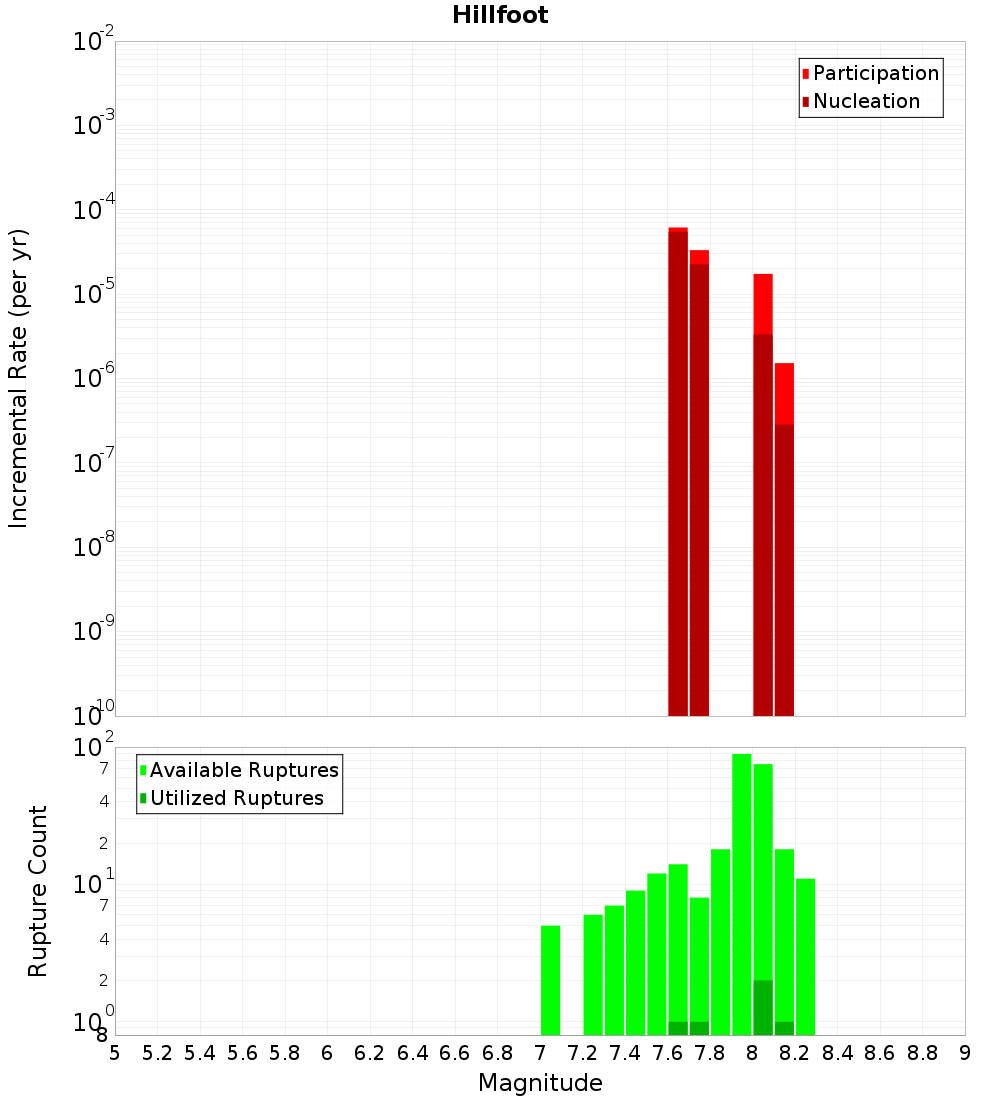

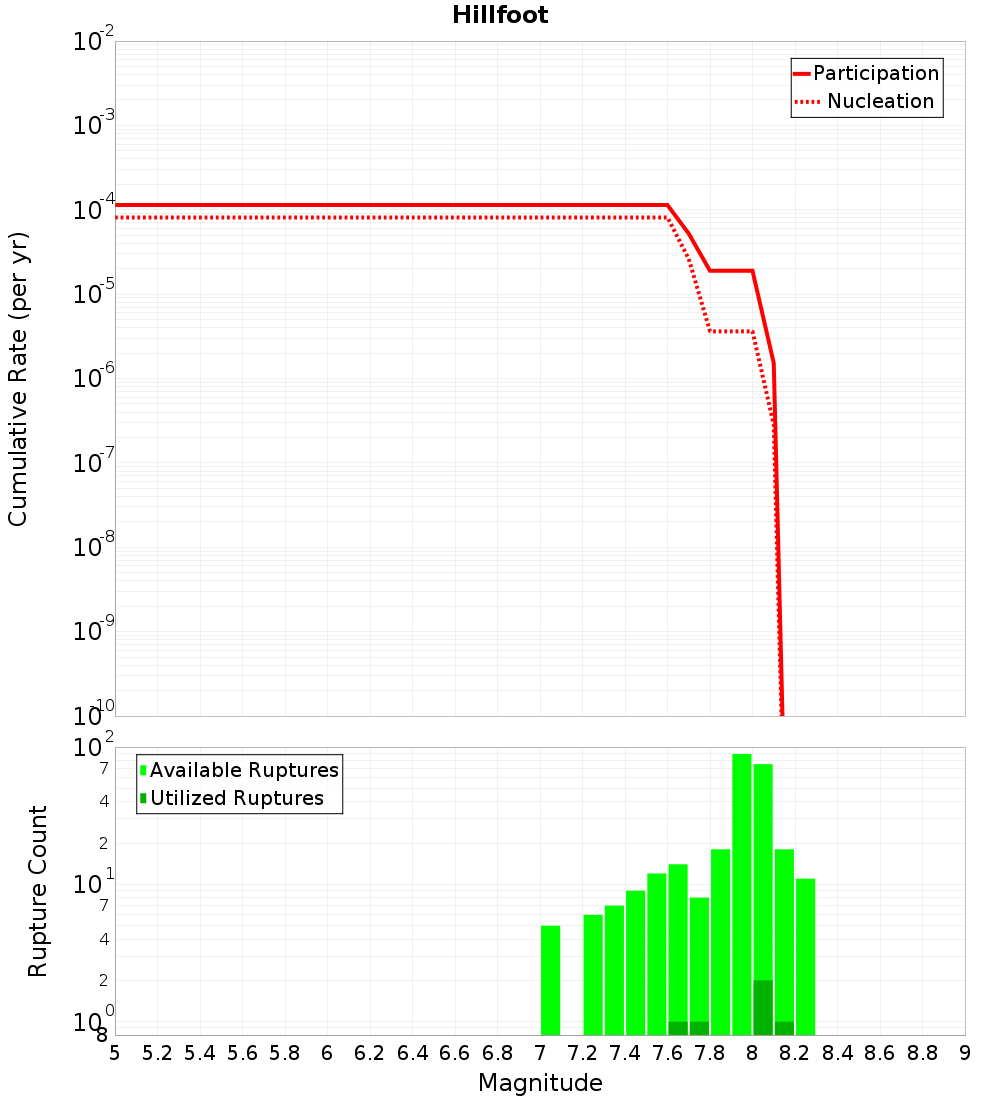

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

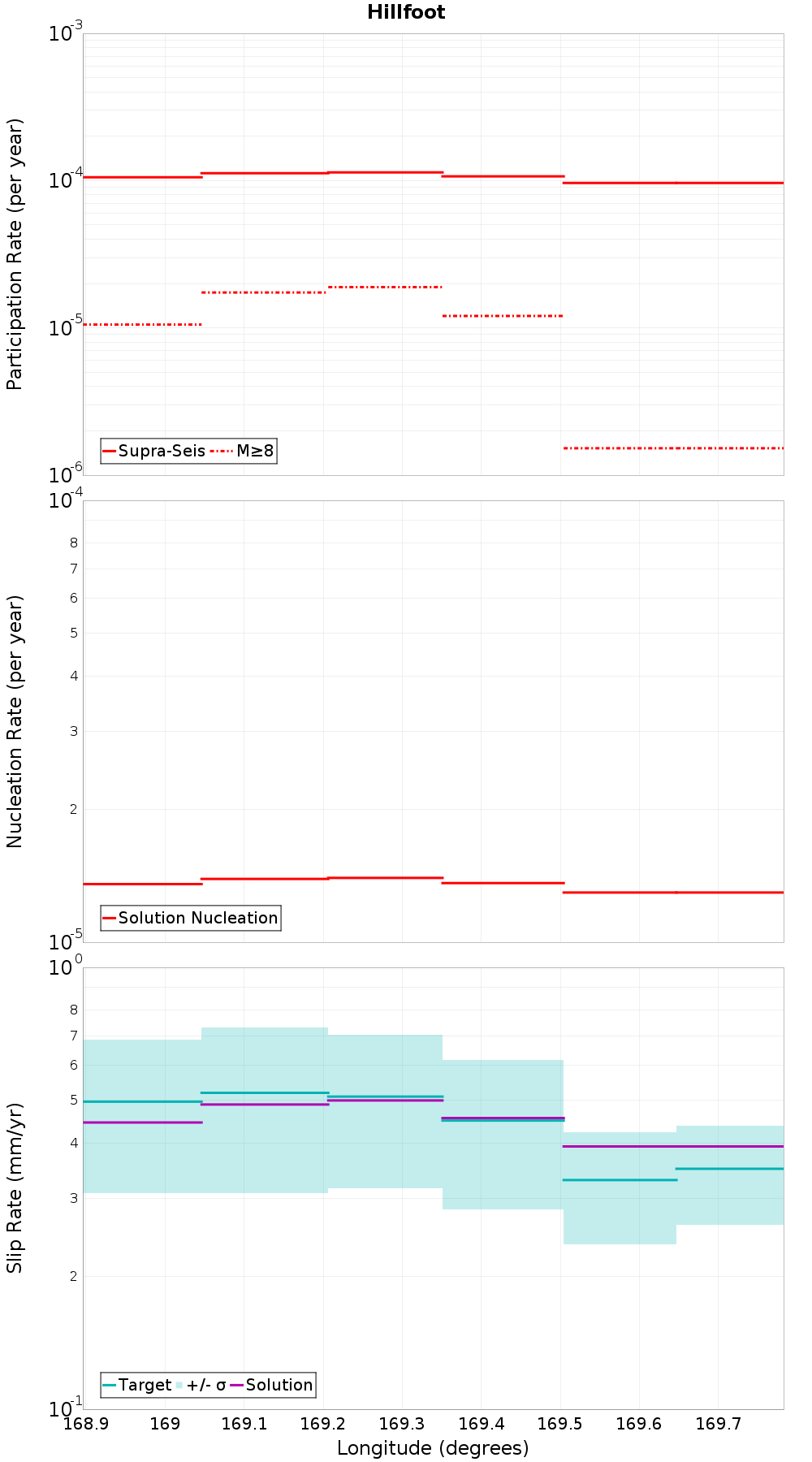

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

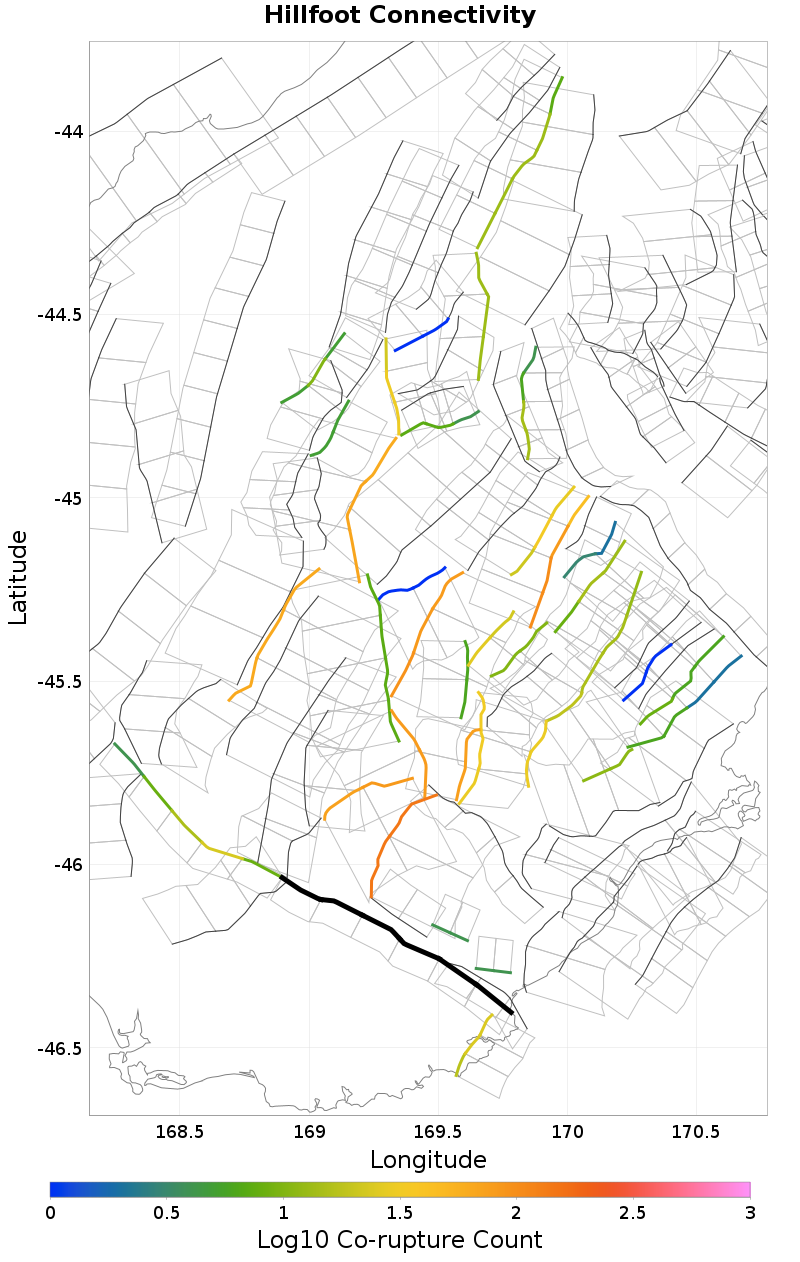

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hokonui, 0 km away
Hedgehope, 0.31 km away
Little Hillfoot, 0.55 km away
Waikaka, 0.9 km away
Settlement, 2.07 km away
Otanomomo, 3.97 km away
Beacon Hill, 4.04 km away
Waikaia, 4.54 km away
Blue Mountain, 6.17 km away
Titri South, 7.63 km away
Clifton, 8.54 km away
Spylaw, 11.54 km away
Wendon Valley, 17.68 km away
Akatore, 18.87 km away

Hokonui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?true
Co-rupture Count23
Co-rupture Rate3.3222113E-5

Hedgehope, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Little Hillfoot, 0.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikaka, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Settlement, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate1.5219983E-6

Otanomomo, 3.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate6.159183E-5

Beacon Hill, 4.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikaia, 4.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Mountain, 6.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?true
Co-rupture Count144
Co-rupture Rate1.0529339E-5

Titri South, 7.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clifton, 8.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate3.3222113E-5

Spylaw, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?true
Co-rupture Count83
Co-rupture Rate8.37935E-6

Wendon Valley, 17.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatore, 18.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
