Opawa Details

Property	Value
Rupture Count	6
Ruptures Above Sect Min Mag	5
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.87, 7.68]
Length Range	[19, 113] km
Total Rate	5.8947702E-5 /yr
Multi-Fault Rate	5.8947702E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	2

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

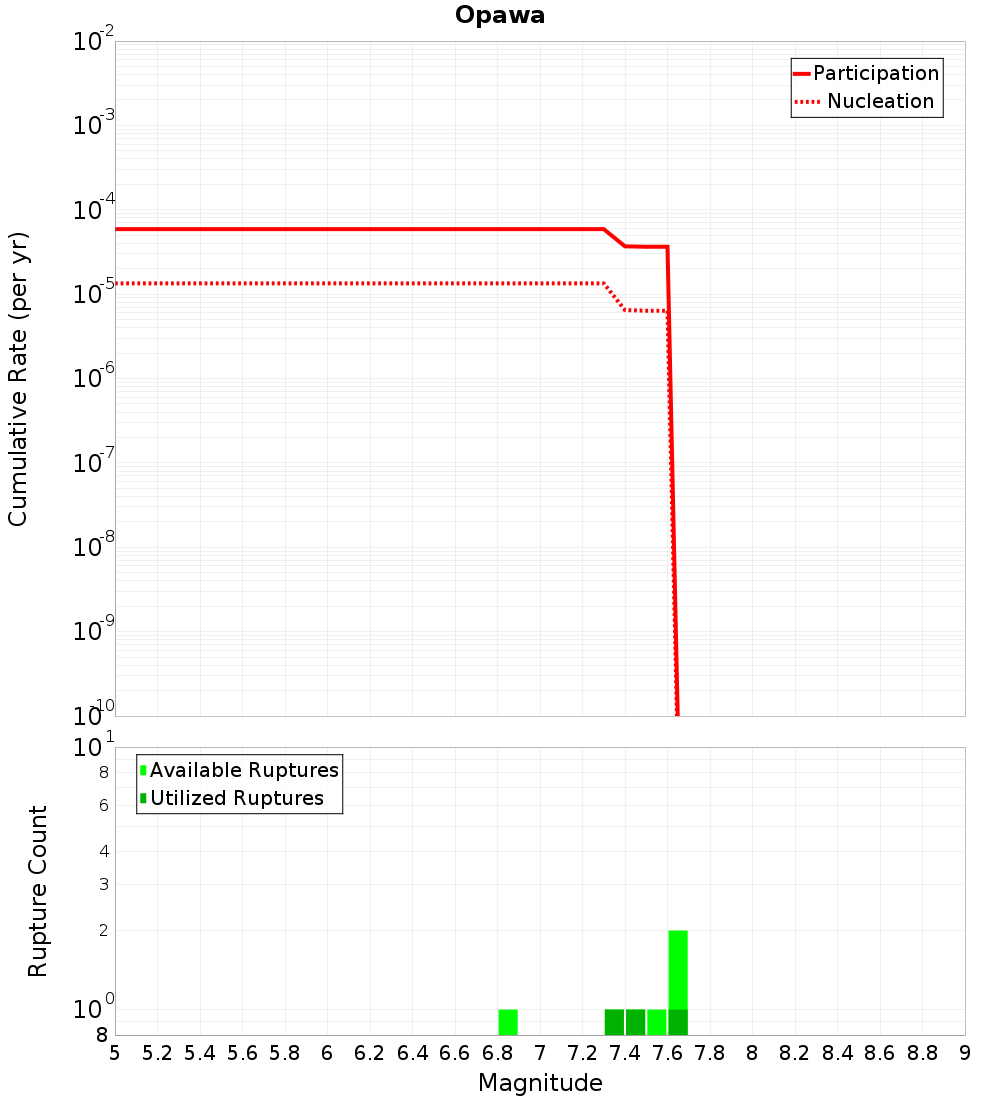

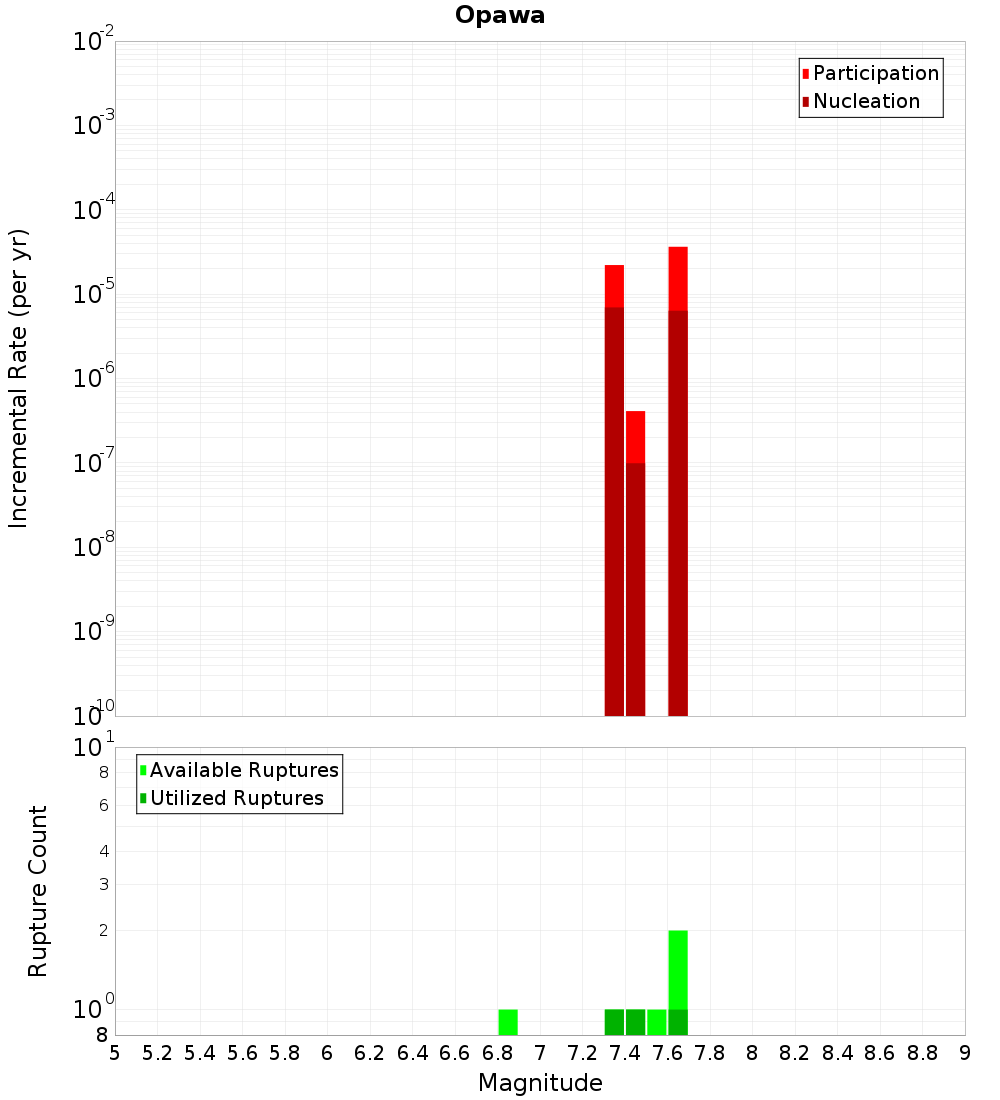

Magnitude-Frequency Distribution

Incremental	Cumulative

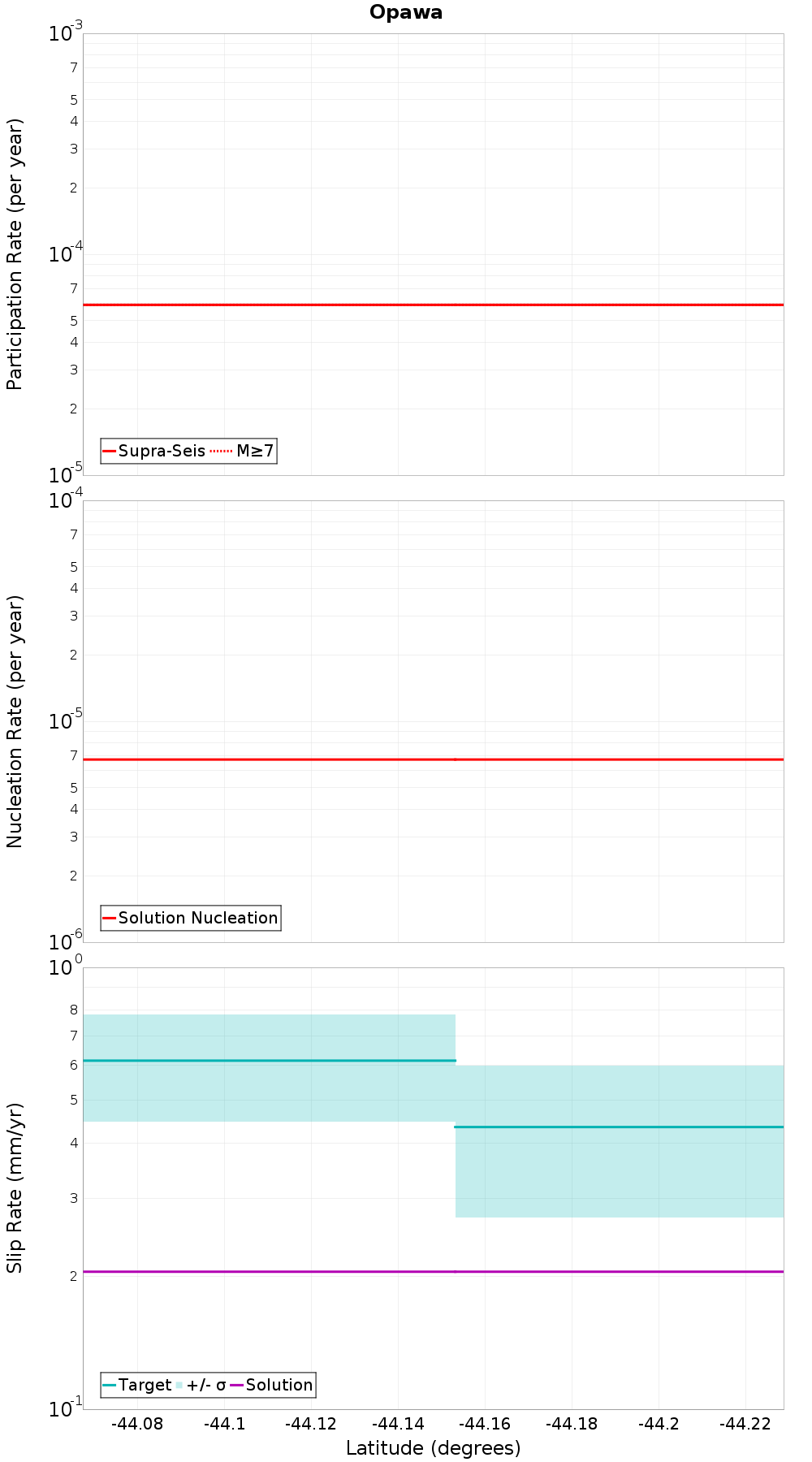

Along-Strike Values

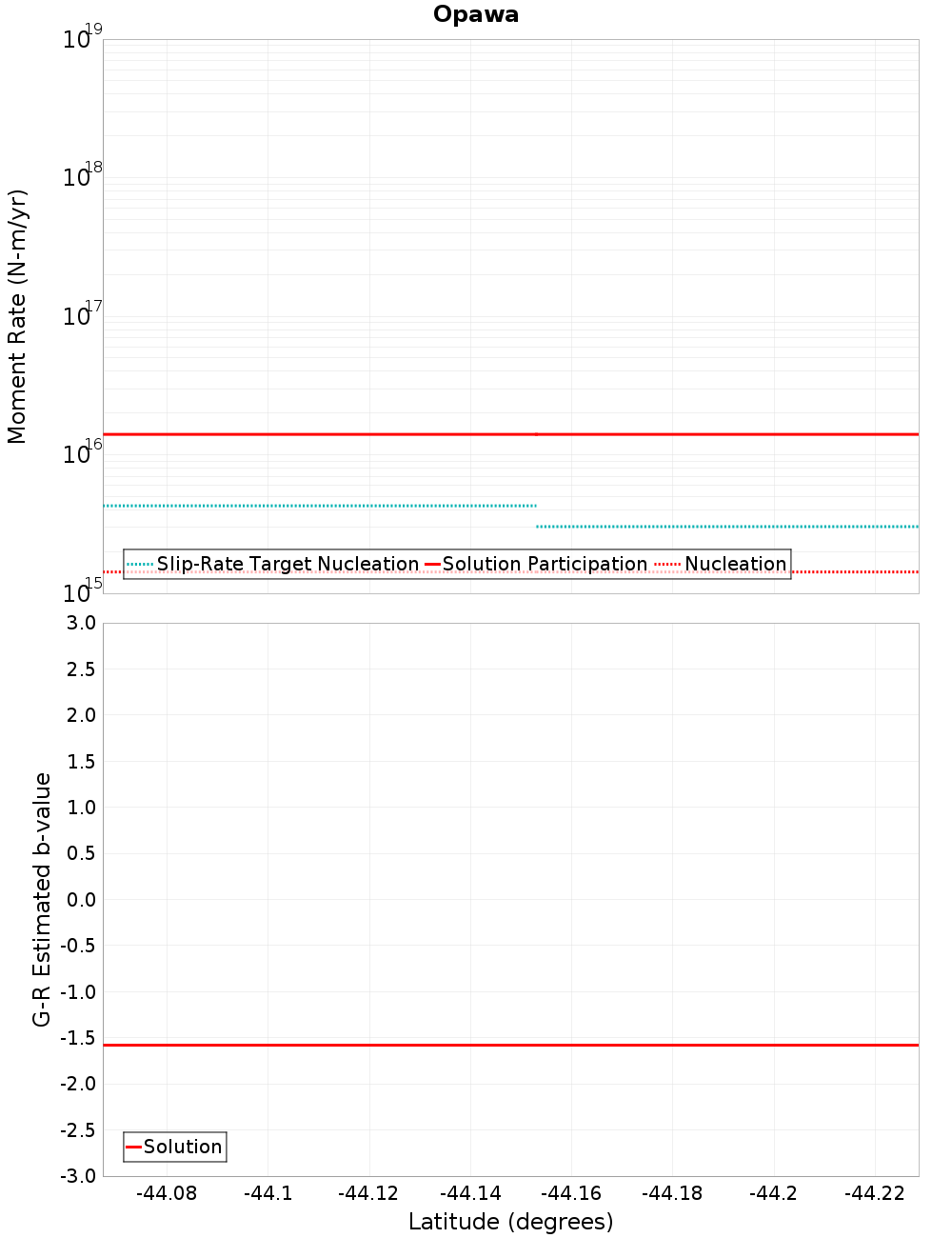

Moment-Rates and b-Values

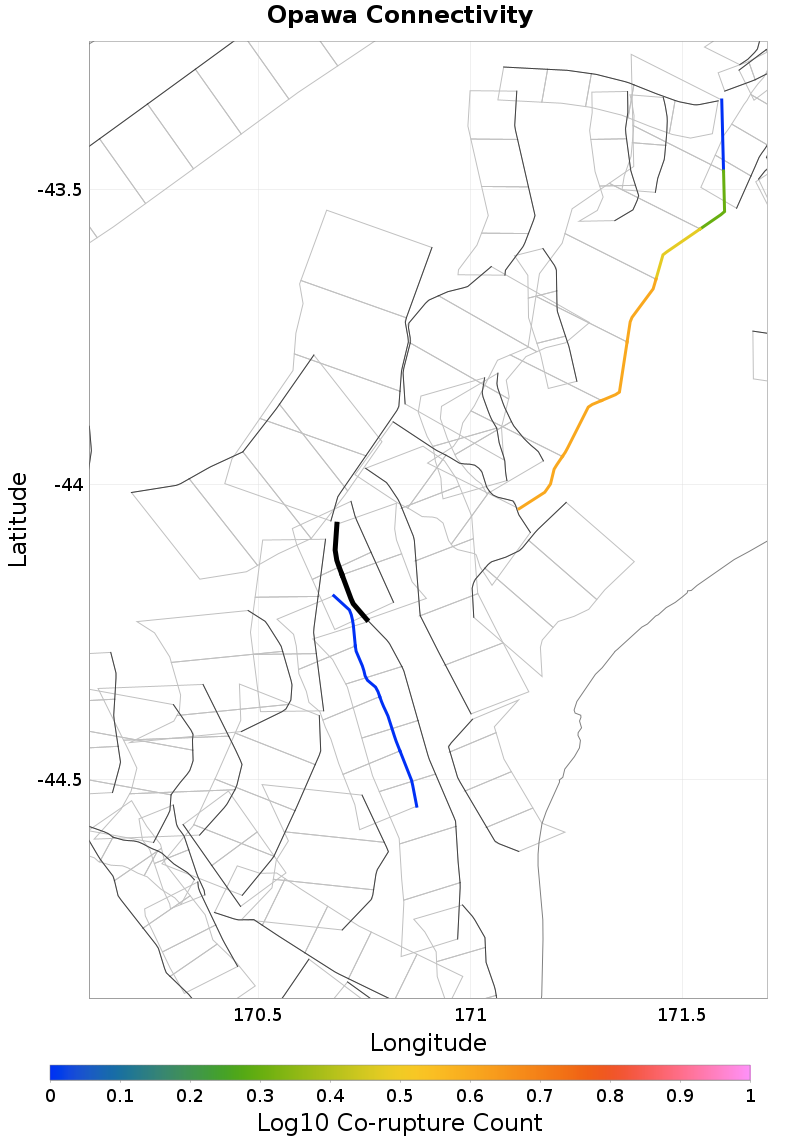

Connectivity

Nearby Sections

Fault Section
Albury, 0.13 km away
Hunters, 0.54 km away
Sugarloaf, 0.78 km away
Fox Peak, 1.29 km away
Chamberlain, 1.37 km away
Dalgety, 1.94 km away
Irishman Creek, 8.46 km away
Brothers, 8.75 km away
Catherine, 8.88 km away
Hutt Peel, 9.67 km away
Edith, 14.21 km away
Grampian, 15.74 km away
Rapuwai, 17.59 km away
Ben McLeod, 19.33 km away

Albury, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hunters, 0.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sugarloaf, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fox Peak, 1.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chamberlain, 1.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	2.2113634E-5

Dalgety, 1.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Irishman Creek, 8.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Brothers, 8.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Catherine, 8.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hutt Peel, 9.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	3.683407E-5

Edith, 14.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grampian, 15.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rapuwai, 17.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ben McLeod, 19.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
