Wellington Hutt Valley: 5 Details

PropertyValue
Rupture Count26,537
Ruptures Above Sect Min Mag26,535
Ruptures w/ Nonzero Rates4
Magnitude Range[6.67, 8.58]
Length Range[14, 1,046] km
Total Rate3.6299613E-4 /yr
Multi-Fault Rate3.6299613E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults139

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

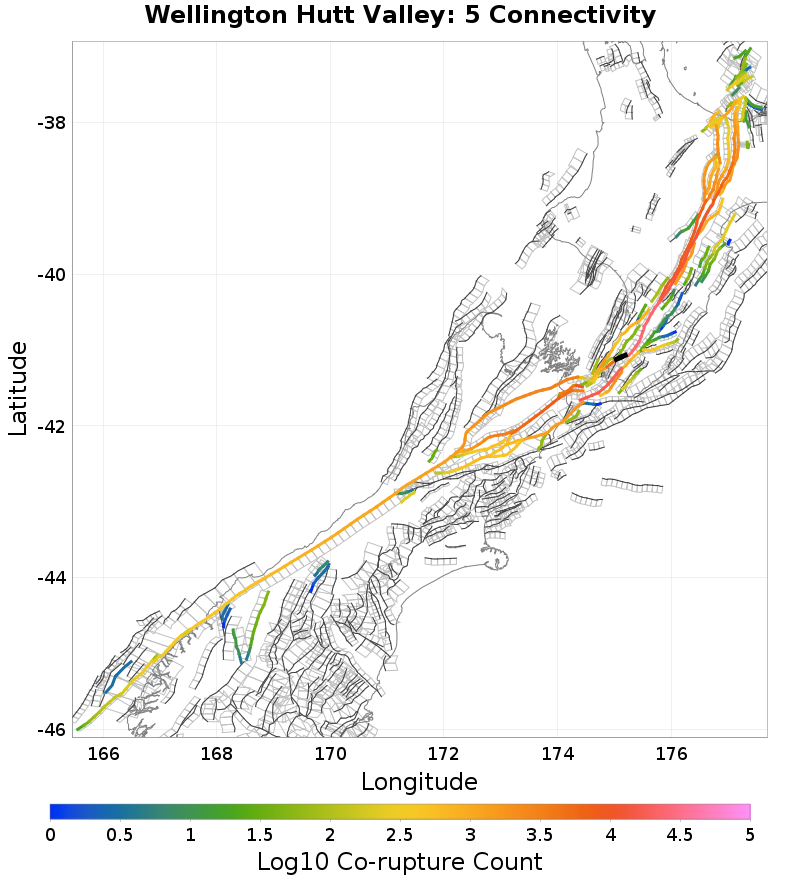

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Akatarawa, 0 km awayOtaki Forks: 1, 8.56 km away
Wellington Hutt Valley: 4, 0.01 km awayMartinborough, 10.73 km away
Wairarapa: 2, 0.33 km awayOhariu, 12.34 km away
Wairarapa: 1, 0.94 km awayDry River - Huangarua: 1, 15.87 km away
Wellington: Tararua 1, 1.46 km awayPukerua - Shepherds Gully: 3, 16 km away
Whitemans Valley, 2.4 km awayDry River - Huangarua: 2, 18.32 km away
Wharekauhau, 4.2 km awayWairarapa: 3, 19.01 km away
Wellington: Tararua 2, 4.56 km awayAotea - Evans Bay, 19.7 km away
Moonshine, 4.9 km awayCarterton, 19.71 km away
Bidwill, 6 km away

Akatarawa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate0.0

Wellington Hutt Valley: 4, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?true
Co-rupture Count5,646
Co-rupture Rate1.9111914E-4

Wairarapa: 2, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?false
Co-rupture Count835
Co-rupture Rate0.0

Wairarapa: 1, 0.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?true
Co-rupture Count19,272
Co-rupture Rate1.7187698E-4

Wellington: Tararua 1, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?false
Co-rupture Count229
Co-rupture Rate2.7535233E-4

Whitemans Valley, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 4.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?true
Co-rupture Count2,352
Co-rupture Rate0.0

Wellington: Tararua 2, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?true
Co-rupture Count26,069
Co-rupture Rate3.6299613E-4

Moonshine, 4.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?false
Co-rupture Count91
Co-rupture Rate0.0

Bidwill, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 1, 8.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate0.0

Martinborough, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?false
Co-rupture Count1,788
Co-rupture Rate0.0

Dry River - Huangarua: 1, 15.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?false
Co-rupture Count202
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 3, 16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 2, 18.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 3, 19.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Aotea - Evans Bay, 19.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Carterton, 19.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI2NzMuMHZIMjZQ
Connected?true
Directly Connected?false
Co-rupture Count441
Co-rupture Rate0.0
