Mascarin Details

PropertyValue
Rupture Count12
Ruptures Above Sect Min Mag12
Ruptures w/ Nonzero Rates3
Magnitude Range[7.13, 7.51]
Length Range[28, 65] km
Total Rate2.4901444E-4 /yr
Multi-Fault Rate1.3041761E-4 /yr (52.37%)
Directly-Connected Faults4
All Co-Rupturing Faults4

Table Of Contents

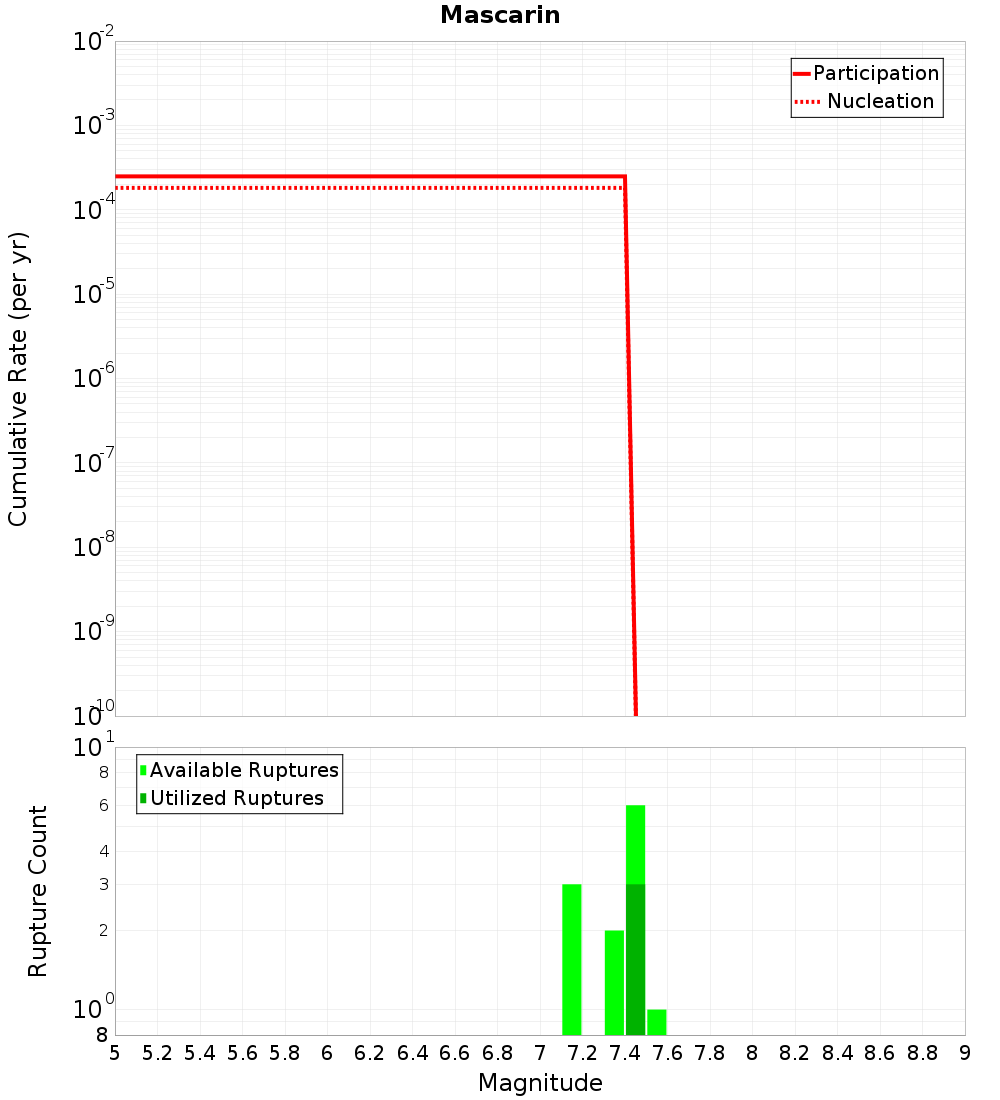

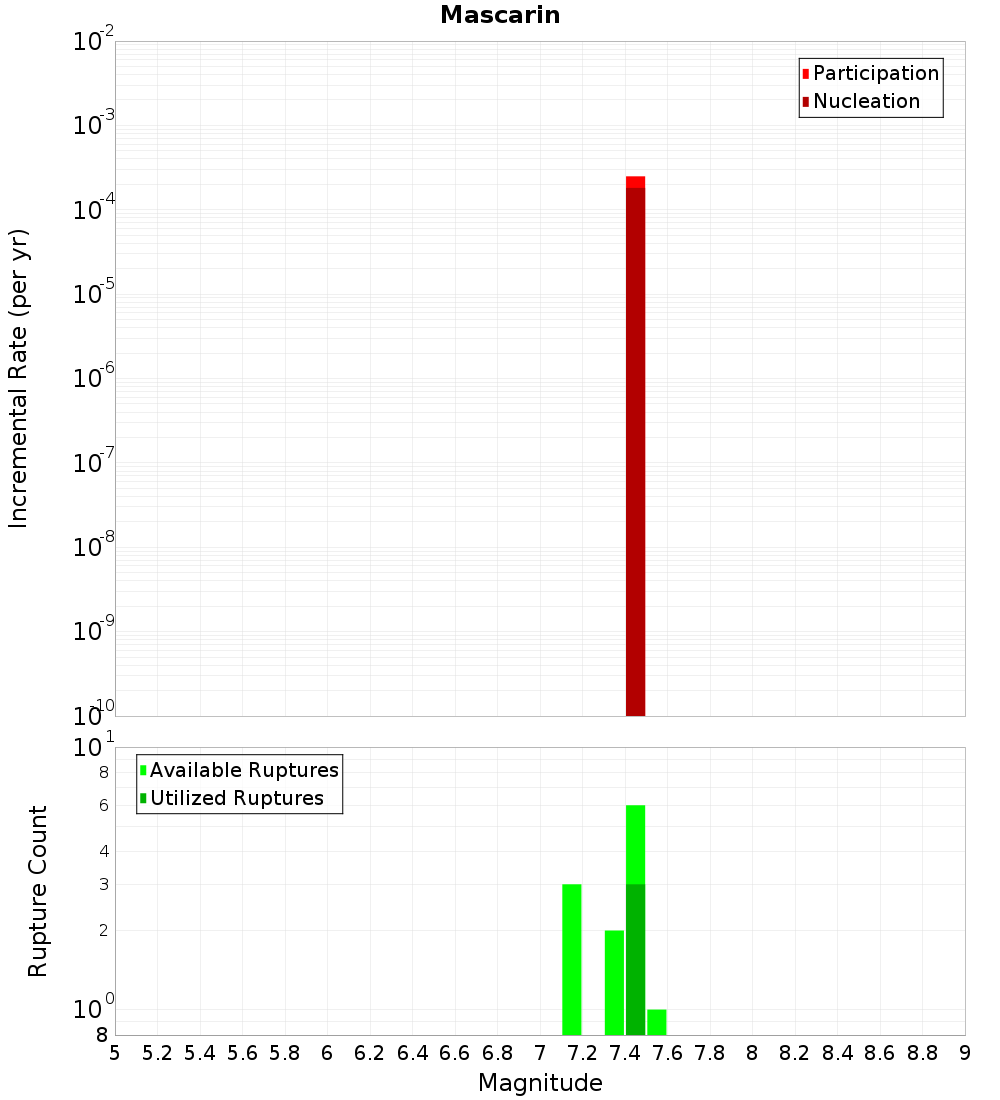

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

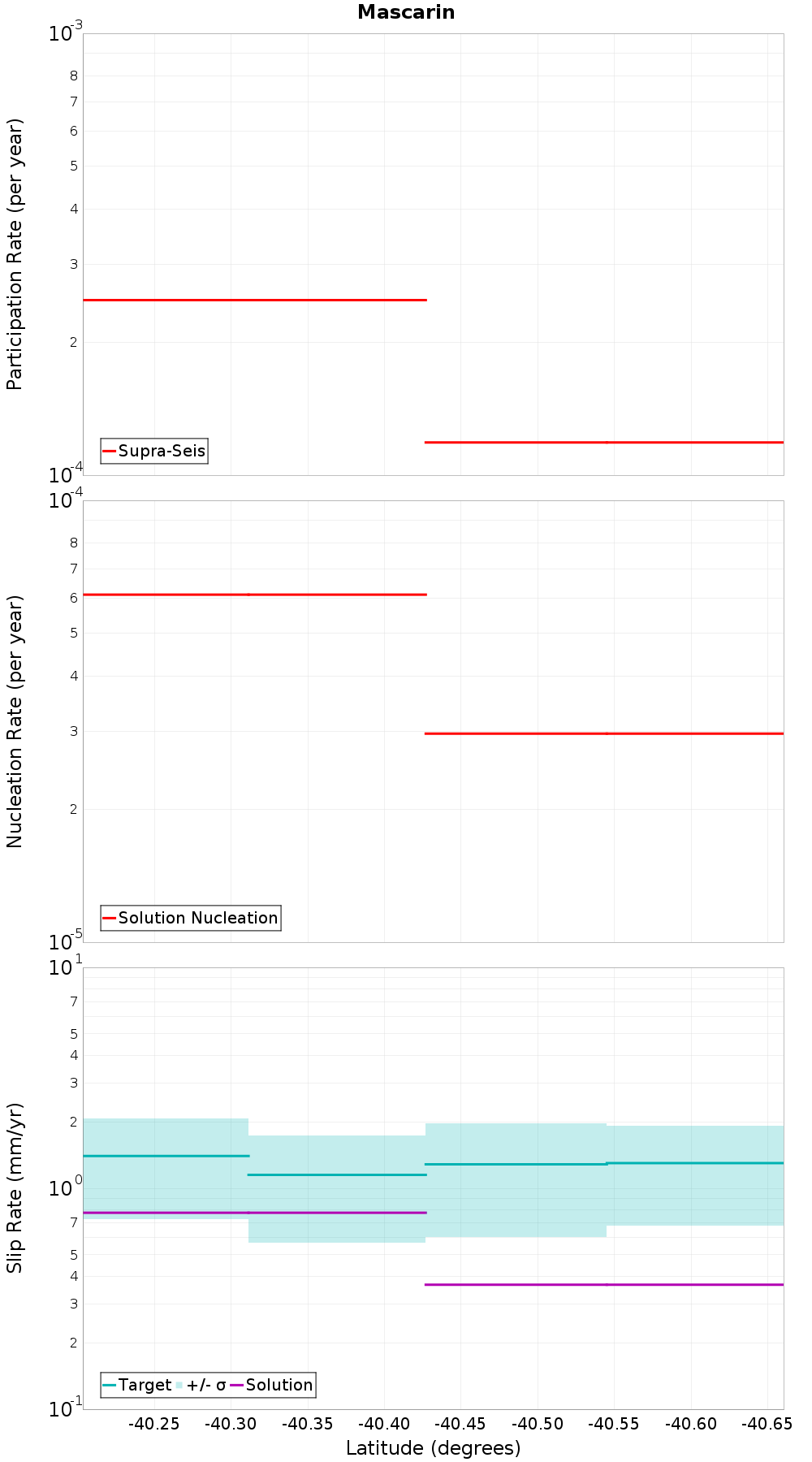

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

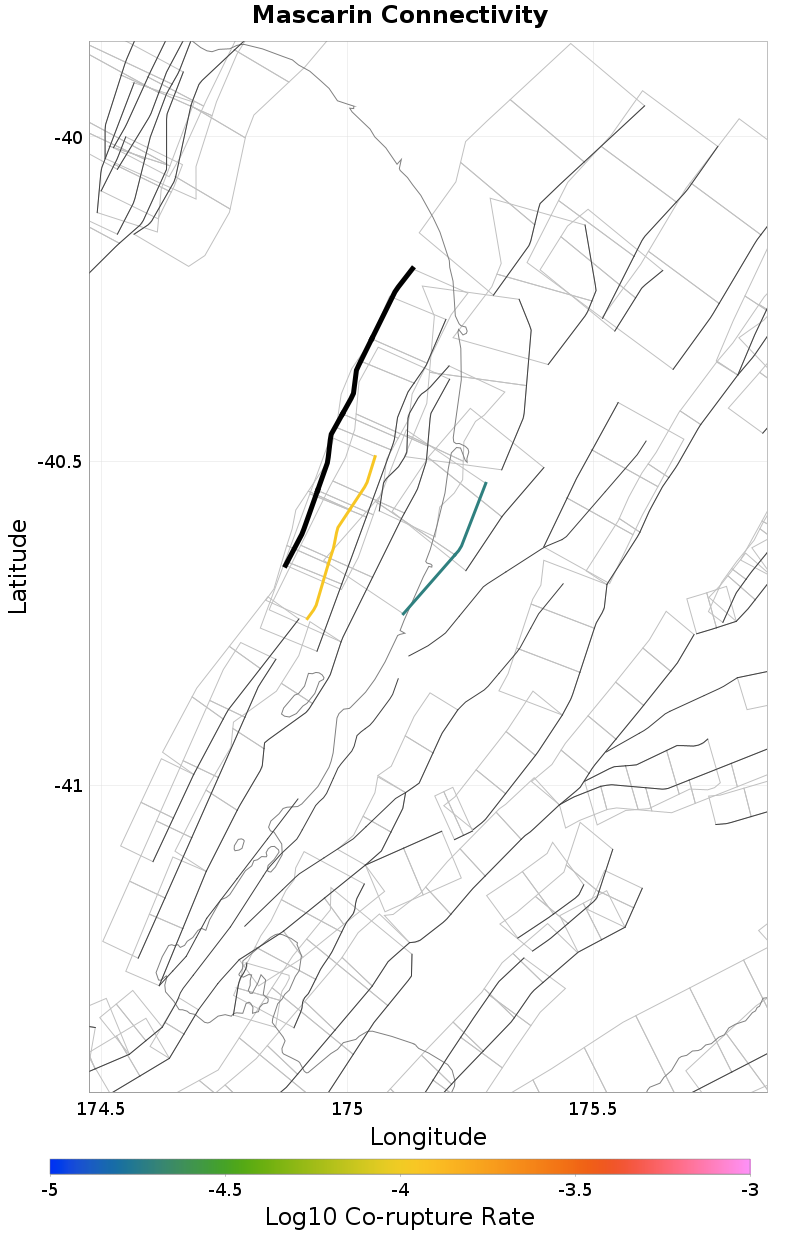

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Onepoto, 0.05 km awayFisherman 2, 6.99 km away
Fisherman 3, 0.15 km awayOtaheke South, 7.25 km away
Poroutawhao, 0.23 km awayRangitikei Offshore 1, 9.59 km away
Himatangi, 0.26 km awayRauoterangi, 11.5 km away
Otaheke North, 0.44 km awayTaonui, 13.08 km away
Mt Stewart, 2.19 km awayOkupe 1, 15.37 km away
Levin Anticline, 2.93 km awayNorthern Ohariu, 16.4 km away
Leedstown, 3.96 km awayOhariu, 19.22 km away

Onepoto, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate0.0

Fisherman 3, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate1.1123949E-4

Poroutawhao, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate1.9178116E-5

Himatangi, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke North, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate0.0

Mt Stewart, 2.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Levin Anticline, 2.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leedstown, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 2, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 7.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitikei Offshore 1, 9.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rauoterangi, 11.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Taonui, 13.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 15.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 16.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 19.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMExCcXBq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
