Alpine: Resolution - Five Fingers Details
| Property | Value |
|---|---|
| Rupture Count | 27,761 |
| Ruptures Above Sect Min Mag | 27,754 |
| Ruptures w/ Nonzero Rates | 98 |
| Magnitude Range | [6.84, 8.62] |
| Length Range | [20, 1,204] km |
| Total Rate | 0.0039207865 /yr |
| Multi-Fault Rate | 0.0039207865 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 109 |
Table Of Contents

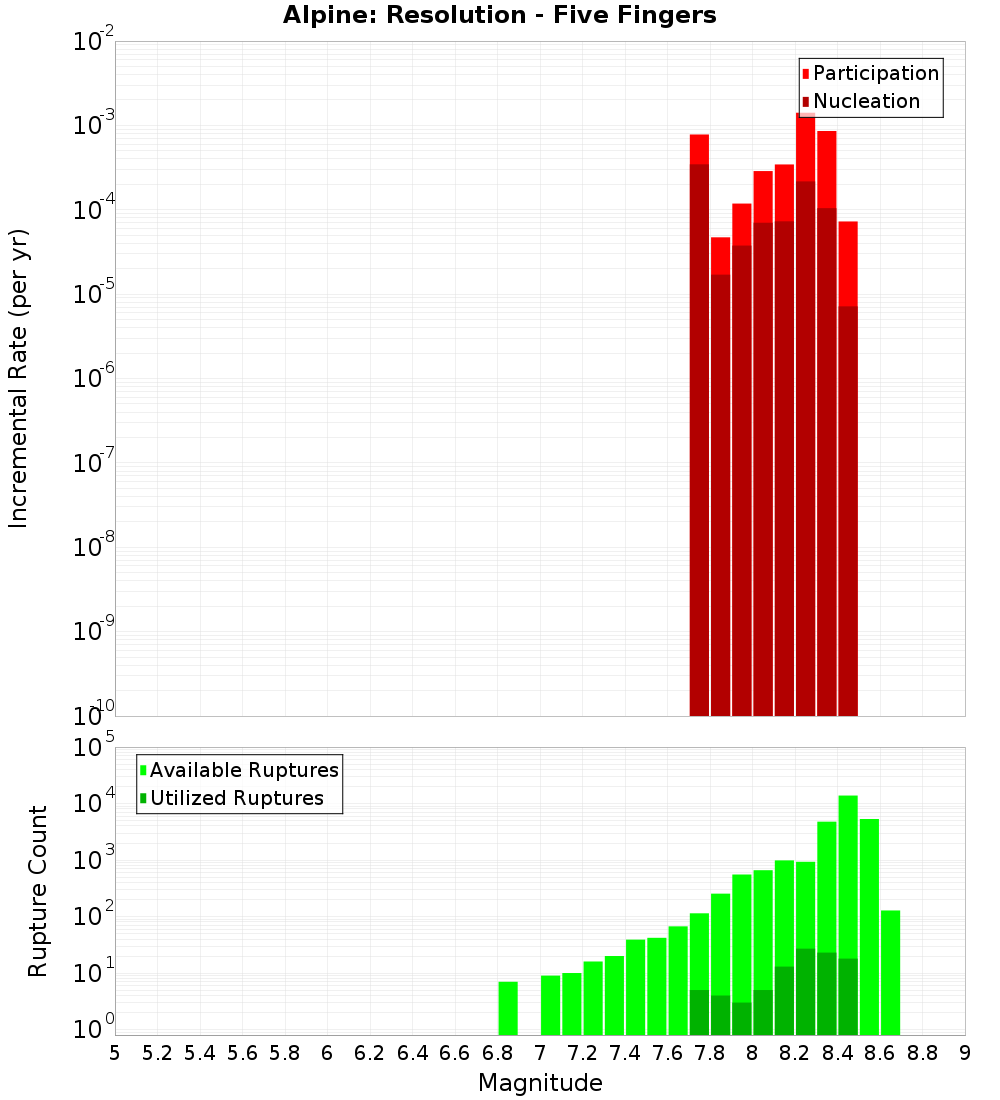

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

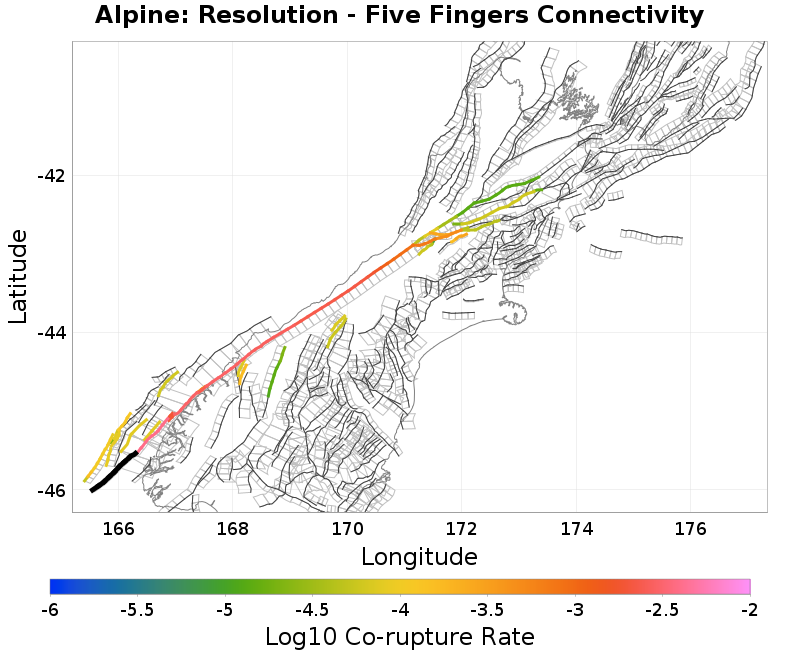

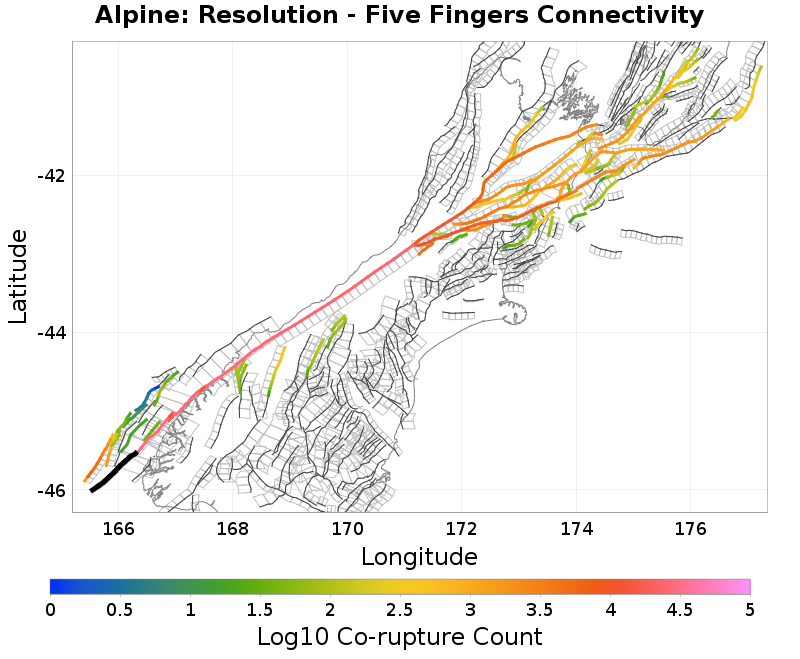

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| South Wedge 5, 0.09 km away |
| South Wedge 3-6-10, 0.17 km away |
| Alpine: Resolution - Dagg, 0.91 km away |
| Caswell 211, 8.78 km away |
| Caswell High 1, 11.73 km away |
South Wedge 5, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMGZBd1JQ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 3-6-10, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMGZBd1JQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 7.666623E-5 |
Alpine: Resolution - Dagg, 0.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMGZBd1JQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 27,659 |
| Co-rupture Rate | 0.0039207865 |
Caswell 211, 8.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMGZBd1JQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,534 |
| Co-rupture Rate | 8.2498314E-5 |
Caswell High 1, 11.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MDQuMGZBd1JQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,929 |
| Co-rupture Rate | 1.5729468E-4 |
