Hope: Hamner SE Details

PropertyValue
Rupture Count45,794
Ruptures Above Sect Min Mag45,793
Ruptures w/ Nonzero Rates48
Magnitude Range[6.78, 8.59]
Length Range[16, 1,147] km
Total Rate0.0011146133 /yr
Multi-Fault Rate0.0011146133 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults124

Table Of Contents

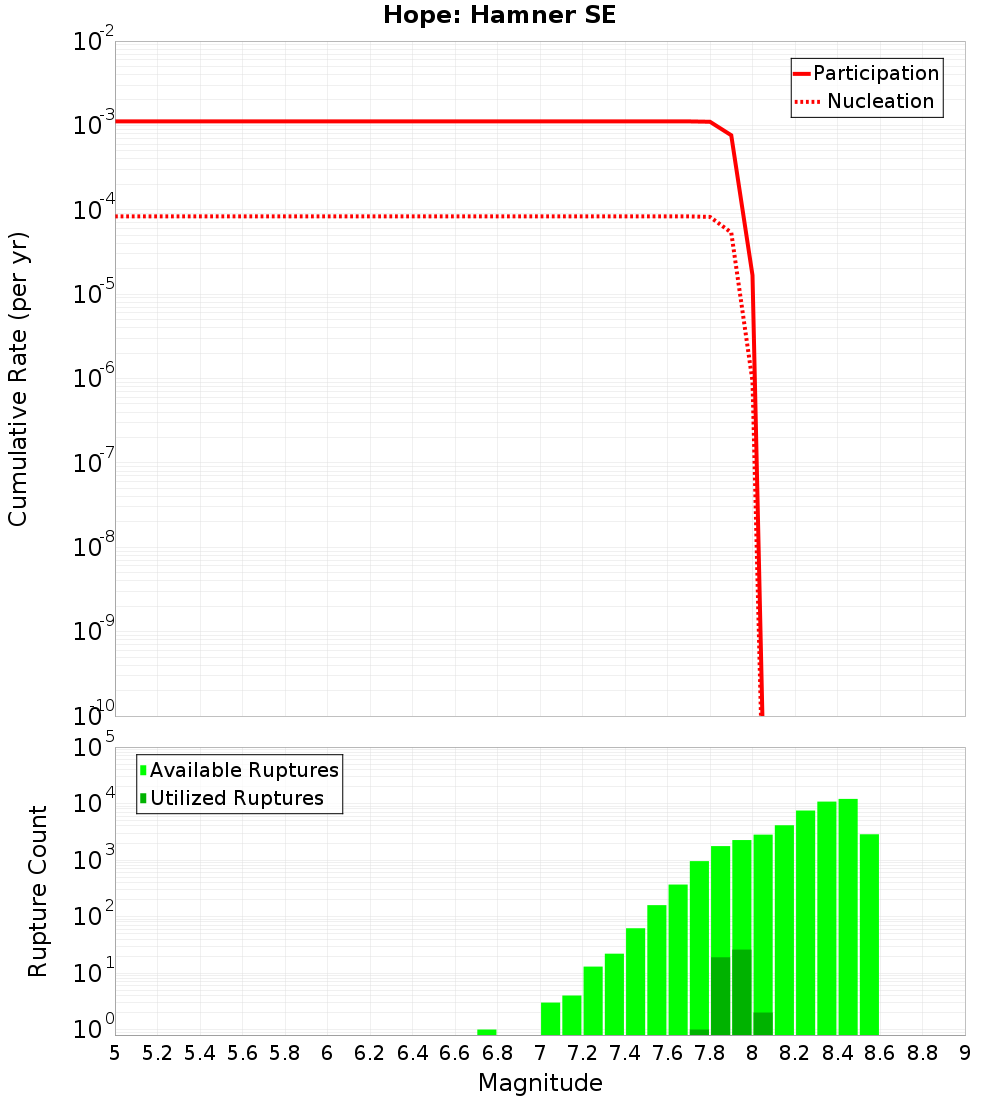

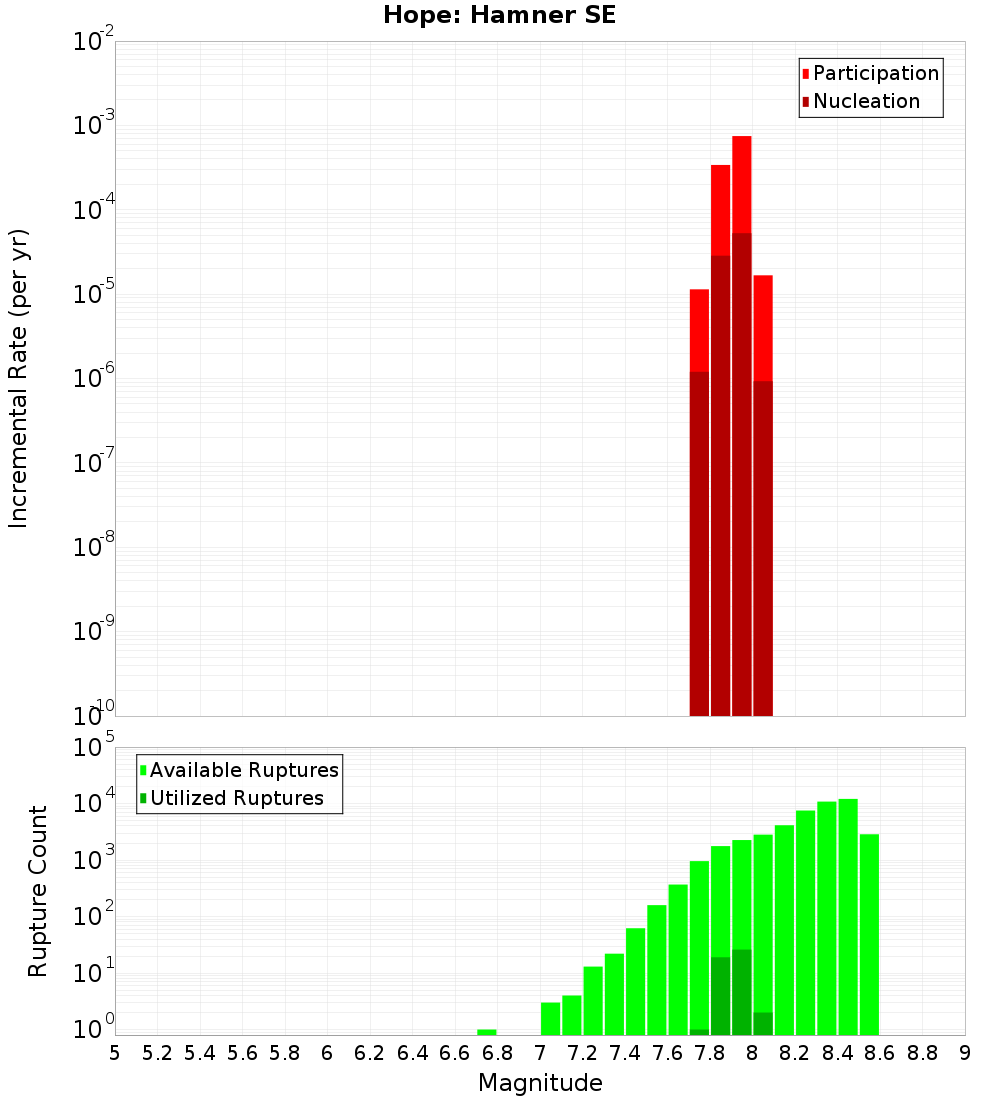

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

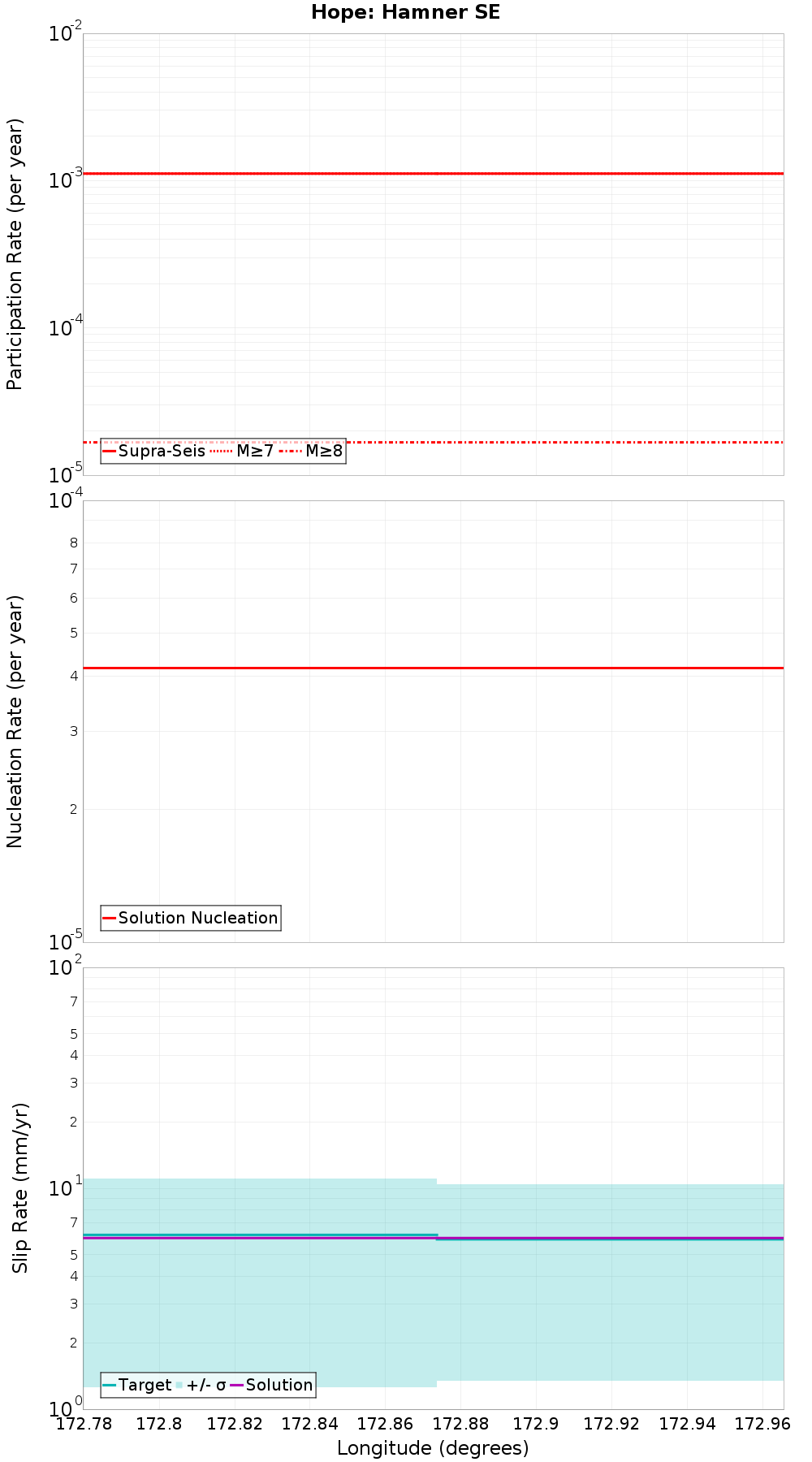

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Hamner SW, 0 km awayBalmoral, 15.91 km away
Hanmer, 0 km awayKakapo, 16.57 km away
Hope: Conway, 0 km awayHope: Hope River, 16.82 km away
Hope: Hanmer NW, 0.15 km awayLeader: North, 17.4 km away
The Humps, 7.7 km awayHurunui Peak, 17.6 km away
Hope: Kakapo-2-Hamner, 10.42 km awayClarence: Southwest, 17.93 km away
Kaiwara North, 12.43 km awayClarence: Central, 17.94 km away
Mt Culverden, 12.56 km awayLeonard Mound, 18.73 km away
Leader: South, 13.69 km awayLeader: Central, 19.36 km away
Elliott, 14.69 km awayEsk North, 19.96 km away

Hope: Hamner SW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?true
Co-rupture Count35,532
Co-rupture Rate2.0333588E-4

Hanmer, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?true
Co-rupture Count44,861
Co-rupture Rate0.0011146133

Hope: Hanmer NW, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?true
Co-rupture Count9,984
Co-rupture Rate6.860468E-4

The Humps, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count155
Co-rupture Rate0.0

Hope: Kakapo-2-Hamner, 10.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count45,171
Co-rupture Rate8.893827E-4

Kaiwara North, 12.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count342
Co-rupture Rate0.0

Mt Culverden, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 13.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count78
Co-rupture Rate0.0

Elliott, 14.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 15.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kakapo, 16.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count15,337
Co-rupture Rate5.8792E-4

Hope: Hope River, 16.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count30,073
Co-rupture Rate3.2039062E-4

Leader: North, 17.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count250
Co-rupture Rate0.0

Hurunui Peak, 17.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count131
Co-rupture Rate0.0

Clarence: Central, 17.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leonard Mound, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: Central, 19.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count422
Co-rupture Rate0.0

Esk North, 19.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
