North Canterbury Shelf 2 Details

PropertyValue
Rupture Count149
Ruptures Above Sect Min Mag144
Ruptures w/ Nonzero Rates8
Magnitude Range[6.54, 7.87]
Length Range[13, 238] km
Total Rate2.4681046E-4 /yr
Multi-Fault Rate2.4681046E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults22

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

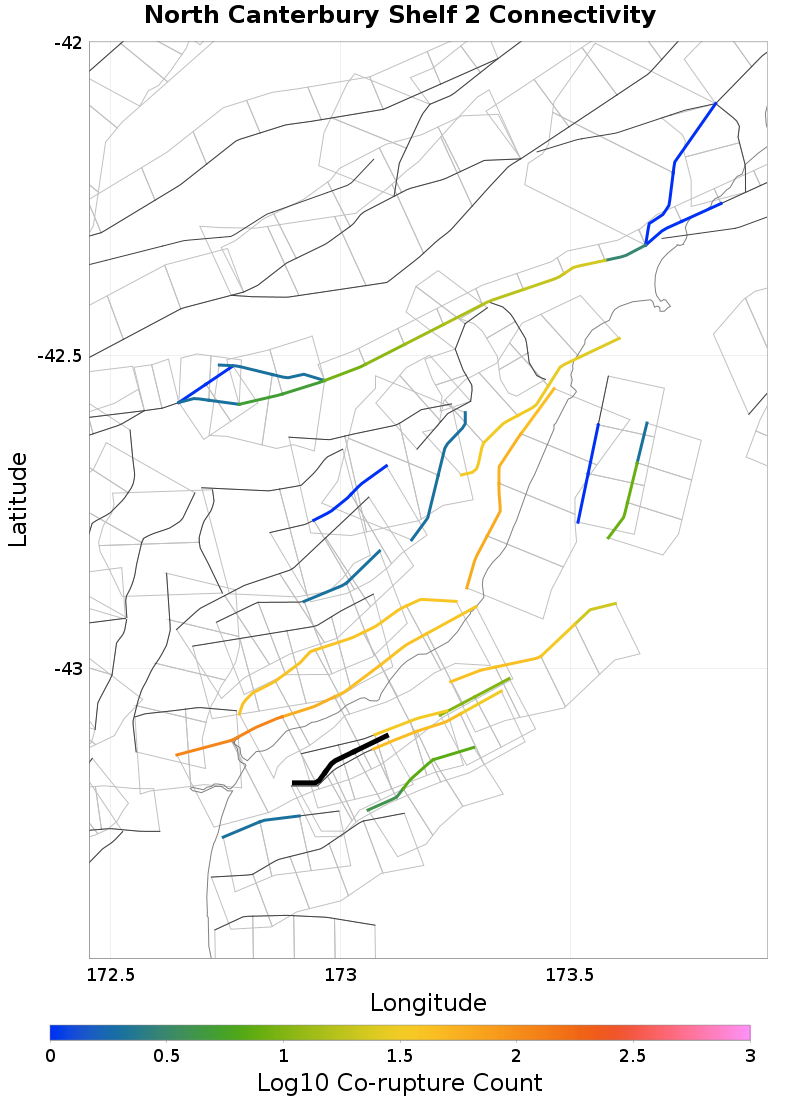

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Leithfield - NCVI - NCVII, 0.49 km away
Motunau, 0.72 km away
Waikuku, 4.61 km away
AmberBlyth, 4.87 km away
North Canterbury Shelf 4, 7.11 km away
Pegasus Bay, 8.24 km away
North Canterbury Shelf 11, 9.96 km away
OmihiLwrHuru, 11.23 km away
Point Gibson, 14.3 km away
Boby Stream, 14.97 km away
Kaiwara South, 17.26 km away

Leithfield - NCVI - NCVII, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate1.9957502E-4

Motunau, 0.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate4.7235448E-5

Waikuku, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

AmberBlyth, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?true
Co-rupture Count116
Co-rupture Rate0.0

North Canterbury Shelf 4, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate4.578704E-5

Pegasus Bay, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 11, 9.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.646696E-4

OmihiLwrHuru, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate0.0

Point Gibson, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate2.8893006E-5

Boby Stream, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 17.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3MzEuMERUTEdl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
