Houtunui Details
| Property | Value |
|---|---|
| Rupture Count | 28 |
| Ruptures Above Sect Min Mag | 19 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.74, 7.54] |
| Length Range | [18, 113] km |
| Total Rate | 0.0012699577 /yr |
| Multi-Fault Rate | 0.0011827039 /yr (93.13%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 4 |
Table Of Contents

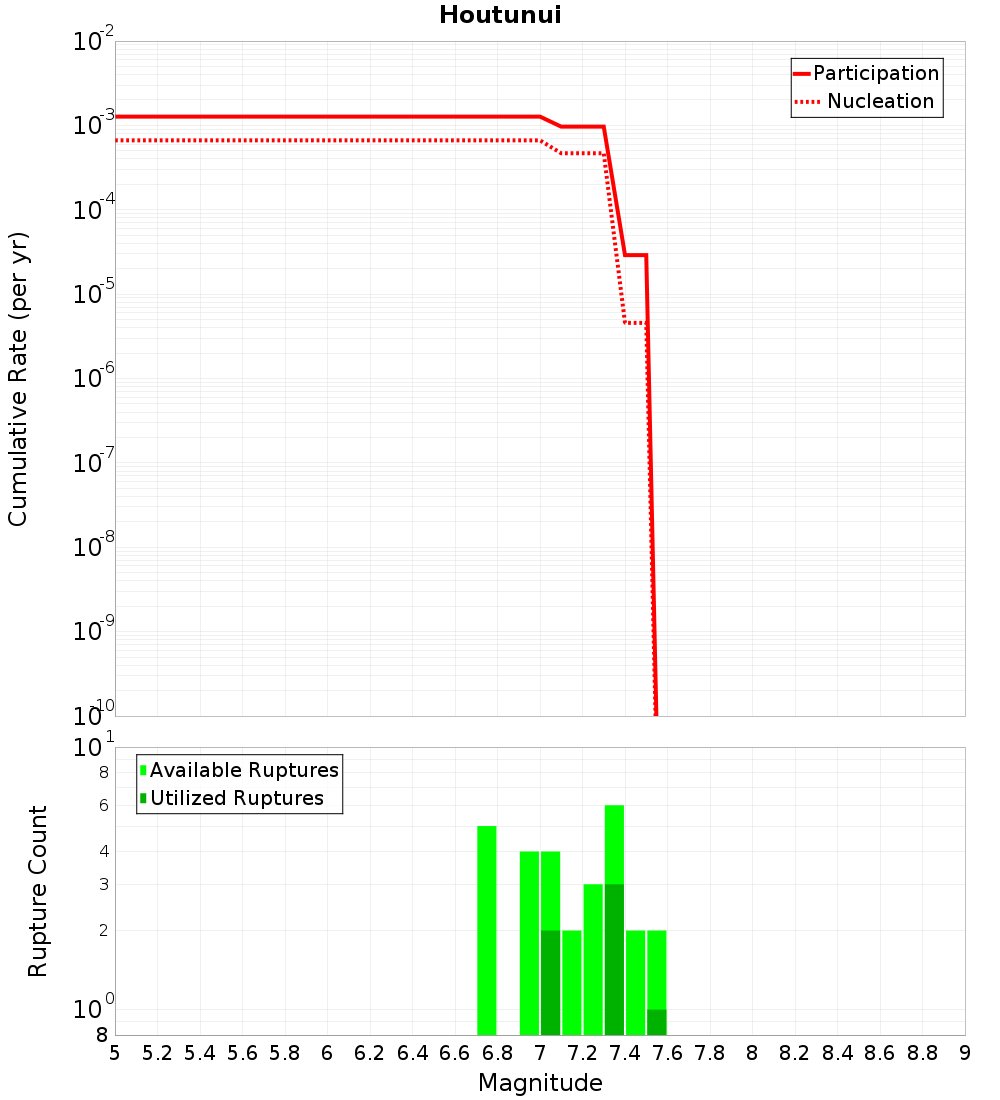

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

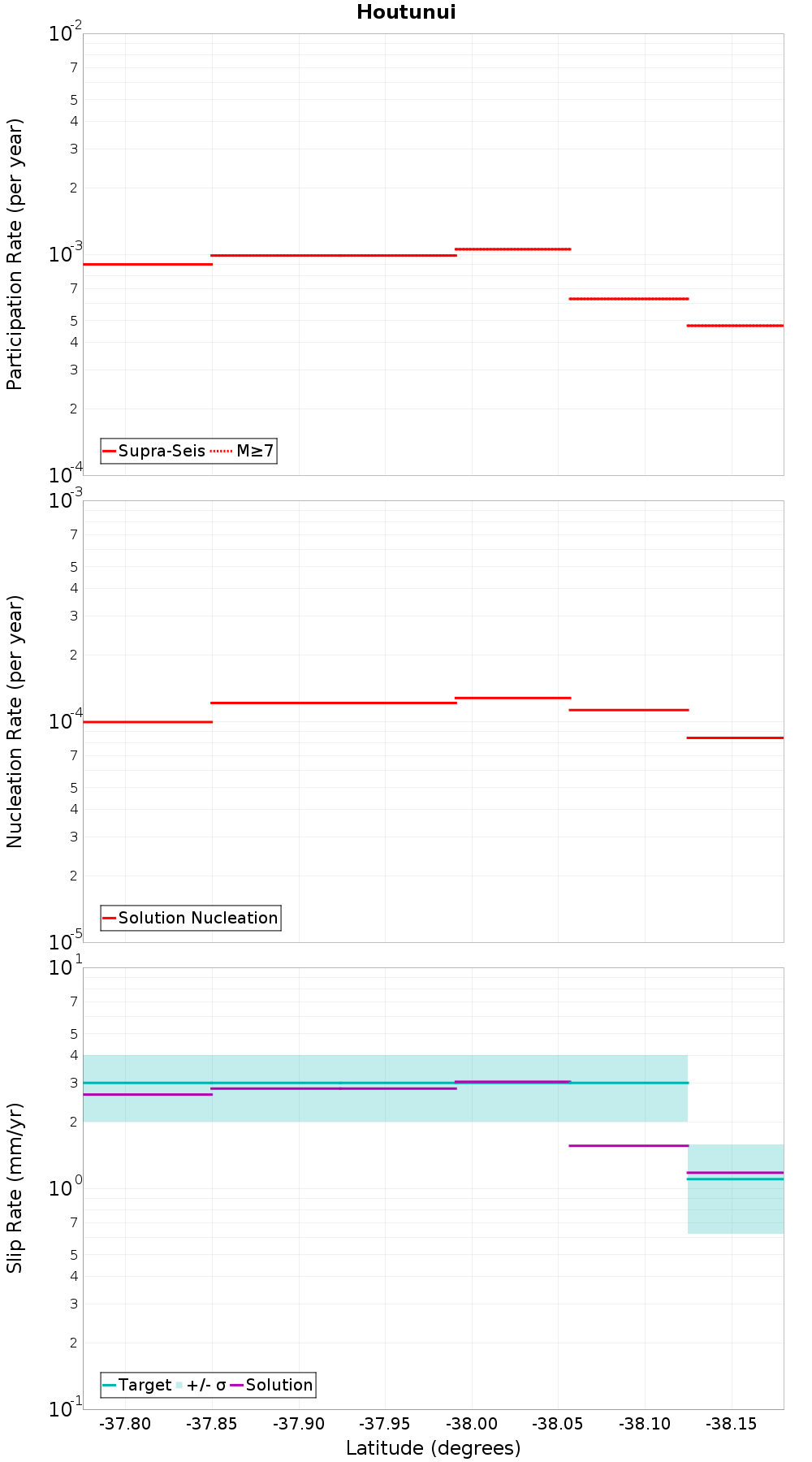

Along-Strike Values
Moment-Rates and b-Values

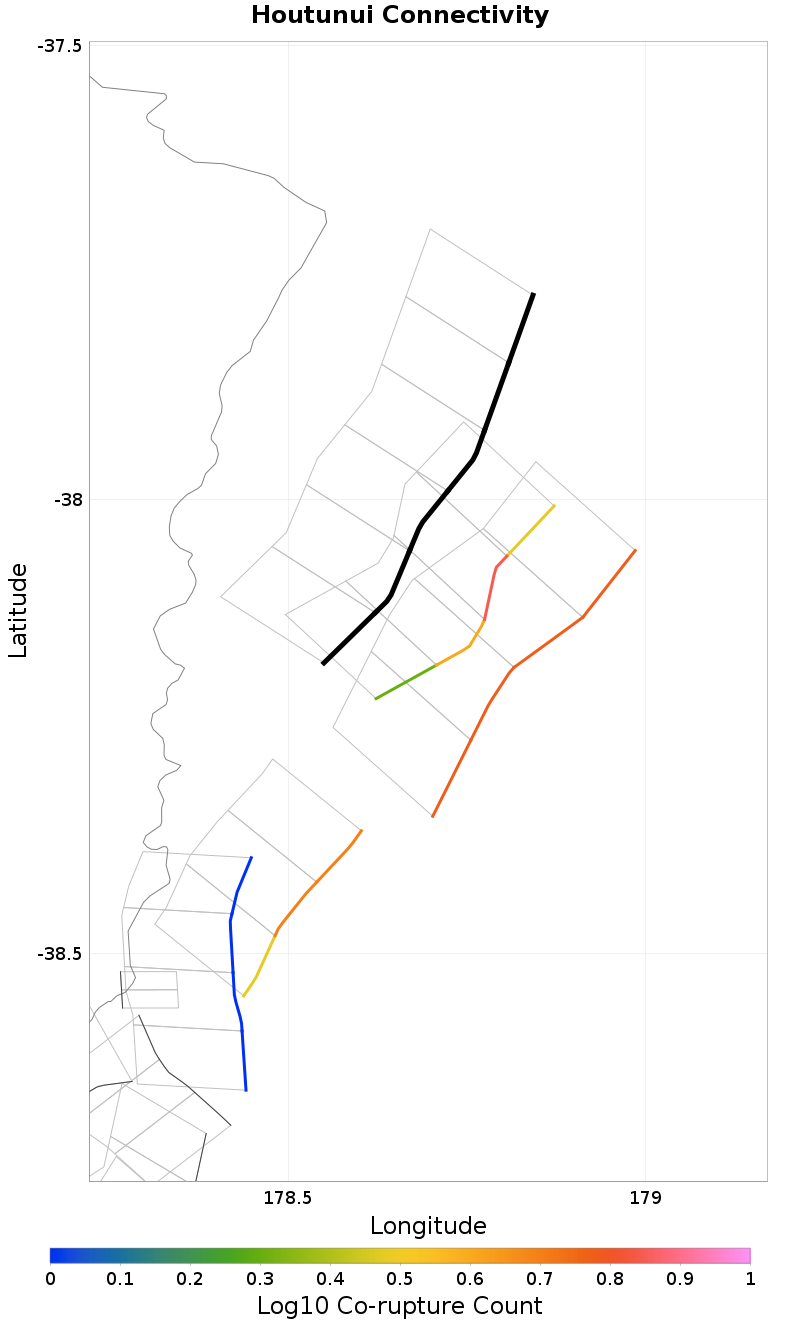

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria South 4, 4.74 km away |
| Ruatoria South 3, 11.22 km away |
| Ariel Bank 2, 16.42 km away |
Ruatoria South 4, 4.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NDEuMGREWHZ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 4.7481467E-4 |
Ruatoria South 3, 11.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NDEuMGREWHZ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 7.078892E-4 |
Ariel Bank 2, 16.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NDEuMGREWHZ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 6.602301E-5 |
