Marlborough Slope 3 Details
| Property | Value |
|---|---|
| Rupture Count | 219 |
| Ruptures Above Sect Min Mag | 216 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.59, 8.08] |
| Length Range | [14, 386] km |
| Total Rate | 1.2583498E-4 /yr |
| Multi-Fault Rate | 1.2583498E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 17 |
Table Of Contents

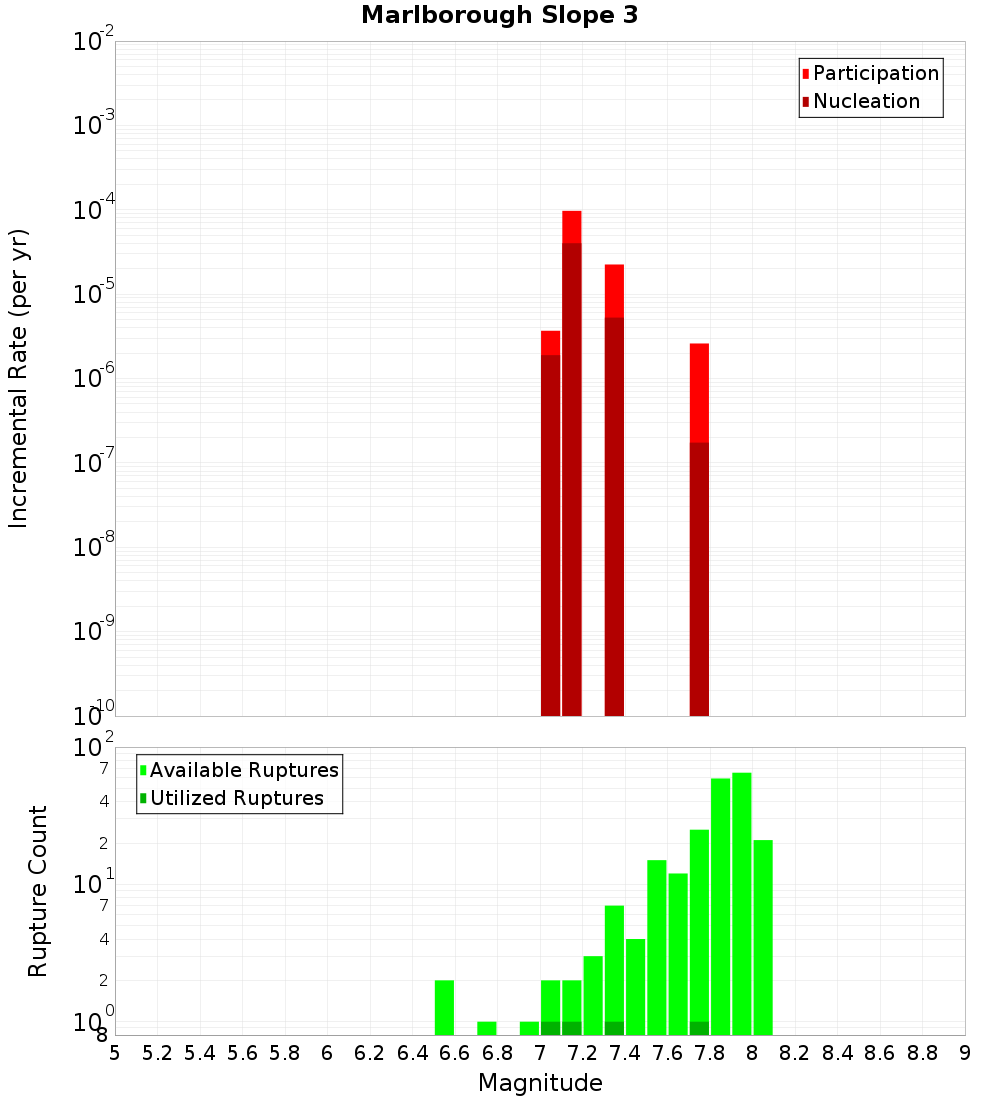

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

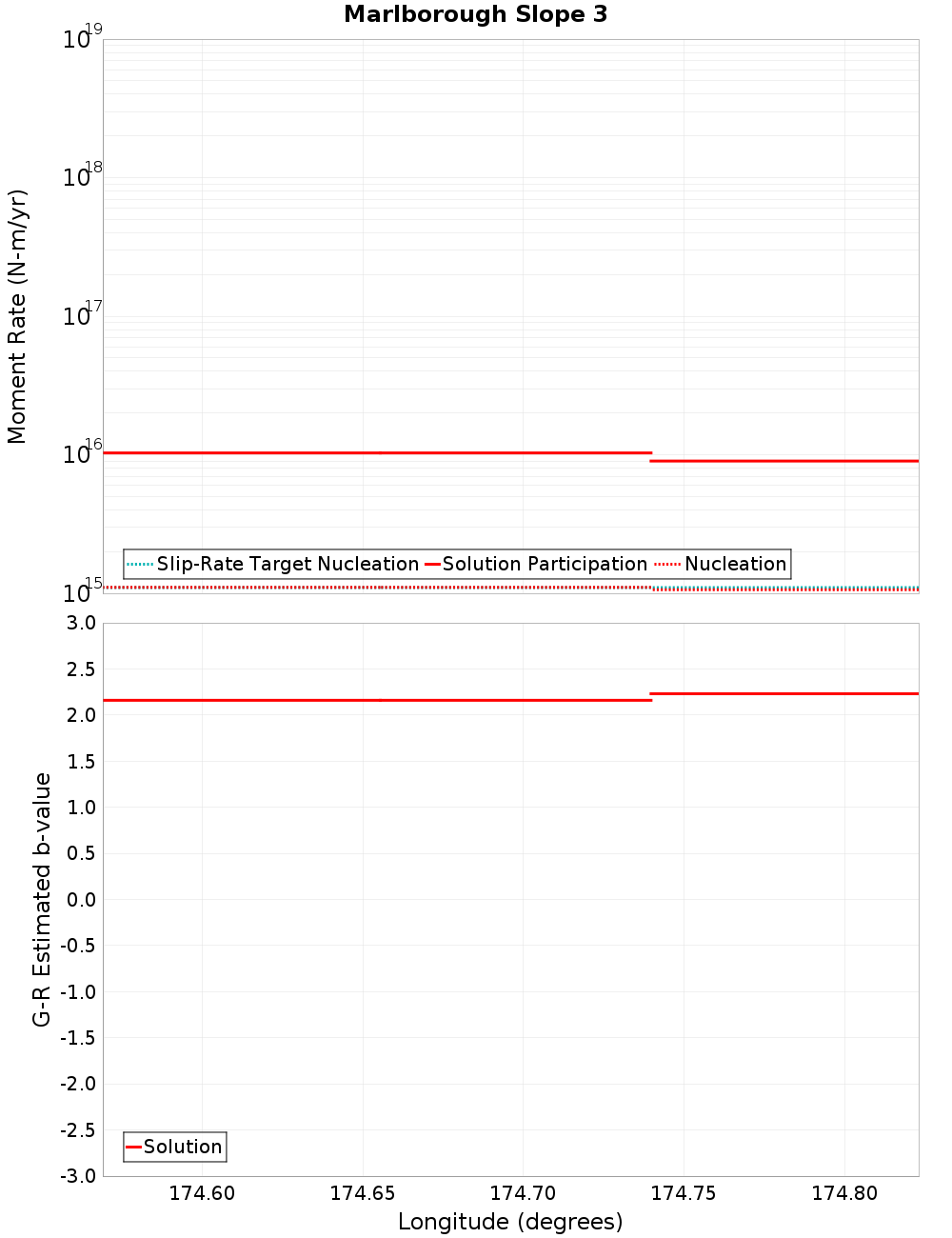

Moment-Rates and b-Values

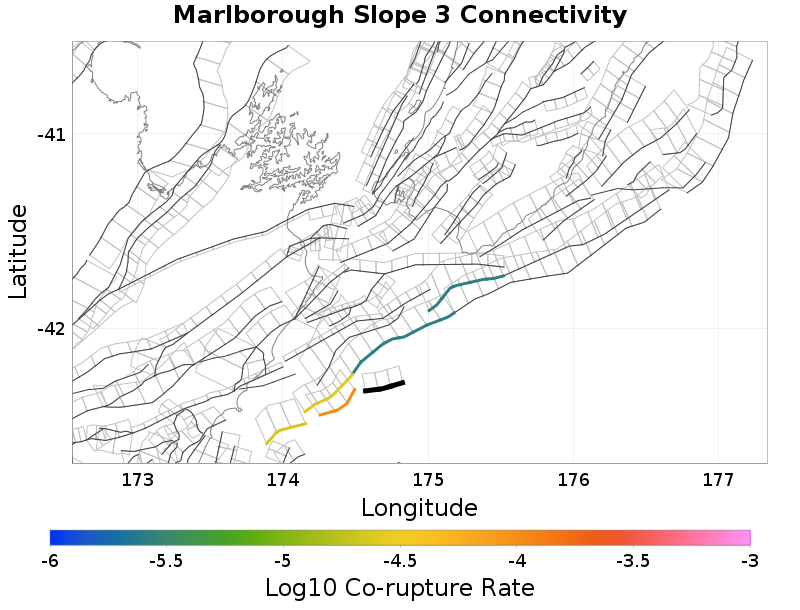

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Marlborough Slope 4, 6.08 km away |
| Kekerengu Bank, 10.31 km away |
Marlborough Slope 4, 6.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 64 |
| Co-rupture Rate | 1.033786E-4 |
Kekerengu Bank, 10.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 212 |
| Co-rupture Rate | 2.5057361E-5 |
