Tuakana 6 Details

PropertyValue
Rupture Count420
Ruptures Above Sect Min Mag419
Ruptures w/ Nonzero Rates59
Magnitude Range[6.86, 8.27]
Length Range[14, 496] km
Total Rate5.7476347E-5 /yr
Multi-Fault Rate5.7476347E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

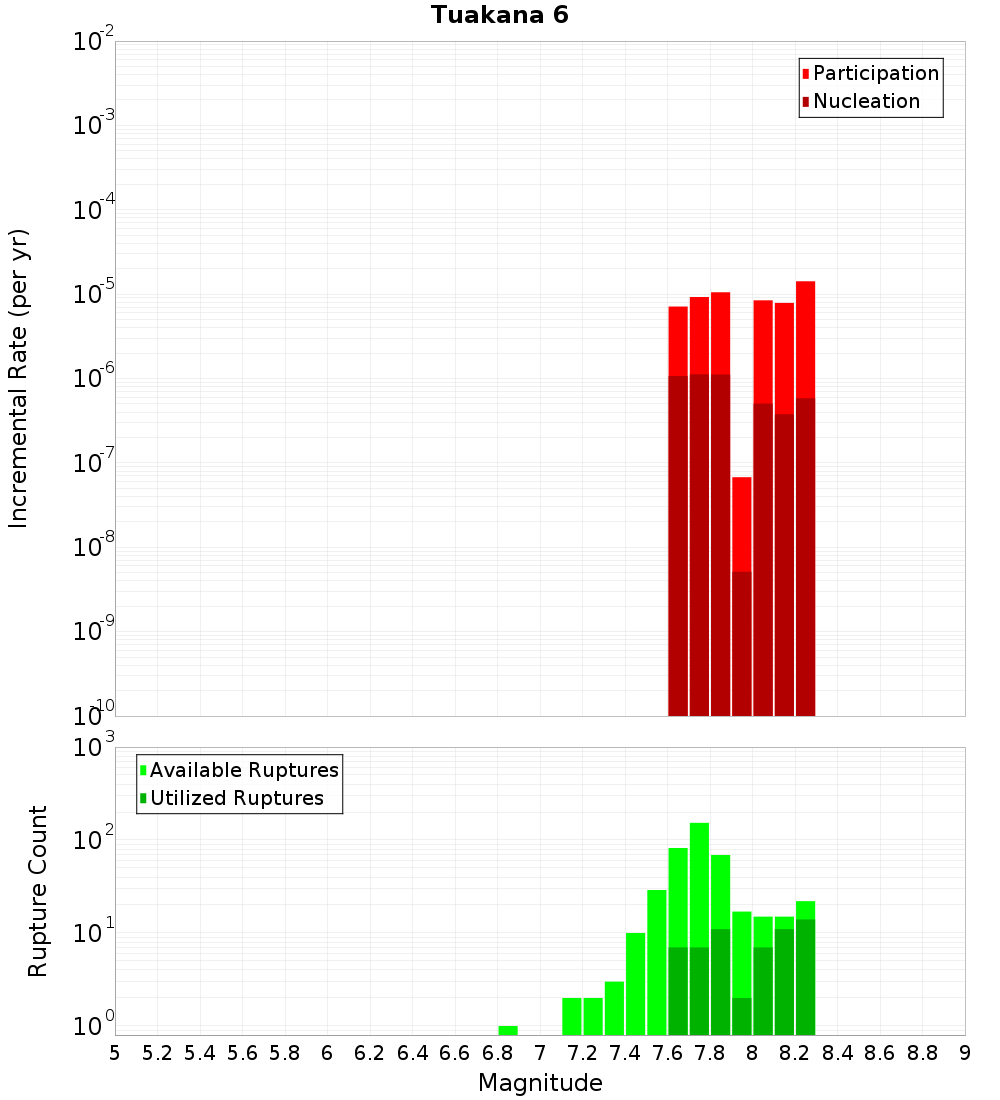

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

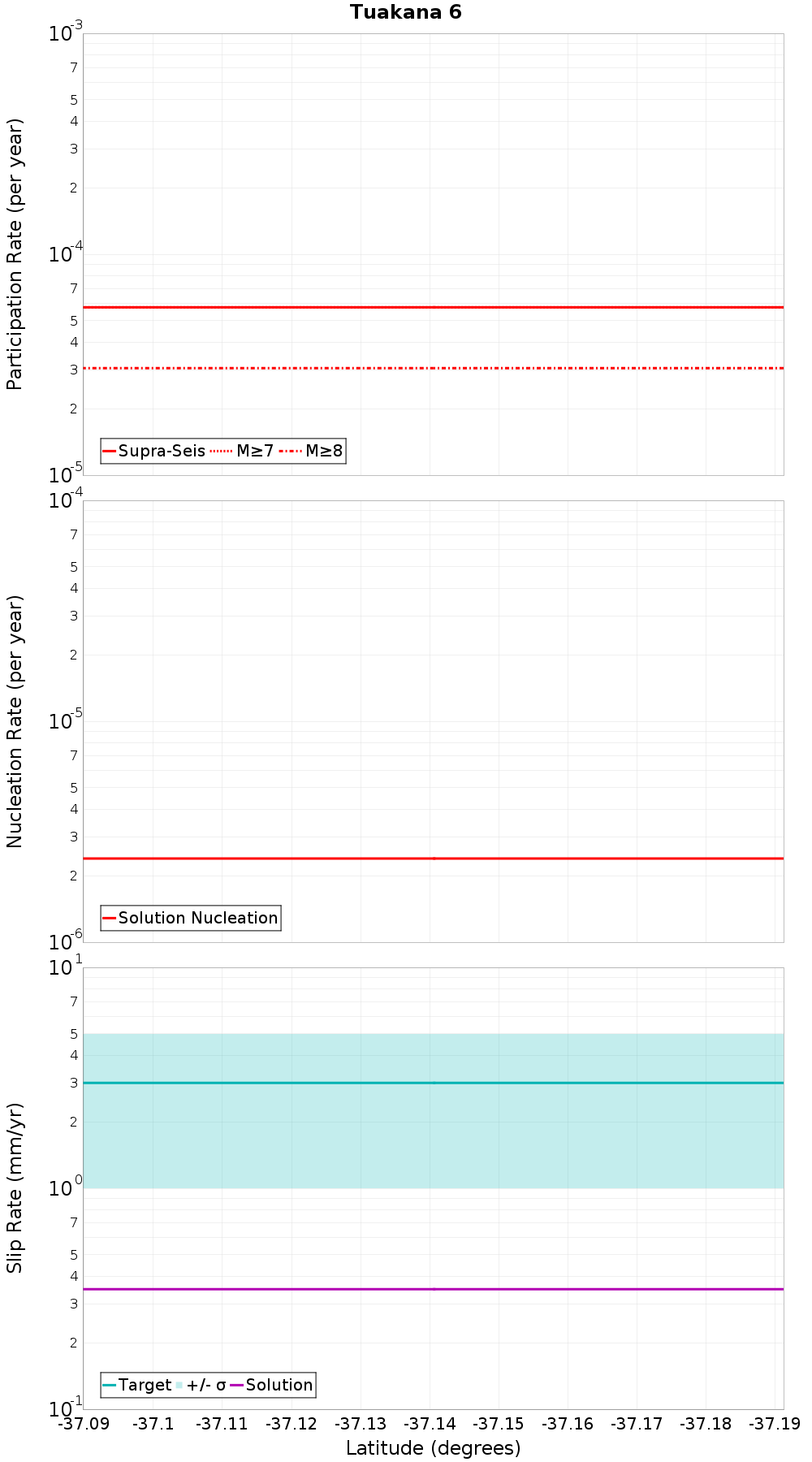

Along-Strike Values

(top)

Along-strike plot

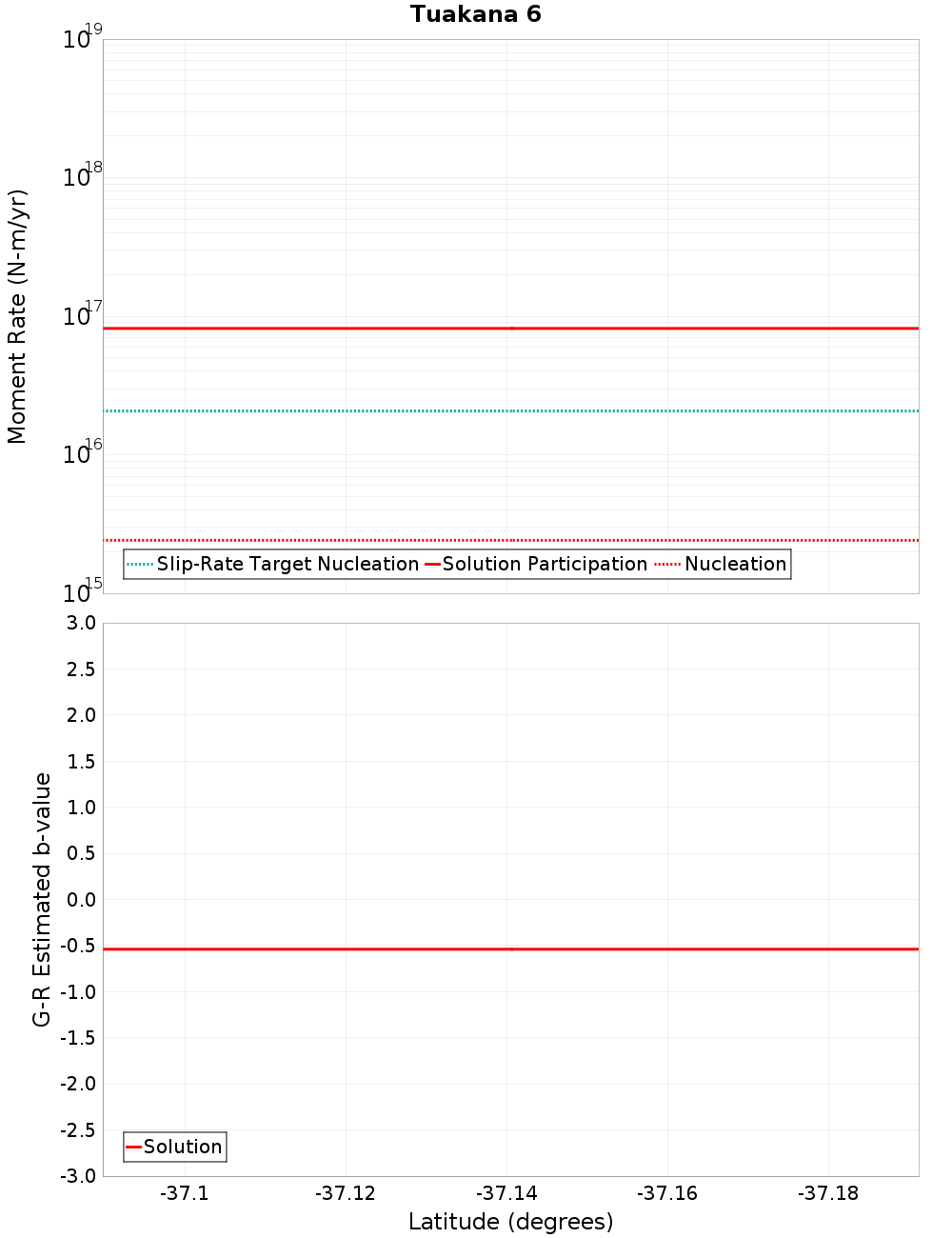

Moment-Rates and b-Values

(top)

Along-strike plot

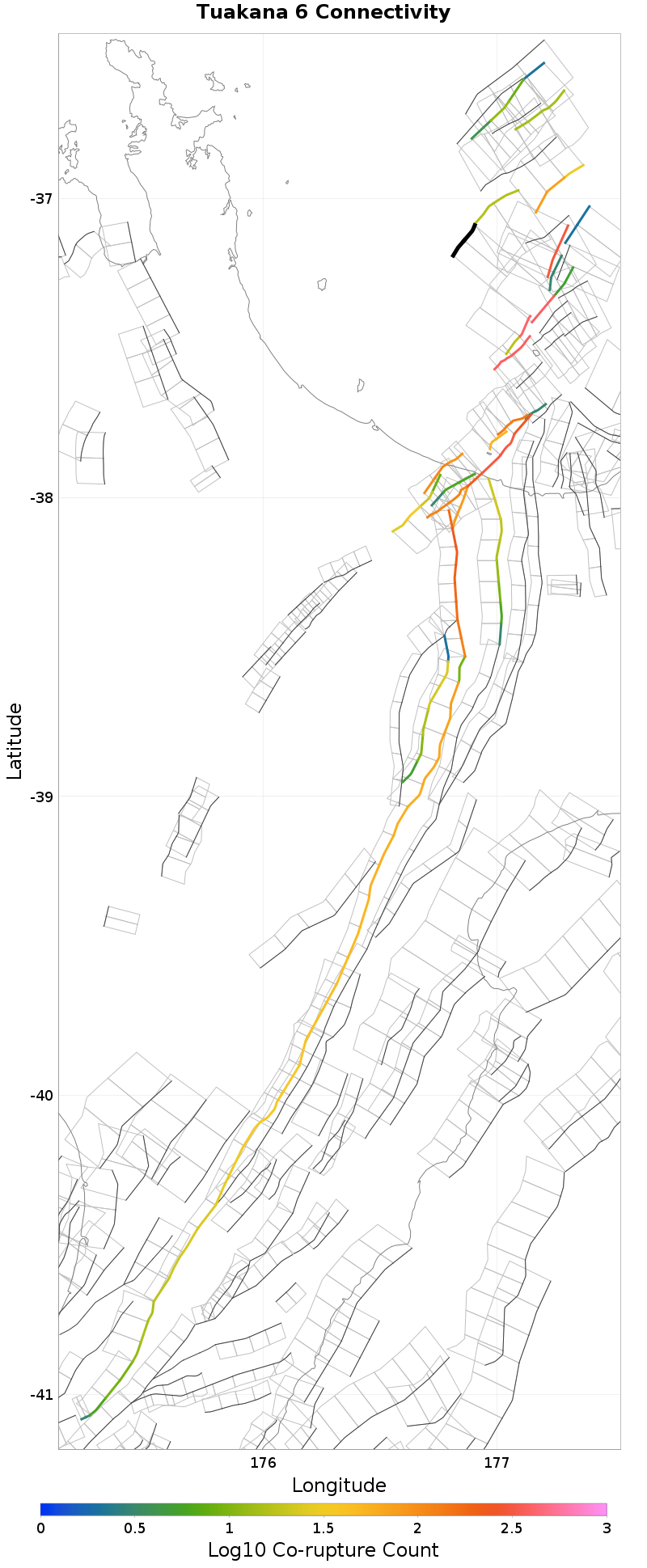

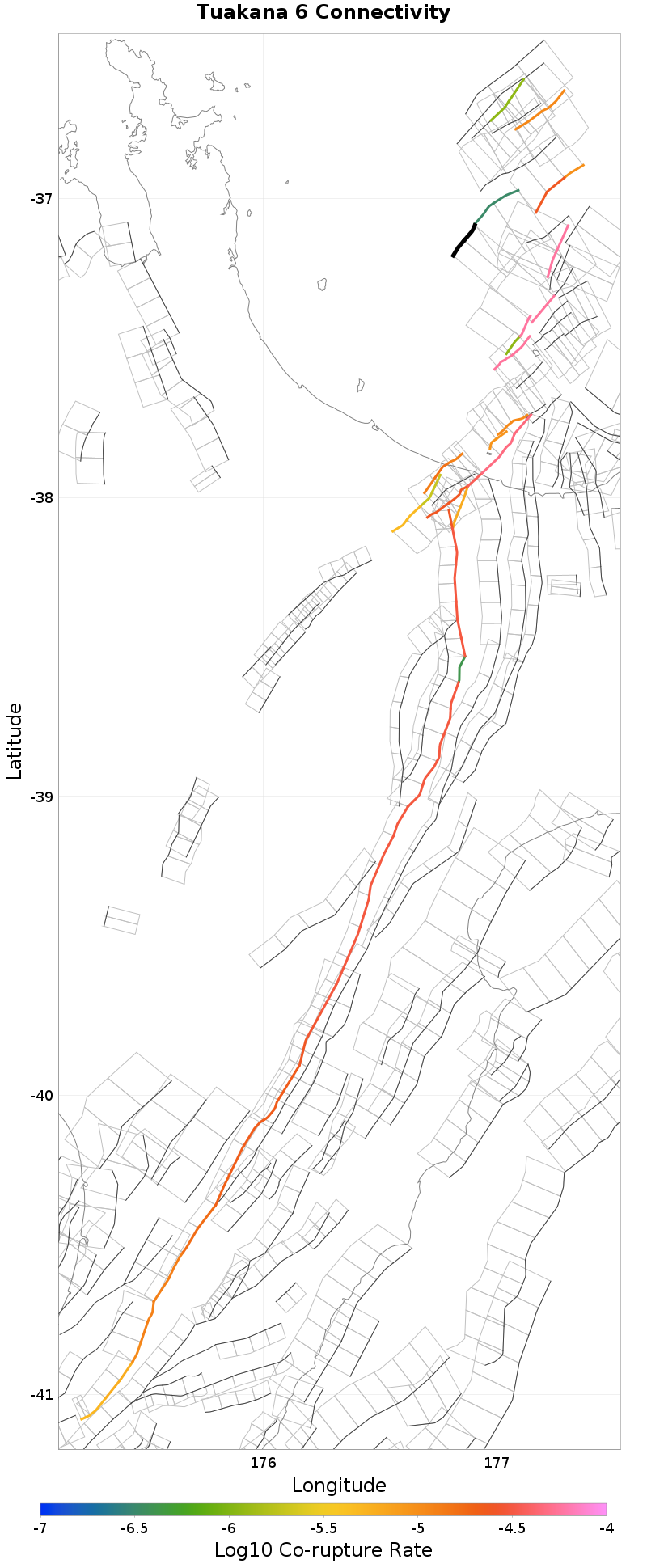

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Volkner 3, 0.32 km away
Volkner 4, 0.33 km away
Otara West 1, 0.34 km away
Tuakana 7, 0.39 km away
Otara West 2, 0.52 km away
Tuatoru 2, 11.58 km away
Tauranga Trough West 2, 12.95 km away
Otara West 3, 14.13 km away
Calypso 2, 17.76 km away
Tauranga Trough East 2, 19.7 km away

Volkner 3, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx
Connected?true
Directly Connected?true
Co-rupture Count404
Co-rupture Rate5.7476347E-5

Volkner 4, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx
Connected?true
Directly Connected?false
Co-rupture Count387
Co-rupture Rate5.6344874E-5

Otara West 1, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Tuakana 7, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate3.2606349E-7

Otara West 2, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx
Connected?true
Directly Connected?true
Co-rupture Count304
Co-rupture Rate5.7150282E-5

Tuatoru 2, 11.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tauranga Trough West 2, 12.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 3, 14.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 17.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tauranga Trough East 2, 19.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NjguMHF1QUFx
Connected?true
Directly Connected?false
Co-rupture Count78
Co-rupture Rate2.3974106E-5
