Palliser - Kaiwhata Details

PropertyValue
Rupture Count9,734
Ruptures Above Sect Min Mag9,728
Ruptures w/ Nonzero Rates15
Magnitude Range[6.84, 8.33]
Length Range[21, 674] km
Total Rate2.6043438E-4 /yr
Multi-Fault Rate2.6043438E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults68

Table Of Contents

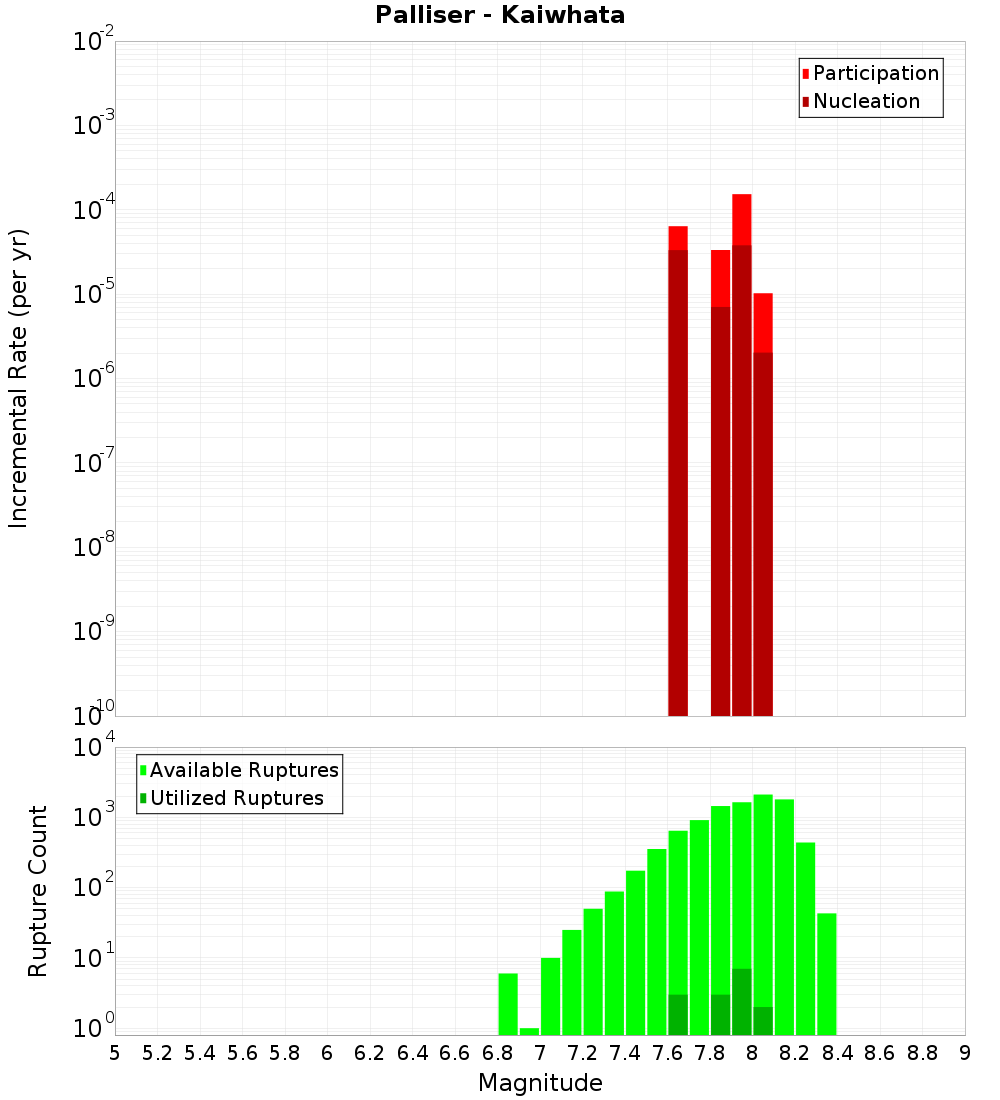

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

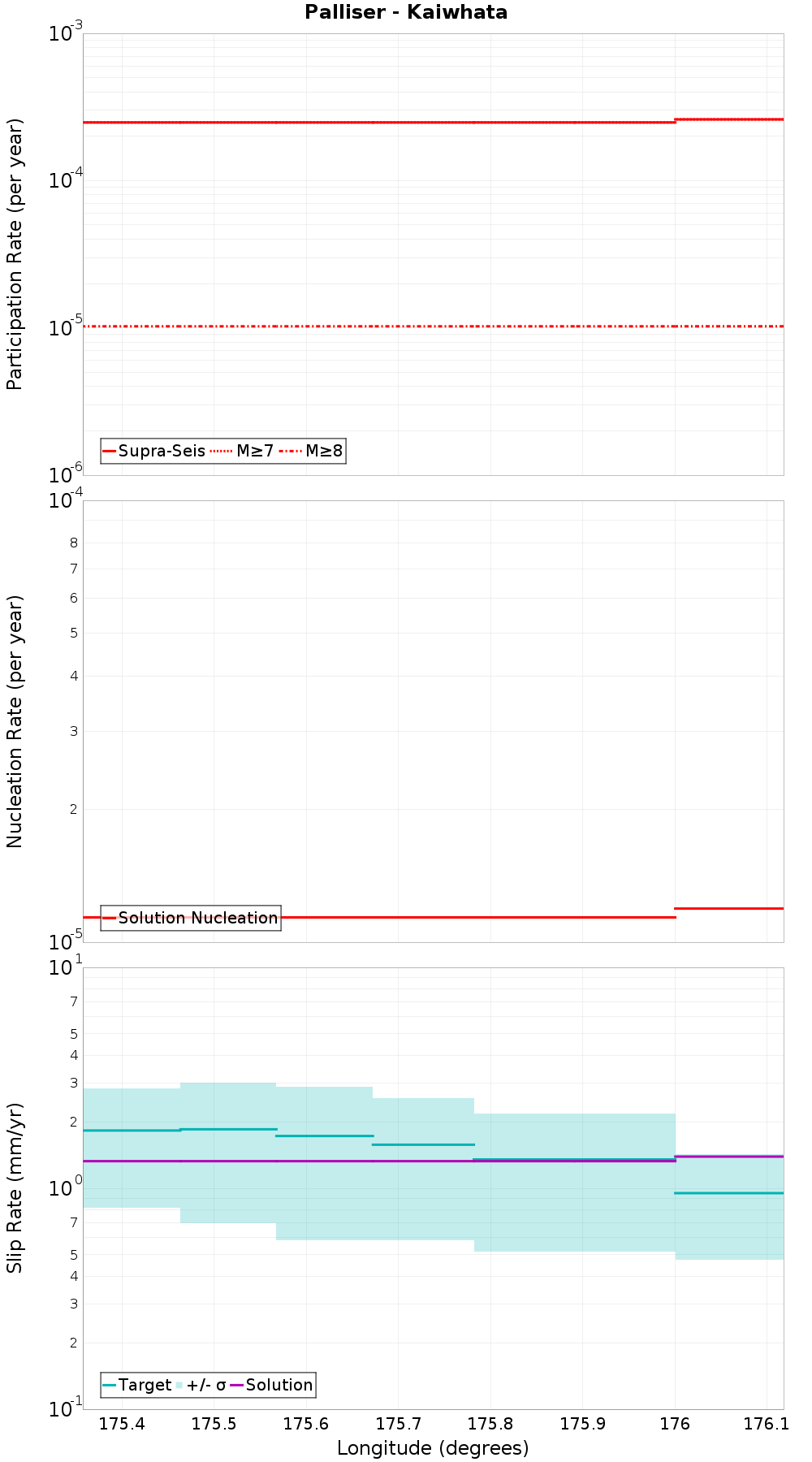

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

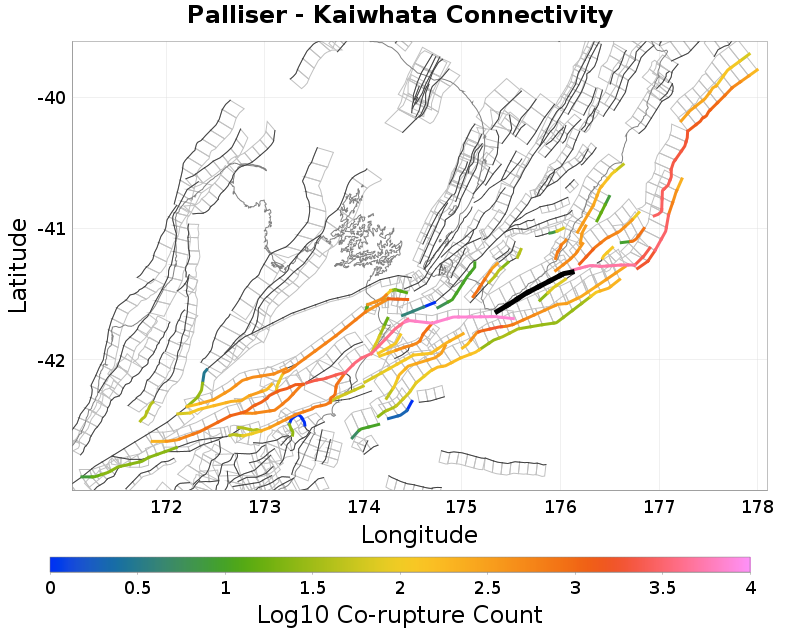

MapMap

Nearby Sections

(top)

Fault Section
Honeycomb, 1.22 km away
Uruti Basin, 1.36 km away
Otaraia, 1.7 km away
Riversdale, 3.25 km away
Uruti Point, 3.6 km away
BooBoo, 4.24 km away
Whareama Bank, 6.44 km away
Opouawe - Uruti, 8.58 km away
Dry River - Huangarua: 1, 11.83 km away
Pahaua, 13.63 km away
Riversdale North, 14.39 km away
Dry River - Huangarua: 3, 18.11 km away
Dry River - Huangarua: 2, 18.58 km away

Honeycomb, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?true
Co-rupture Count73
Co-rupture Rate0.0

Uruti Basin, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?true
Co-rupture Count5,324
Co-rupture Rate1.0775577E-4

Otaraia, 1.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?true
Co-rupture Count845
Co-rupture Rate1.6281138E-4

Riversdale, 3.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?true
Co-rupture Count587
Co-rupture Rate5.33589E-5

Uruti Point, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?true
Co-rupture Count721
Co-rupture Rate6.56654E-5

BooBoo, 4.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?true
Co-rupture Count7,381
Co-rupture Rate8.045645E-5

Whareama Bank, 6.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?true
Co-rupture Count1,193
Co-rupture Rate9.931971E-5

Opouawe - Uruti, 8.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?true
Co-rupture Count1,929
Co-rupture Rate0.0

Dry River - Huangarua: 1, 11.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate0.0

Pahaua, 13.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?false
Co-rupture Count204
Co-rupture Rate1.8351124E-6

Riversdale North, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?false
Co-rupture Count336
Co-rupture Rate4.738516E-5

Dry River - Huangarua: 3, 18.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate1.6439164E-5

Dry River - Huangarua: 2, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI3NzQuMDNWejhp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
