Wellington: Pahiatua Details

Property	Value
Rupture Count	93,638
Ruptures Above Sect Min Mag	93,635
Ruptures w/ Nonzero Rates	50
Magnitude Range	[6.92, 8.60]
Length Range	[21, 1,119] km
Total Rate	0.0012367897 /yr
Multi-Fault Rate	0.0012367897 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	139

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

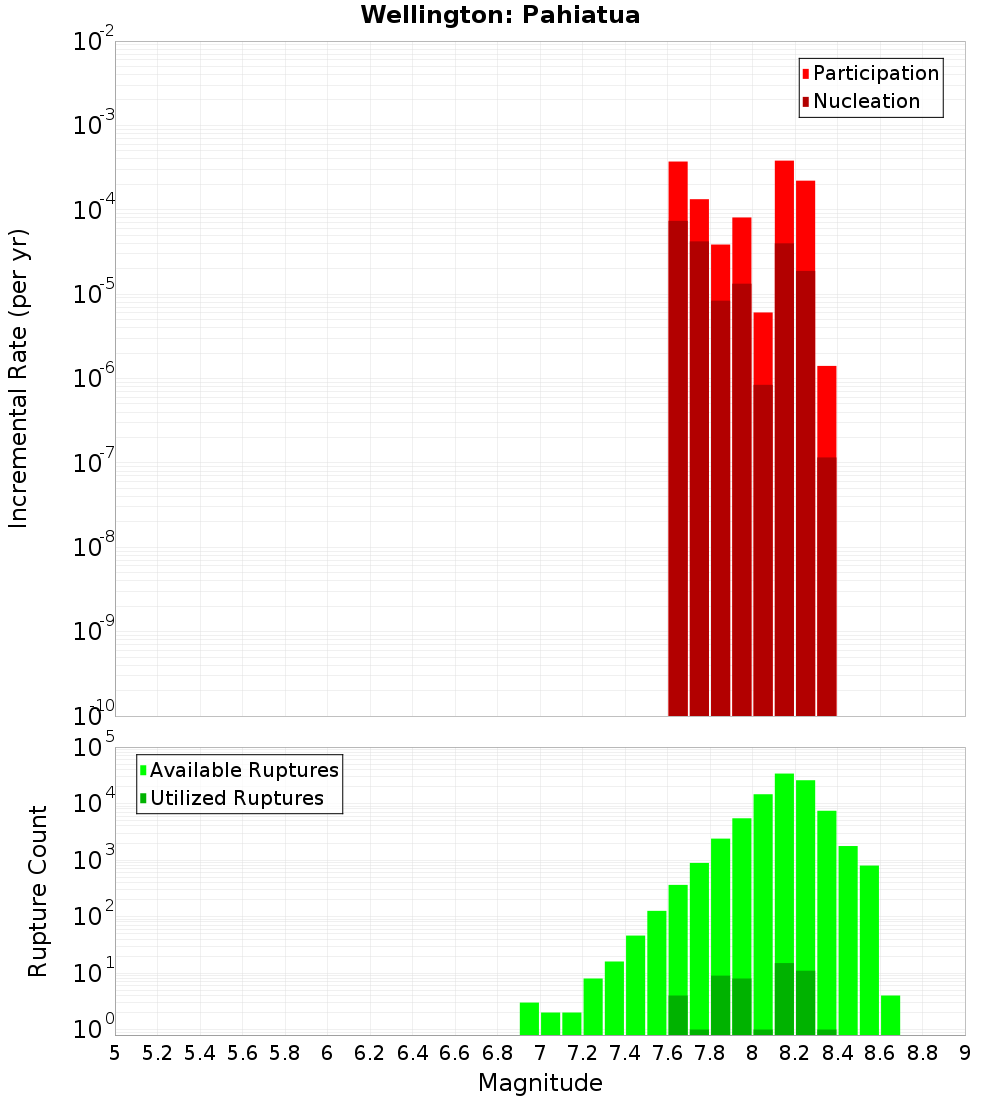

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

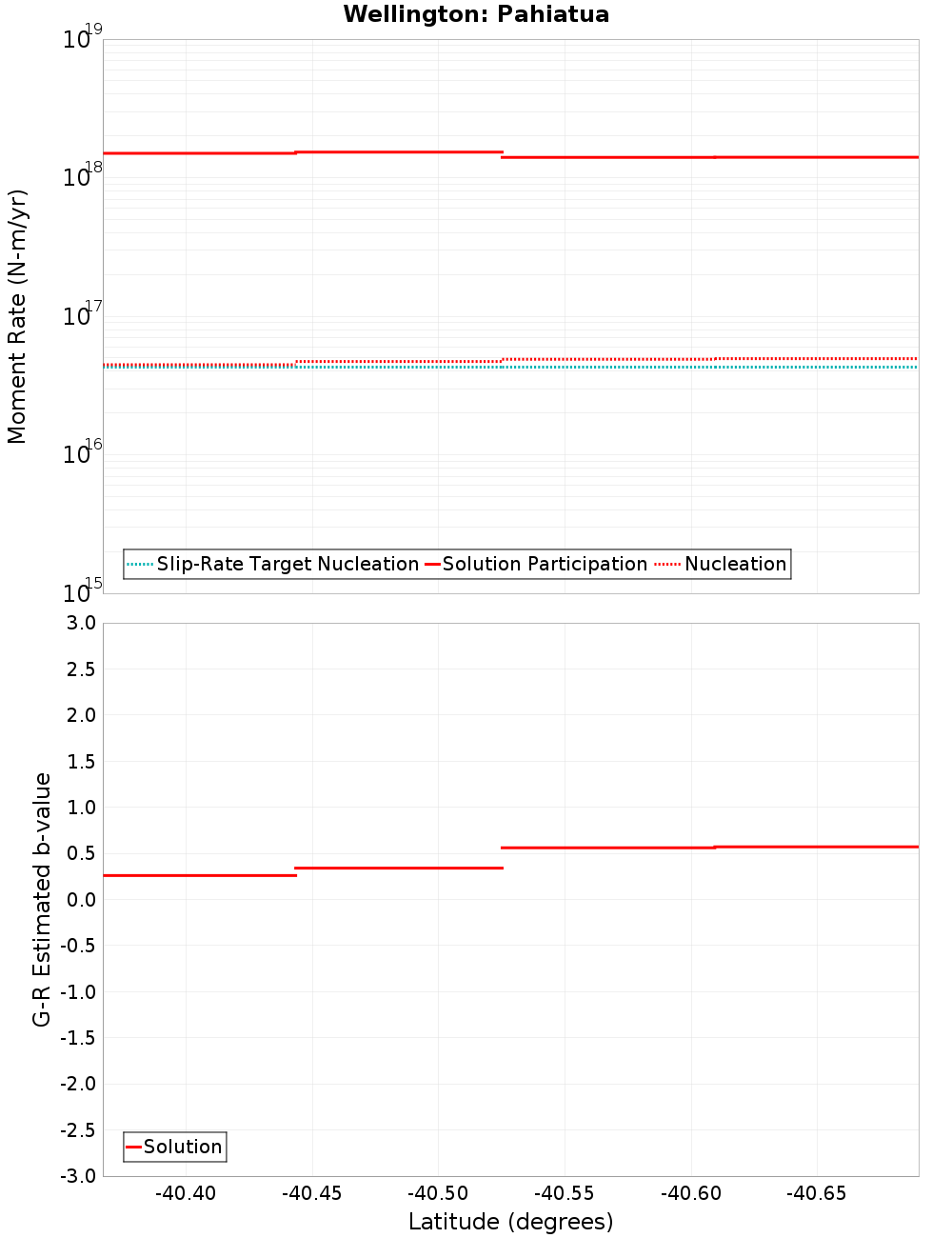

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Mohaka: South, 0 km away	Wairarapa: 3, 13.85 km away
Ruahine: South, 0 km away	Dreyers Rock, 15.65 km away
Wellington: Tararua 3, 0.03 km away	Maunga, 17.38 km away
Tokomaru, 0.13 km away	Alfredton South, 18.67 km away
Northern Ohariu, 2.46 km away	Makuri - Waewaepa, 18.97 km away
Otaki Forks: 2, 4.69 km away	Alfredton North, 19 km away
Woodville, 5.06 km away	Pa Valley, 19.21 km away
Pahiatua, 5.58 km away	Levin Anticline, 19.3 km away
Pohangina, 9.35 km away

Mohaka: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	true
Directly Connected?	true
Co-rupture Count	64,635
Co-rupture Rate	5.9188815E-4

Ruahine: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	true
Directly Connected?	true
Co-rupture Count	40,967
Co-rupture Rate	1.5668188E-4

Wellington: Tararua 3, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	true
Directly Connected?	true
Co-rupture Count	55,080
Co-rupture Rate	0.0010268212

Tokomaru, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	true
Directly Connected?	true
Co-rupture Count	5,921
Co-rupture Rate	2.0278632E-5

Northern Ohariu, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	true
Directly Connected?	true
Co-rupture Count	14,422
Co-rupture Rate	1.3015009E-4

Otaki Forks: 2, 4.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	true
Directly Connected?	true
Co-rupture Count	19,661
Co-rupture Rate	7.9818376E-5

Woodville, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	4.77122E-6

Pahiatua, 5.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	true
Directly Connected?	false
Co-rupture Count	172
Co-rupture Rate	1.7315519E-5

Pohangina, 9.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	true
Directly Connected?	true
Co-rupture Count	587
Co-rupture Rate	3.1645224E-5

Wairarapa: 3, 13.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dreyers Rock, 15.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 17.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alfredton South, 18.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 18.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alfredton North, 19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pa Valley, 19.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Levin Anticline, 19.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4MzYuMDc0czh5
Connected?	true
Directly Connected?	false
Co-rupture Count	154
Co-rupture Rate	0.0
