Wharanui Details

Property	Value
Rupture Count	2
Ruptures Above Sect Min Mag	1
Ruptures w/ Nonzero Rates	1
Magnitude Range	[6.71, 7.21]
Length Range	[17, 50] km
Total Rate	8.901442E-5 /yr
Multi-Fault Rate	8.901442E-5 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	1

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

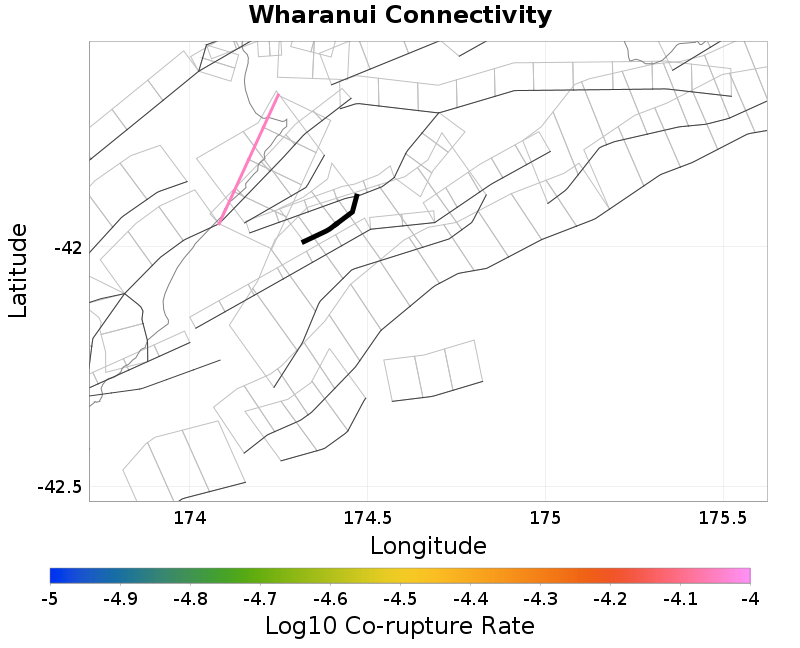

Connectivity
- Nearby Sections

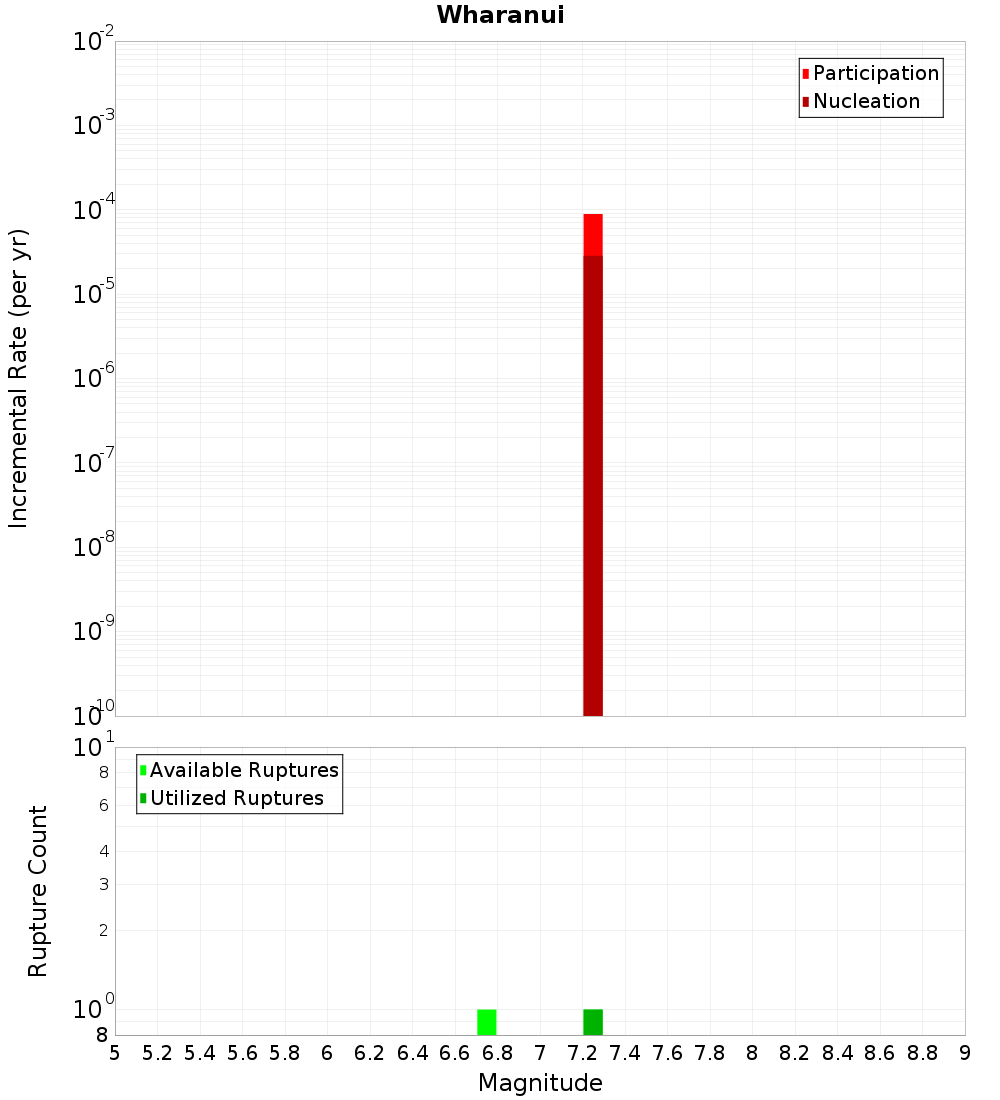

Magnitude-Frequency Distribution

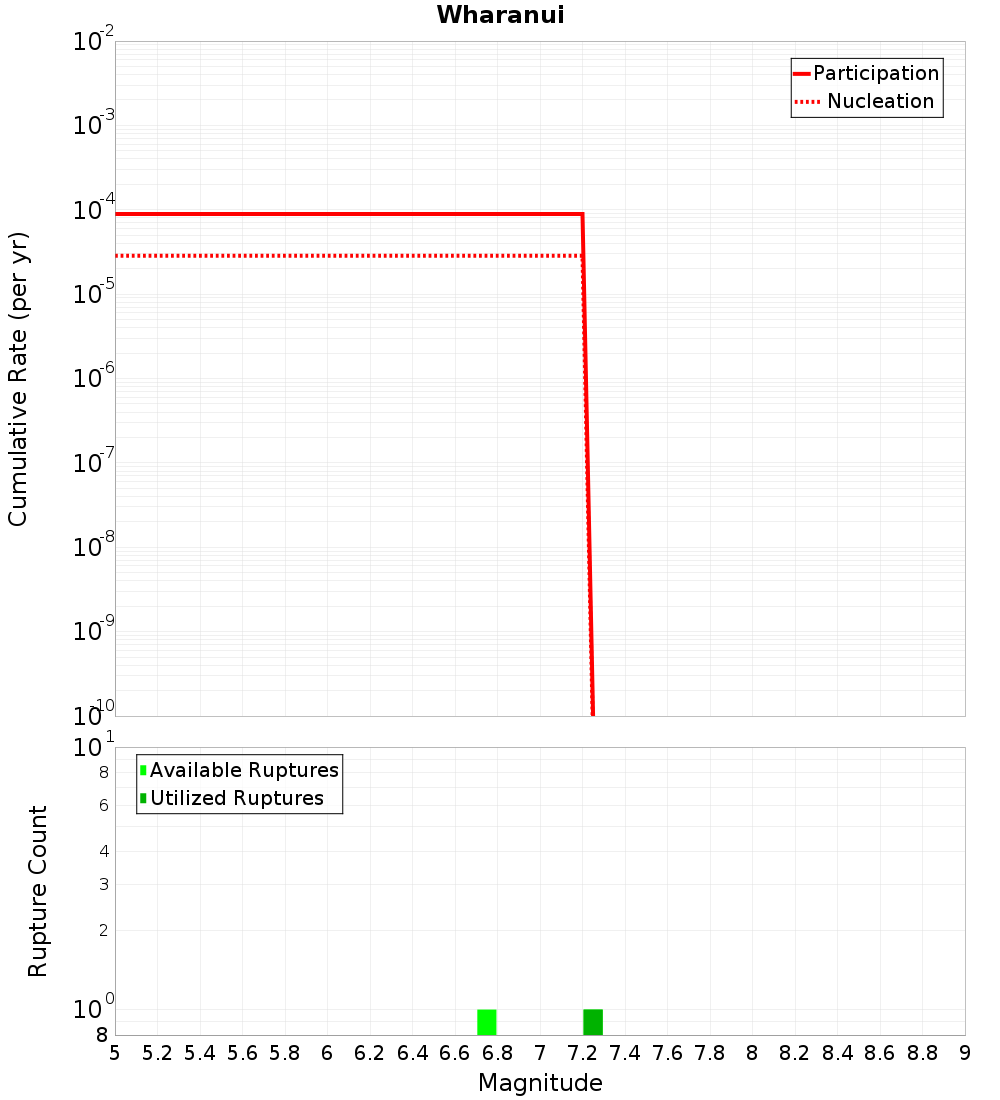

Incremental	Cumulative

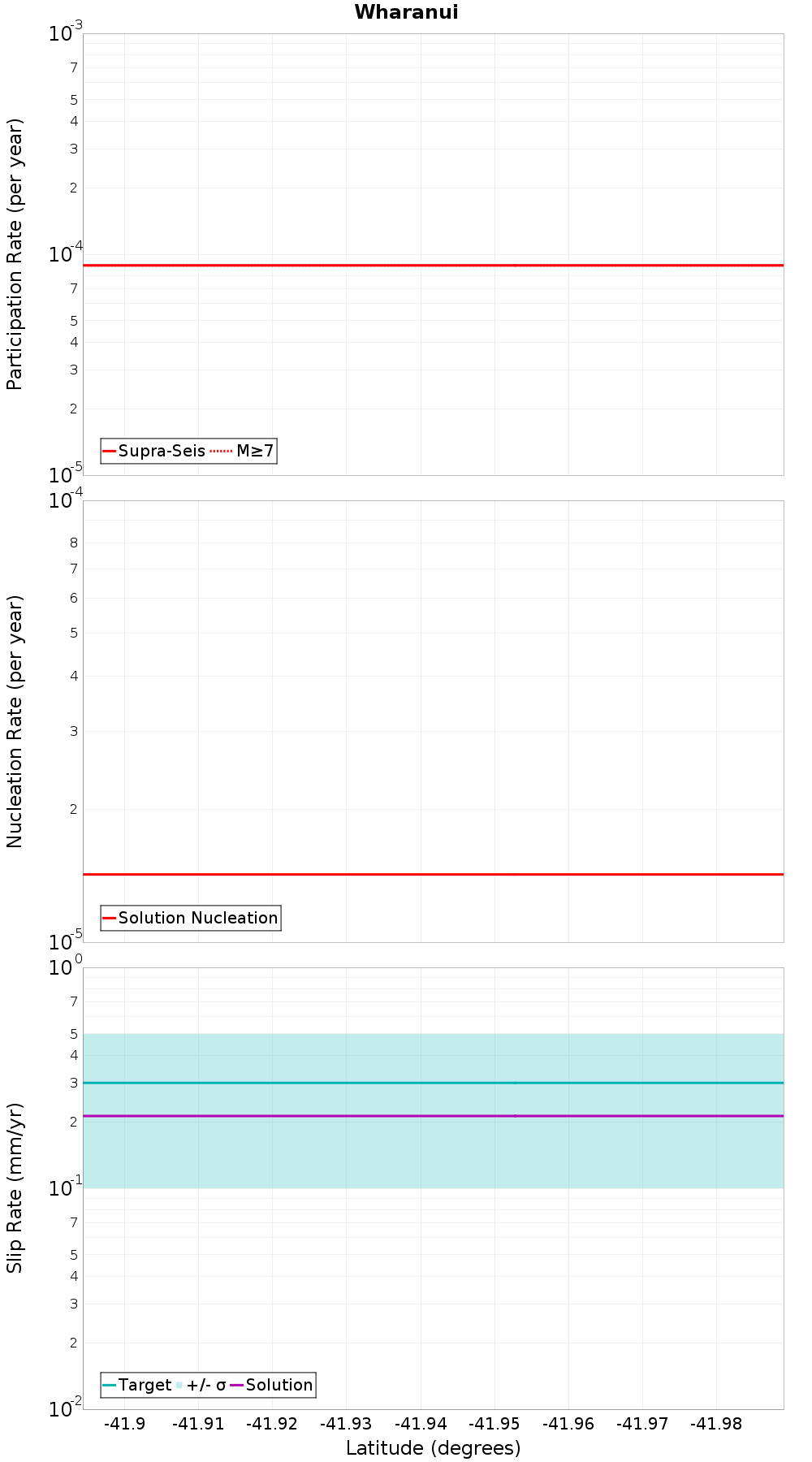

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Chancet, 0.07 km away
London Hill, 0.49 km away
Upper Slope, 1.45 km away
Hope: Te Rapa, 4.7 km away
Te Rapa 1, 5.8 km away
Needles East 2, 9.25 km away
Campbell Bank, 9.77 km away
Needles, 10.35 km away
Kekerengu Bank, 17.38 km away
BooBoo, 17.68 km away
Te Rapa 2, 18.53 km away
Kekerengu 1, 18.59 km away

Chancet, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

London Hill, 0.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	8.901442E-5

Upper Slope, 1.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Te Rapa, 4.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Rapa 1, 5.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Needles East 2, 9.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Campbell Bank, 9.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Needles, 10.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kekerengu Bank, 17.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

BooBoo, 17.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Rapa 2, 18.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kekerengu 1, 18.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI4NTMuMGdMeTQ3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
