Pahaua Details

Property	Value
Rupture Count	6,418
Ruptures Above Sect Min Mag	6,404
Ruptures w/ Nonzero Rates	116
Magnitude Range	[6.78, 8.20]
Length Range	[19, 498] km
Total Rate	5.178822E-4 /yr
Multi-Fault Rate	5.178822E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	52

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

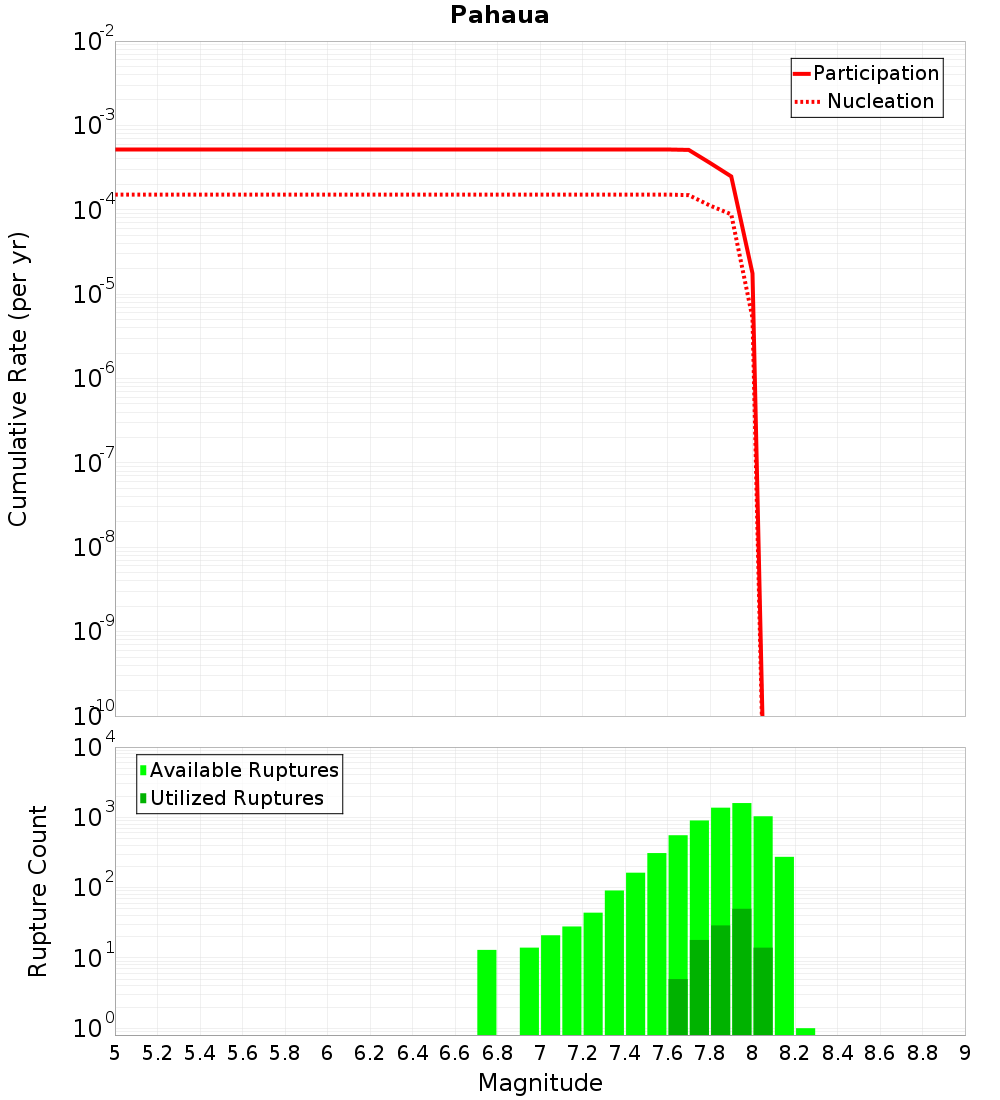

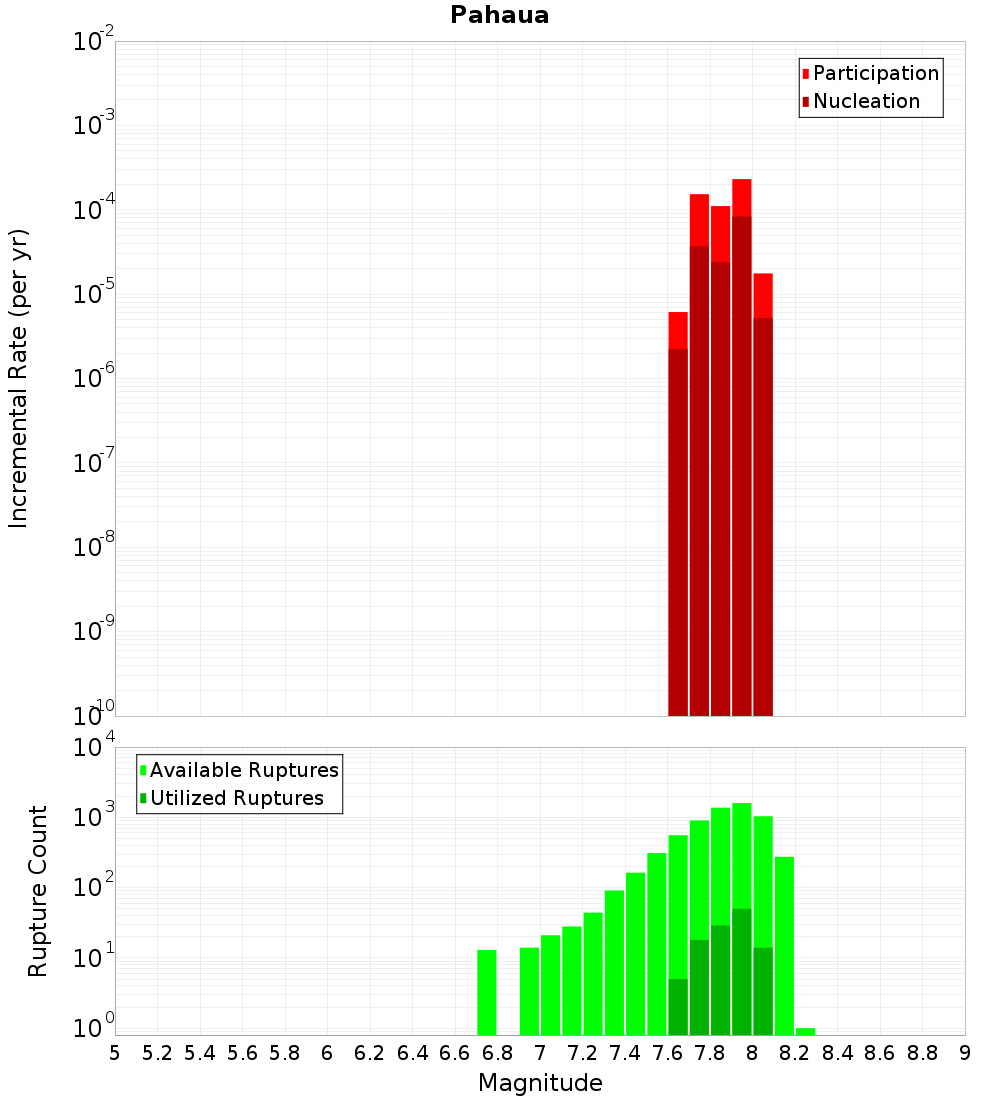

Magnitude-Frequency Distribution

Incremental	Cumulative

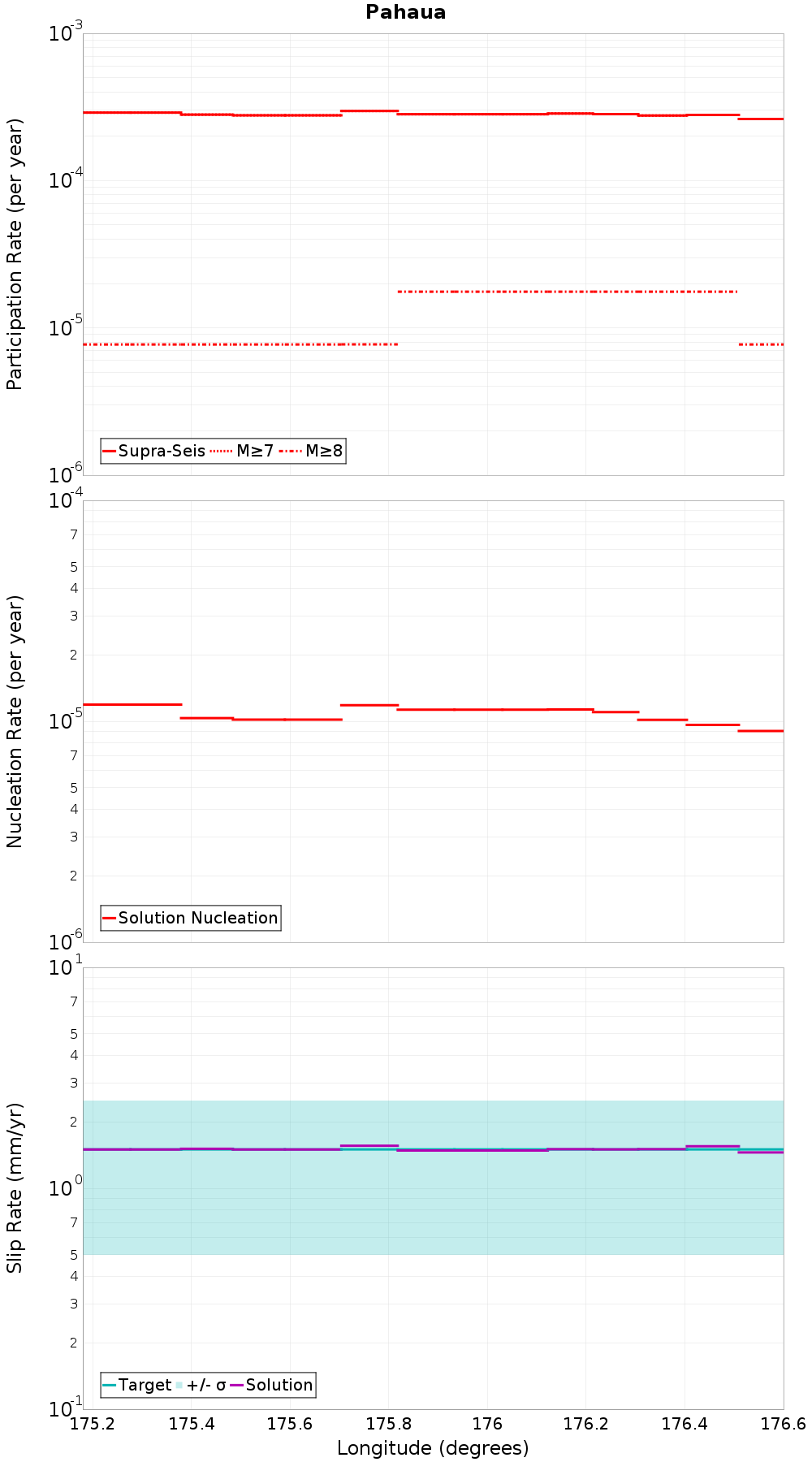

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu Bank, 0 km away
Uruti Basin 2, 0.14 km away
BooBoo, 0.16 km away
Uruti Basin, 0.28 km away
Opouawe - Uruti, 2.68 km away
Uruti East - PorWest 1, 7.19 km away
Te Rapa 2, 10.36 km away
Uruti Ridge 2, 12.05 km away
Honeycomb, 13.47 km away
Palliser - Kaiwhata, 13.63 km away
Whareama Bank, 18.07 km away
Otaraia, 18.34 km away

Kekerengu Bank, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	true
Co-rupture Count	3,465
Co-rupture Rate	2.9918397E-4

Uruti Basin 2, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	true
Co-rupture Count	802
Co-rupture Rate	1.7354969E-5

BooBoo, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	true
Co-rupture Count	811
Co-rupture Rate	1.2793591E-4

Uruti Basin, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	true
Co-rupture Count	2,947
Co-rupture Rate	3.106373E-4

Opouawe - Uruti, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	true
Co-rupture Count	2,661
Co-rupture Rate	6.662383E-5

Uruti East - PorWest 1, 7.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	false
Co-rupture Count	2,922
Co-rupture Rate	1.1586469E-4

Te Rapa 2, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	false
Co-rupture Count	105
Co-rupture Rate	1.6105041E-11

Uruti Ridge 2, 12.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	false
Co-rupture Count	2,043
Co-rupture Rate	9.090547E-5

Honeycomb, 13.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	true
Co-rupture Count	1,103
Co-rupture Rate	1.382393E-4

Palliser - Kaiwhata, 13.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	false
Co-rupture Count	204
Co-rupture Rate	7.01579E-5

Whareama Bank, 18.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaraia, 18.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5MzguMEtmWWVn
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	1.0472339E-11
