Manahi 1 Details

Property	Value
Rupture Count	209
Ruptures Above Sect Min Mag	208
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.72, 7.93]
Length Range	[13, 208] km
Total Rate	2.3064345E-5 /yr
Multi-Fault Rate	2.3064345E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

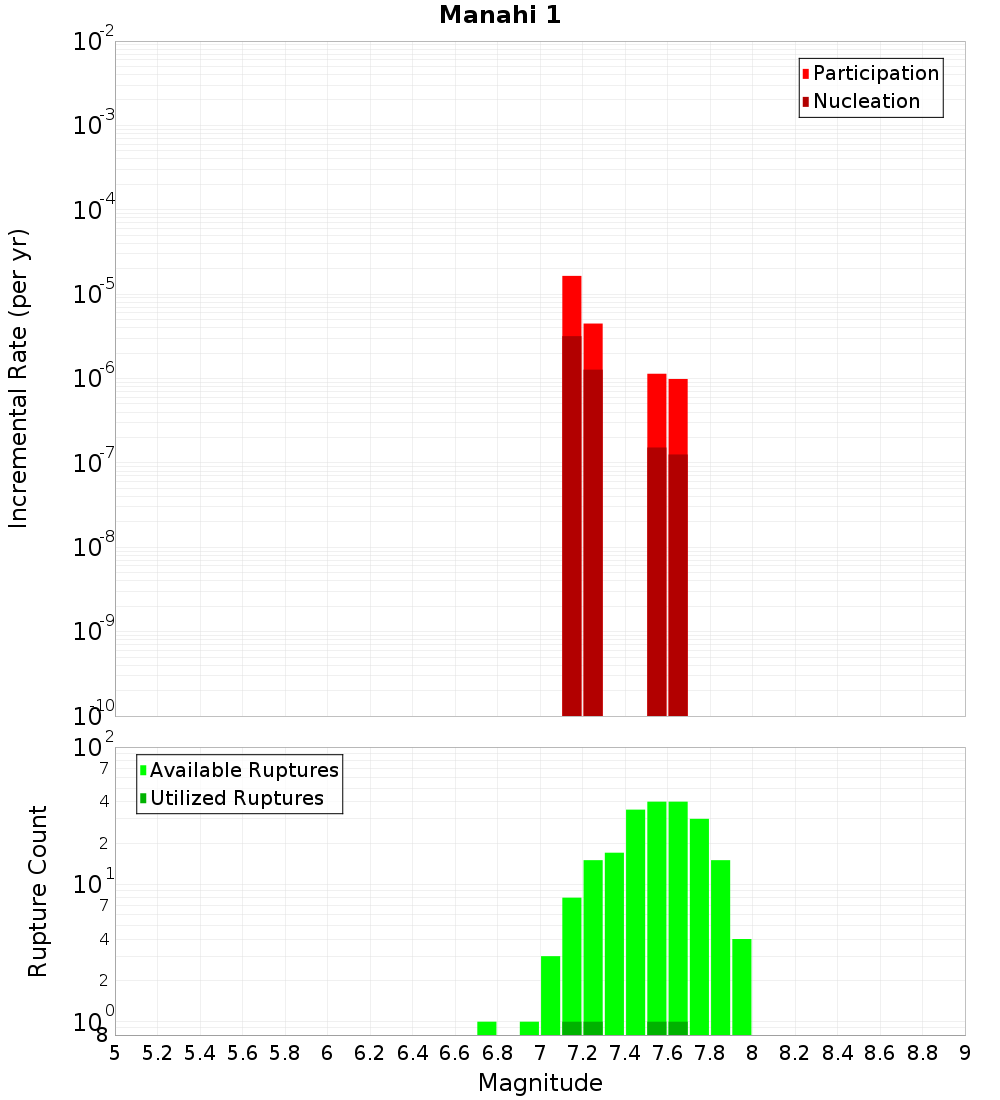

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

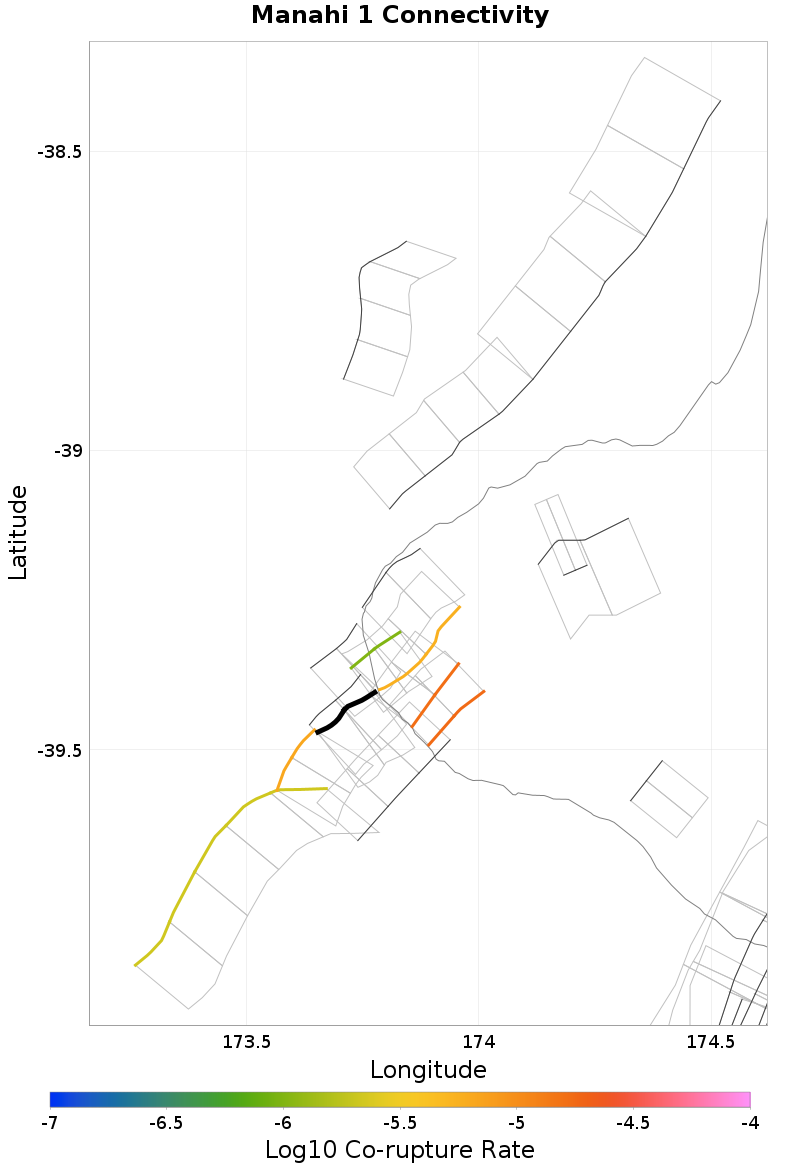

Connectivity

Nearby Sections

Fault Section
Pihama, 0.12 km away
Cape Egmont: Central, 0.67 km away
Ihaia, 0.72 km away
Oaonui, 1.04 km away
Kiri, 1.53 km away
Cape Egmont: North, 1.76 km away
Rahotu, 5.59 km away
Cape Egmont: South, 7.93 km away
Manahi 2, 8.53 km away
Warea, 14.59 km away

Pihama, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NDMuMFdnSExR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Egmont: Central, 0.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NDMuMFdnSExR
Connected?	true
Directly Connected?	true
Co-rupture Count	167
Co-rupture Rate	6.608845E-6

Ihaia, 0.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NDMuMFdnSExR
Connected?	true
Directly Connected?	true
Co-rupture Count	107
Co-rupture Rate	1.64555E-5

Oaonui, 1.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NDMuMFdnSExR
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	5.6214344E-6

Kiri, 1.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NDMuMFdnSExR
Connected?	true
Directly Connected?	true
Co-rupture Count	90
Co-rupture Rate	1.7442911E-5

Cape Egmont: North, 1.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NDMuMFdnSExR
Connected?	true
Directly Connected?	false
Co-rupture Count	59
Co-rupture Rate	0.0

Rahotu, 5.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NDMuMFdnSExR
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	9.874109E-7

Cape Egmont: South, 7.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NDMuMFdnSExR
Connected?	true
Directly Connected?	false
Co-rupture Count	100
Co-rupture Rate	2.1263252E-6

Manahi 2, 8.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NDMuMFdnSExR
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Warea, 14.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NDMuMFdnSExR
Connected?	true
Directly Connected?	false
Co-rupture Count	146
Co-rupture Rate	0.0
