Madagascar Details

Property	Value
Rupture Count	12
Ruptures Above Sect Min Mag	11
Ruptures w/ Nonzero Rates	2
Magnitude Range	[7.42, 7.91]
Length Range	[36, 123] km
Total Rate	1.8571832E-4 /yr
Multi-Fault Rate	3.187914E-5 /yr (17.17%)
Directly-Connected Faults	1
All Co-Rupturing Faults	1

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

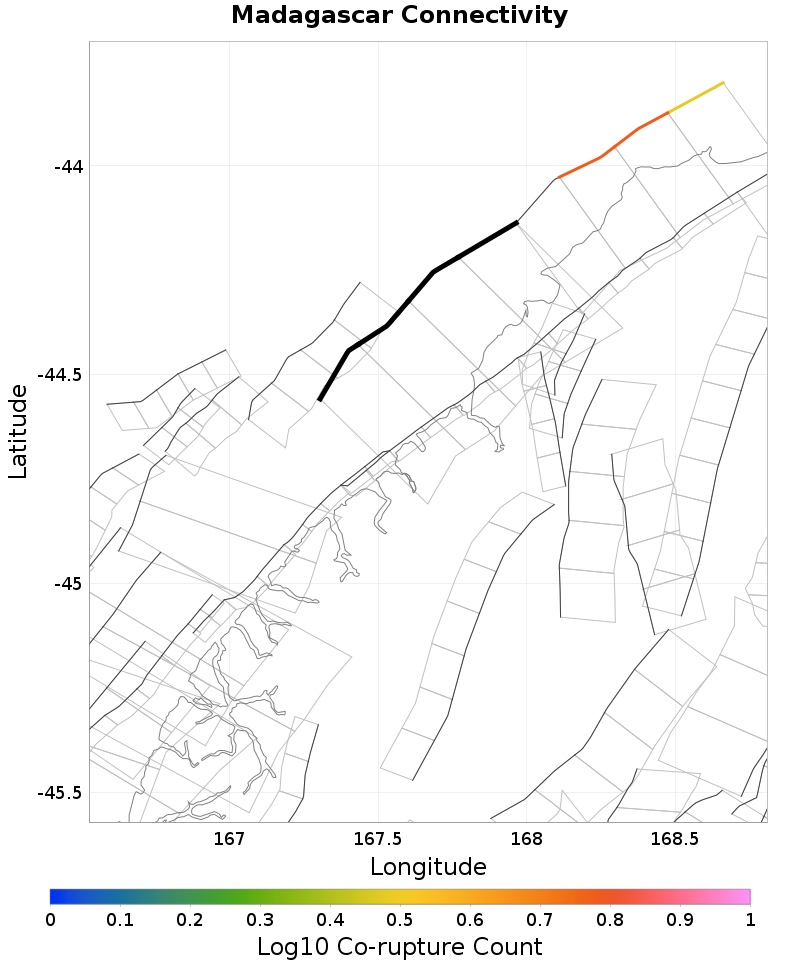

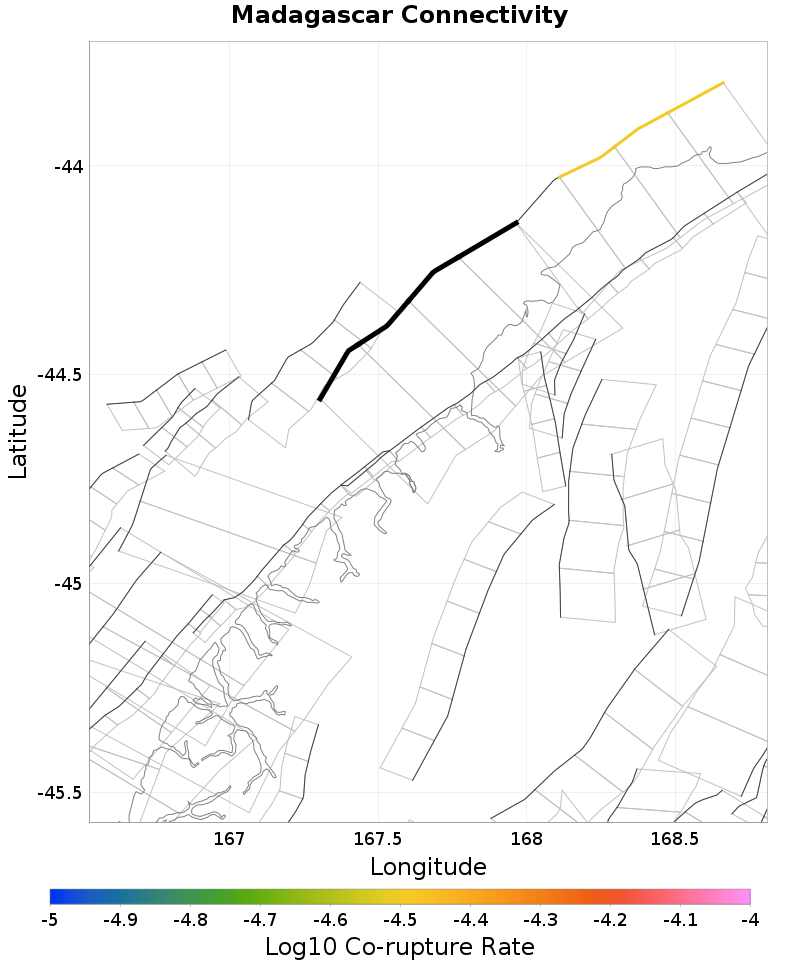

Connectivity
- Nearby Sections

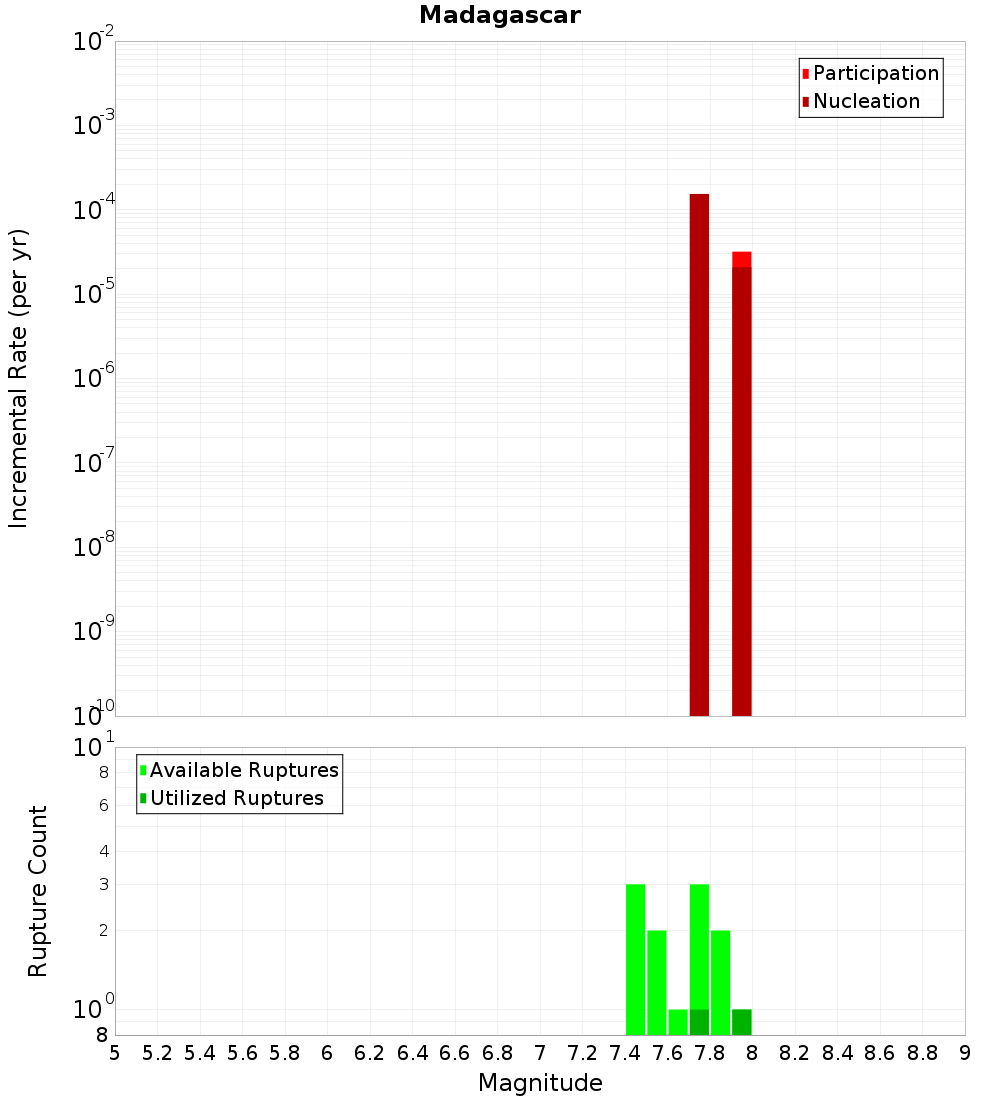

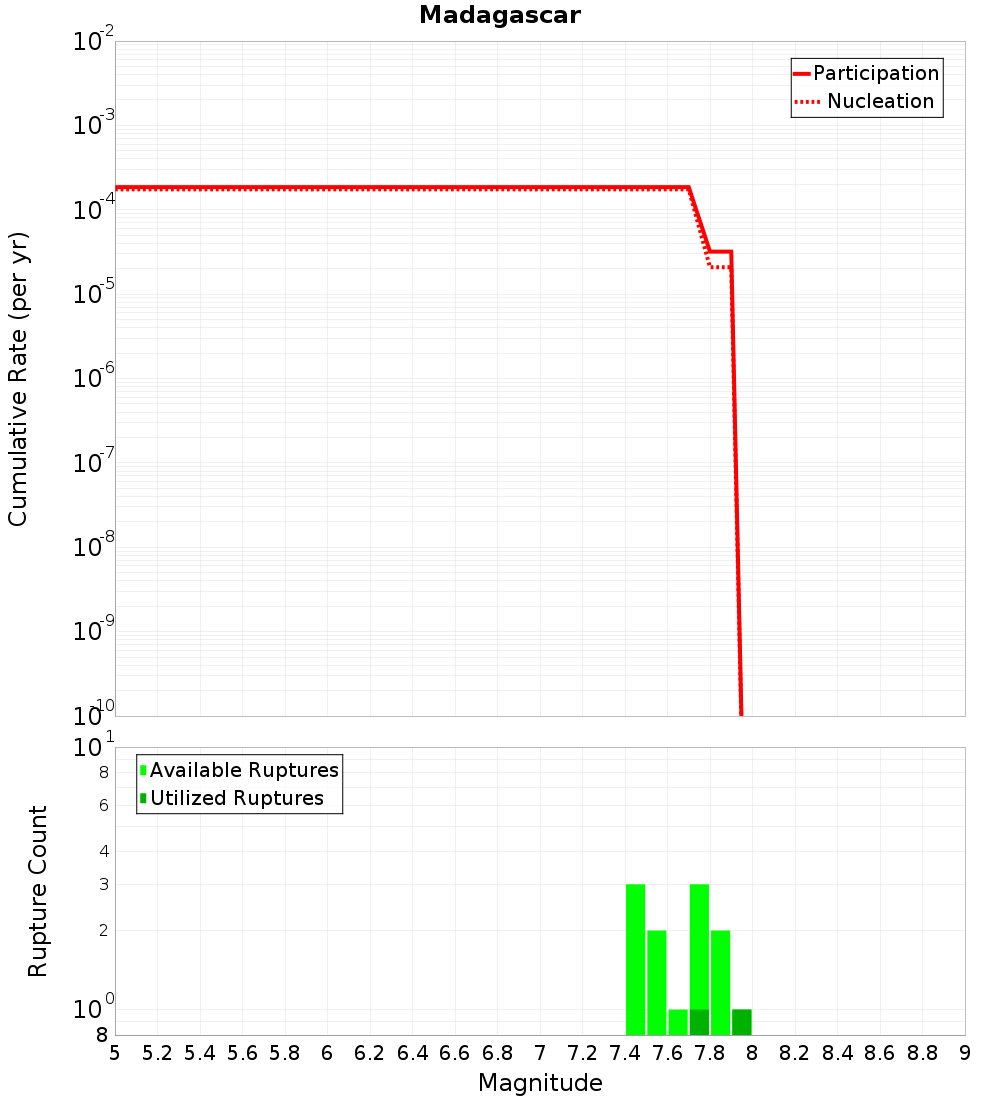

Magnitude-Frequency Distribution

Incremental	Cumulative

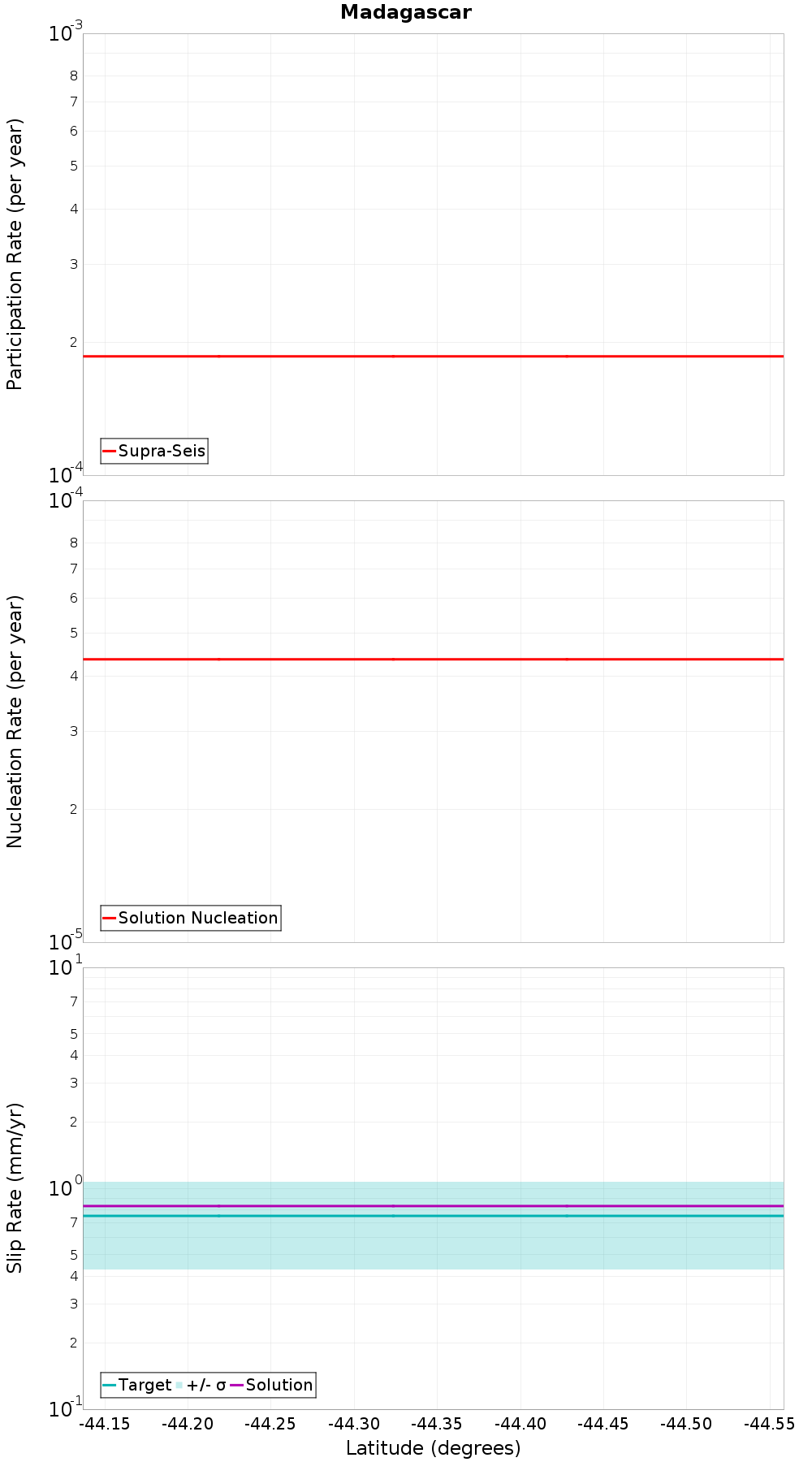

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Barn, 0 km away
Alpine: George landward, 0.18 km away
Skippers, 0.19 km away
Hollyford, 0.2 km away
Alpine: George seaward, 0.23 km away
Alpine: George to Jacksons, 0.25 km away
Darran, 0.27 km away
Milford Basin 5 to George R2, 7.23 km away
Alpine: Caswell - South George, 12.23 km away
Te Anau, 15.61 km away
Livingstone, 15.92 km away
Central Wedge 1 & 2 & 3, 19.73 km away

Barn, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	3.187914E-5

Alpine: George landward, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Skippers, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hollyford, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: George seaward, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: George to Jacksons, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Darran, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Milford Basin 5 to George R2, 7.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Caswell - South George, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Anau, 15.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Livingstone, 15.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Central Wedge 1 & 2 & 3, 19.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
