Moonlight South Details

PropertyValue
Rupture Count10
Ruptures Above Sect Min Mag8
Ruptures w/ Nonzero Rates1
Magnitude Range[7.15, 7.55]
Length Range[28, 70] km
Total Rate1.4289899E-5 /yr
Multi-Fault Rate0.0 /yr (0.00%)
Directly-Connected Faults0
All Co-Rupturing Faults0

Table Of Contents

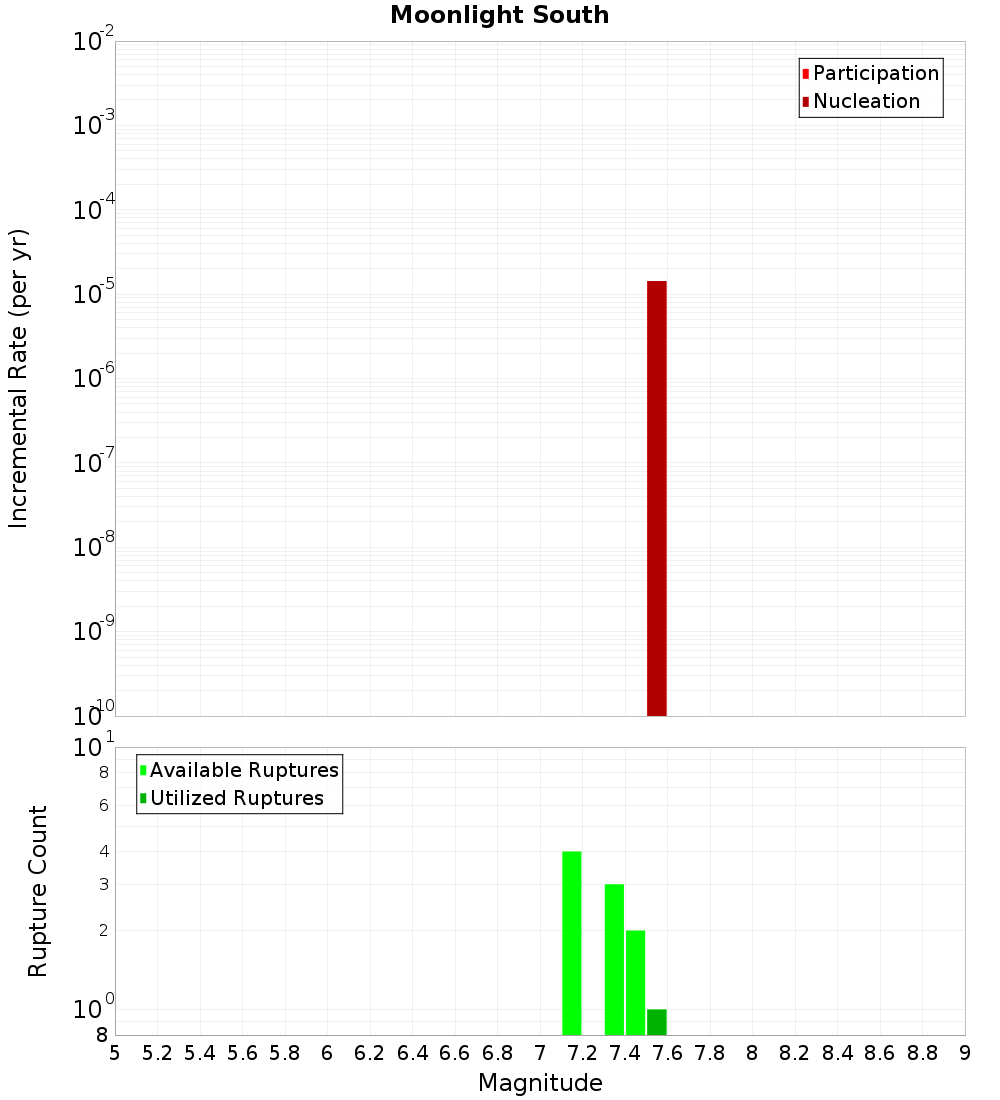

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

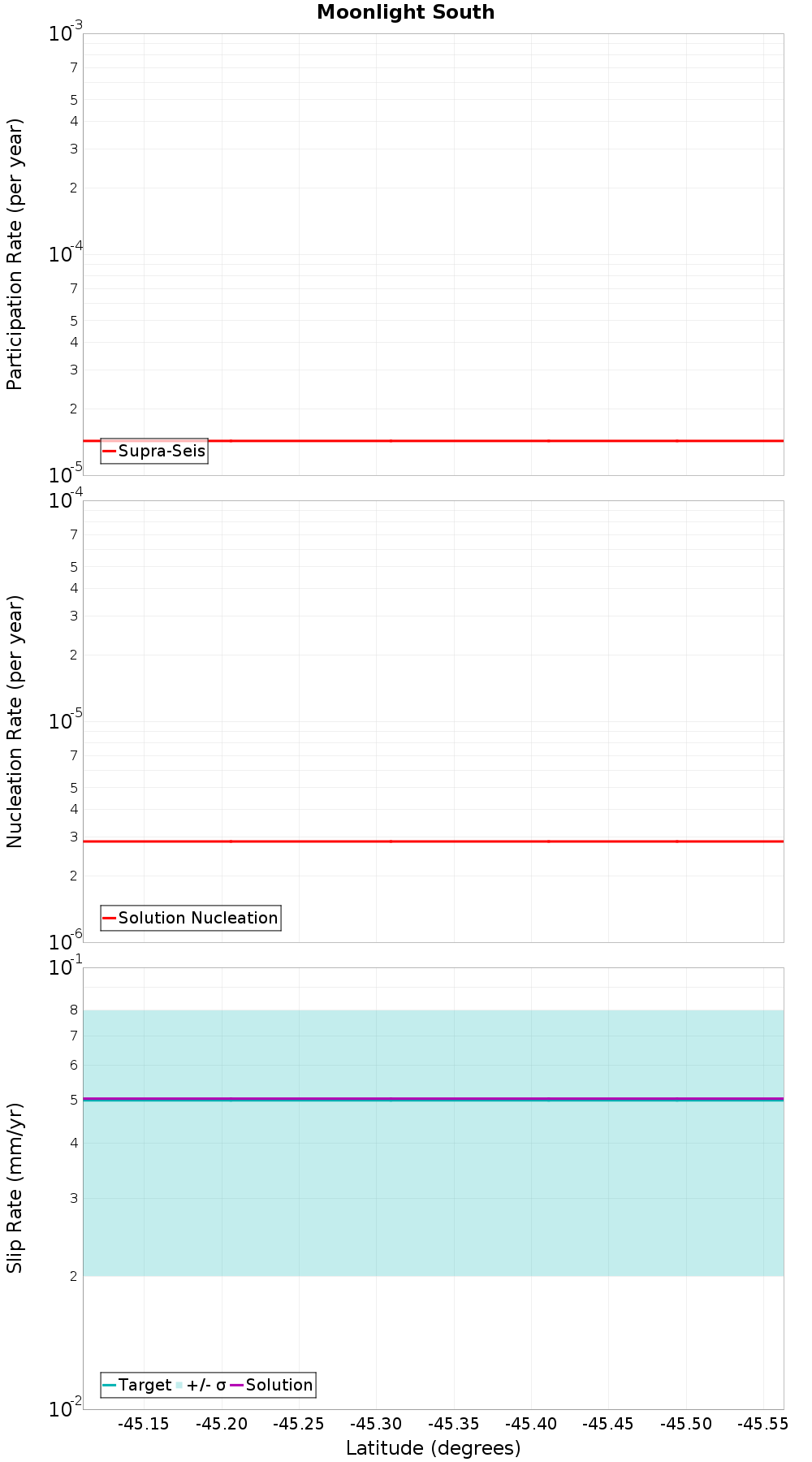

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

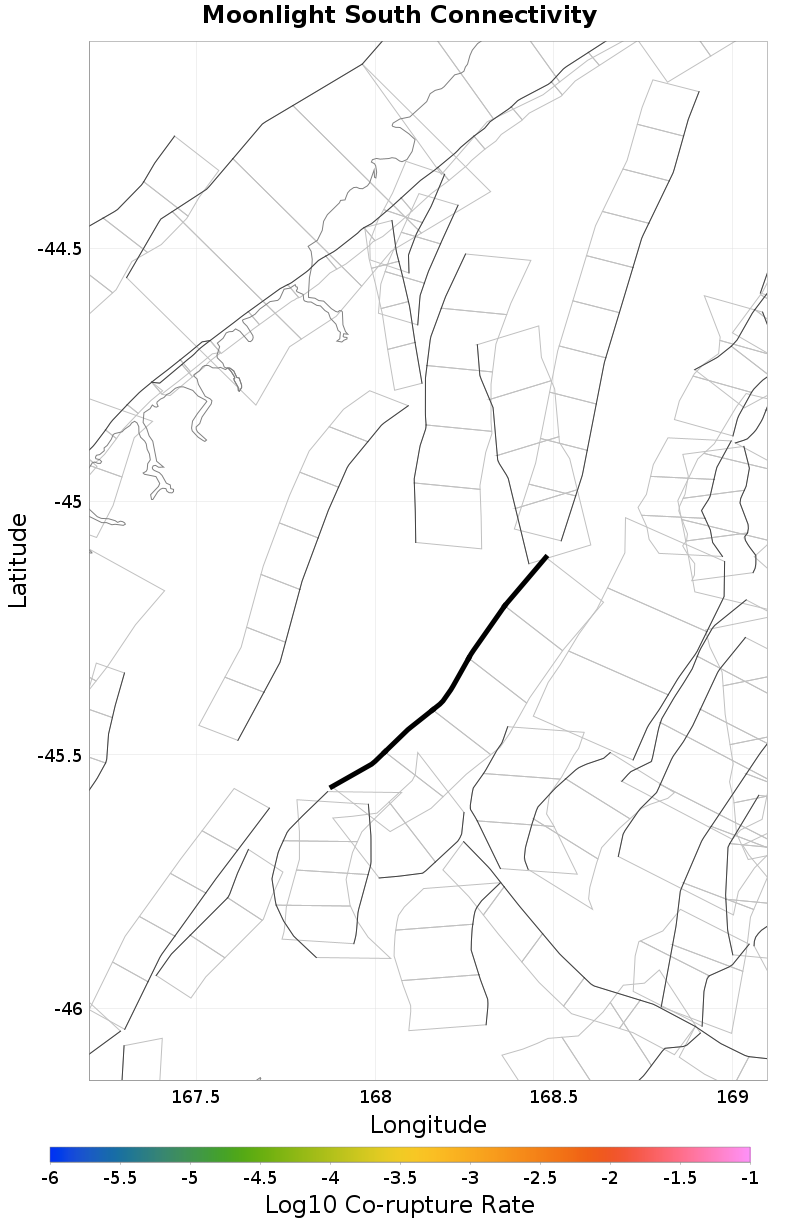

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mossburn, 0.15 km away
McKerchar, 0.52 km away
Tin Hut, 0.9 km away
Nevis, 1.43 km away
West Wakatipu, 1.86 km away
Moonlight North, 4.72 km away
Acton, 11.93 km away
Hokonui, 12.83 km away
Hauroko: North, 14.39 km away
White Hill, 14.52 km away
NW Cardrona South, 16.53 km away

Mossburn, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

McKerchar, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tin Hut, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nevis, 1.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

West Wakatipu, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonlight North, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Acton, 11.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hokonui, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hauroko: North, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Hill, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona South, 16.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NjAuMDZ2RGpn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
