Braemar Details

Property	Value
Rupture Count	14,264
Ruptures Above Sect Min Mag	14,241
Ruptures w/ Nonzero Rates	203
Magnitude Range	[6.59, 8.30]
Length Range	[14, 554] km
Total Rate	5.977331E-4 /yr
Multi-Fault Rate	5.977331E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	91

Table Of Contents

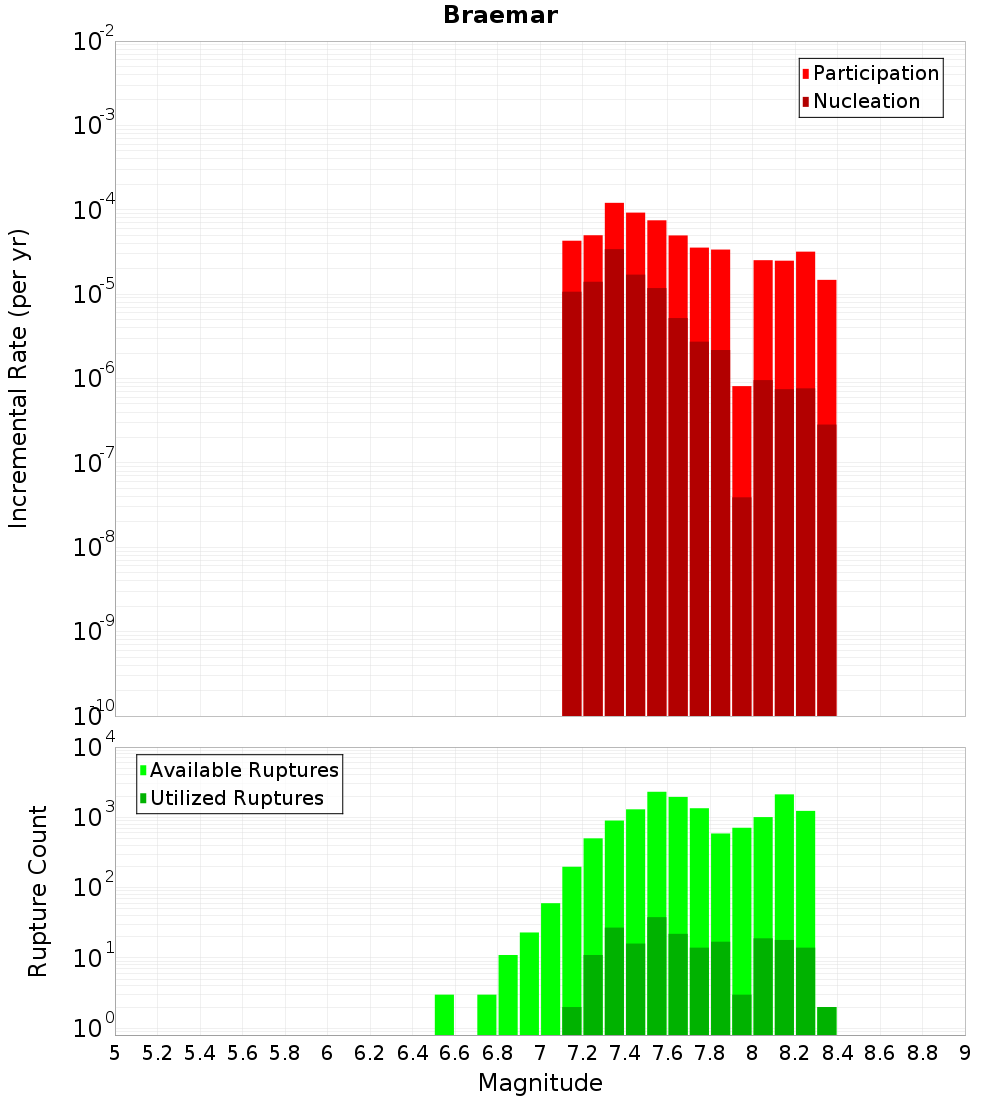

Magnitude-Frequency Distribution

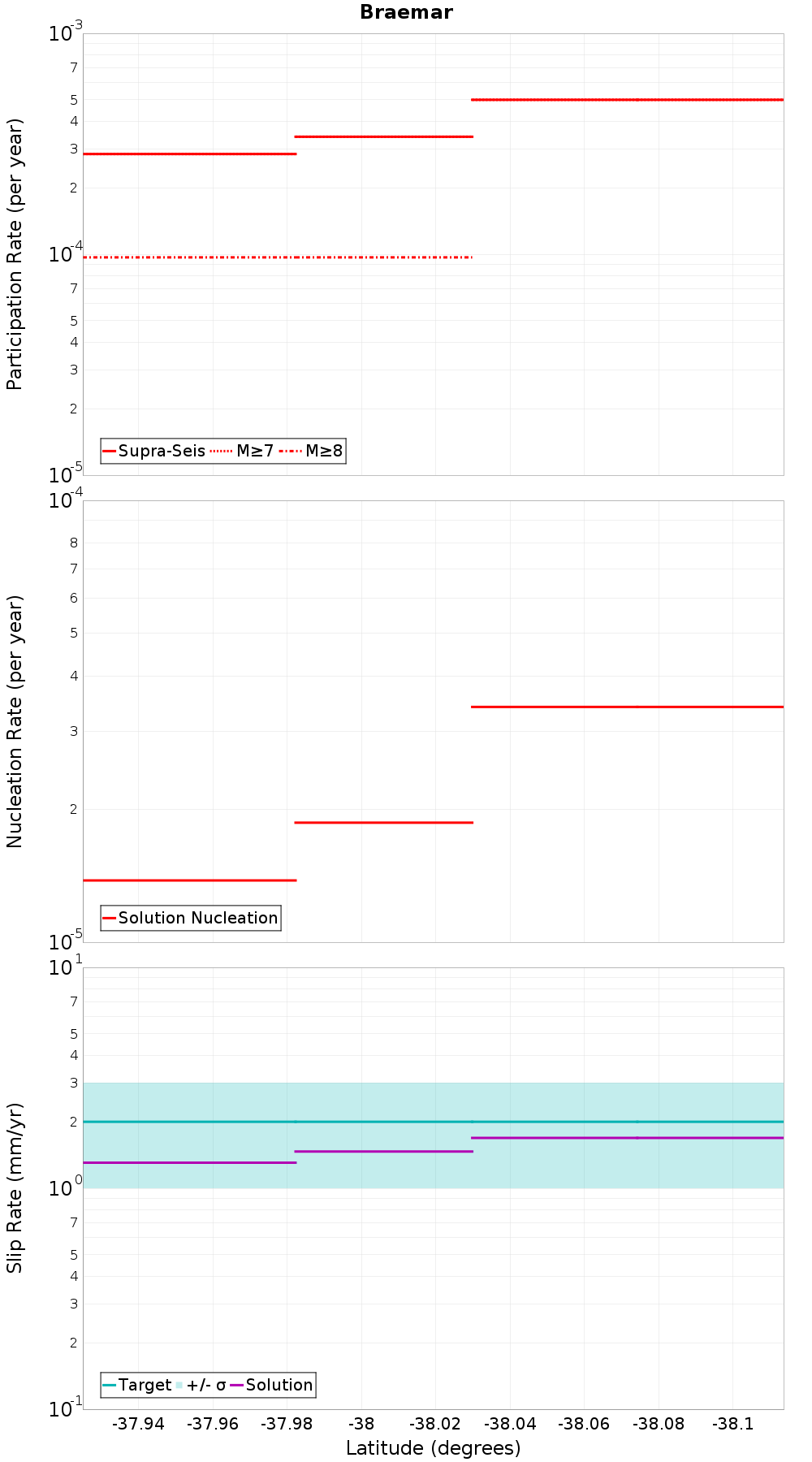

Along-Strike Values

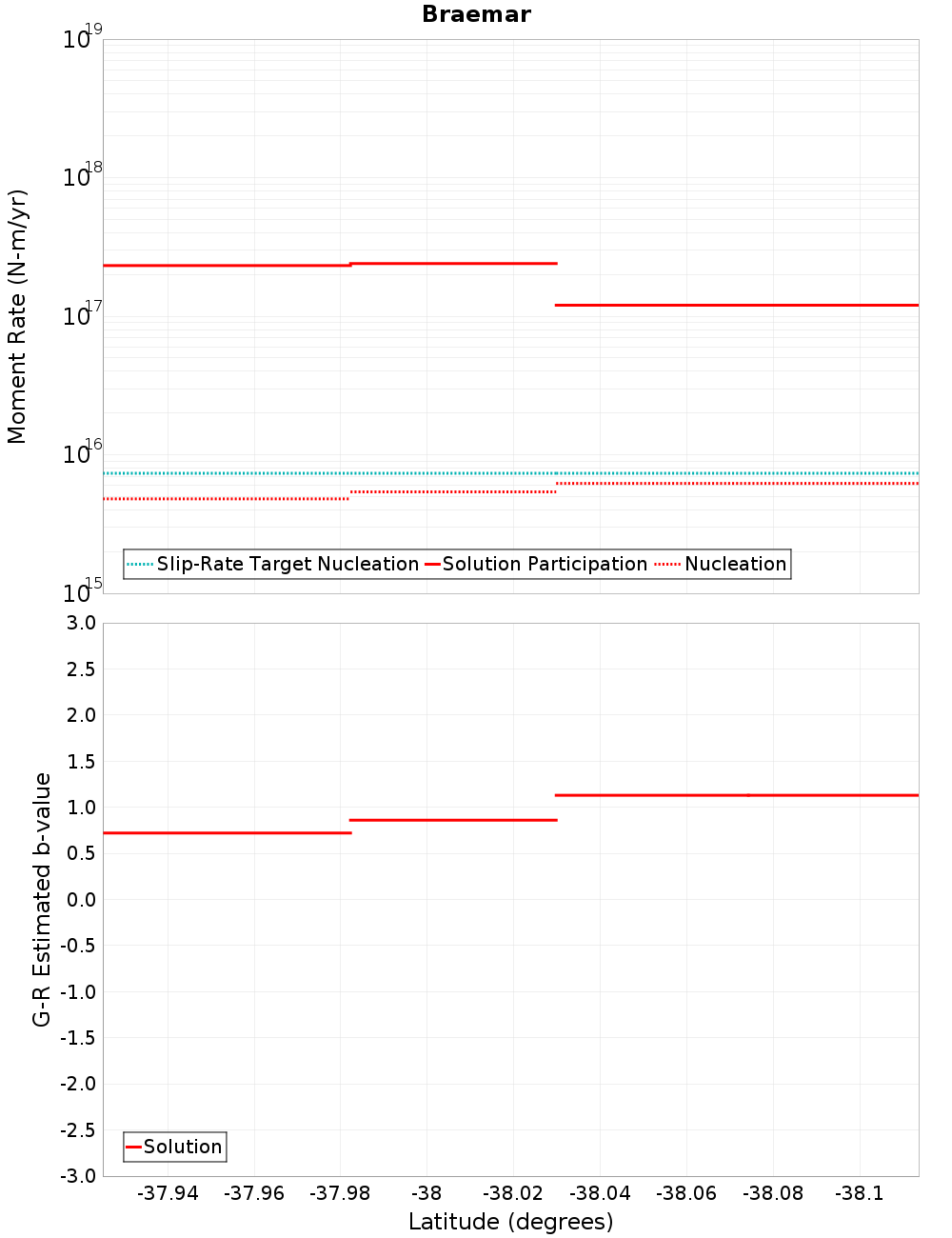

- Moment-Rates and b-Values

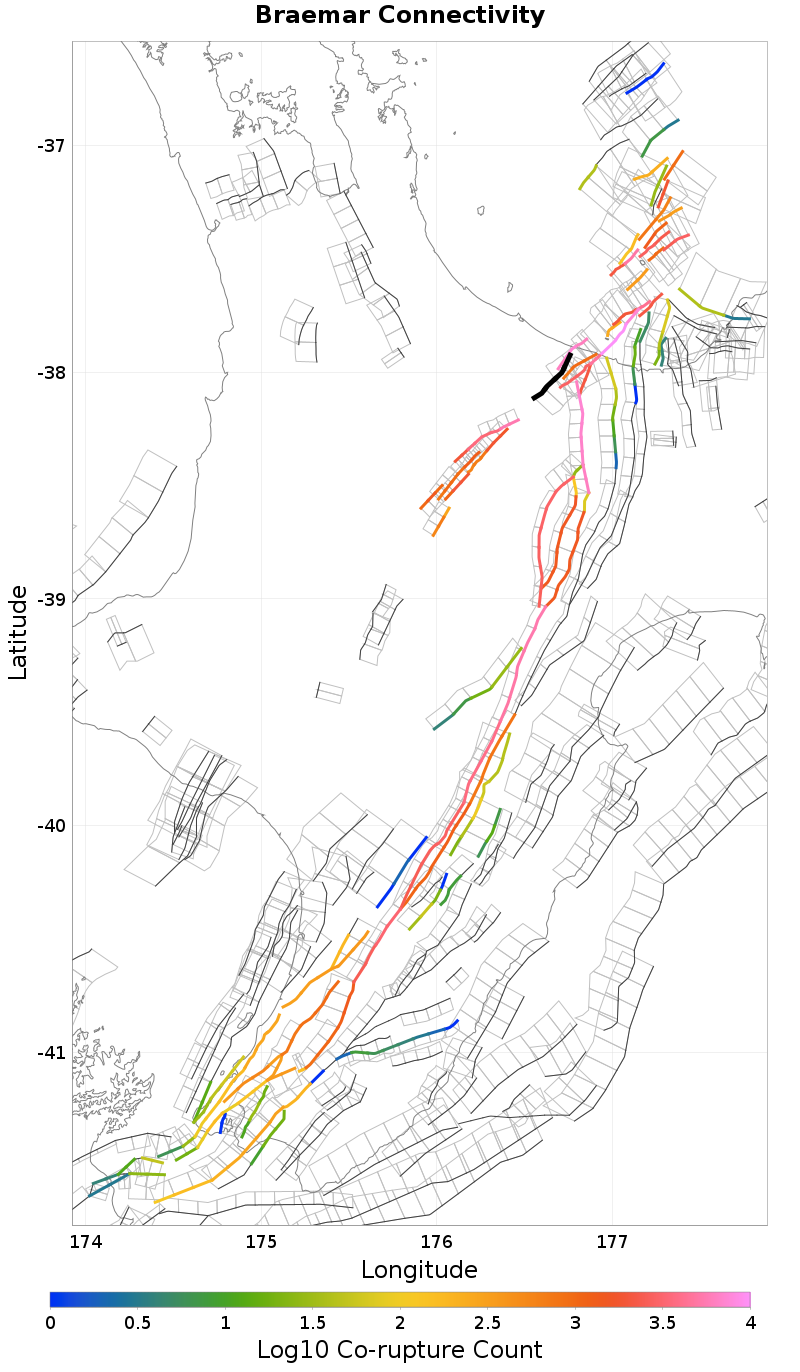

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

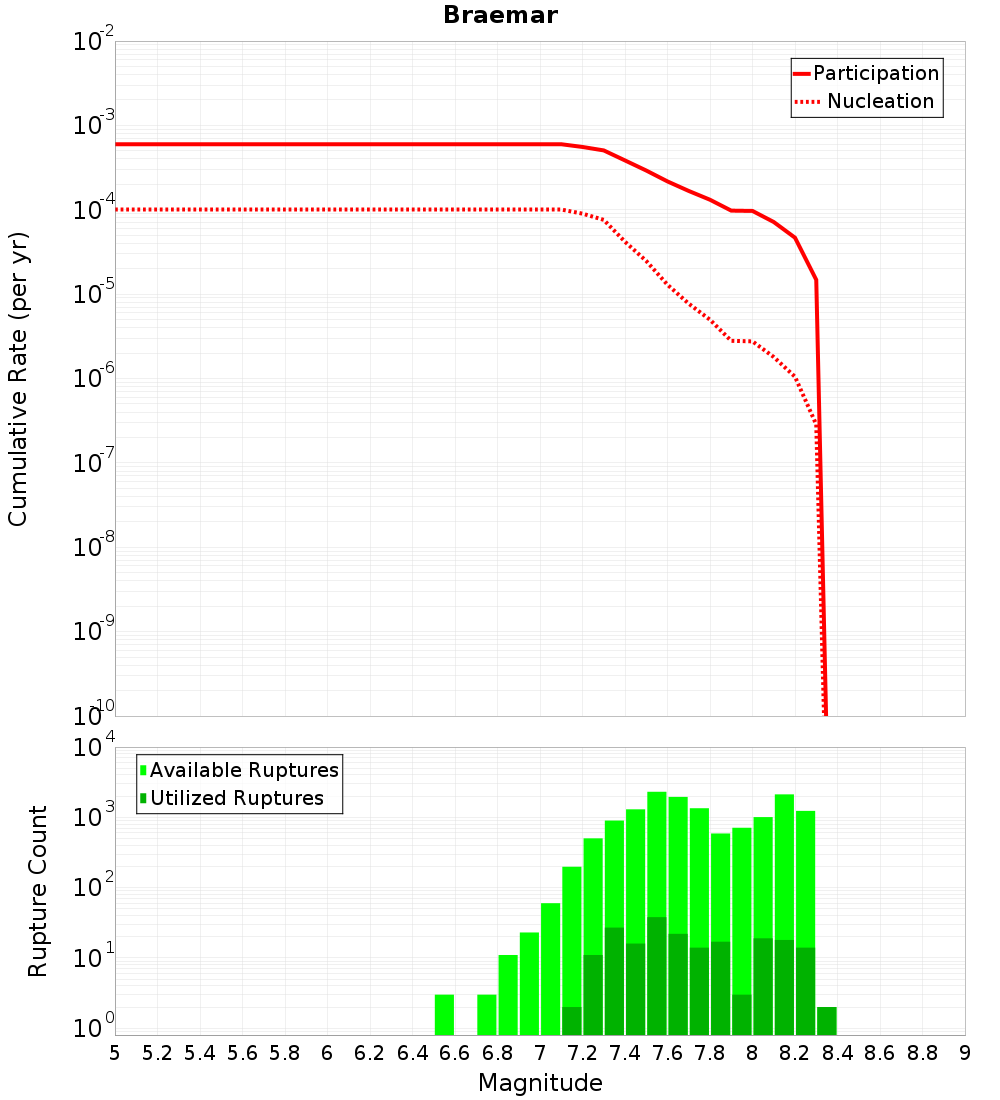

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awakeri, 0.1 km away
Waiohau: North, 0.22 km away
Otakiri, 0.26 km away
Edgecumbe 1987, 0.32 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 4.83 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away
Waimana: North, 18.49 km away

Awakeri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?	true
Directly Connected?	true
Co-rupture Count	2,130
Co-rupture Rate	1.9930987E-5

Waiohau: North, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?	true
Directly Connected?	true
Co-rupture Count	7,211
Co-rupture Rate	9.761607E-5

Otakiri, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?	true
Directly Connected?	true
Co-rupture Count	975
Co-rupture Rate	1.4392765E-4

Edgecumbe 1987, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?	true
Directly Connected?	true
Co-rupture Count	2,874
Co-rupture Rate	1.8653294E-4

Matata, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?	true
Directly Connected?	true
Co-rupture Count	7,263
Co-rupture Rate	1.8813078E-4

Edgecumbe Coastal, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?	true
Directly Connected?	true
Co-rupture Count	4,714
Co-rupture Rate	1.8441459E-4

Whakatane: North, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?	true
Directly Connected?	false
Co-rupture Count	62
Co-rupture Rate	2.8894601E-5

White Island 1, 11.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?	true
Directly Connected?	false
Co-rupture Count	9,904
Co-rupture Rate	2.9268247E-4

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?	true
Directly Connected?	true
Co-rupture Count	5,453
Co-rupture Rate	4.9205724E-4

Waimana: North, 18.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	0.0
