Riversdale Details

PropertyValue
Rupture Count737
Ruptures Above Sect Min Mag729
Ruptures w/ Nonzero Rates16
Magnitude Range[6.69, 8.20]
Length Range[16, 476] km
Total Rate0.0013479972 /yr
Multi-Fault Rate0.0013479972 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults48

Table Of Contents

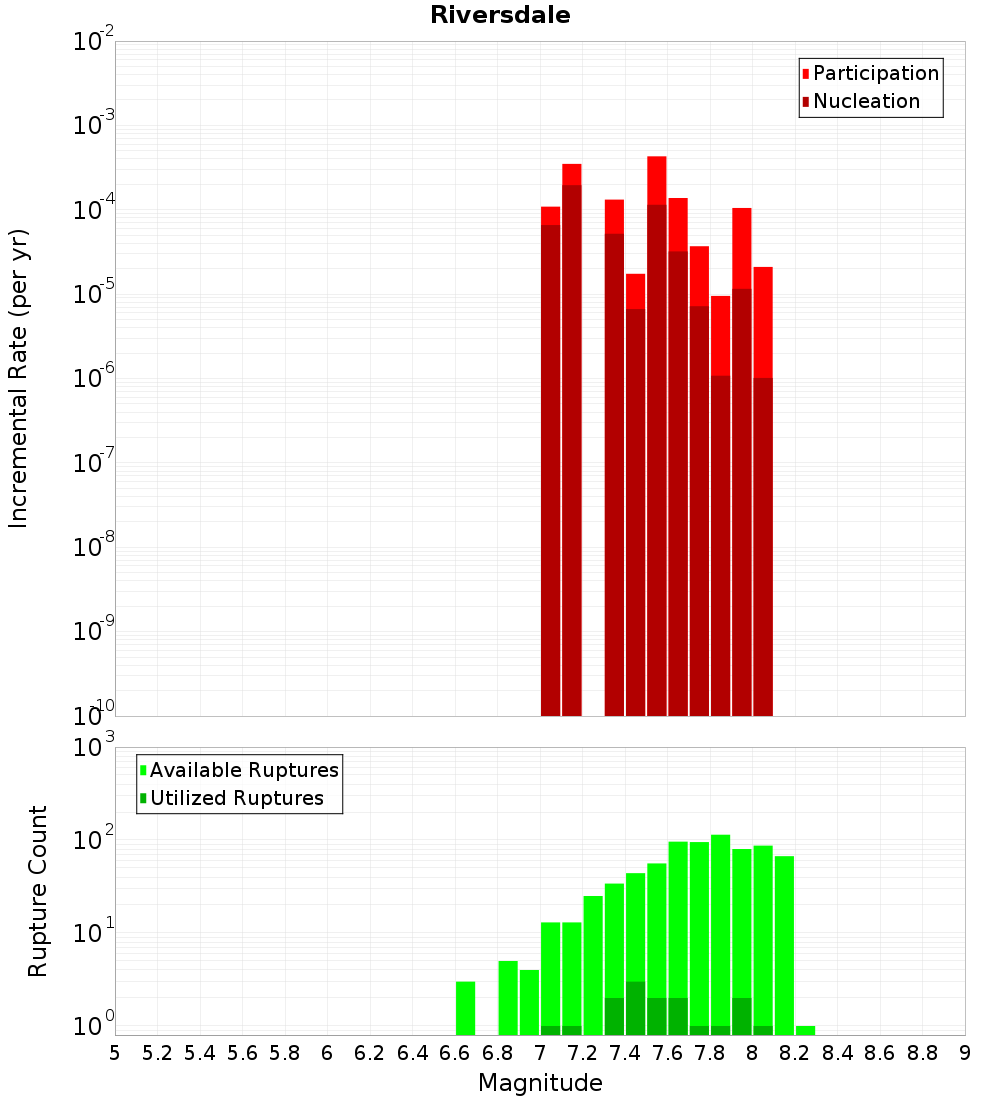

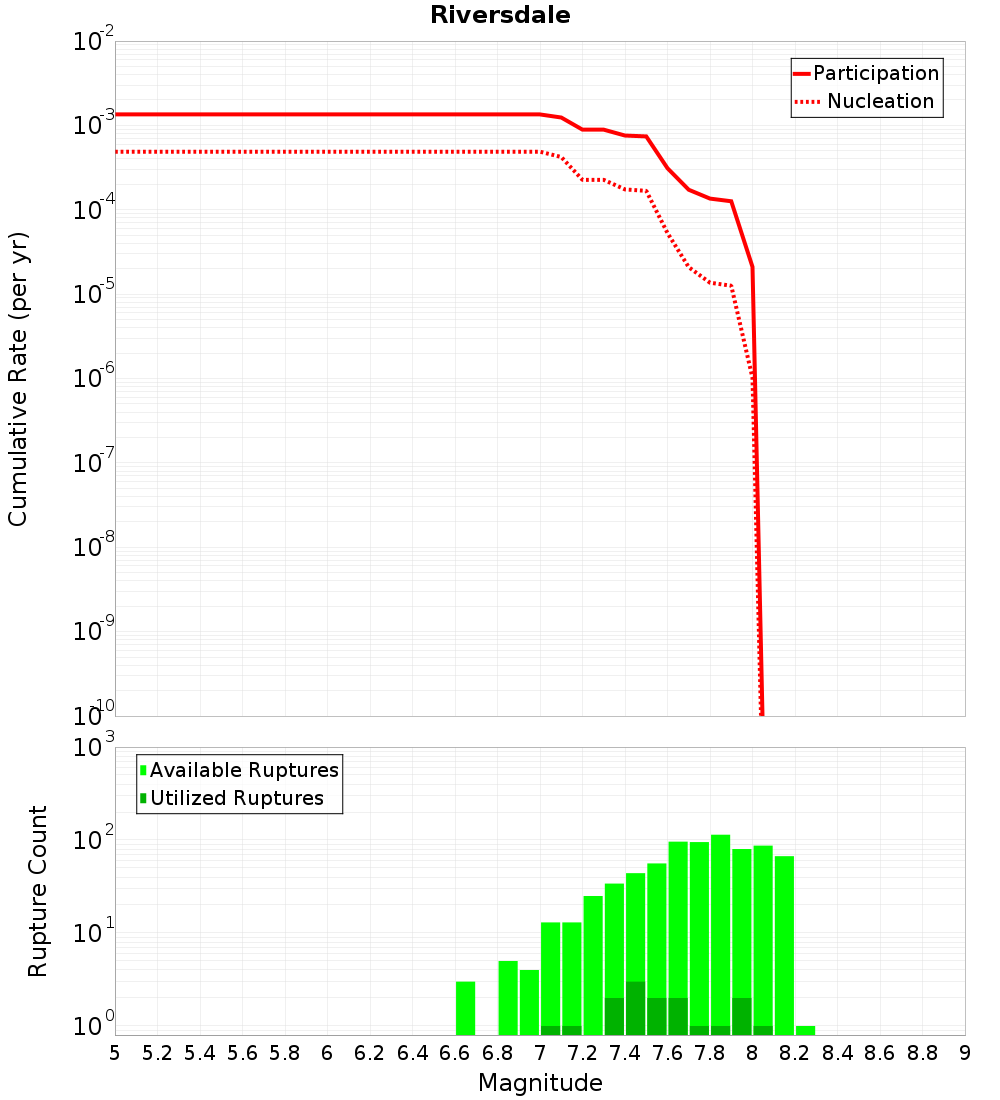

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

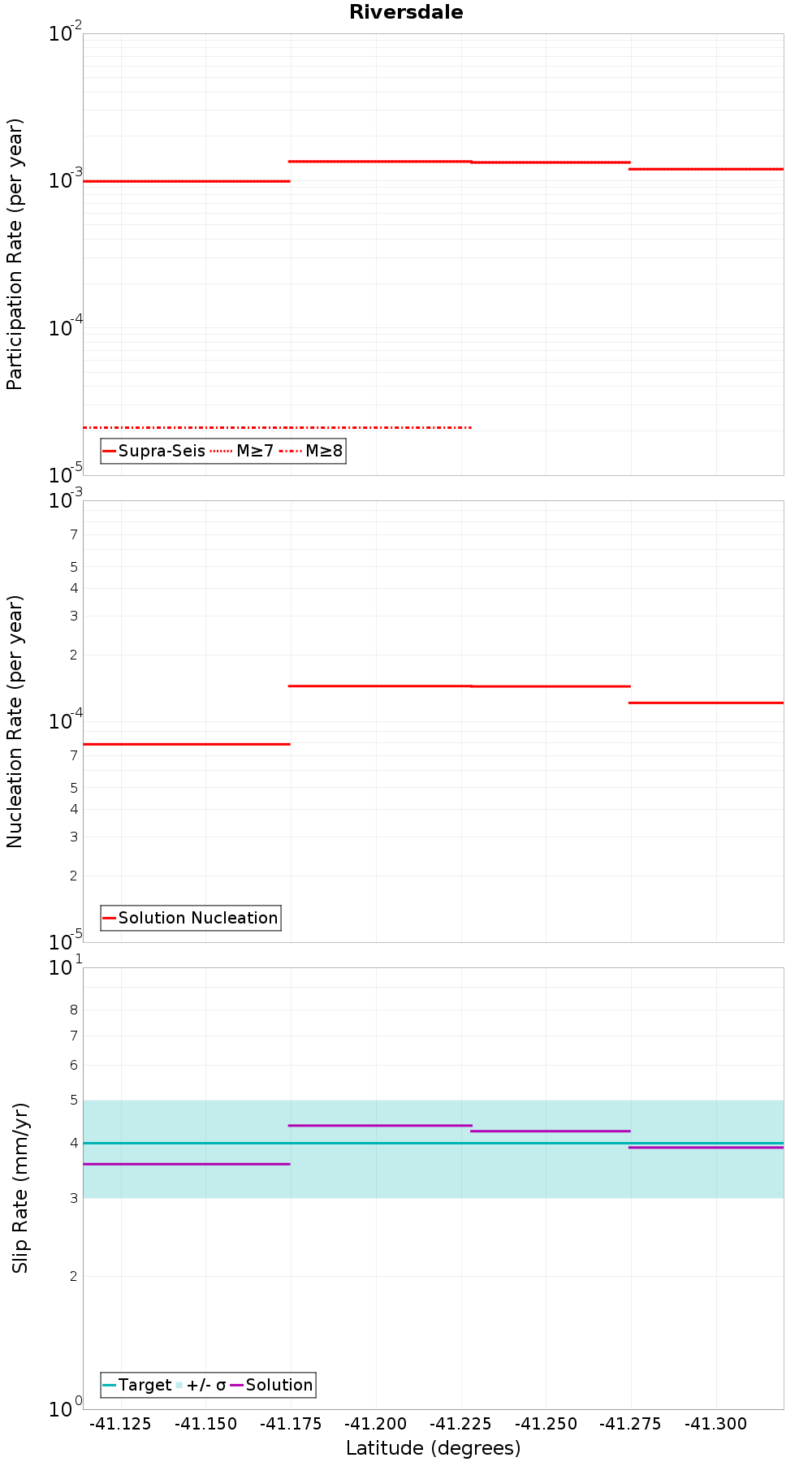

Along-Strike Values

(top)

Along-strike plot

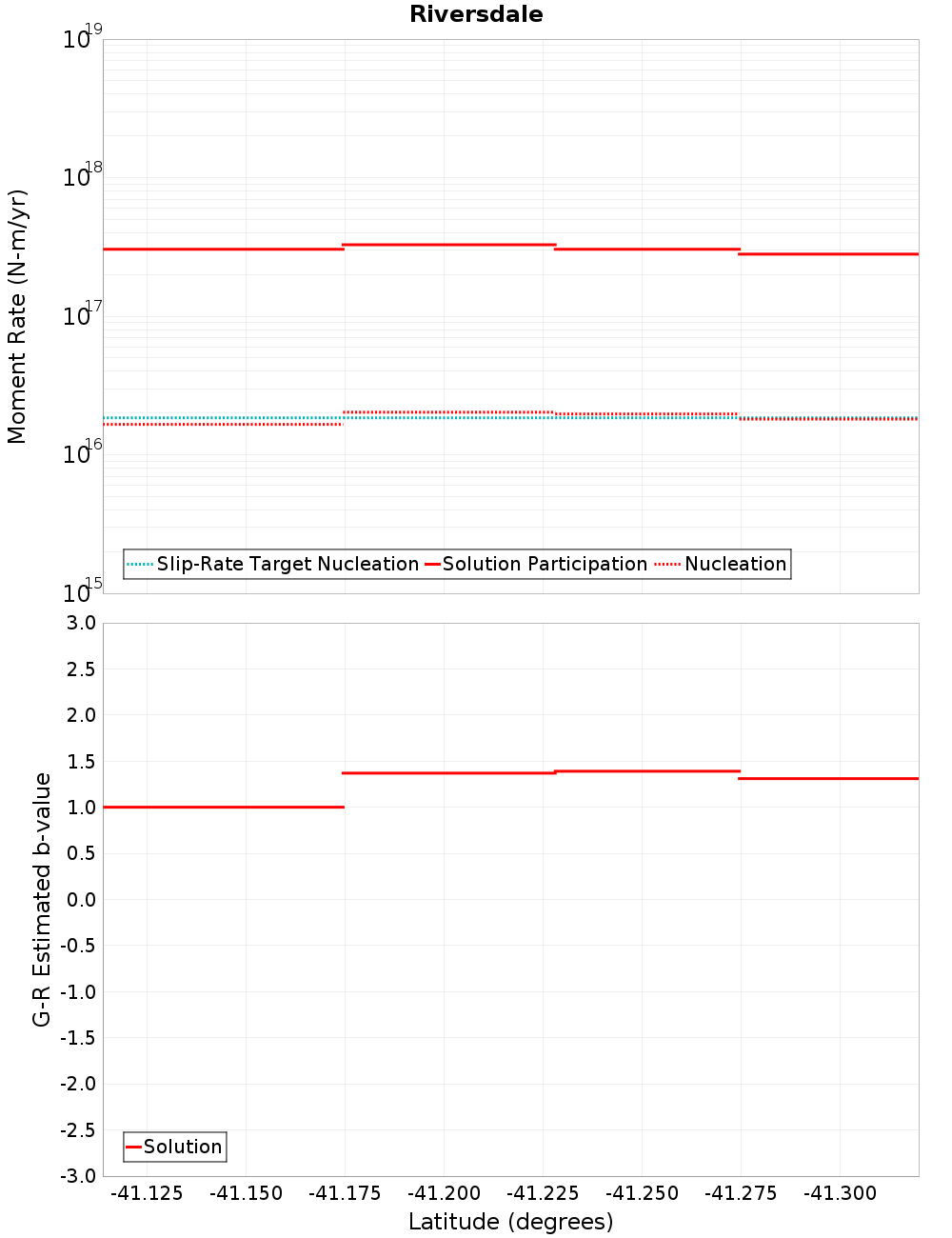

Moment-Rates and b-Values

(top)

Along-strike plot

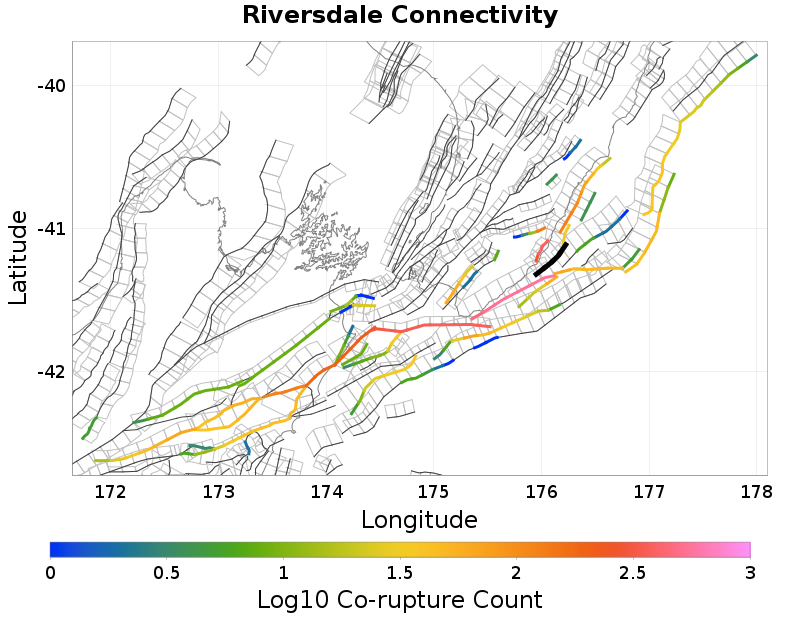

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Point, 0.2 km away
Riversdale North, 1.12 km away
Palliser - Kaiwhata, 3.25 km away
Whareama Bank, 5.42 km away
Mataikona, 6.53 km away
Honeycomb, 6.88 km away
Uruti Basin, 8.5 km away
Kaumingi, 9.84 km away
Carterton, 10.74 km away
Mataikona East, 18.13 km away
Opouawe - Uruti, 18.85 km away
Uruti Basin 2, 19.51 km away

Uruti Point, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?true
Directly Connected?true
Co-rupture Count384
Co-rupture Rate4.5155917E-5

Riversdale North, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate7.295293E-4

Palliser - Kaiwhata, 3.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?true
Directly Connected?true
Co-rupture Count587
Co-rupture Rate1.725236E-4

Whareama Bank, 5.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate1.3089467E-4

Mataikona, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?true
Directly Connected?false
Co-rupture Count123
Co-rupture Rate5.932194E-4

Honeycomb, 6.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate2.2993647E-6

Uruti Basin, 8.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate2.2993647E-6

Kaumingi, 9.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?true
Directly Connected?true
Co-rupture Count126
Co-rupture Rate3.5923772E-4

Carterton, 10.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mataikona East, 18.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Opouawe - Uruti, 18.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate0.0

Uruti Basin 2, 19.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5NzIuMFF1SDdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
