Levin Anticline Details

Property	Value
Rupture Count	183
Ruptures Above Sect Min Mag	183
Ruptures w/ Nonzero Rates	4
Magnitude Range	[7.06, 8.22]
Length Range	[22, 420] km
Total Rate	5.21463E-5 /yr
Multi-Fault Rate	5.21463E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	35

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

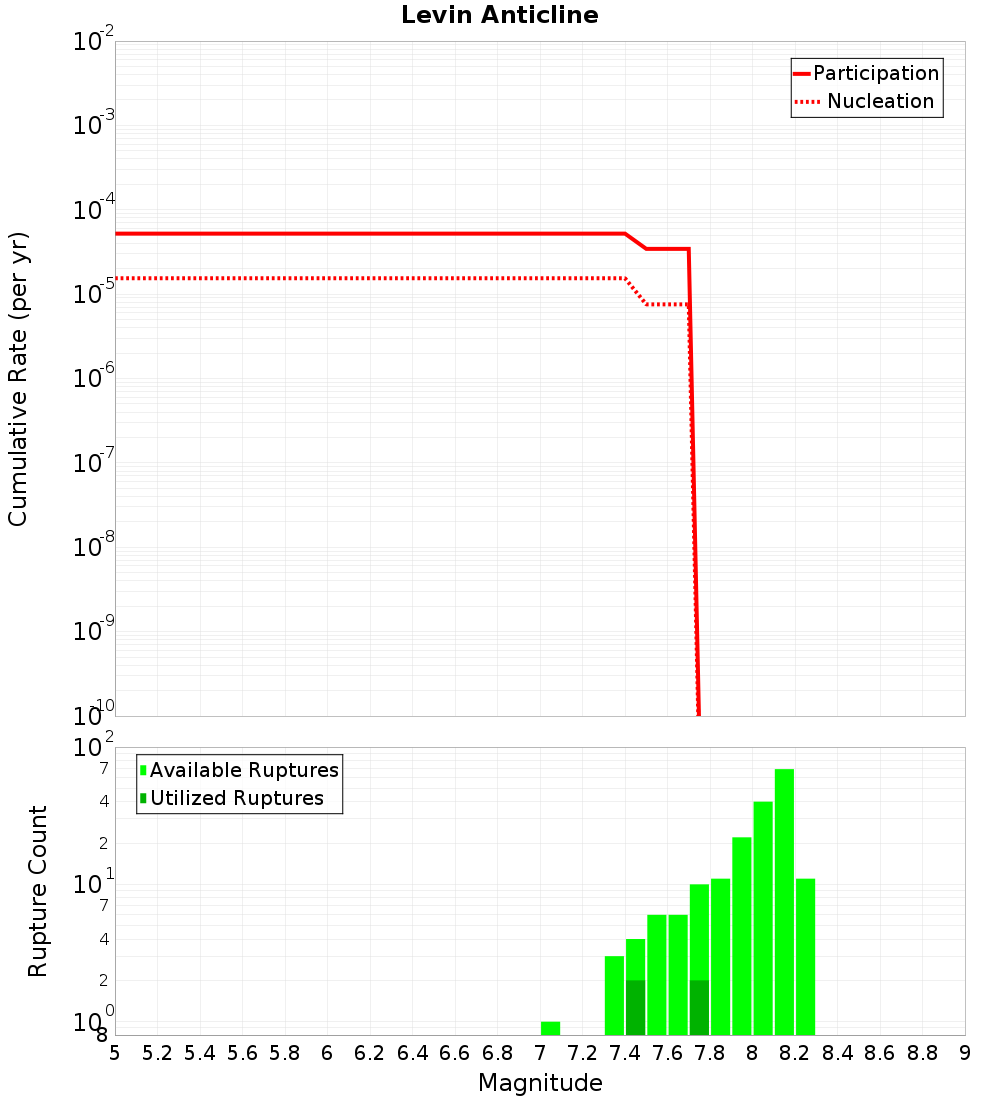

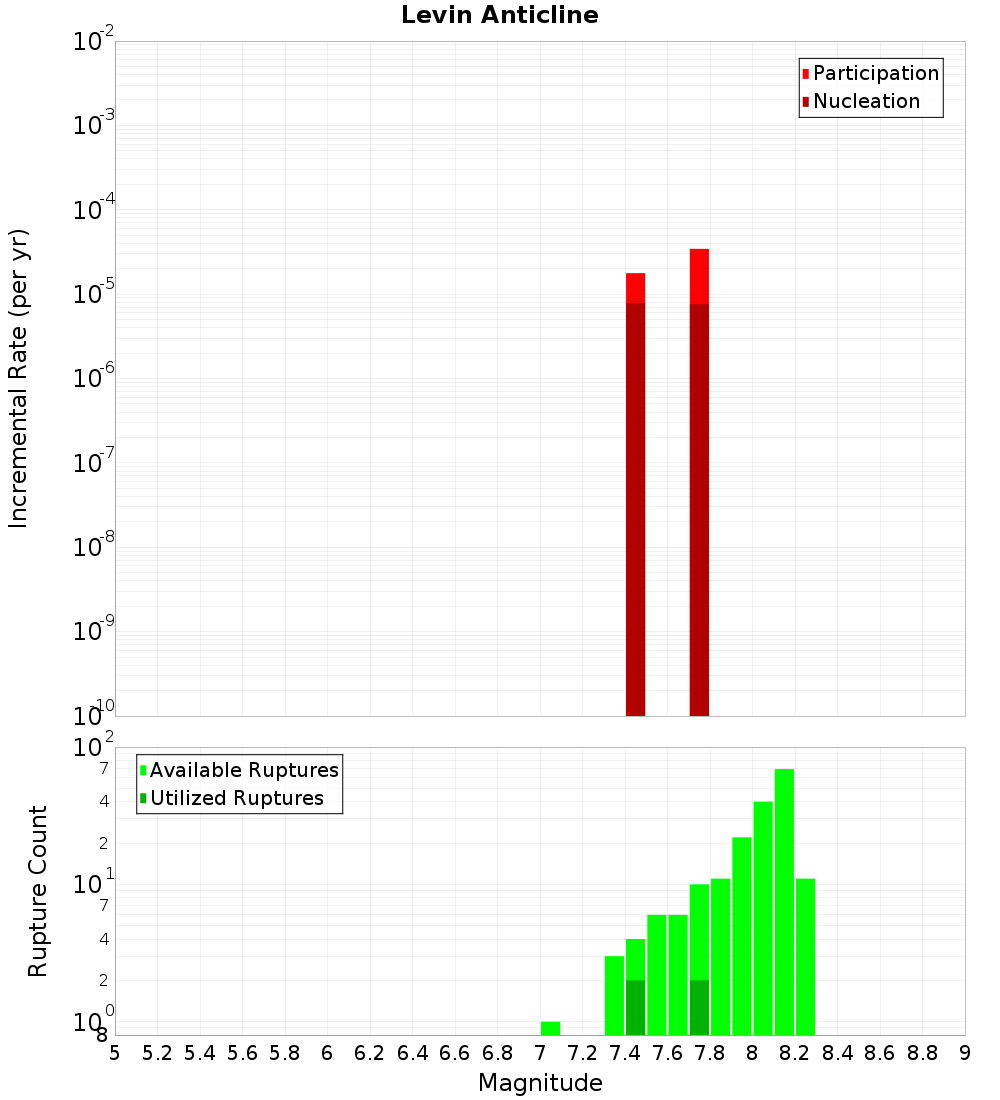

Magnitude-Frequency Distribution

Incremental	Cumulative

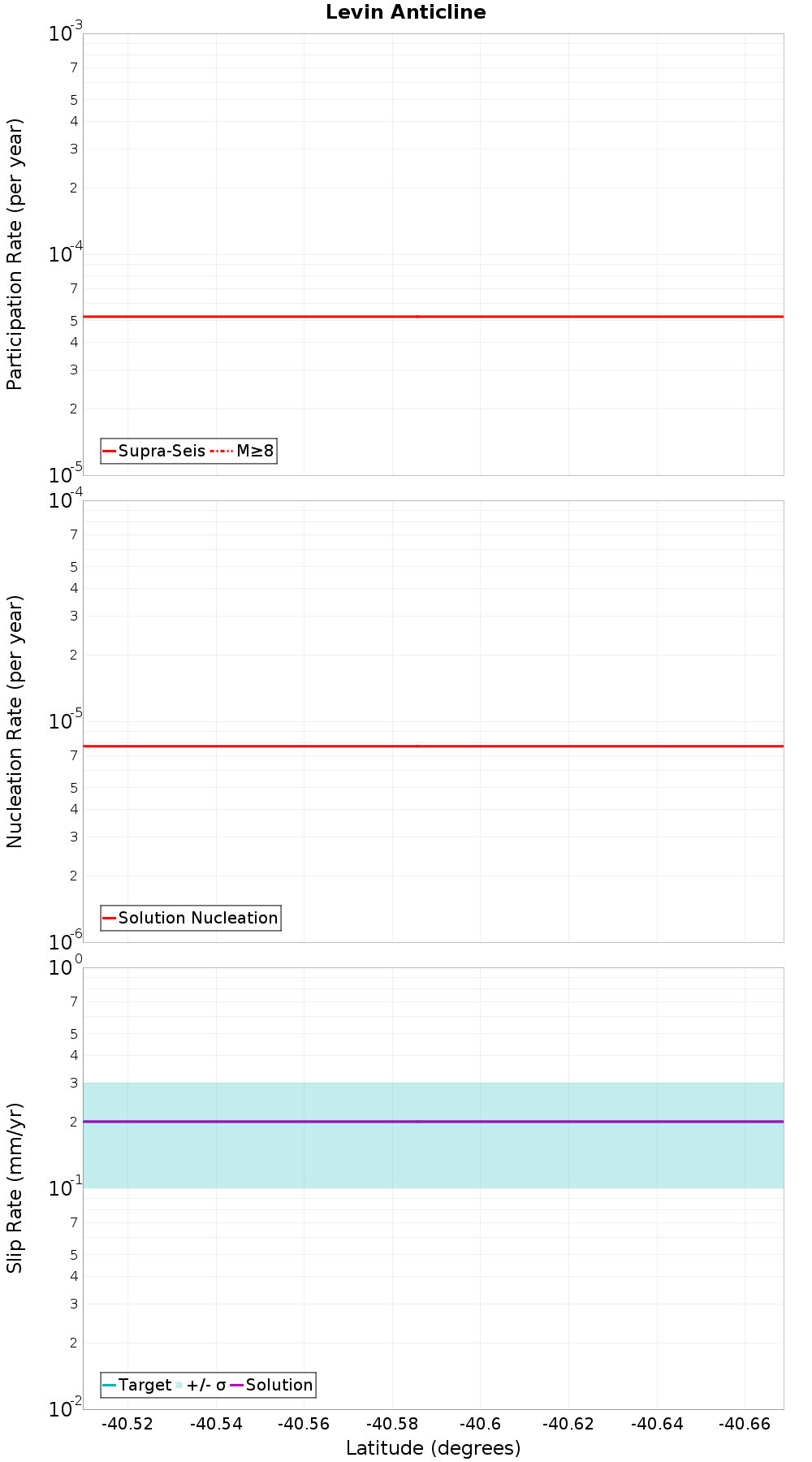

Along-Strike Values

Moment-Rates and b-Values

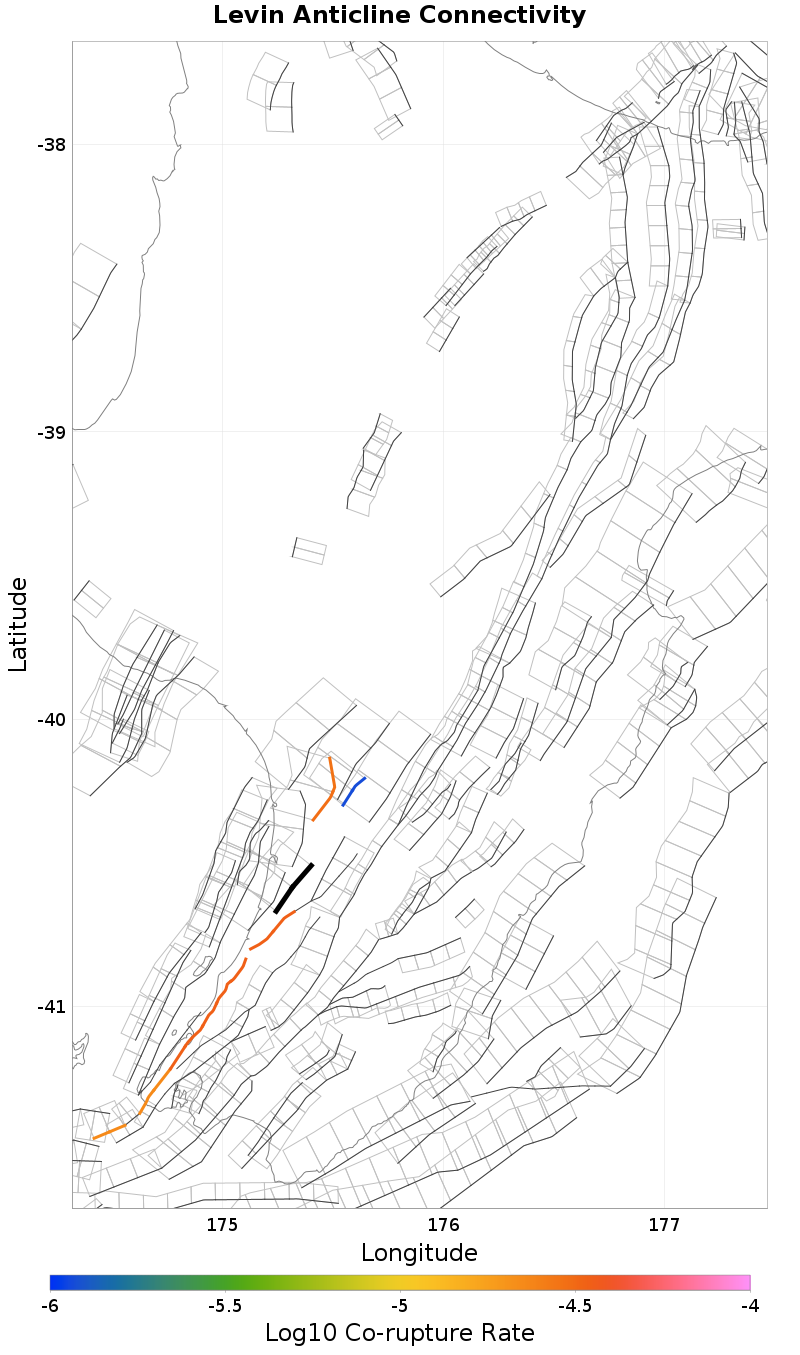

Connectivity

Nearby Sections

Fault Section
Rangitikei Offshore 1, 0.31 km away
Poroutawhao, 2.59 km away
Himatangi, 2.63 km away
Mascarin, 2.93 km away
Northern Ohariu, 4.08 km away
Tokomaru, 5.87 km away
Otaheke North, 10.05 km away
Mt Stewart, 11.8 km away
Onepoto, 13.2 km away
Fisherman 3, 13.22 km away
Otaki Forks: 2, 14.48 km away
Wellington: Tararua 3, 18.68 km away
Wellington: Pahiatua, 19.3 km away

Rangitikei Offshore 1, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poroutawhao, 2.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Himatangi, 2.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mascarin, 2.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Northern Ohariu, 4.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	true
Directly Connected?	true
Co-rupture Count	179
Co-rupture Rate	3.4416607E-5

Tokomaru, 5.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaheke North, 10.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Mt Stewart, 11.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	2.9889063E-5

Onepoto, 13.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fisherman 3, 13.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaki Forks: 2, 14.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 3, 18.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Wellington: Pahiatua, 19.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?	true
Directly Connected?	false
Co-rupture Count	154
Co-rupture Rate	0.0
