Needles Details

PropertyValue
Rupture Count21,990
Ruptures Above Sect Min Mag21,981
Ruptures w/ Nonzero Rates39
Magnitude Range[6.68, 8.62]
Length Range[17, 1,201] km
Total Rate0.0029163677 /yr
Multi-Fault Rate0.0029163677 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults129

Table Of Contents

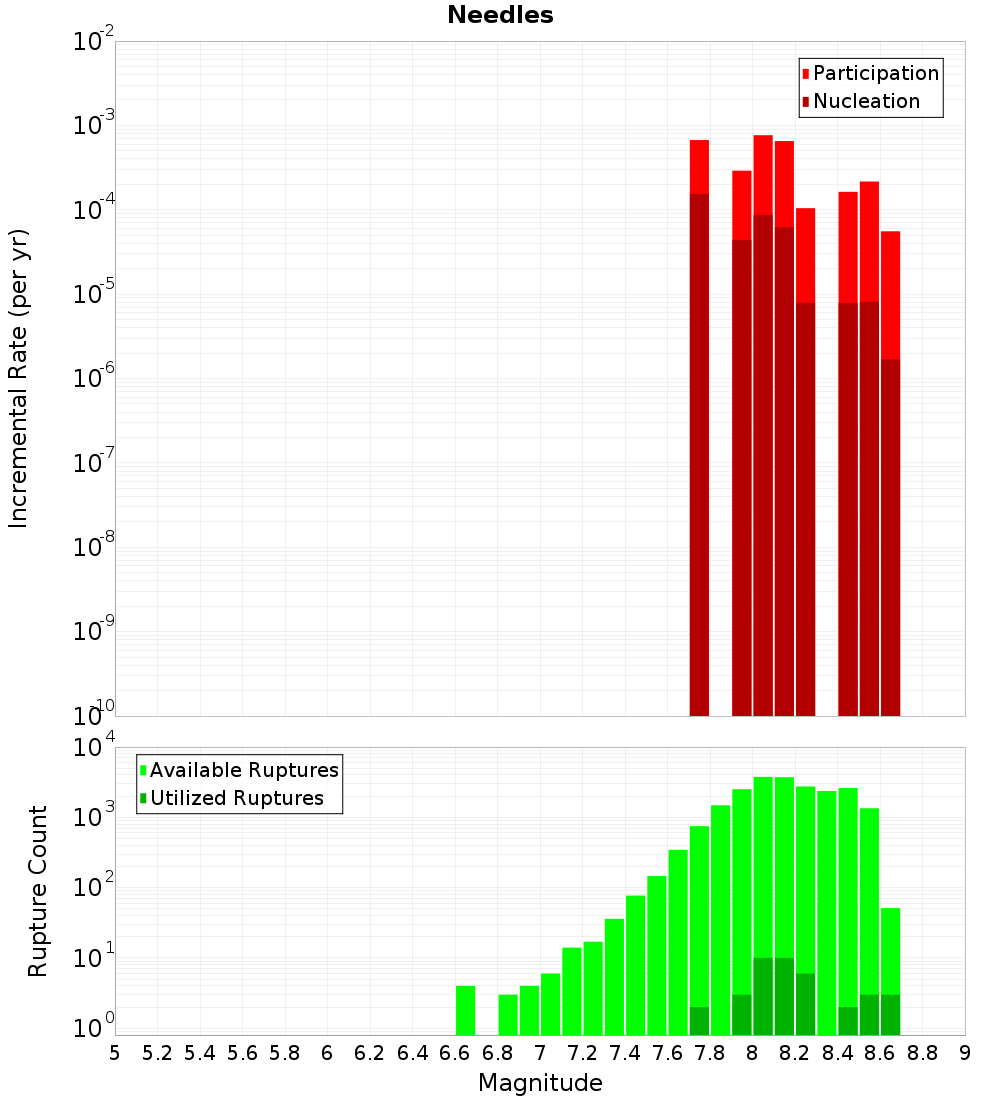

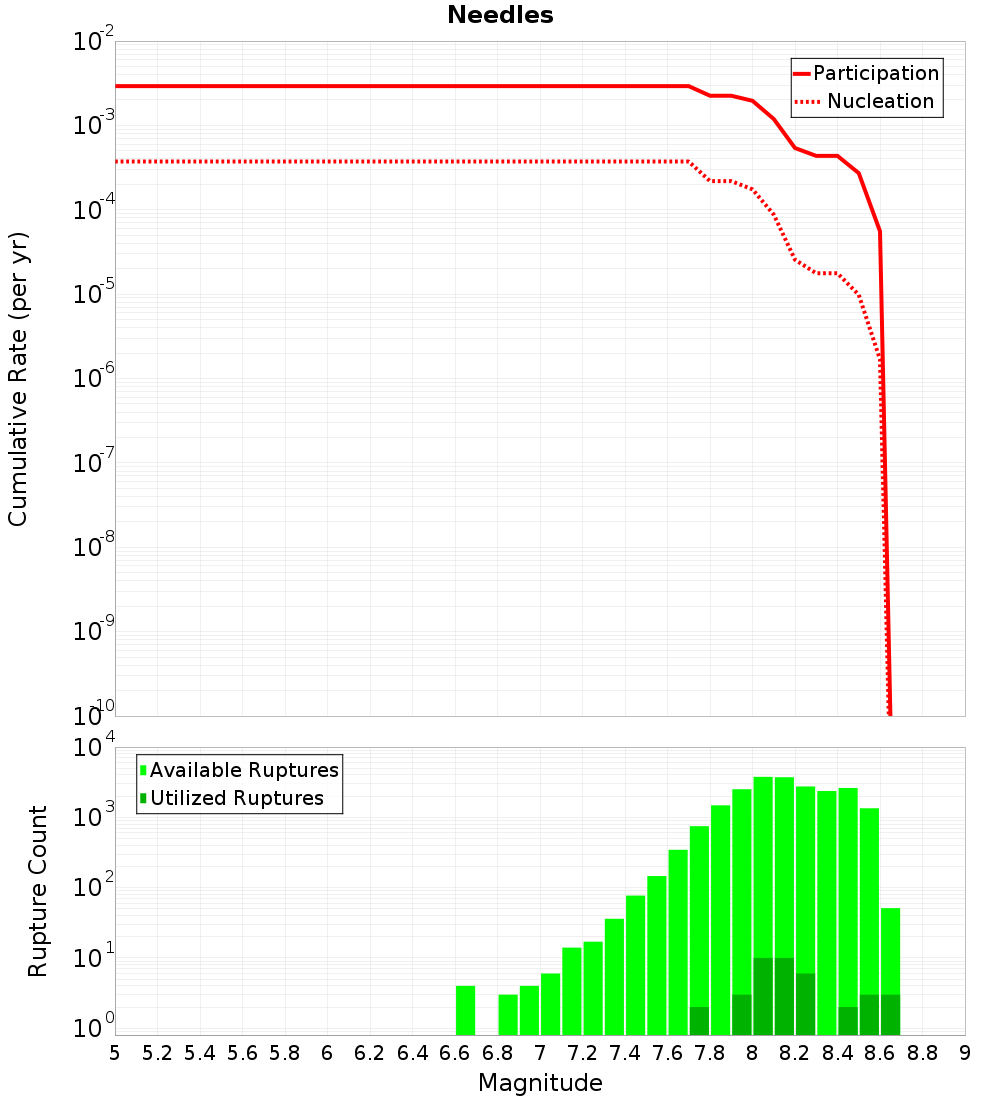

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

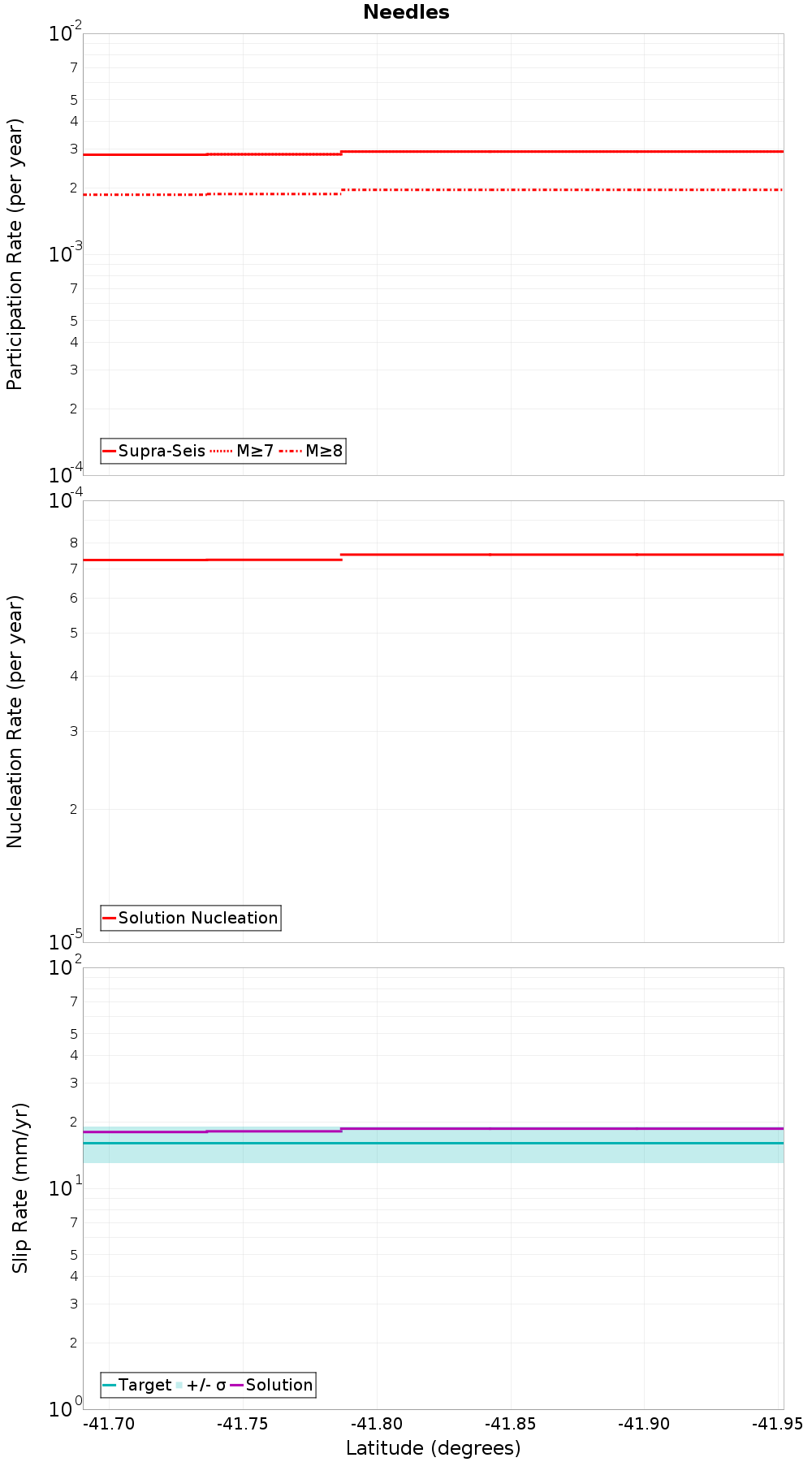

Along-Strike Values

(top)

Along-strike plot

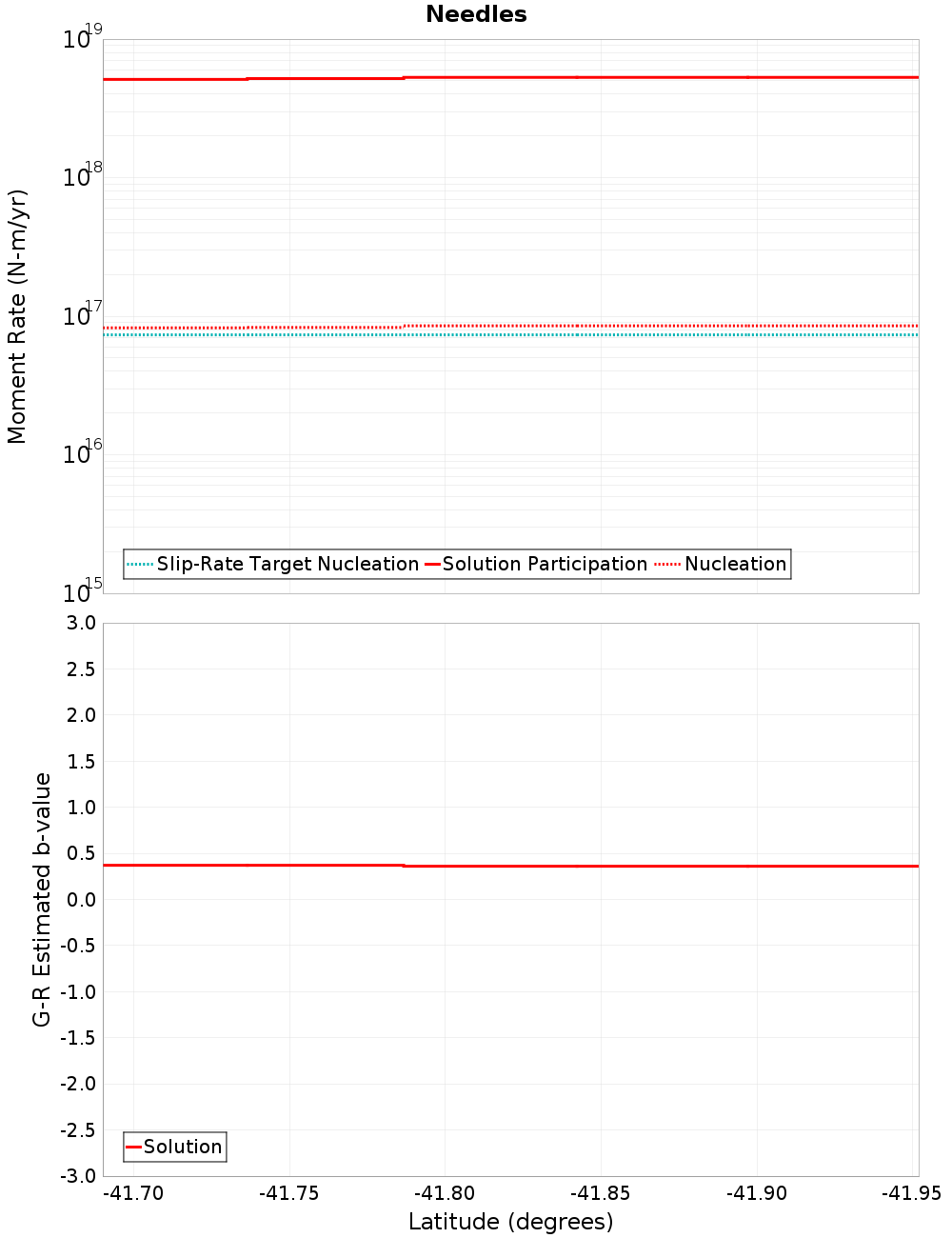

Moment-Rates and b-Values

(top)

Along-strike plot

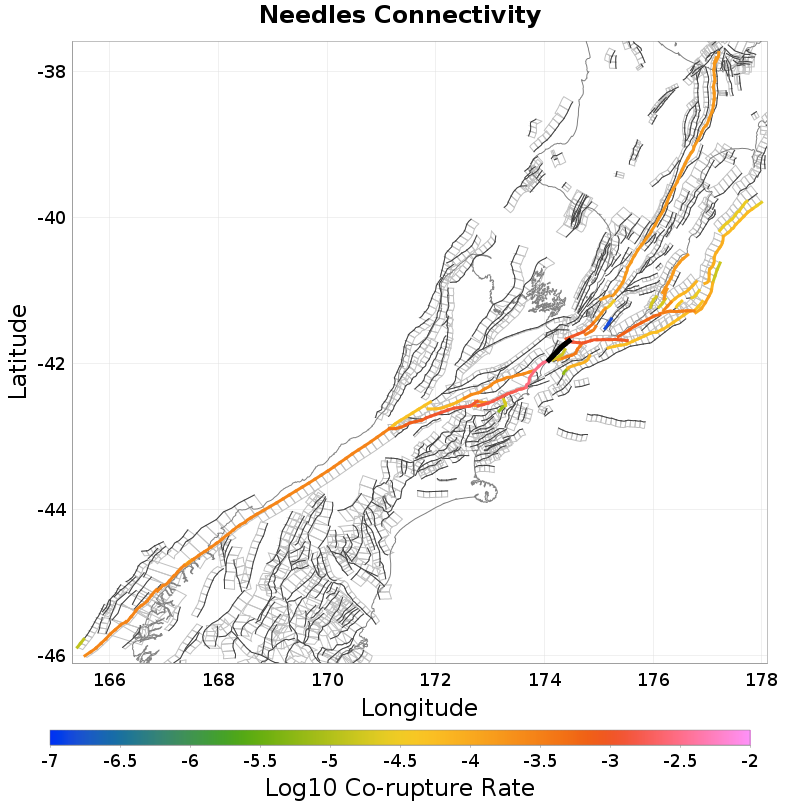

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Kekerengu 1, 0 km awayWharanui, 10.35 km away
London Hill, 0 km awayClarence: Northeast, 11.97 km away
BooBoo, 0.17 km awayUpper Slope, 14.3 km away
Needles East 2, 0.22 km awayVernon 3, 14.87 km away
Vernon 4, 3.69 km awayCloudy 2, 16.93 km away
Wairarapa: Needles, 4.57 km awayVernon 1, 17.85 km away
Chancet, 6.52 km awayCampbell Bank, 17.87 km away
Cloudy 3, 9.38 km awayHope: Te Rapa, 18.14 km away

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?true
Co-rupture Count19,316
Co-rupture Rate0.0029163677

London Hill, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?true
Co-rupture Count316
Co-rupture Rate0.0

BooBoo, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?true
Co-rupture Count13,620
Co-rupture Rate0.0015051062

Needles East 2, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?true
Co-rupture Count942
Co-rupture Rate1.6658474E-5

Vernon 4, 3.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate0.0

Wairarapa: Needles, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?true
Co-rupture Count6,240
Co-rupture Rate0.0010367241

Chancet, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?true
Co-rupture Count877
Co-rupture Rate3.6886483E-4

Cloudy 3, 9.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharanui, 10.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Northeast, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Upper Slope, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?false
Co-rupture Count149
Co-rupture Rate8.239225E-5

Vernon 3, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 2, 16.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 17.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Bank, 17.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?false
Co-rupture Count733
Co-rupture Rate3.6886483E-4

Hope: Te Rapa, 18.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0
