Raukumara 9 Details
| Property | Value |
|---|---|
| Rupture Count | 455 |
| Ruptures Above Sect Min Mag | 452 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.24, 8.26] |
| Length Range | [5, 491] km |
| Total Rate | 3.2414067E-5 /yr |
| Multi-Fault Rate | 3.2414067E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 59 |
Table Of Contents

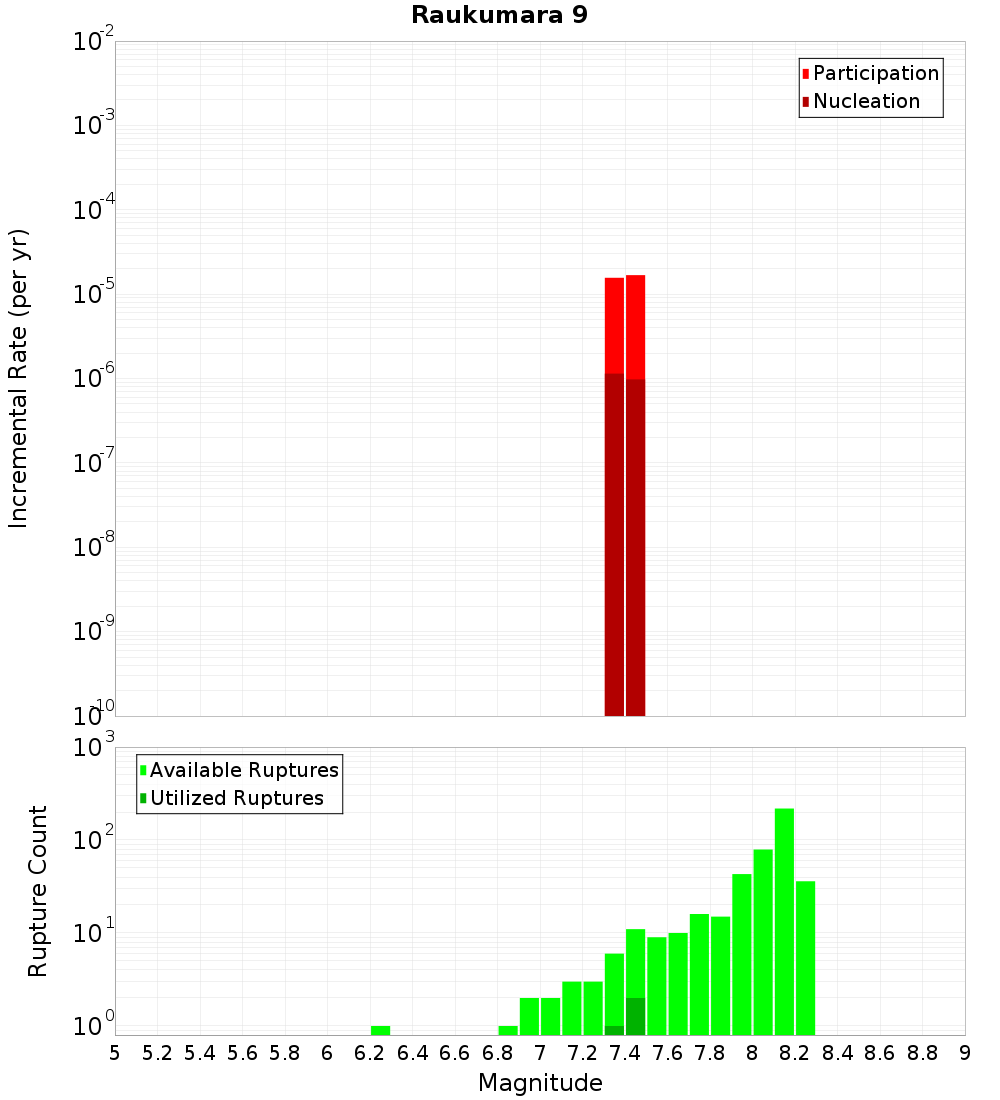

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

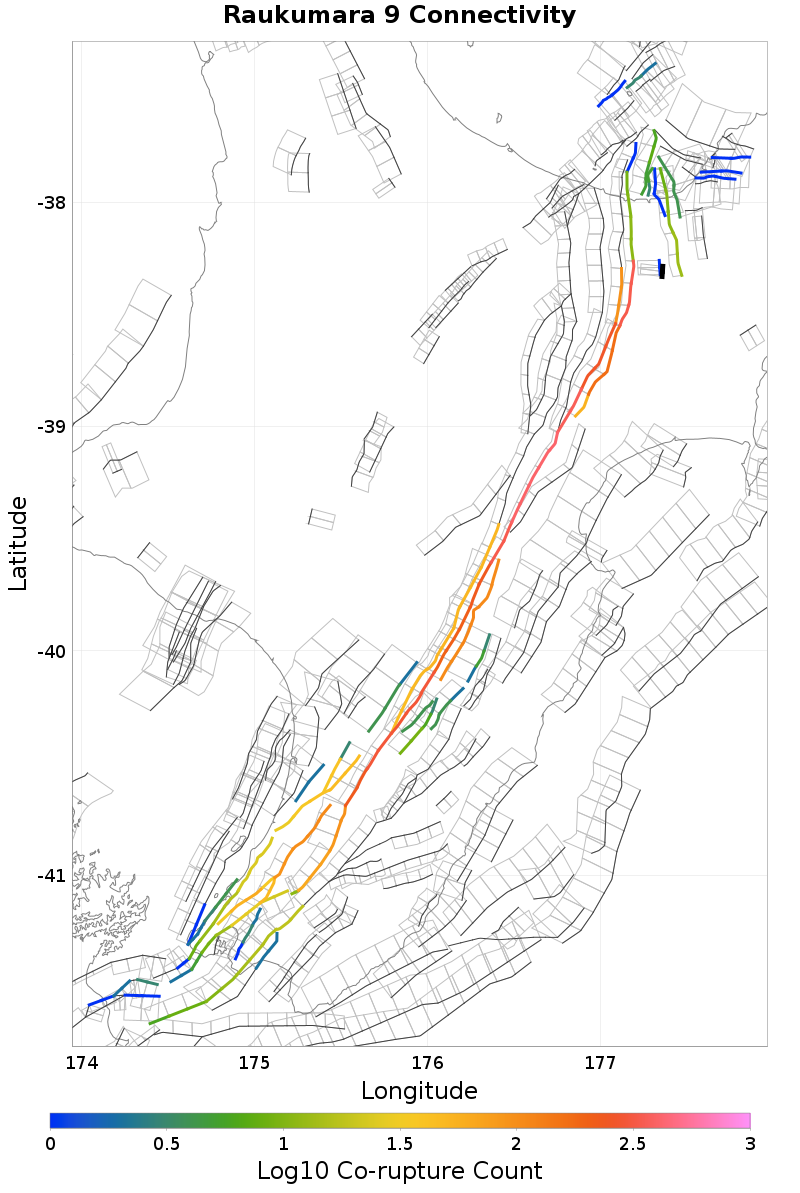

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wairata, 0.98 km away |
| Waiotahi: North, 6.8 km away |
| Kotare - Moutuhora, 7.8 km away |
| Waimana: North, 14.07 km away |
Wairata, 0.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Waiotahi: North, 6.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 347 |
| Co-rupture Rate | 0.0 |
Kotare - Moutuhora, 7.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 3.2414067E-5 |
Waimana: North, 14.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjI5OTAuMFA2a0N1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 95 |
| Co-rupture Rate | 0.0 |
