Calypso 2 Details

PropertyValue
Rupture Count299
Ruptures Above Sect Min Mag296
Ruptures w/ Nonzero Rates36
Magnitude Range[6.62, 8.15]
Length Range[14, 504] km
Total Rate3.1432242E-5 /yr
Multi-Fault Rate3.1432242E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults33

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

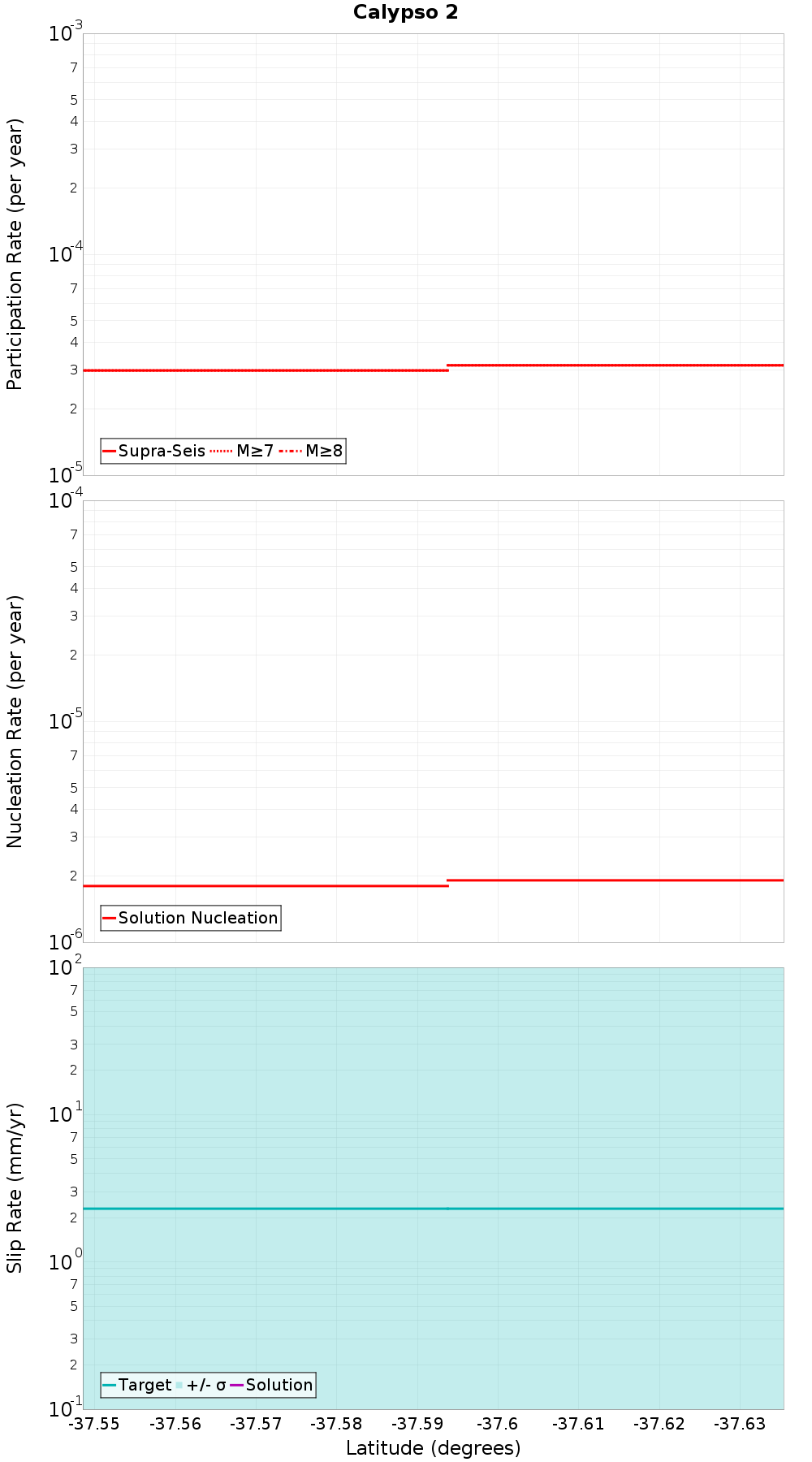

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Whakaari 4, 0.2 km away
Te Arawa 1, 1.54 km away
Tuatoru 1, 3.86 km away
Te Arawa 2, 6.99 km away
Rangitaiki 2, 8.01 km away
Ohiwa 1, 8.32 km away
White Island 1, 8.93 km away
Volkner 3, 9.04 km away
White Island 2, 10.04 km away
Volkner 4, 11.95 km away
Tuatoru 2, 12.9 km away
Rangitaiki 1, 14.65 km away
Waimanawa - Waikaremoana, 14.96 km away

Whakaari 4, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?false
Co-rupture Count134
Co-rupture Rate7.986734E-6

Te Arawa 1, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?false
Co-rupture Count118
Co-rupture Rate9.236915E-6

Tuatoru 1, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?true
Co-rupture Count169
Co-rupture Rate1.8885563E-5

Rangitaiki 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?true
Co-rupture Count224
Co-rupture Rate2.0538033E-5

Ohiwa 1, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate6.9207093E-9

White Island 1, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?false
Co-rupture Count244
Co-rupture Rate1.8890465E-5

Volkner 3, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate1.2541849E-5

White Island 2, 10.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate1.149341E-13

Volkner 4, 11.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate1.6477135E-6

Tuatoru 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate3.831873E-6

Rangitaiki 1, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?true
Directly Connected?false
Co-rupture Count137
Co-rupture Rate2.0264215E-5

Waimanawa - Waikaremoana, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwMzcuNXlYVWNz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
