Pegasus Bay Details

PropertyValue
Rupture Count101
Ruptures Above Sect Min Mag84
Ruptures w/ Nonzero Rates6
Magnitude Range[6.50, 7.52]
Length Range[15, 141] km
Total Rate1.6468197E-4 /yr
Multi-Fault Rate1.6468197E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults10

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

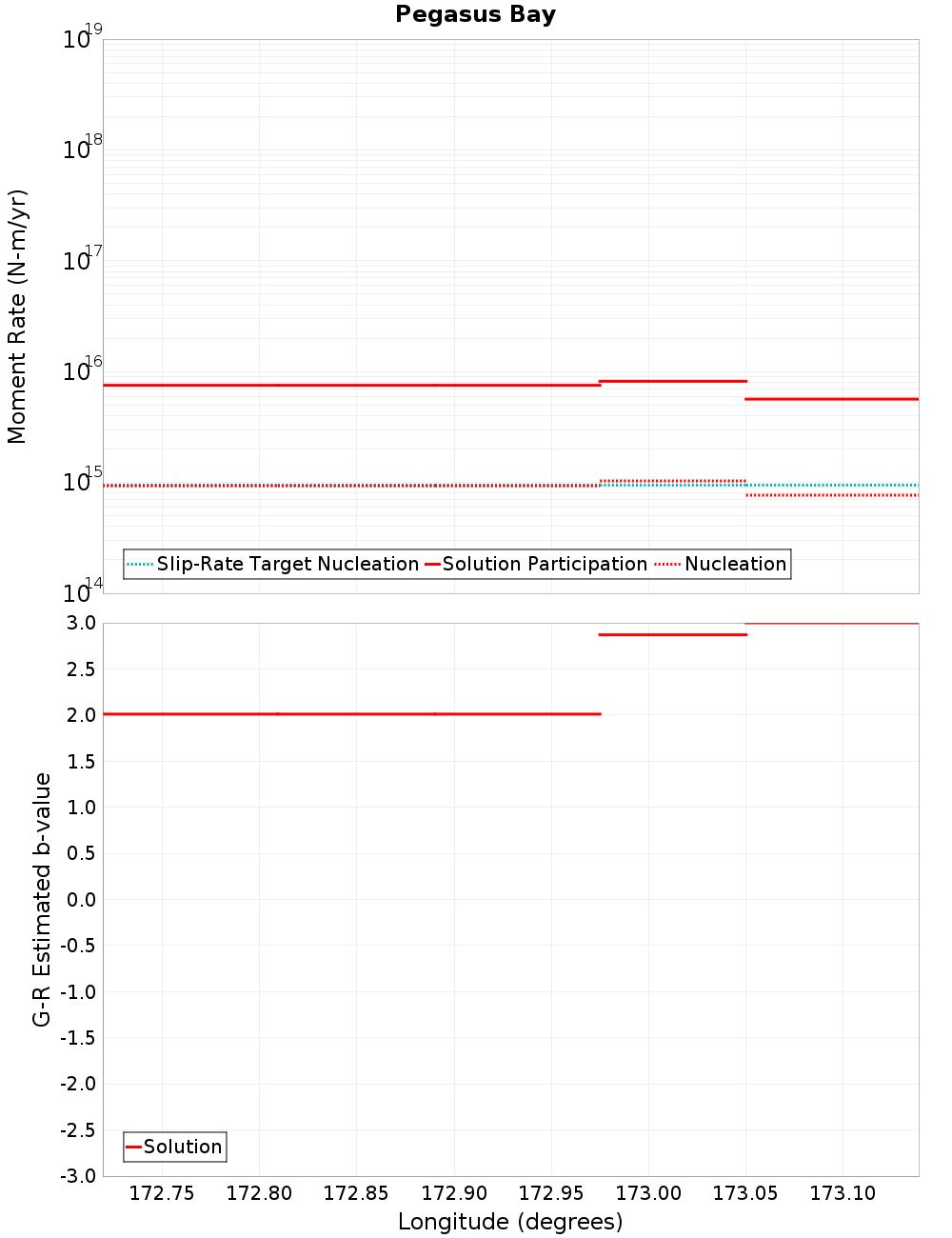

Moment-Rates and b-Values

(top)

Along-strike plot

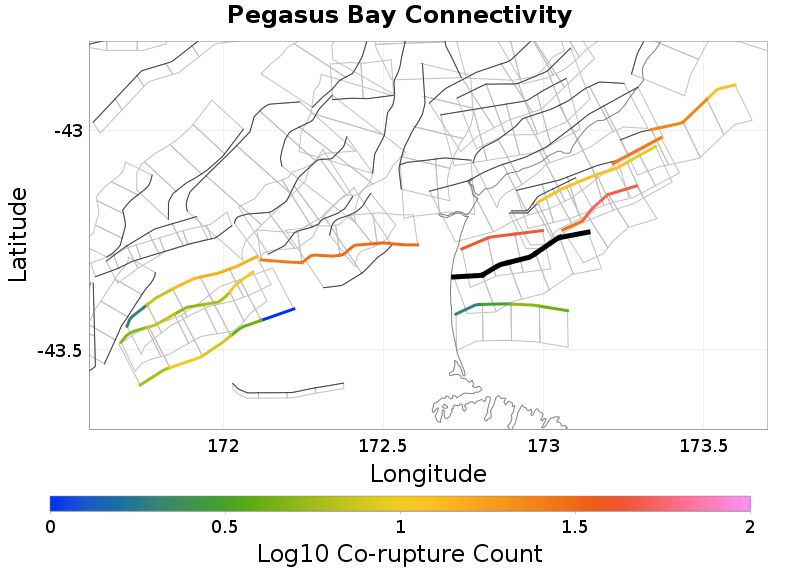

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 4, 1.54 km away
Waikuku, 3.19 km away
CenPeg1n2, 6.09 km away
Leithfield - NCVI - NCVII, 7.81 km away
North Canterbury Shelf 2, 8.24 km away
Motunau, 11.59 km away
Starvation - Ashley, 12.18 km away
AmberBlyth, 14.66 km away

North Canterbury Shelf 4, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwNTQuMGo2VzIy
Connected?true
Directly Connected?true
Co-rupture Count65
Co-rupture Rate8.218227E-5

Waikuku, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwNTQuMGo2VzIy
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate1.6979919E-5

CenPeg1n2, 6.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwNTQuMGo2VzIy
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate8.2499704E-5

Leithfield - NCVI - NCVII, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwNTQuMGo2VzIy
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate3.8189086E-5

North Canterbury Shelf 2, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwNTQuMGo2VzIy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motunau, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwNTQuMGo2VzIy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 12.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwNTQuMGo2VzIy
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate0.0

AmberBlyth, 14.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIwNTQuMGo2VzIy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
