AmberBlyth Details
| Property | Value |
|---|---|
| Rupture Count | 4,407 |
| Ruptures Above Sect Min Mag | 4,402 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.81, 8.24] |
| Length Range | [20, 530] km |
| Total Rate | 6.858536E-5 /yr |
| Multi-Fault Rate | 6.858536E-5 /yr (100.00%) |
| Directly-Connected Faults | 9 |
| All Co-Rupturing Faults | 59 |
Table Of Contents

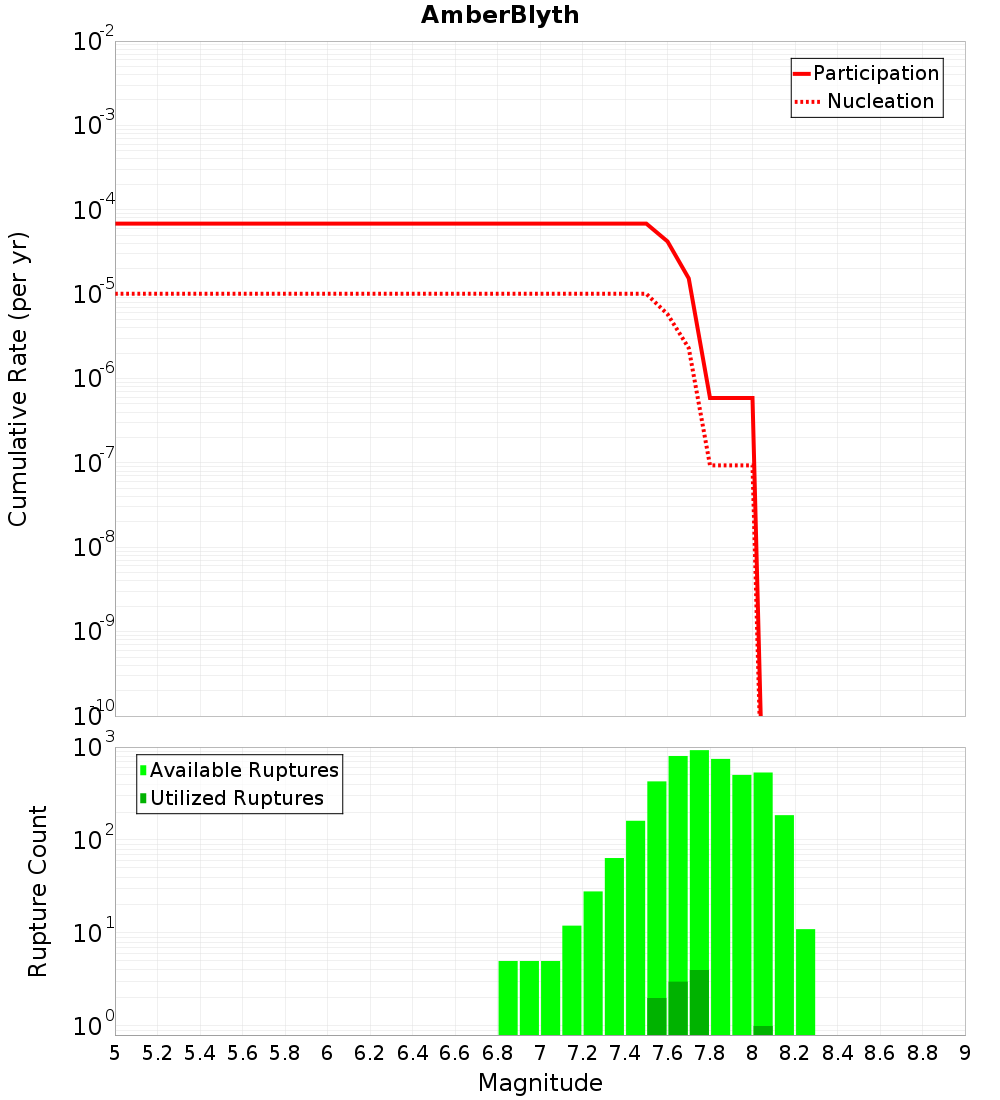

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

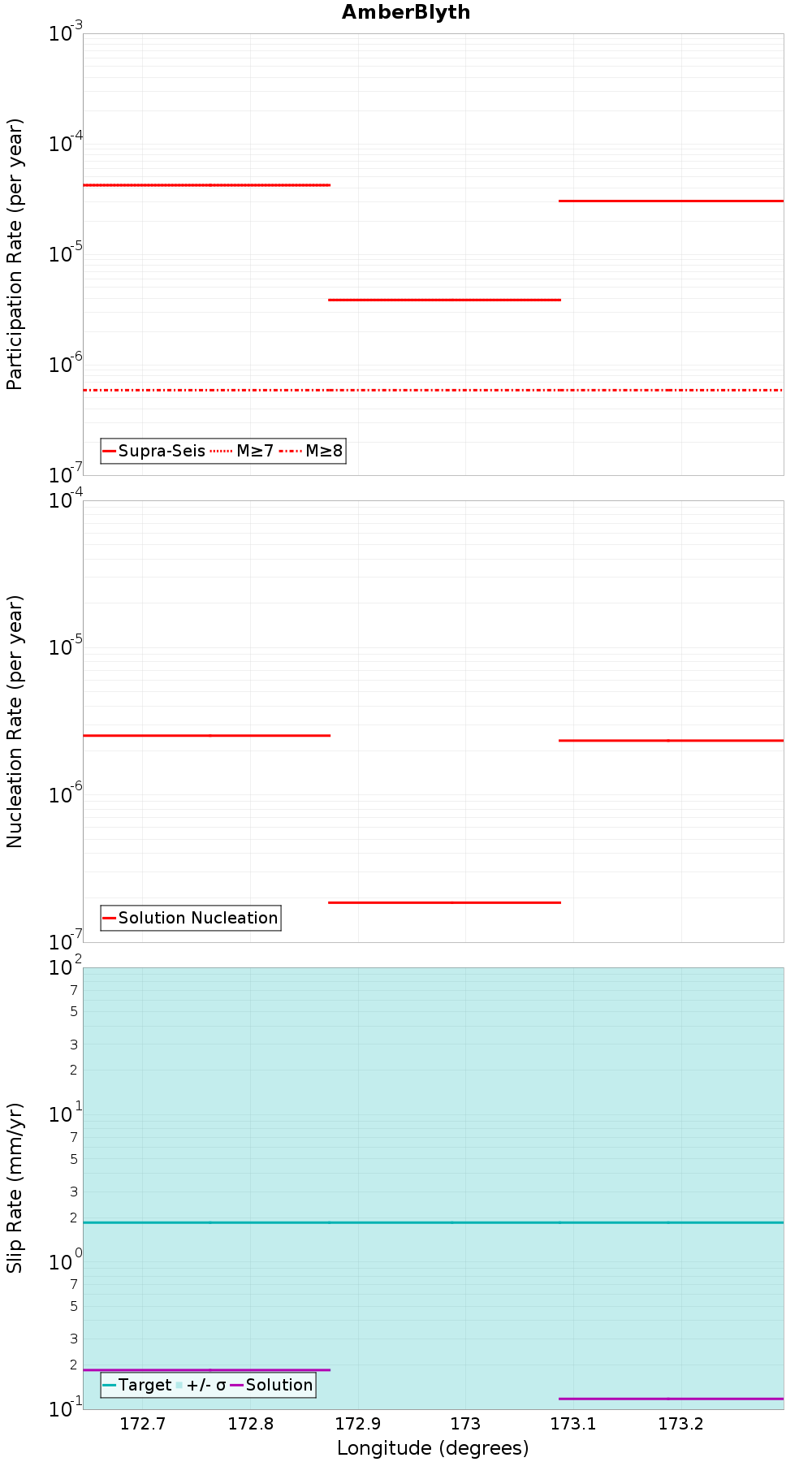

Along-Strike Values

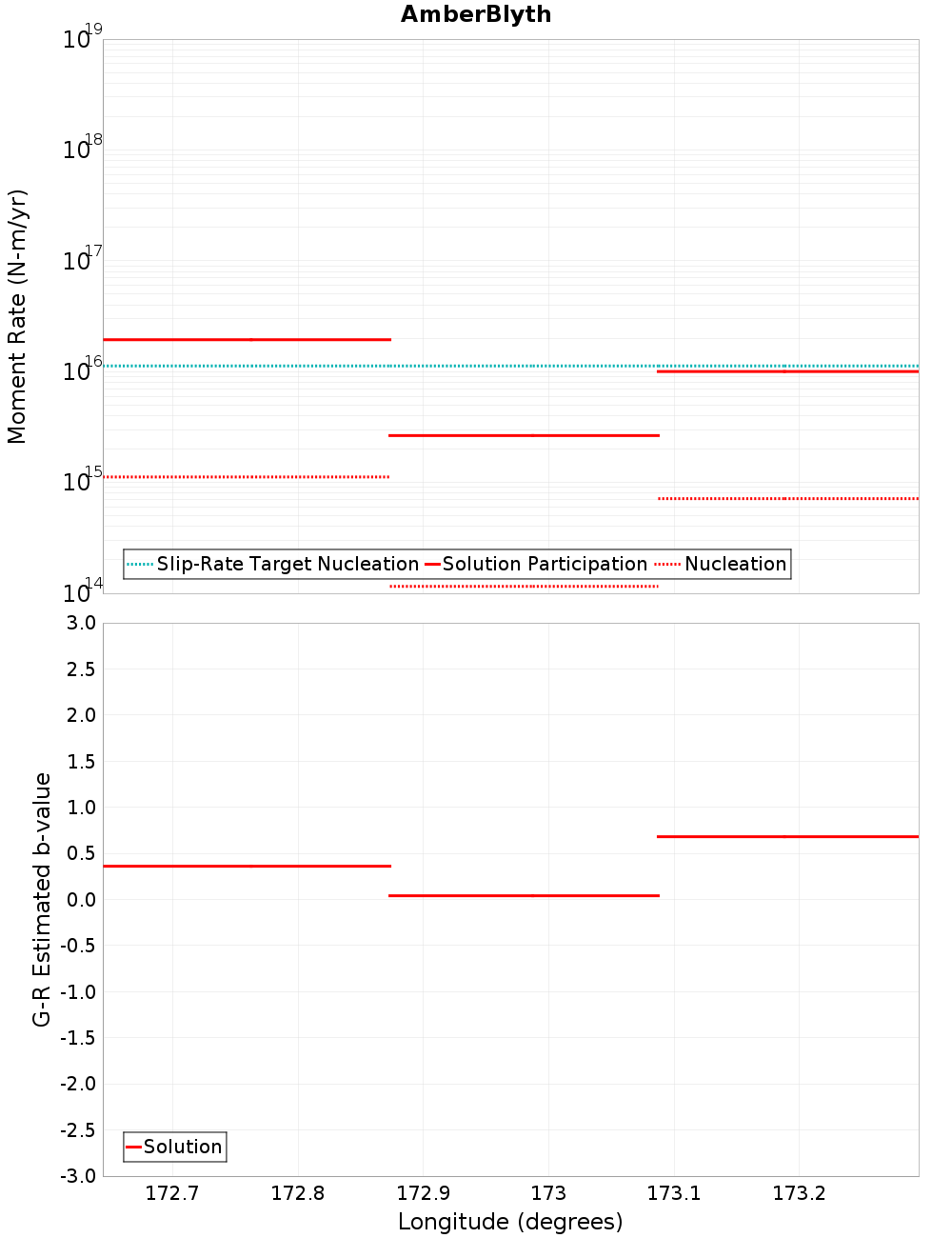

Moment-Rates and b-Values

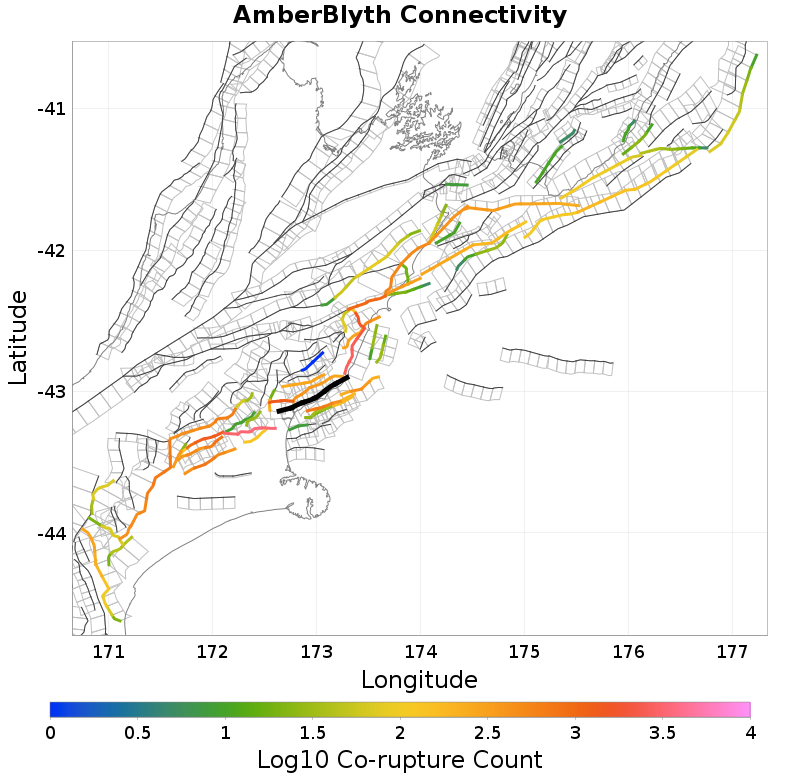

Connectivity
 |  |
|---|
Nearby Sections
OmihiLwrHuru, 1.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 394 |
| Co-rupture Rate | 1.1506373E-5 |
Motunau, 2.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 716 |
| Co-rupture Rate | 2.67806E-5 |
Hawkswood, 3.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,735 |
| Co-rupture Rate | 4.1804757E-5 |
Boby Stream, 3.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,371 |
| Co-rupture Rate | 0.0 |
Point Gibson, 4.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 448 |
| Co-rupture Rate | 4.4633507E-6 |
North Canterbury Shelf 2, 4.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 33 |
| Co-rupture Rate | 0.0 |
Leithfield - NCVI - NCVII, 5.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 173 |
| Co-rupture Rate | 1.3690004E-5 |
Doctors, 5.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 229 |
| Co-rupture Rate | 2.091658E-5 |
North Canterbury Shelf 11, 7.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 192 |
| Co-rupture Rate | 1.3090596E-5 |
Starvation - Ashley, 7.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,404 |
| Co-rupture Rate | 4.2135965E-5 |
Kaiwara South, 8.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 281 |
| Co-rupture Rate | 2.6449394E-5 |
Waikuku, 9.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 0.0 |
Alexander, 11.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
North Canterbury Shelf 4, 12.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mt Lawry, 14.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 28 |
| Co-rupture Rate | 0.0 |
Pegasus Bay, 14.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
