Kohaihai Details
| Property | Value |
|---|---|
| Rupture Count | 2,169 |
| Ruptures Above Sect Min Mag | 2,167 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.96, 8.46] |
| Length Range | [23, 816] km |
| Total Rate | 4.710333E-5 /yr |
| Multi-Fault Rate | 4.710333E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 39 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

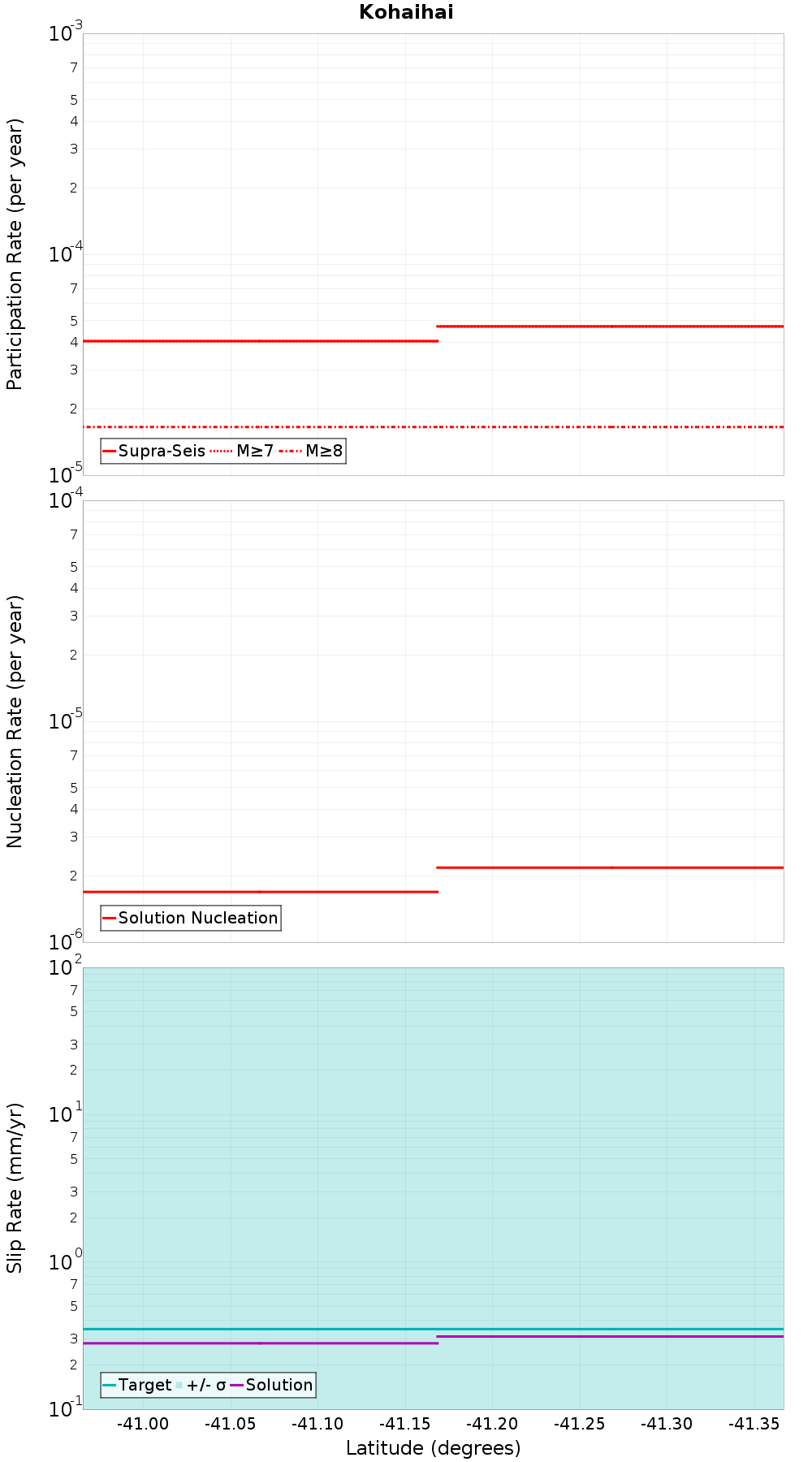

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kohaihai South, 1.73 km away |
| White Creek, 2.2 km away |
| Kongahau, 5.29 km away |
| Wakamarama, 9.33 km away |
| Cape Foulwind 4, 11.38 km away |
| Kahurangi, 11.7 km away |
Kohaihai South, 1.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 668 |
| Co-rupture Rate | 3.058478E-5 |
White Creek, 2.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,065 |
| Co-rupture Rate | 4.710333E-5 |
Kongahau, 5.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 630 |
| Co-rupture Rate | 0.0 |
Wakamarama, 9.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 288 |
| Co-rupture Rate | 0.0 |
Cape Foulwind 4, 11.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kahurangi, 11.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 108 |
| Co-rupture Rate | 0.0 |
