Ranfurly Details

PropertyValue
Rupture Count418
Ruptures Above Sect Min Mag418
Ruptures w/ Nonzero Rates12
Magnitude Range[7.04, 8.09]
Length Range[24, 258] km
Total Rate1.9993919E-5 /yr
Multi-Fault Rate1.9993919E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults26

Table Of Contents

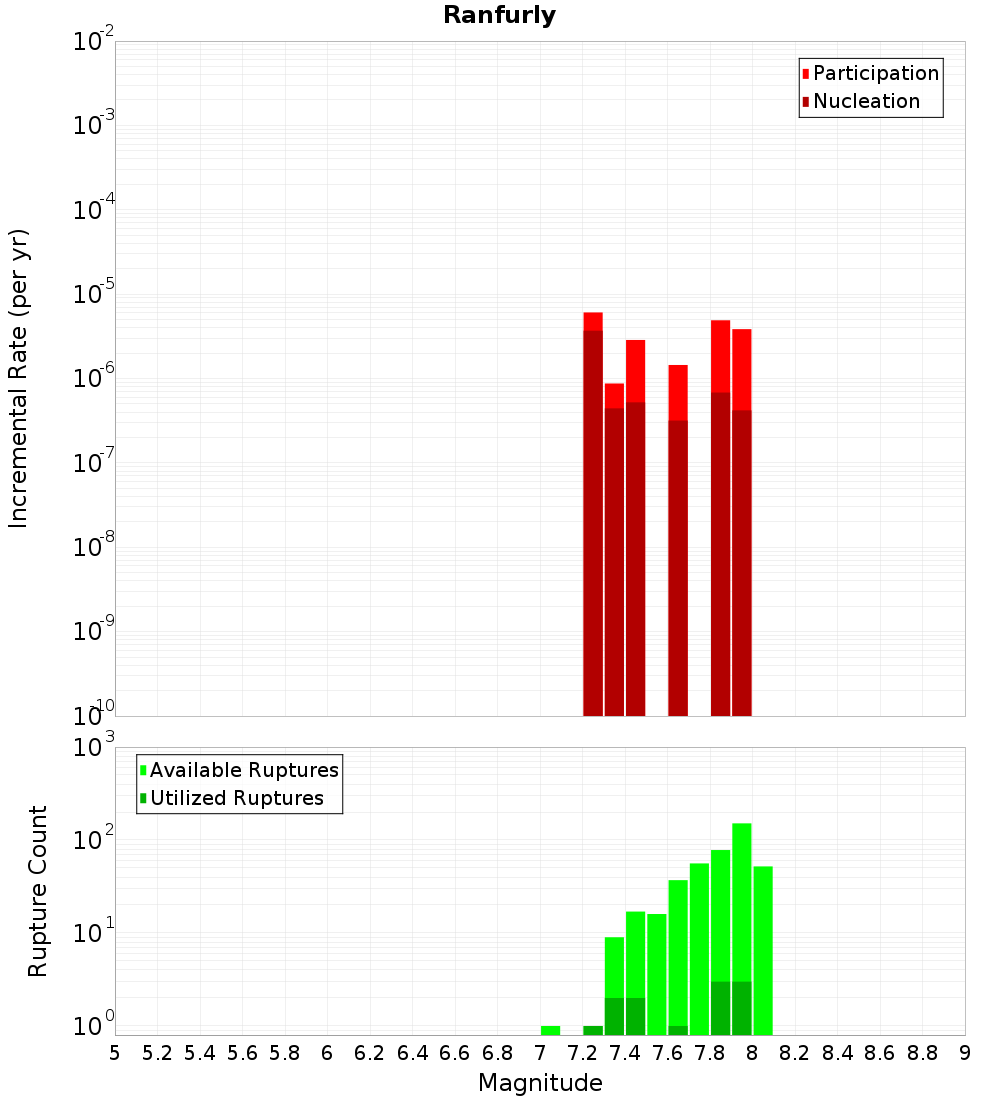

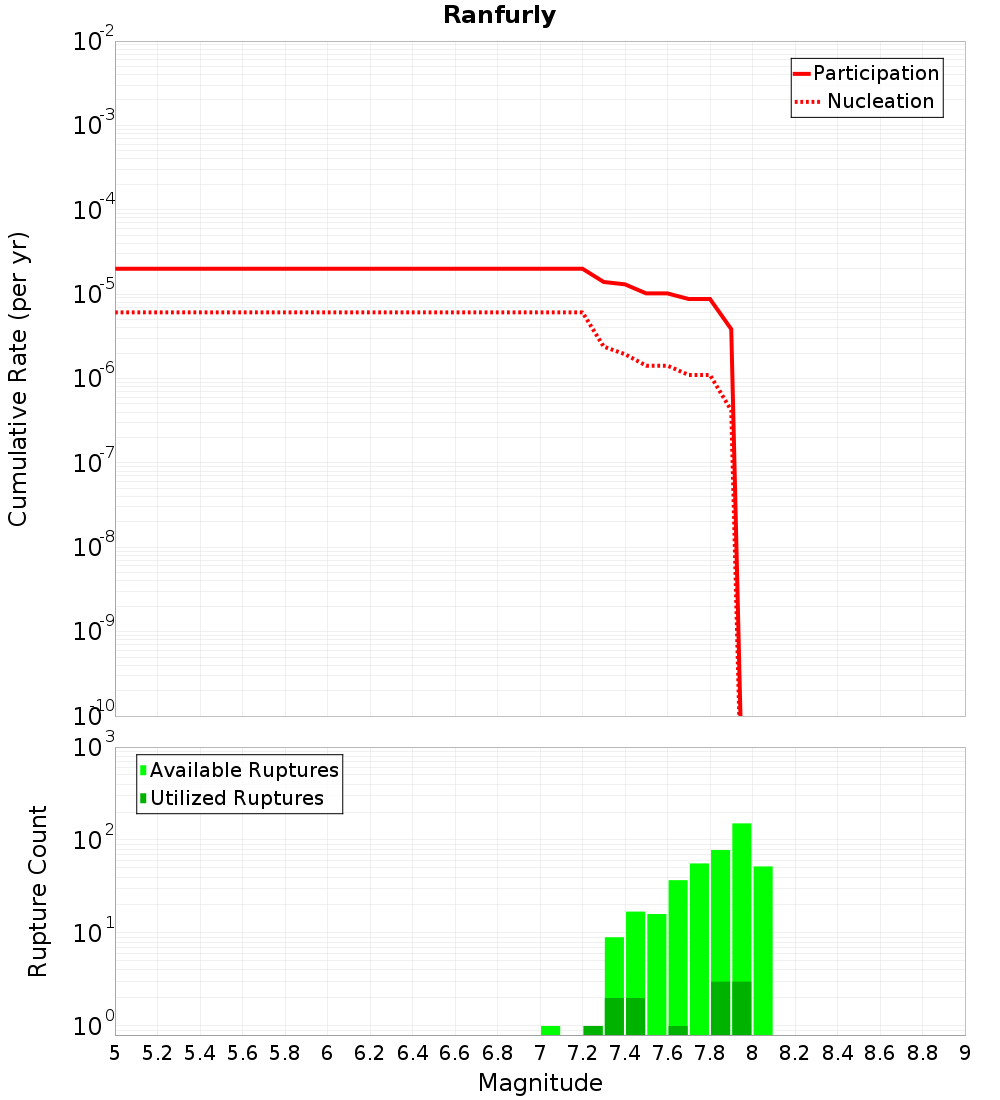

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

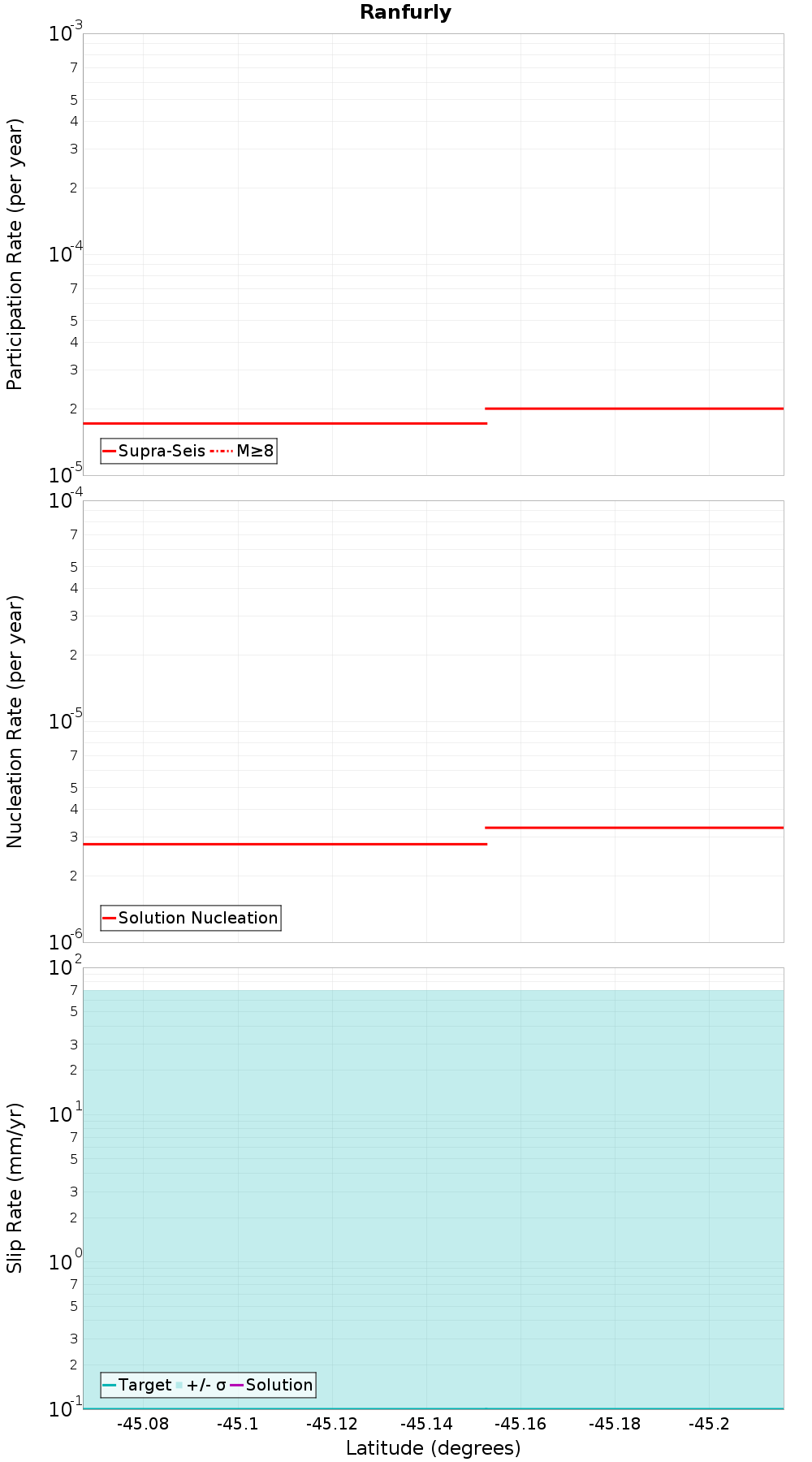

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hyde North, 0.06 km away
Horse Flat, 0.12 km away
Billys Ridge, 0.13 km away
Murphys Creek, 0.76 km away
Waipiata, 2.79 km away
Cross Eden, 4.43 km away
Dunback Hill, 4.86 km away
Gimmerburn, 4.96 km away
Waihemo, 5.63 km away
Hawkdun, 10.99 km away
Garibaldi, 12.32 km away
Flat Stream - Glenpark, 13.03 km away
Pylap, 13.83 km away

Hyde North, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?true
Directly Connected?true
Co-rupture Count117
Co-rupture Rate0.0

Horse Flat, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?true
Directly Connected?true
Co-rupture Count72
Co-rupture Rate3.3705517E-6

Billys Ridge, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?true
Directly Connected?true
Co-rupture Count173
Co-rupture Rate7.4863447E-6

Murphys Creek, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate4.113948E-6

Waipiata, 2.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate1.8194027E-6

Cross Eden, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate6.066808E-6

Dunback Hill, 4.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gimmerburn, 4.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 5.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 13.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pylap, 13.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIxMDYuMEdTdG0y
Connected?true
Directly Connected?false
Co-rupture Count148
Co-rupture Rate1.0482072E-6
