Tukituki Thrust Details

Property	Value
Rupture Count	213
Ruptures Above Sect Min Mag	201
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.77, 8.29]
Length Range	[19, 516] km
Total Rate	3.0281887E-4 /yr
Multi-Fault Rate	1.4111534E-4 /yr (46.60%)
Directly-Connected Faults	4
All Co-Rupturing Faults	25

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

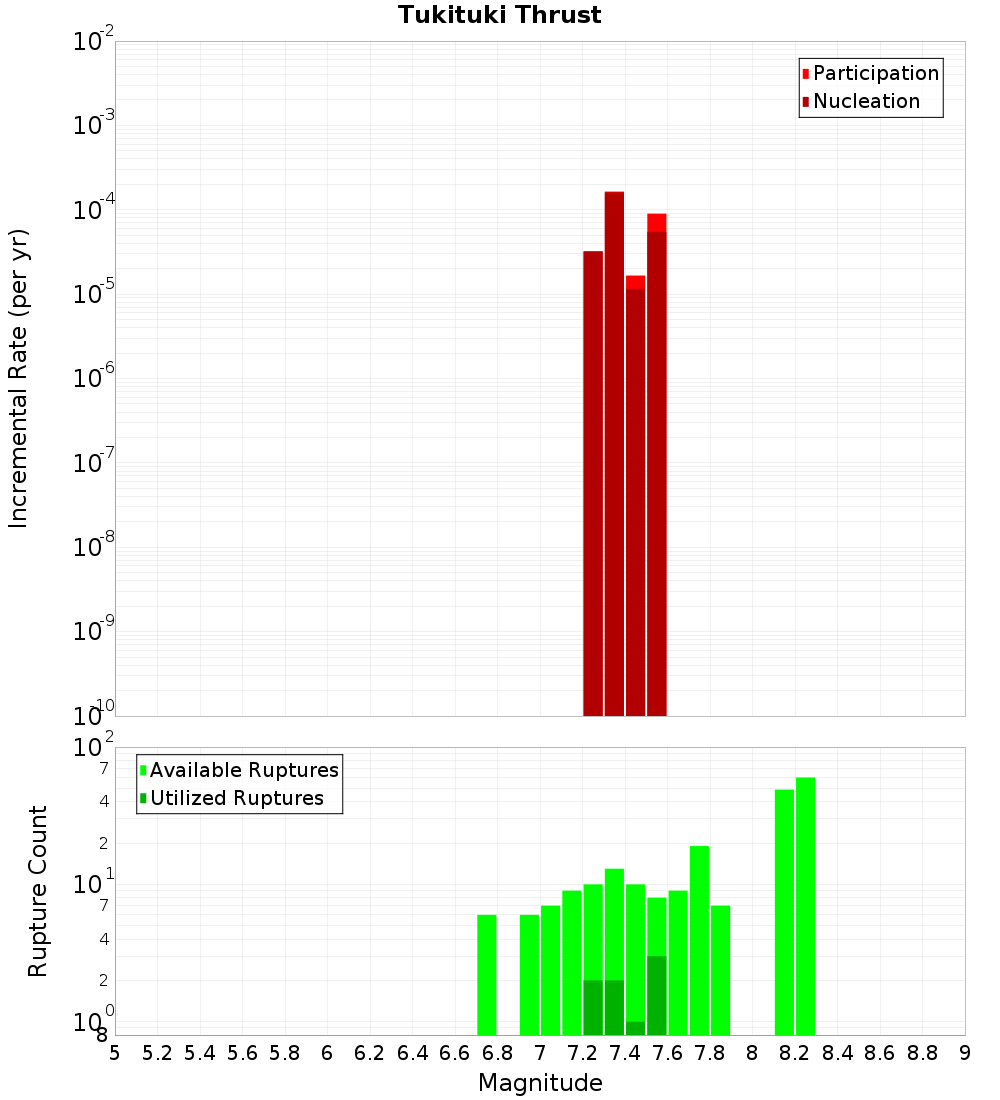

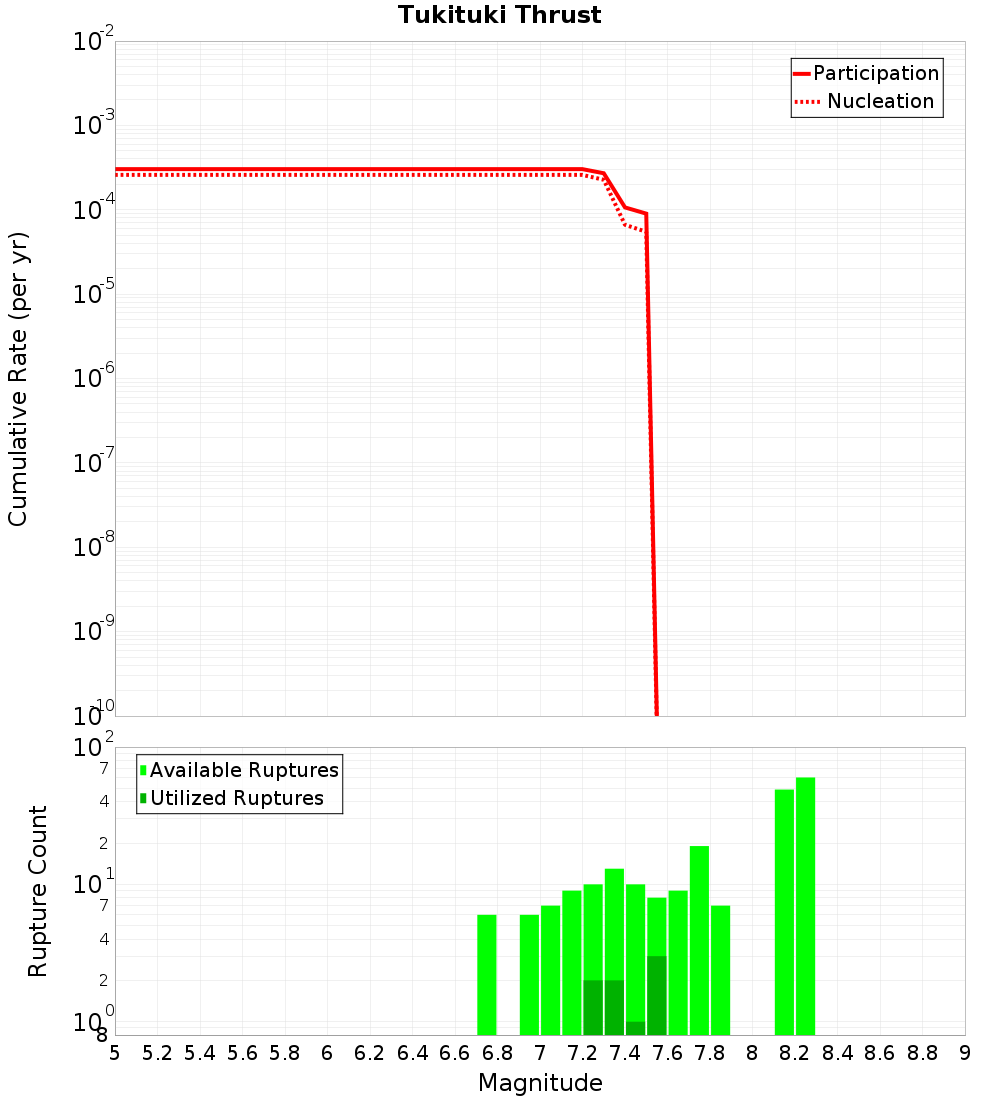

Magnitude-Frequency Distribution

Incremental	Cumulative

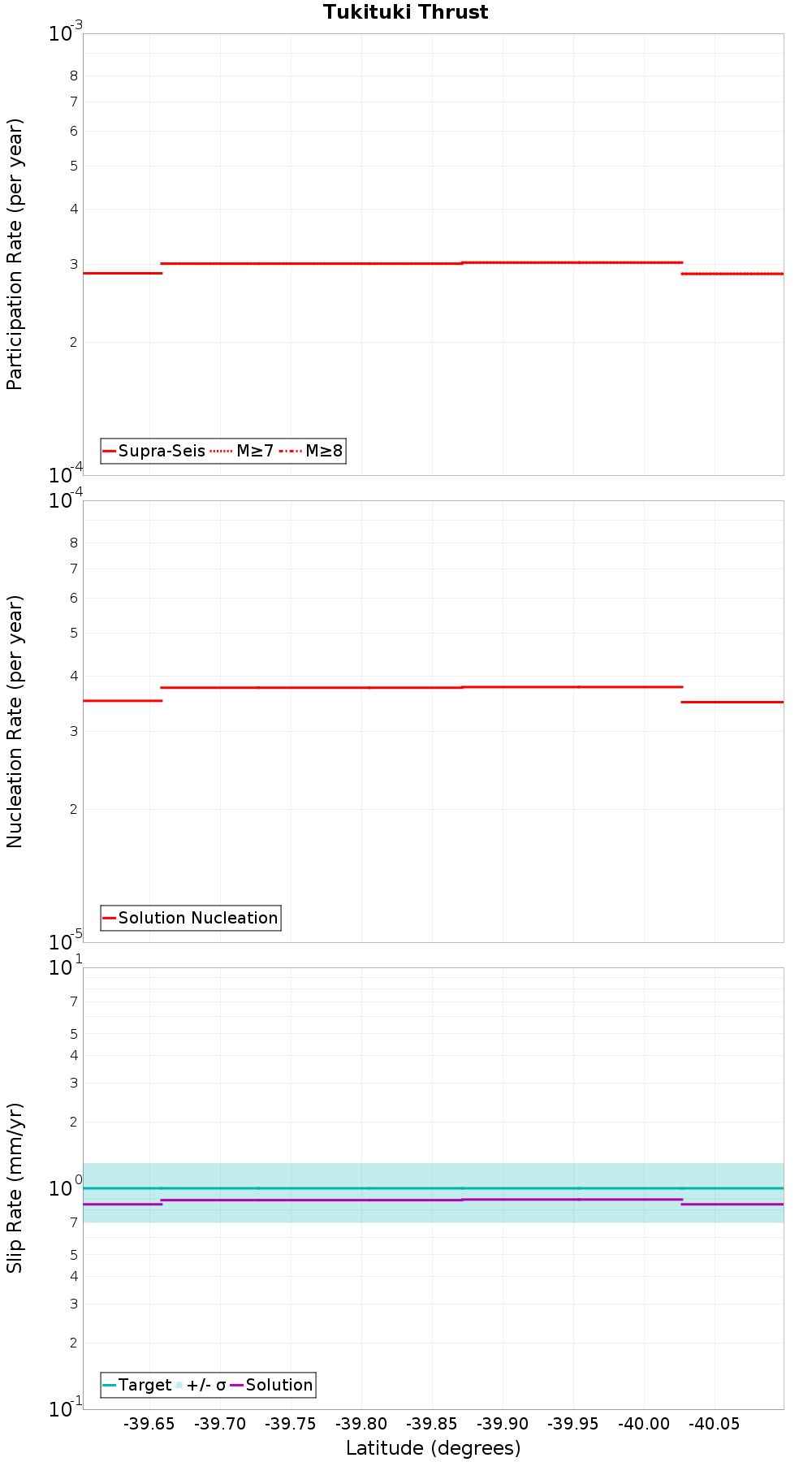

Along-Strike Values

Moment-Rates and b-Values

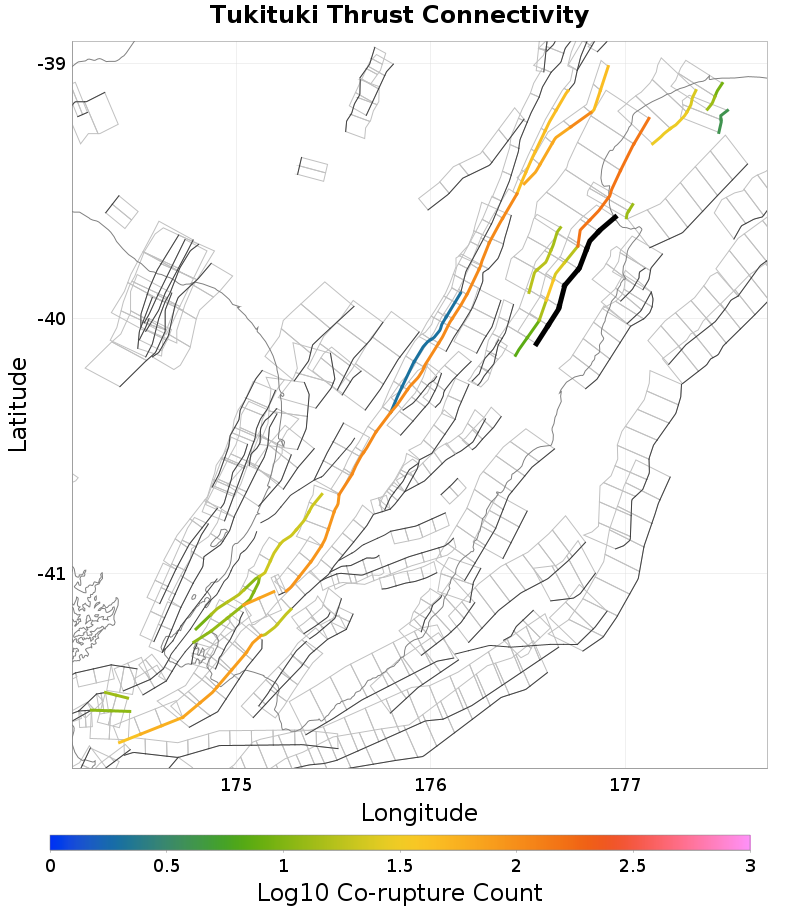

Connectivity

Nearby Sections

Fault Section
Hawke Bay 8, 2 km away
Waipukurau - Poukawa, 3.57 km away
Awanui, 3.57 km away
Clear Hills - Waikopiro, 7.68 km away
Oruawharo - Mangatoro, 9.21 km away
Te Heka, 11.15 km away
Kidnappers Ridge, 11.24 km away
Waimarama 1 & 2, 13.06 km away
Waimarama 3 & 4, 16.07 km away
Ruataniwha, 18.16 km away
Kairakau South, 18.71 km away

Hawke Bay 8, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	6.364226E-5

Waipukurau - Poukawa, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	true
Directly Connected?	true
Co-rupture Count	38
Co-rupture Rate	1.065475E-4

Awanui, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	true
Directly Connected?	true
Co-rupture Count	152
Co-rupture Rate	0.0

Clear Hills - Waikopiro, 7.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Oruawharo - Mangatoro, 9.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Heka, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	1.6976138E-6

Kidnappers Ridge, 11.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimarama 1 & 2, 13.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimarama 3 & 4, 16.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 18.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kairakau South, 18.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTAuNTV3Rkd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
