Alpine: Kaniere to Springs Junction Details

PropertyValue
Rupture Count67,134
Ruptures Above Sect Min Mag67,127
Ruptures w/ Nonzero Rates157
Magnitude Range[6.96, 8.73]
Length Range[21, 1,204] km
Total Rate0.003770395 /yr
Multi-Fault Rate0.0029161558 /yr (77.34%)
Directly-Connected Faults8
All Co-Rupturing Faults127

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

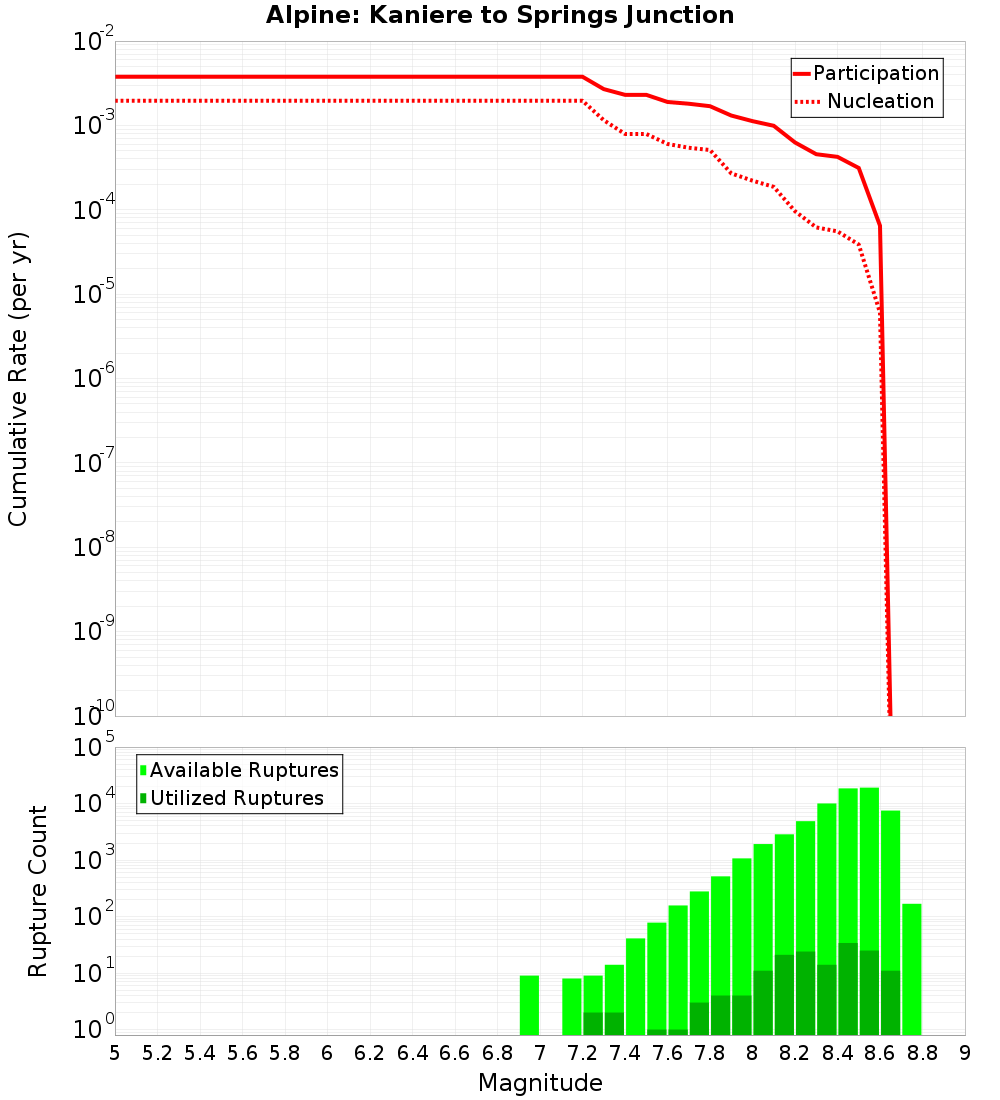

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Alpine: Jacksons to Kaniere, 0 km away
Kelly, 0 km away
Awatere: Southwest, 0 km away
Browning Pass, 0.16 km away
Hope: Hurunui, 0.19 km away
Clarence: Southwest, 0.21 km away
Hope: Taramakau, 0.23 km away
Fowlers, 0.24 km away
Hope: Hope River, 2.94 km away
Kakapo, 6.32 km away
White Creek - buried, 12.03 km away
Esk North, 14.76 km away
Maimai: Brunner Anticline, 15.02 km away
Poulter, 17.51 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?true
Directly Connected?true
Co-rupture Count28,991
Co-rupture Rate9.938285E-4

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?true
Directly Connected?true
Co-rupture Count63,251
Co-rupture Rate0.0021611257

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?true
Directly Connected?true
Co-rupture Count2,067
Co-rupture Rate7.183403E-5

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?true
Directly Connected?true
Co-rupture Count11,465
Co-rupture Rate3.5661788E-4

Browning Pass, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?true
Directly Connected?true
Co-rupture Count17,378
Co-rupture Rate3.462086E-5

Hope: Hurunui, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?true
Directly Connected?true
Co-rupture Count10,978
Co-rupture Rate6.374646E-4

Clarence: Southwest, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?true
Directly Connected?true
Co-rupture Count11,310
Co-rupture Rate1.1468239E-4

Hope: Taramakau, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fowlers, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?true
Directly Connected?true
Co-rupture Count1,964
Co-rupture Rate1.5691283E-5

Hope: Hope River, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?true
Directly Connected?false
Co-rupture Count6,453
Co-rupture Rate5.952832E-4

Kakapo, 6.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?true
Directly Connected?false
Co-rupture Count4,296
Co-rupture Rate2.829328E-5

White Creek - buried, 12.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: Brunner Anticline, 15.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 17.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyMTQuMDNURHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
