Old Man Details

Property	Value
Rupture Count	312
Ruptures Above Sect Min Mag	310
Ruptures w/ Nonzero Rates	8
Magnitude Range	[7.15, 8.20]
Length Range	[26, 310] km
Total Rate	2.0192651E-6 /yr
Multi-Fault Rate	2.0192651E-6 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	32

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

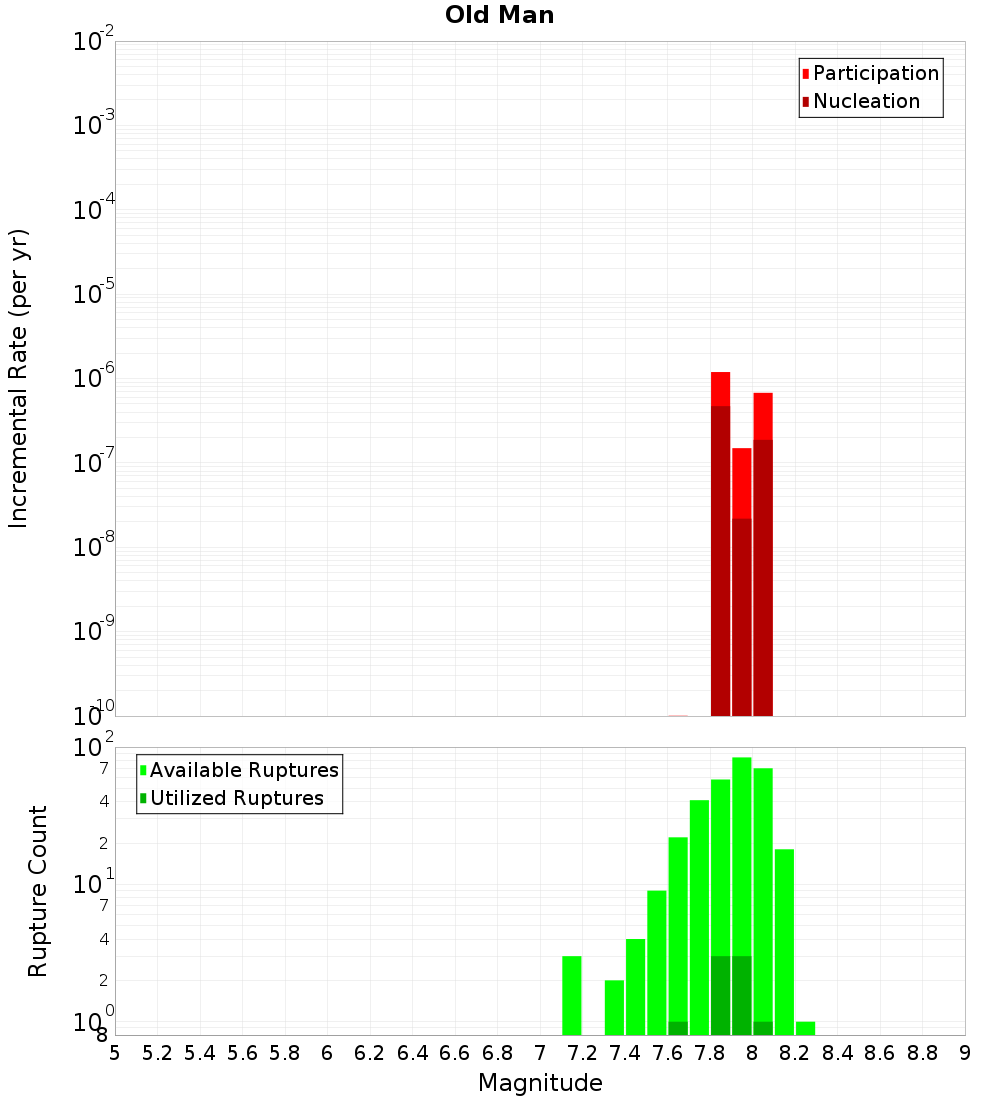

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

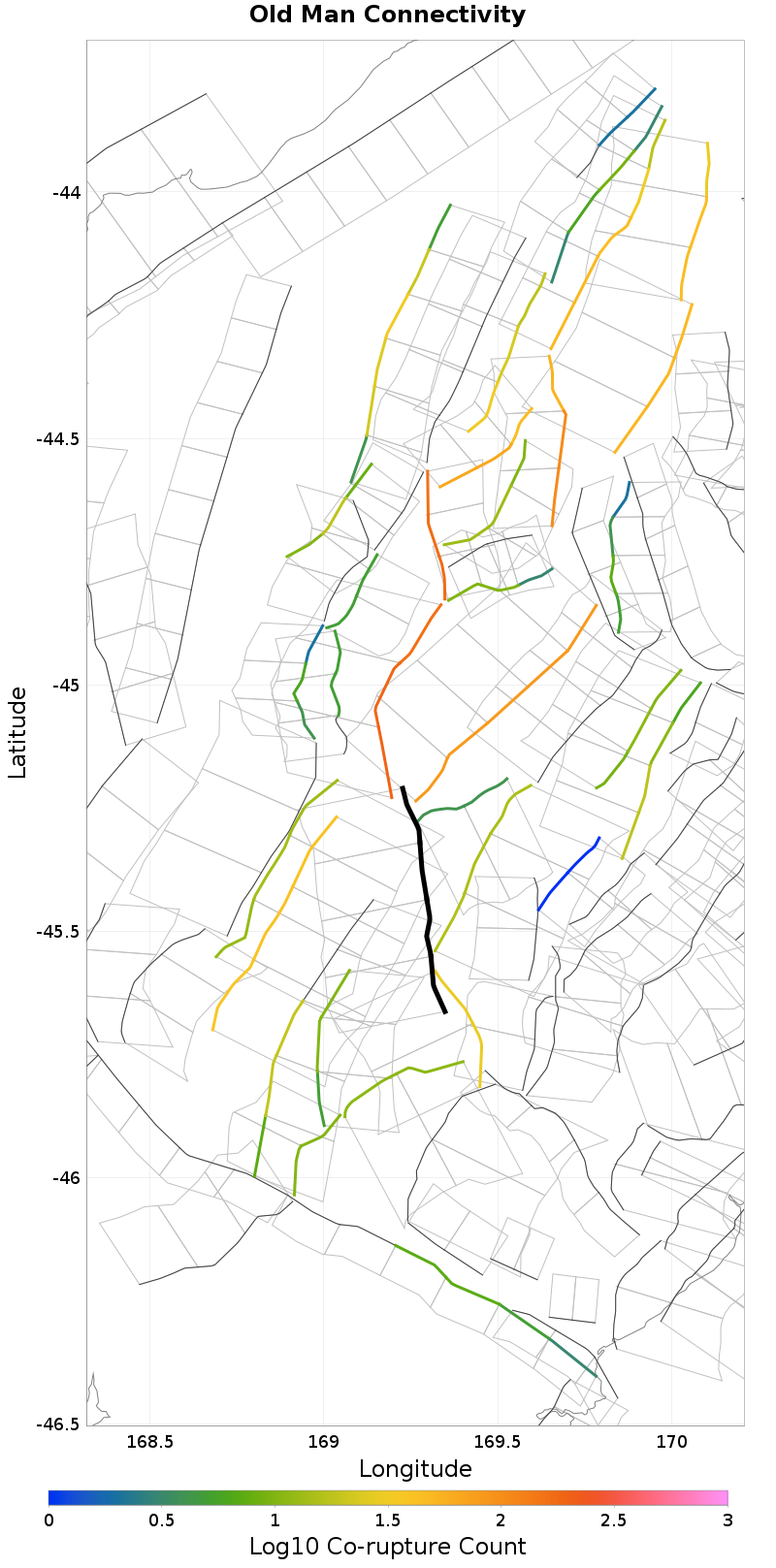

Connectivity

Nearby Sections

Fault Section	Fault Section
Roaring Lion, 0.17 km away	Spylaw, 11.99 km away
Waikaia, 0.19 km away	Mid Dome, 13.05 km away
Garvie, 0.22 km away	Nevis, 14.69 km away
Wendon Valley, 0.27 km away	Tuapeka, 16.07 km away
Galloway, 0.55 km away	Waikaka, 17.07 km away
Teviot, 0.71 km away	Backbone, 17.65 km away
Little Valley, 1.09 km away	Lake Onslow, 17.7 km away
Pisa, 1.75 km away	NW Cardrona South, 18.78 km away
Dunstan, 1.92 km away	Blue Mountain, 19.27 km away
Roaring Meg, 11.24 km away

Roaring Lion, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	0.0

Waikaia, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	1.1931023E-6

Garvie, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	true
Co-rupture Count	43
Co-rupture Rate	1.494433E-7

Wendon Valley, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	0.0

Galloway, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	0.0

Teviot, 0.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	true
Co-rupture Count	29
Co-rupture Rate	0.0

Little Valley, 1.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	0.0

Pisa, 1.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	true
Co-rupture Count	192
Co-rupture Rate	2.0191644E-6

Dunstan, 1.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	true
Co-rupture Count	86
Co-rupture Rate	0.0

Roaring Meg, 11.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Spylaw, 11.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	0.0

Mid Dome, 13.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nevis, 14.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuapeka, 16.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikaka, 17.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	1.494433E-7

Backbone, 17.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lake Onslow, 17.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

NW Cardrona South, 18.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Blue Mountain, 19.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIyNDYuMFBpZDl6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
