Waipiata Details

PropertyValue
Rupture Count184
Ruptures Above Sect Min Mag183
Ruptures w/ Nonzero Rates10
Magnitude Range[7.13, 8.12]
Length Range[23, 216] km
Total Rate1.441707E-5 /yr
Multi-Fault Rate1.441707E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults20

Table Of Contents

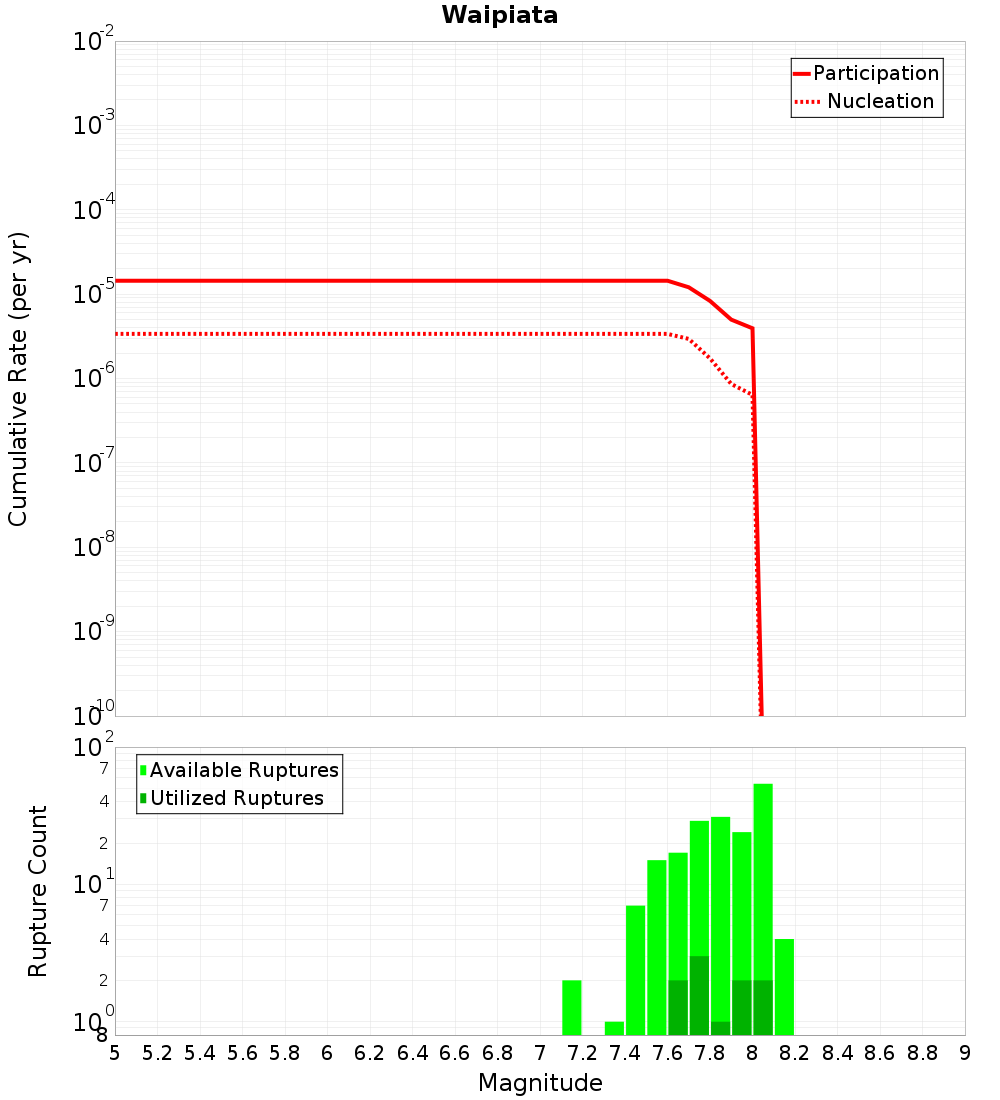

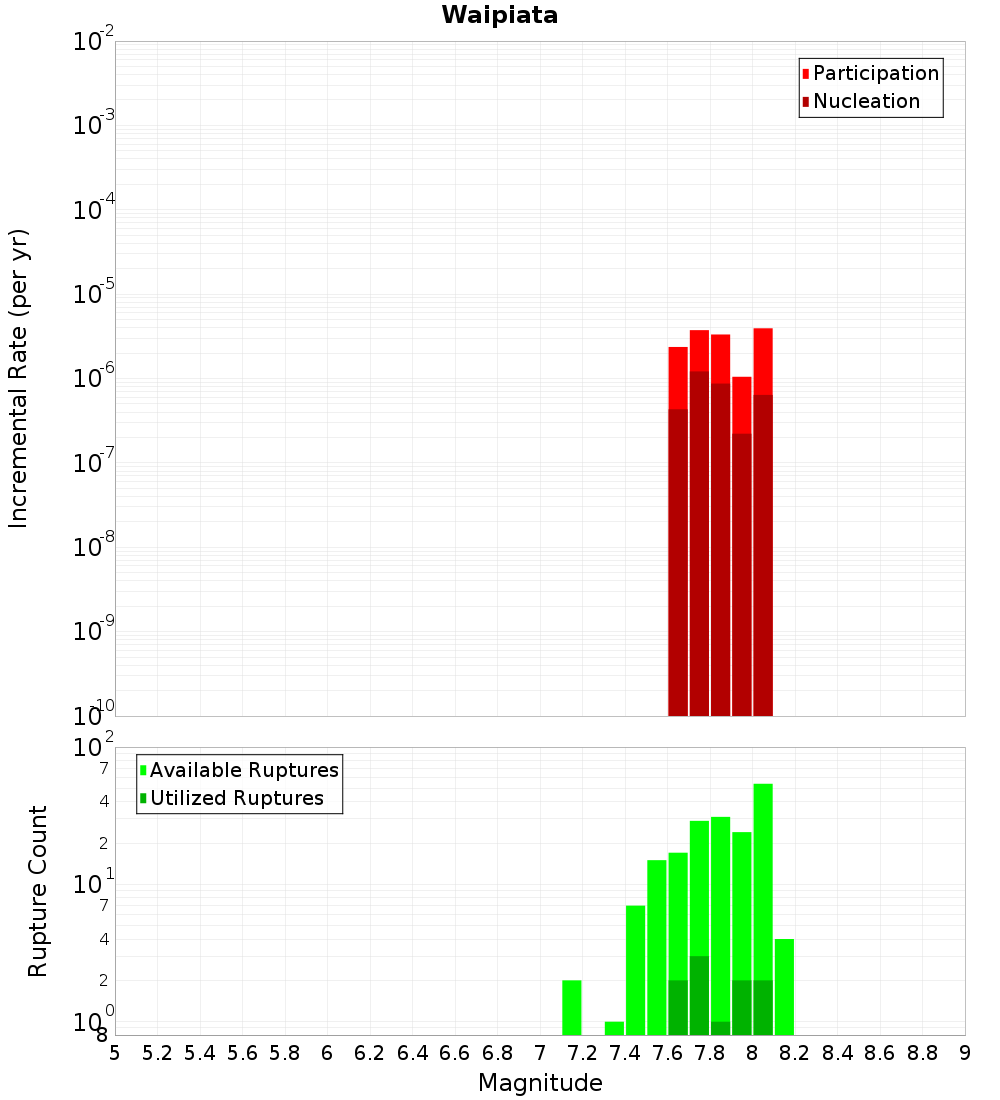

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

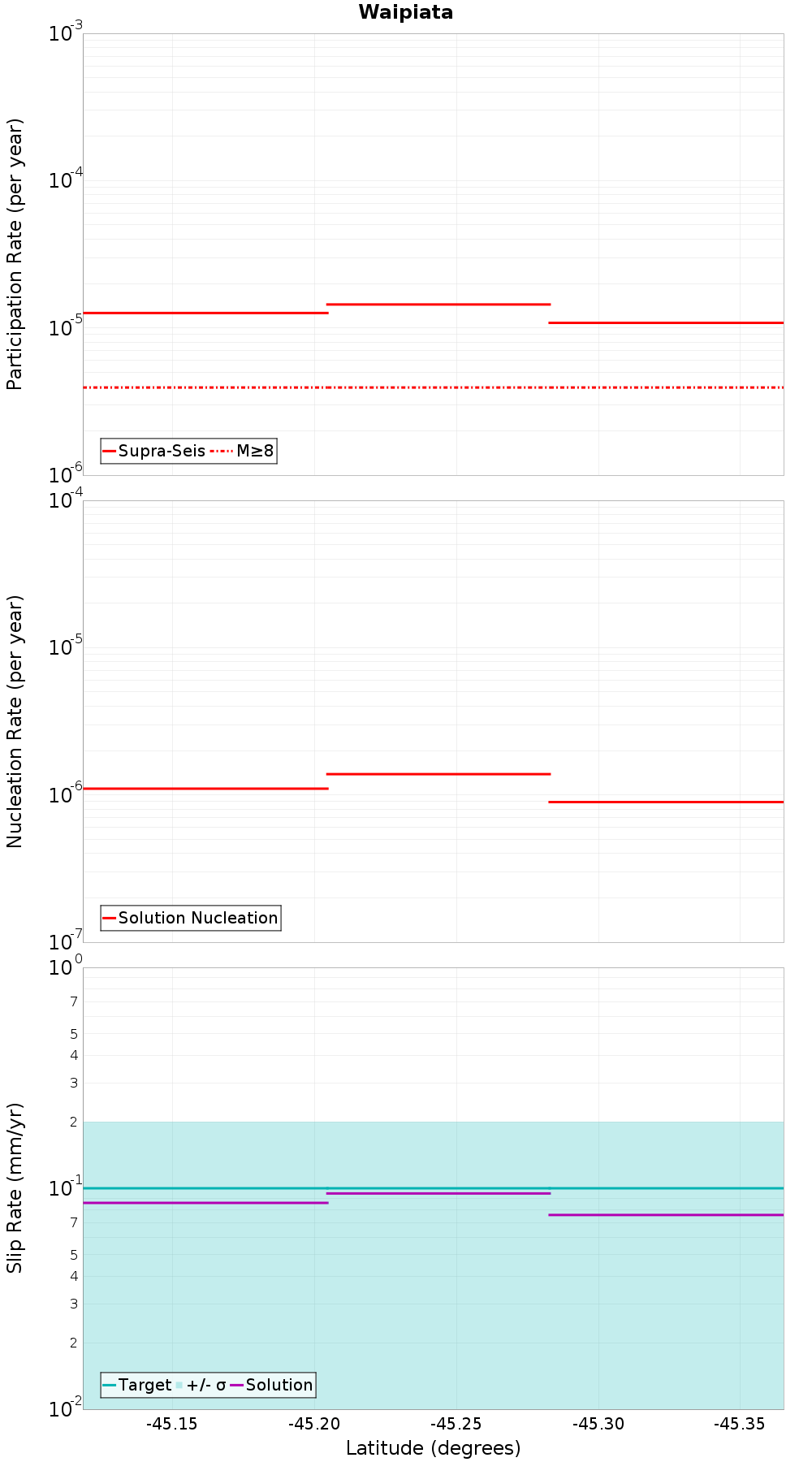

Along-Strike Values

(top)

Along-strike plot

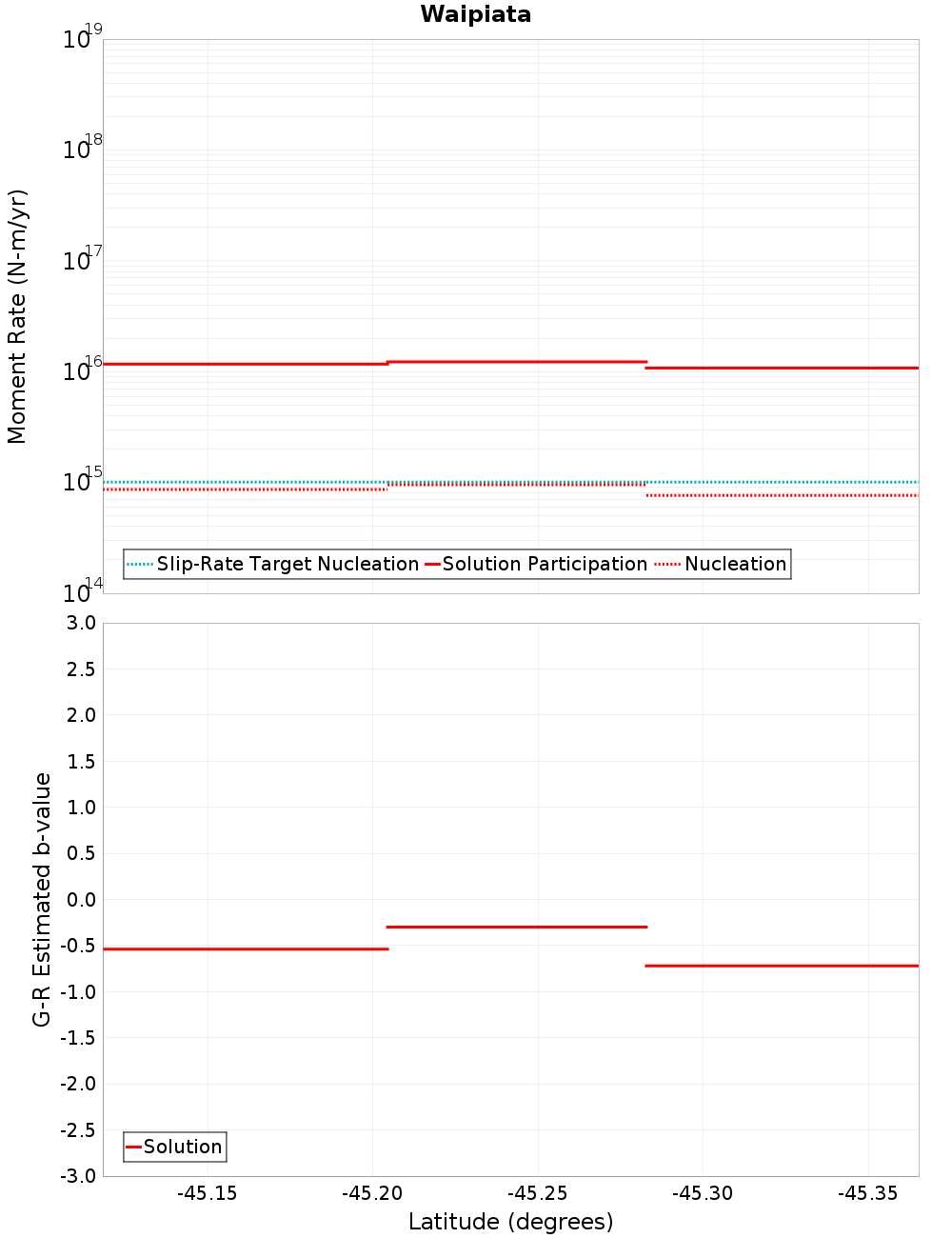

Moment-Rates and b-Values

(top)

Along-strike plot

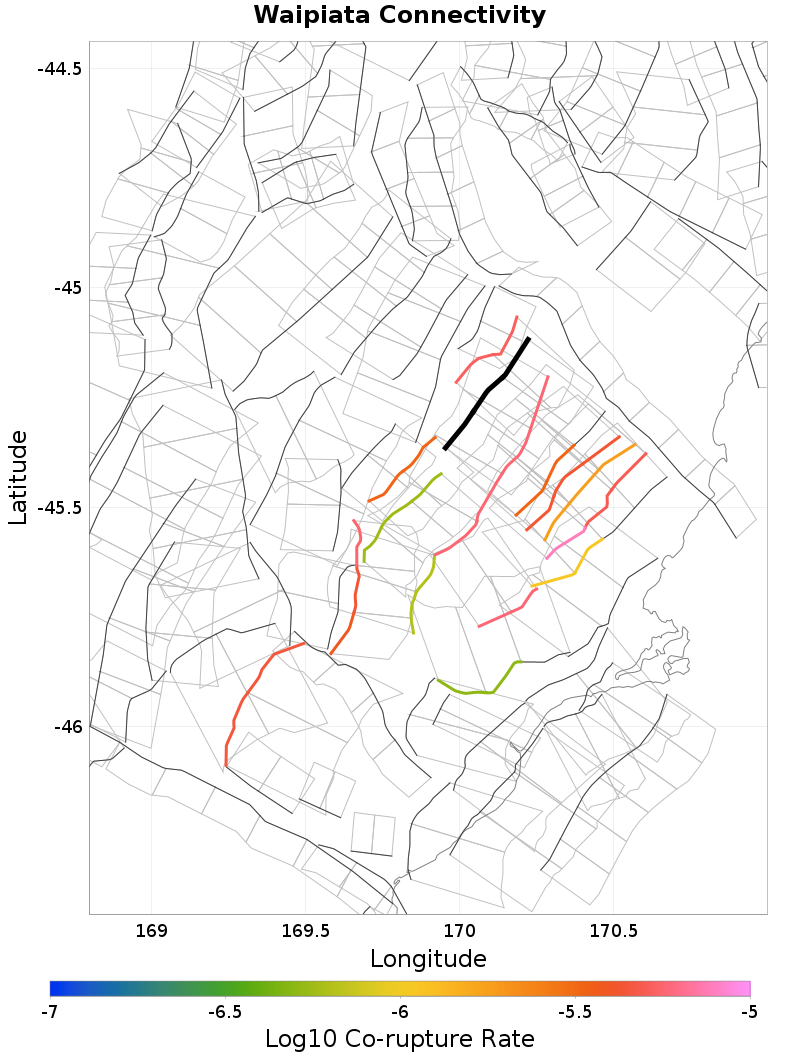

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Billys Ridge, 0.21 km awayGimmerburn, 7.59 km away
Murphys Creek, 0.21 km awayWaihemo, 7.68 km away
Horse Flat, 0.24 km awayNichols Rock, 8.44 km away
Hyde North, 0.42 km awayCross Eden, 10.38 km away
Dunback Hill, 0.51 km awayLong Valley, 12.3 km away
Ranfurly, 2.79 km awaySliver Stream - Merton, 14.54 km away
Pylap, 3.22 km awayHawkdun, 17.13 km away
Flat Stream - Glenpark, 5.65 km awayMaungatua - North Taieri, 19.44 km away
Logan Burn, 6.25 km away

Billys Ridge, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate4.282623E-6

Murphys Creek, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate1.8123953E-6

Horse Flat, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate3.3249707E-6

Hyde North, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate5.70625E-6

Dunback Hill, 0.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?true
Co-rupture Count103
Co-rupture Rate8.364396E-6

Ranfurly, 2.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate5.2424157E-6

Pylap, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate3.3249707E-6

Flat Stream - Glenpark, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?true
Co-rupture Count40
Co-rupture Rate1.1032265E-6

Logan Burn, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate5.527826E-7

Gimmerburn, 7.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?false
Co-rupture Count94
Co-rupture Rate5.7564475E-6

Cross Eden, 10.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Long Valley, 12.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Sliver Stream - Merton, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 17.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 19.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjIzNDYuMDlHMmZo
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate5.0833876E-7
