Hyde North Details

Property	Value
Rupture Count	233
Ruptures Above Sect Min Mag	231
Ruptures w/ Nonzero Rates	44
Magnitude Range	[7.09, 8.00]
Length Range	[28, 204] km
Total Rate	7.308679E-5 /yr
Multi-Fault Rate	7.03949E-5 /yr (96.32%)
Directly-Connected Faults	9
All Co-Rupturing Faults	25

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

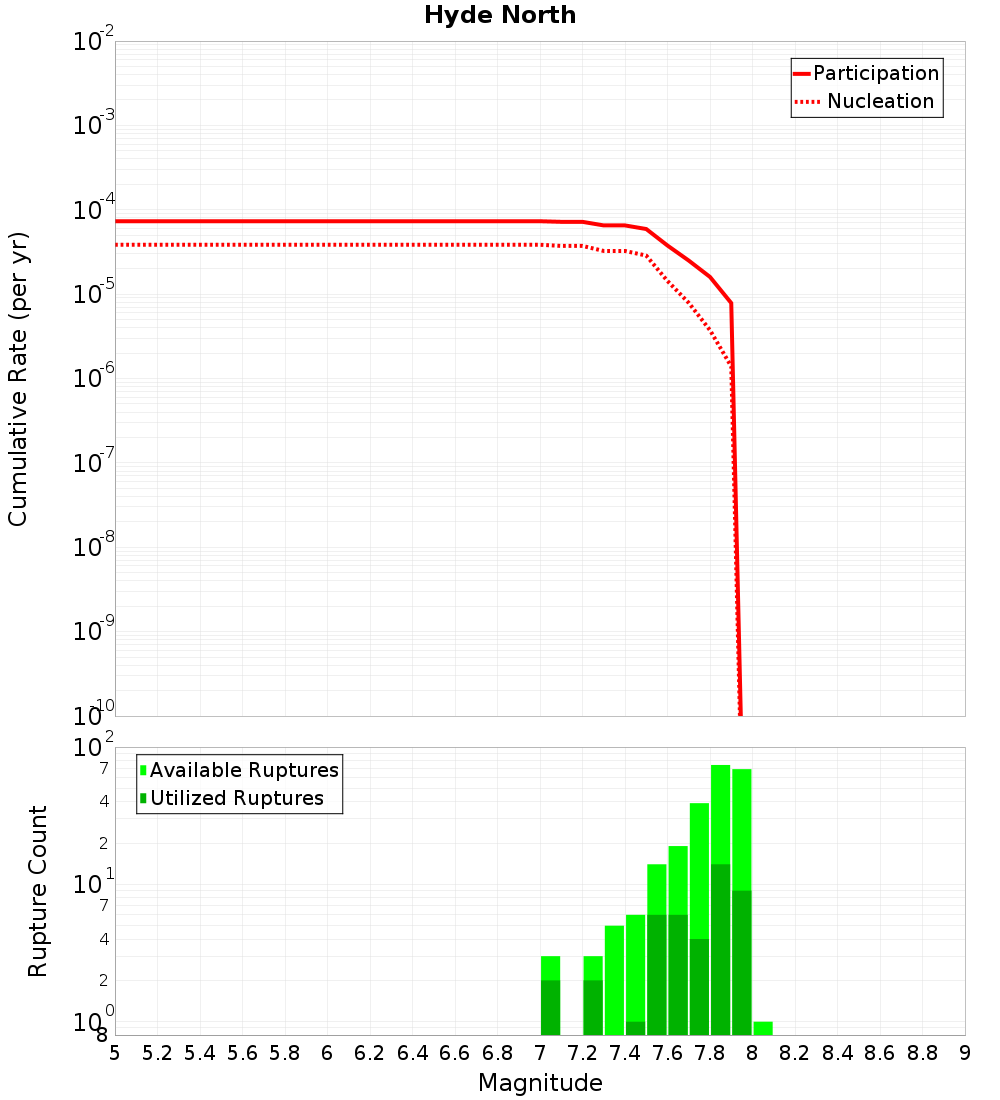

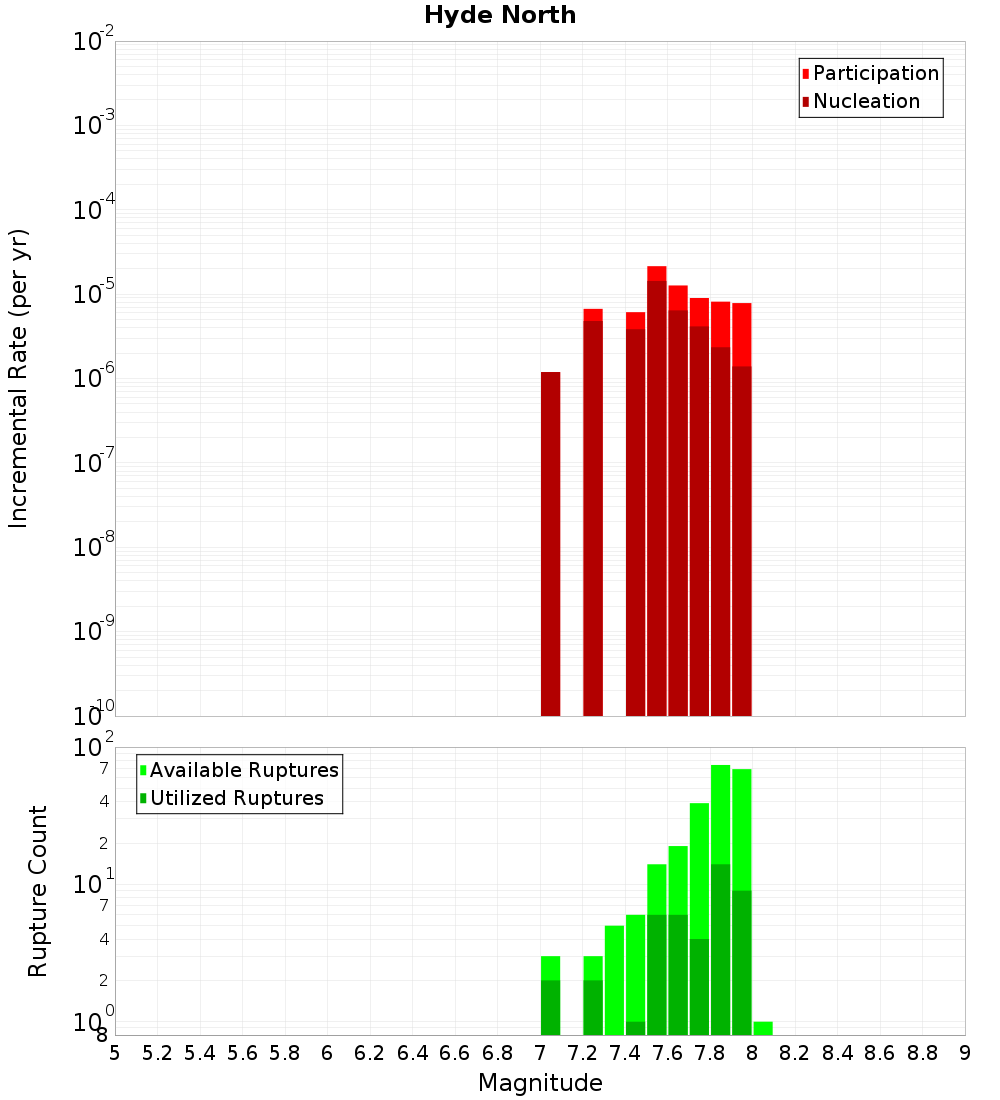

Magnitude-Frequency Distribution

Incremental	Cumulative

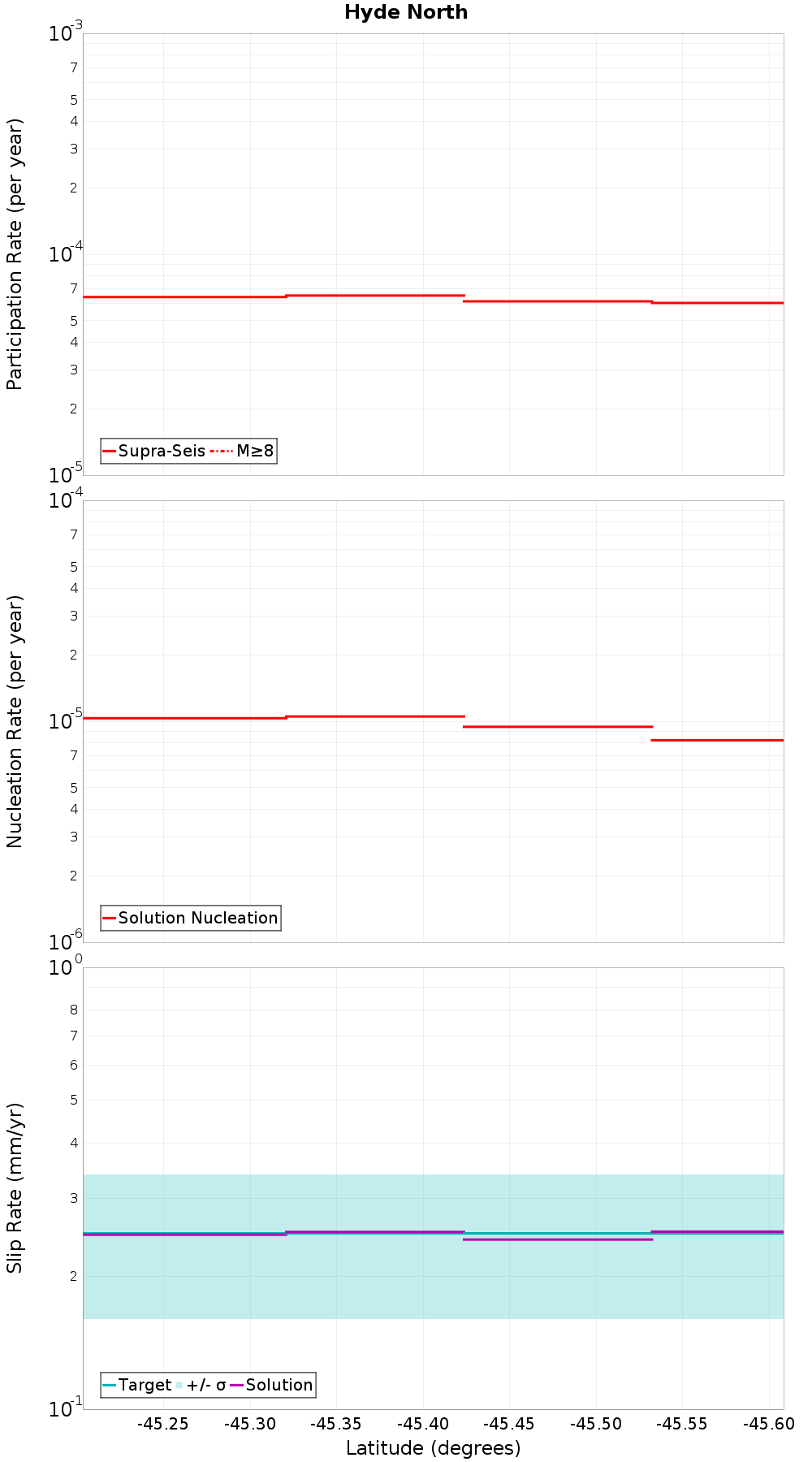

Along-Strike Values

Moment-Rates and b-Values

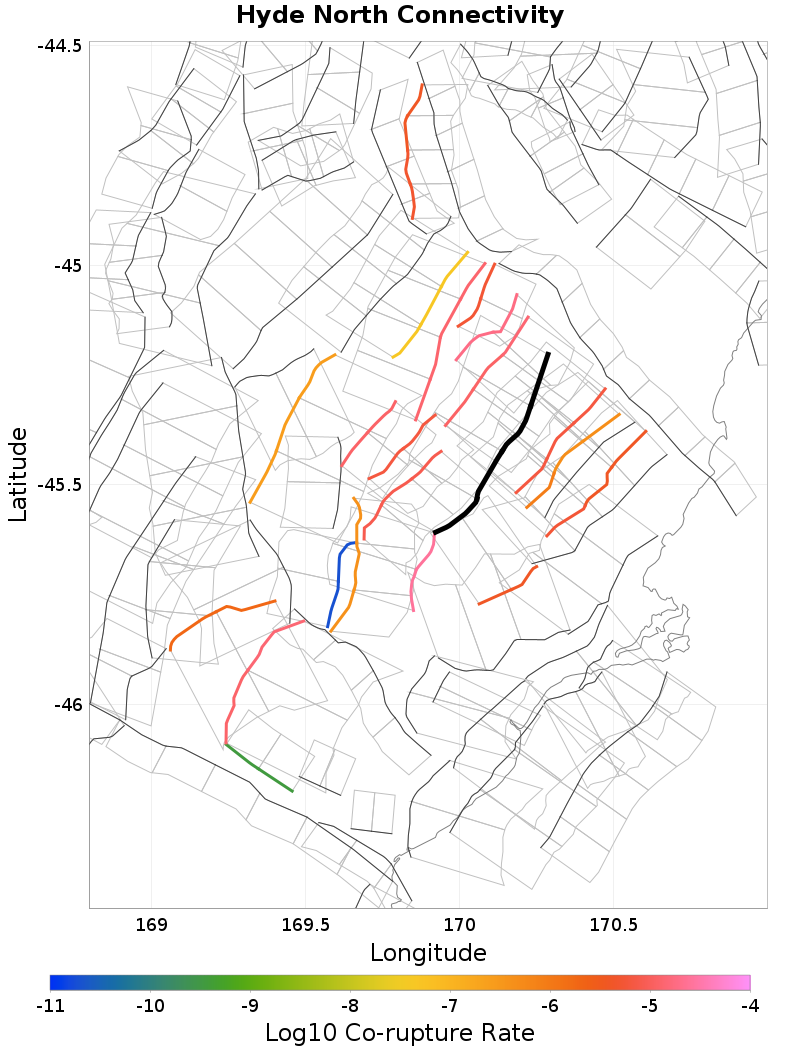

Connectivity

Nearby Sections

Fault Section	Fault Section
Pylap, 0.03 km away	Waihemo, 9.13 km away
Ranfurly, 0.06 km away	Murphys Creek, 12.4 km away
Logan Burn, 0.07 km away	Nichols Rock, 13.72 km away
Cross Eden, 0.18 km away	Dunback Hill, 14.52 km away
Long Valley, 0.25 km away	Flat Stream - Glenpark, 14.79 km away
Hyde South - The Twins, 0.33 km away	Galloway, 15.33 km away
Beaumont River, 0.34 km away	Gimmerburn, 16.09 km away
Waipiata, 0.42 km away	Lake Onslow, 16.15 km away
Little Valley, 4.06 km away	Backbone, 16.61 km away
Horse Flat, 5.99 km away	Maungatua - North Taieri, 19.84 km away
Billys Ridge, 9.04 km away

Pylap, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	6.401502E-6

Ranfurly, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	true
Co-rupture Count	36
Co-rupture Rate	1.844323E-5

Logan Burn, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	8.1538665E-6

Cross Eden, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	5.304073E-6

Long Valley, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	true
Co-rupture Count	45
Co-rupture Rate	1.1842271E-5

Hyde South - The Twins, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	true
Co-rupture Count	133
Co-rupture Rate	2.5419895E-5

Beaumont River, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	true
Co-rupture Count	84
Co-rupture Rate	4.1124807E-7

Waipiata, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	true
Co-rupture Count	52
Co-rupture Rate	1.5328613E-5

Little Valley, 4.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	false
Co-rupture Count	32
Co-rupture Rate	2.5840666E-7

Horse Flat, 5.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	true
Co-rupture Count	9
Co-rupture Rate	6.5949935E-6

Billys Ridge, 9.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	8.725457E-7

Waihemo, 9.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Murphys Creek, 12.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Nichols Rock, 13.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	3.977845E-6

Dunback Hill, 14.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	5.702395E-6

Flat Stream - Glenpark, 14.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Galloway, 15.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Gimmerburn, 16.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	false
Co-rupture Count	61
Co-rupture Rate	1.2967729E-5

Lake Onslow, 16.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Backbone, 16.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	1.9283984E-11

Maungatua - North Taieri, 19.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDAuMGRiM3NG
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0
