Aka Aka Details
| Property | Value |
|---|---|
| Rupture Count | 5 |
| Ruptures Above Sect Min Mag | 4 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.42, 7.26] |
| Length Range | [9, 61] km |
| Total Rate | 8.4964095E-6 /yr |
| Multi-Fault Rate | 8.4964095E-6 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

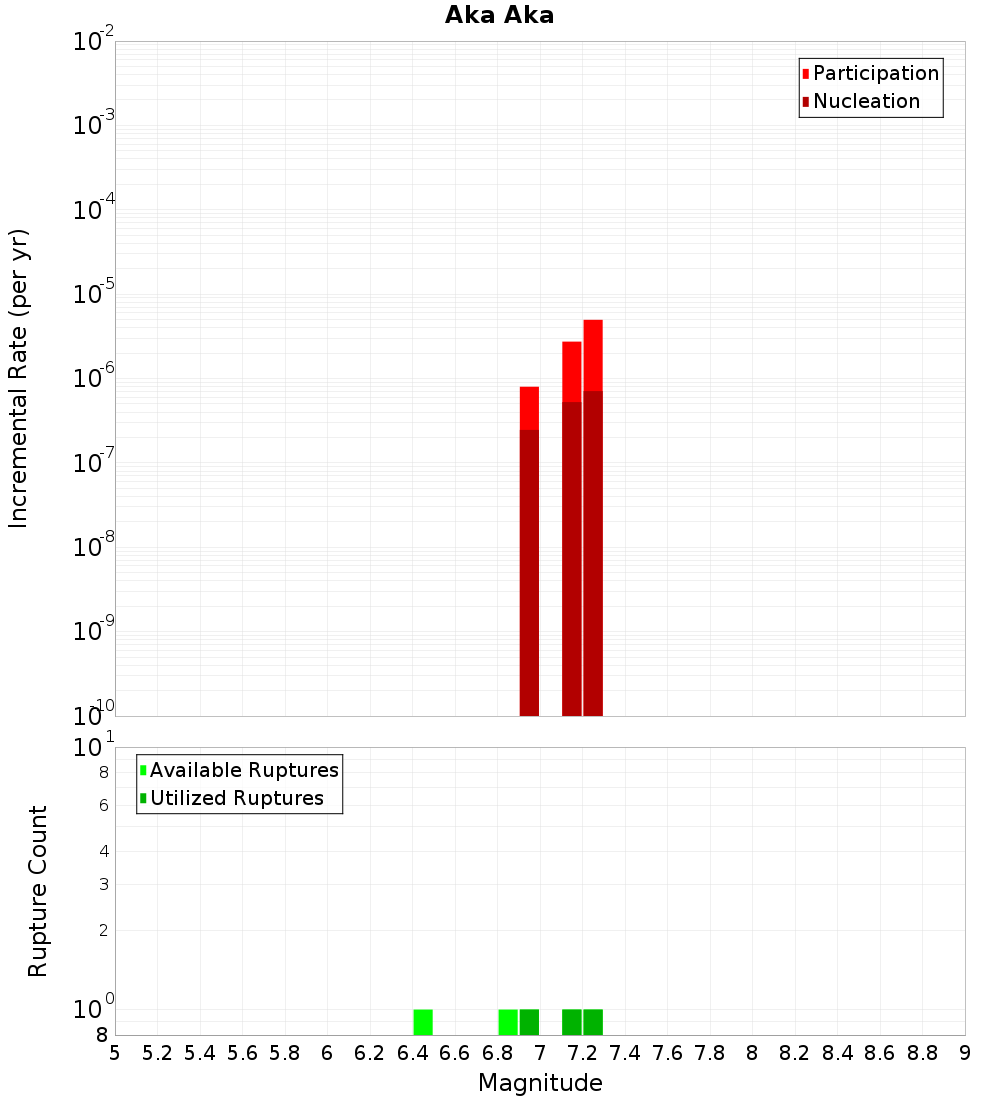

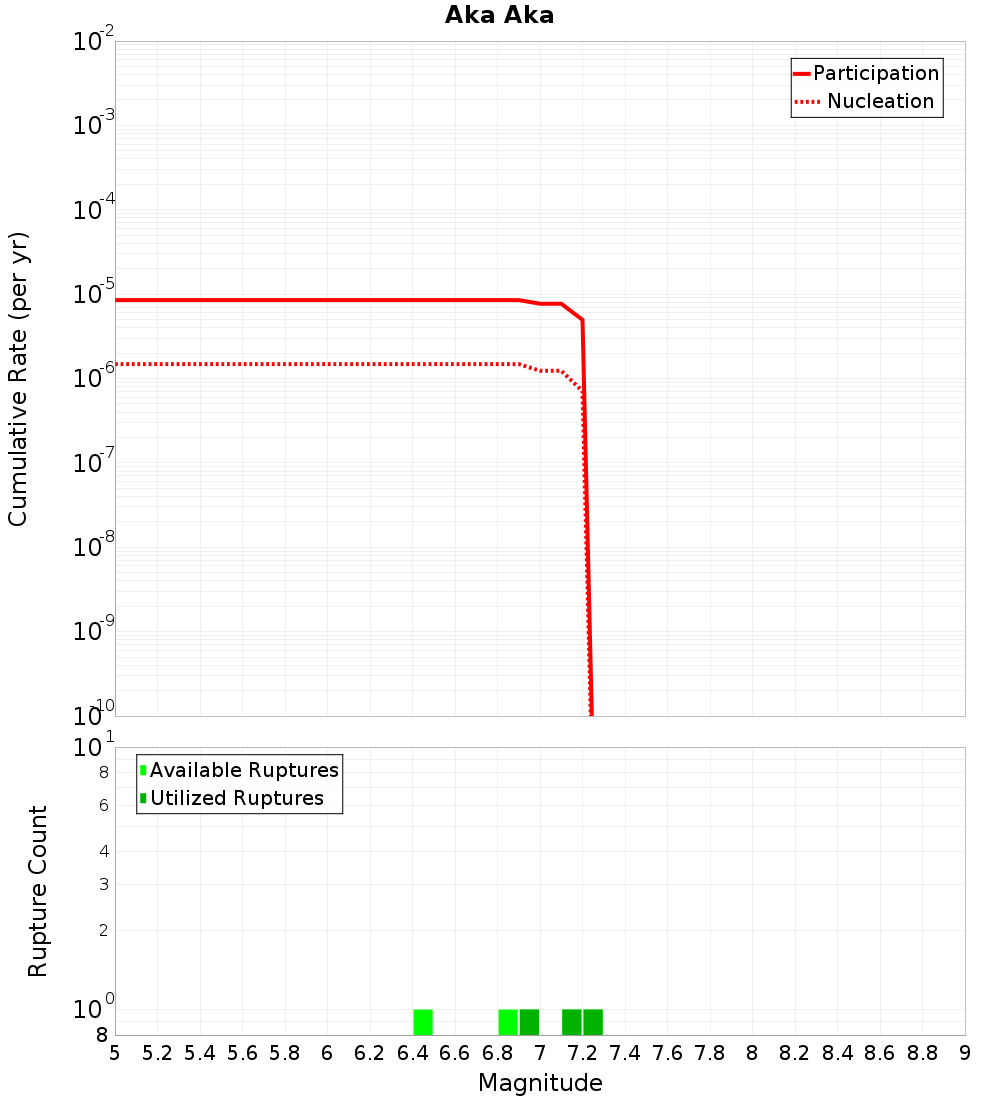

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

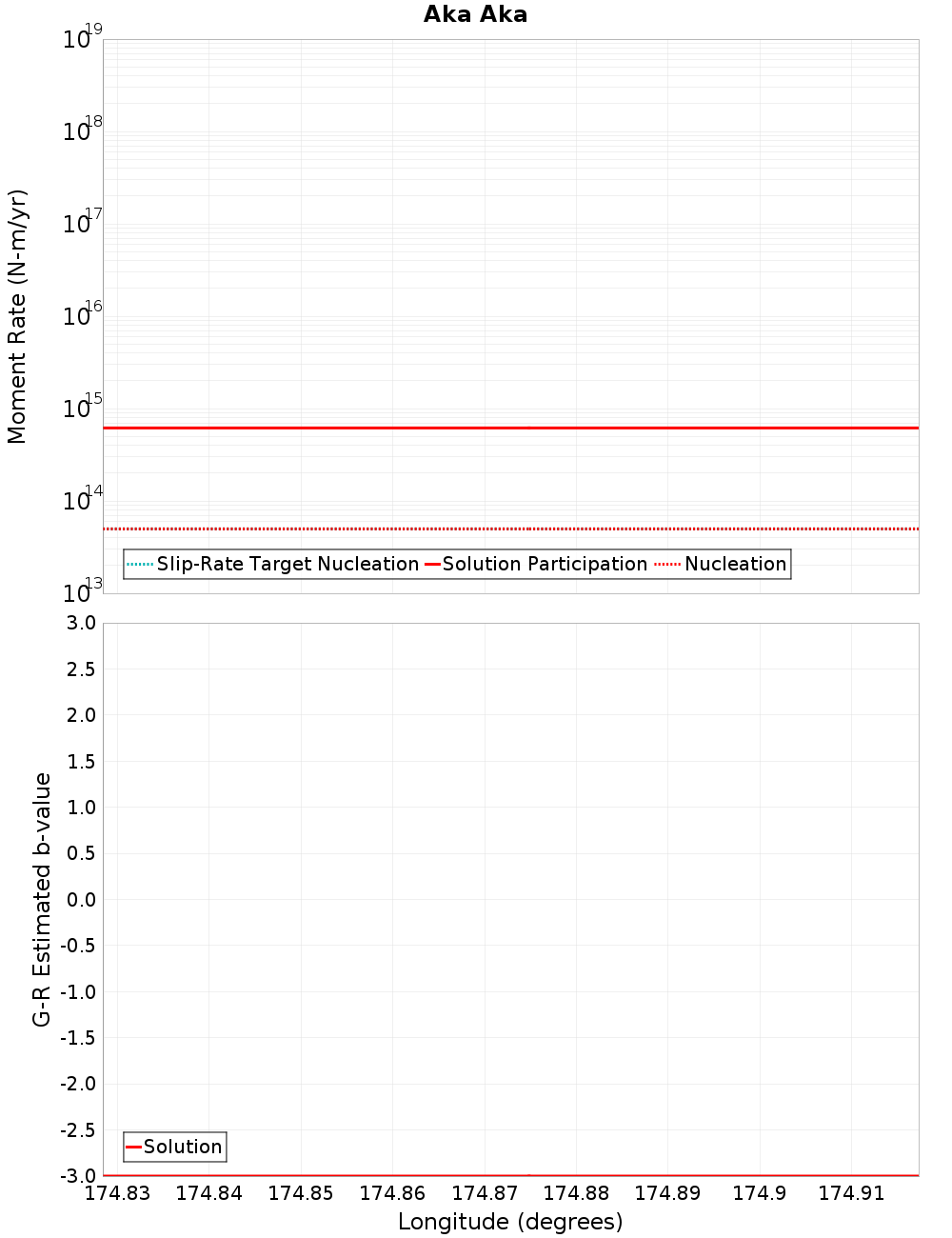

Moment-Rates and b-Values

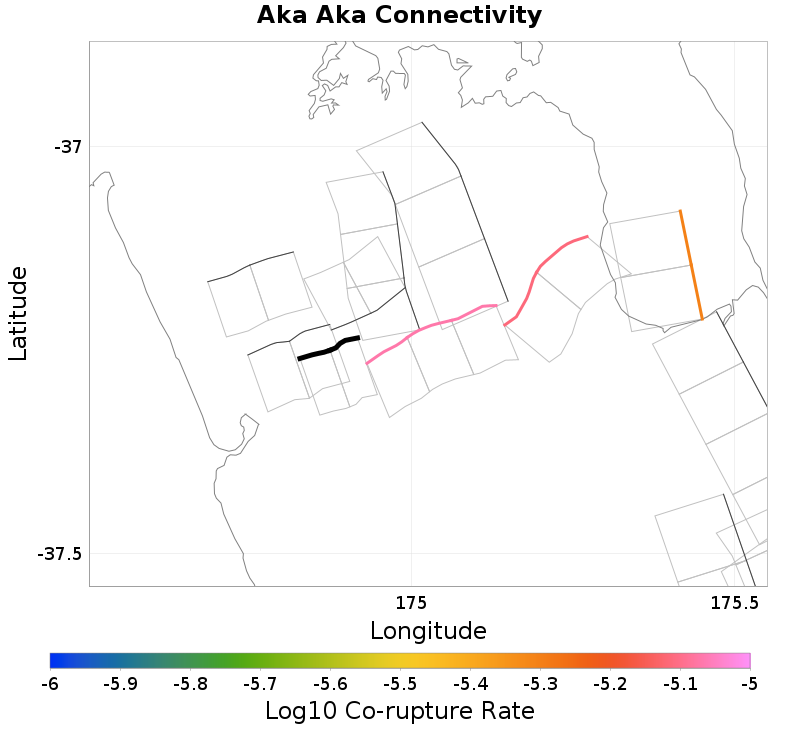

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| St Stephens, 2.04 km away |
| Pukekohe, 2.51 km away |
| Pokeno, 3.31 km away |
| Drury, 5.03 km away |
| Wairoa North, 12.25 km away |
| Glenbrook, 12.76 km away |
St Stephens, 2.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukekohe, 2.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pokeno, 3.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 8.4964095E-6 |
Drury, 5.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairoa North, 12.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Glenbrook, 12.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
