Kaiapo Details
| Property | Value |
|---|---|
| Rupture Count | 753 |
| Ruptures Above Sect Min Mag | 750 |
| Ruptures w/ Nonzero Rates | 128 |
| Magnitude Range | [6.29, 7.50] |
| Length Range | [10, 143] km |
| Total Rate | 7.189541E-4 /yr |
| Multi-Fault Rate | 7.189541E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 16 |
Table Of Contents

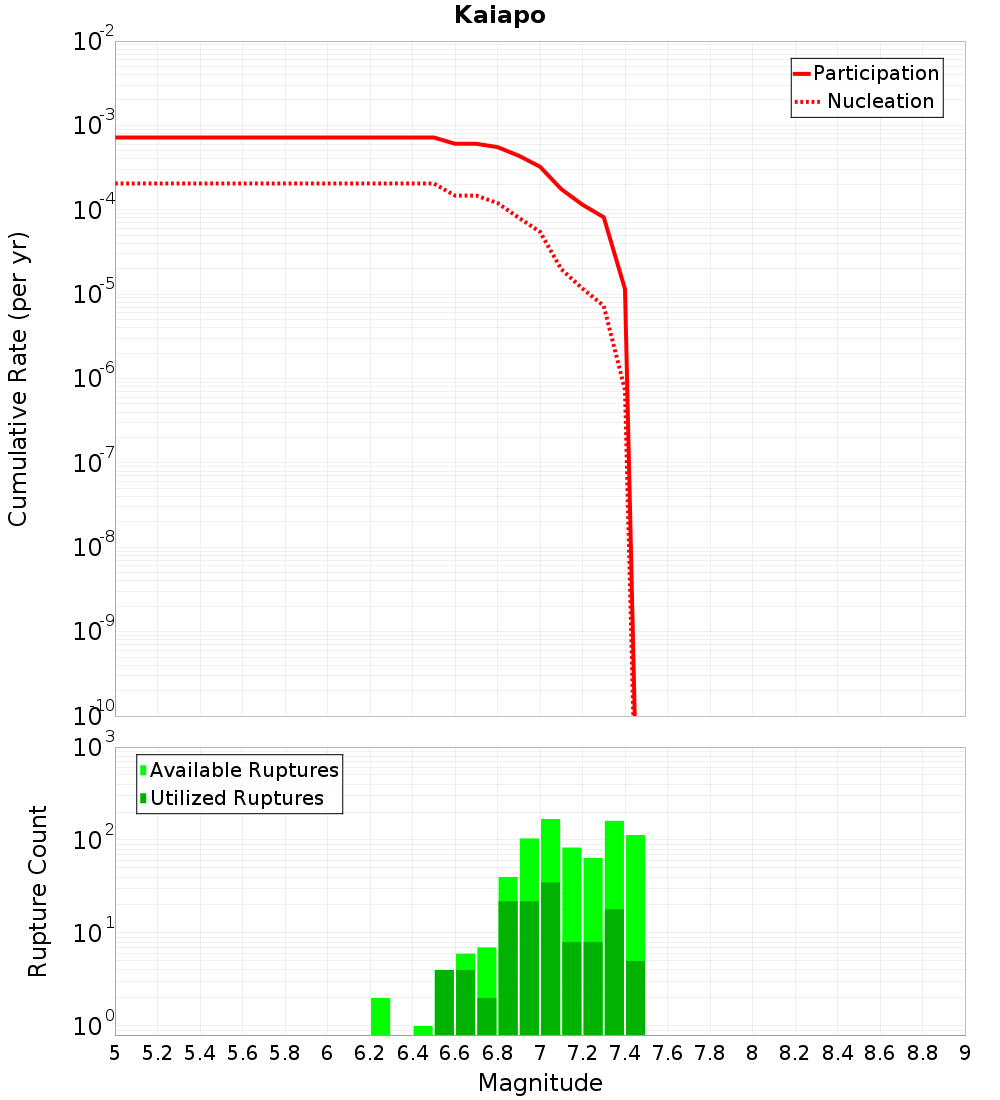

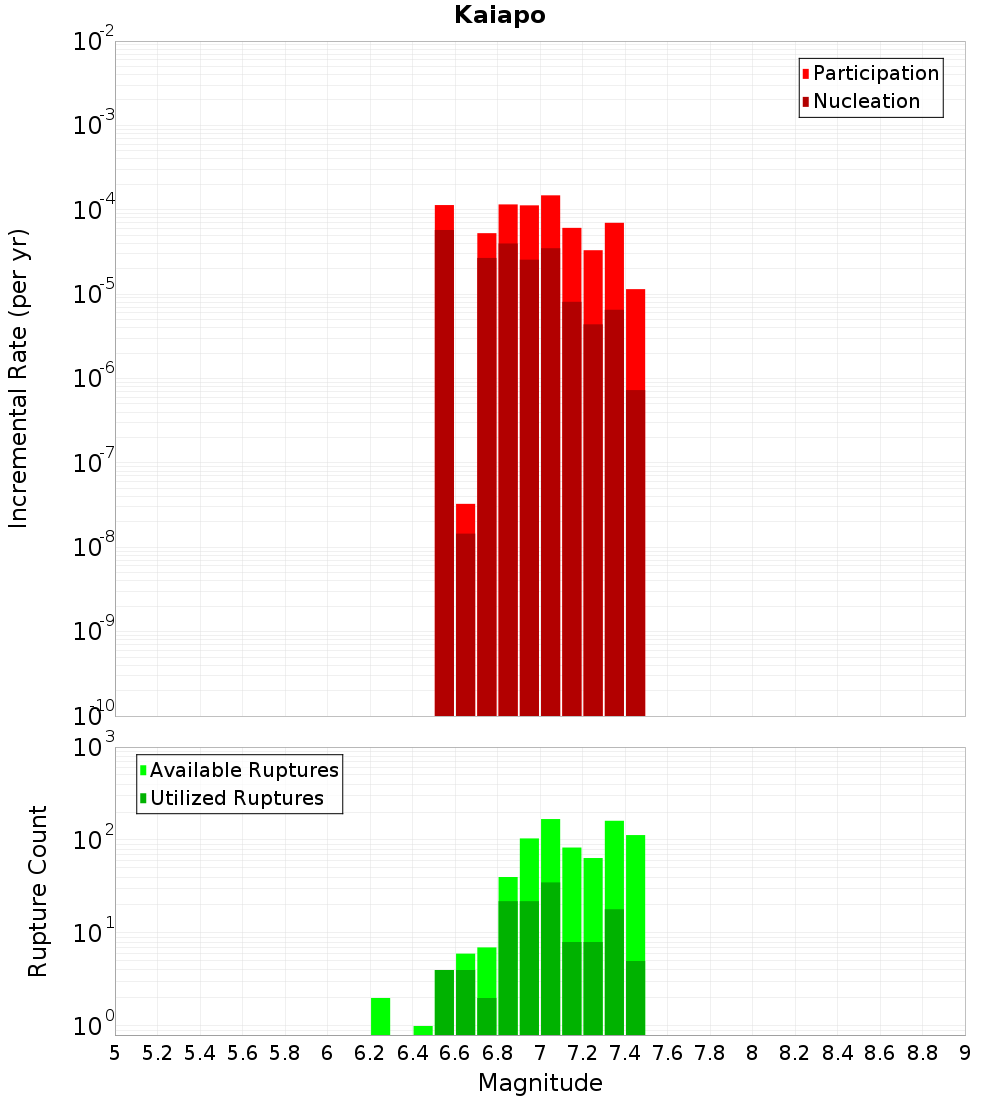

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

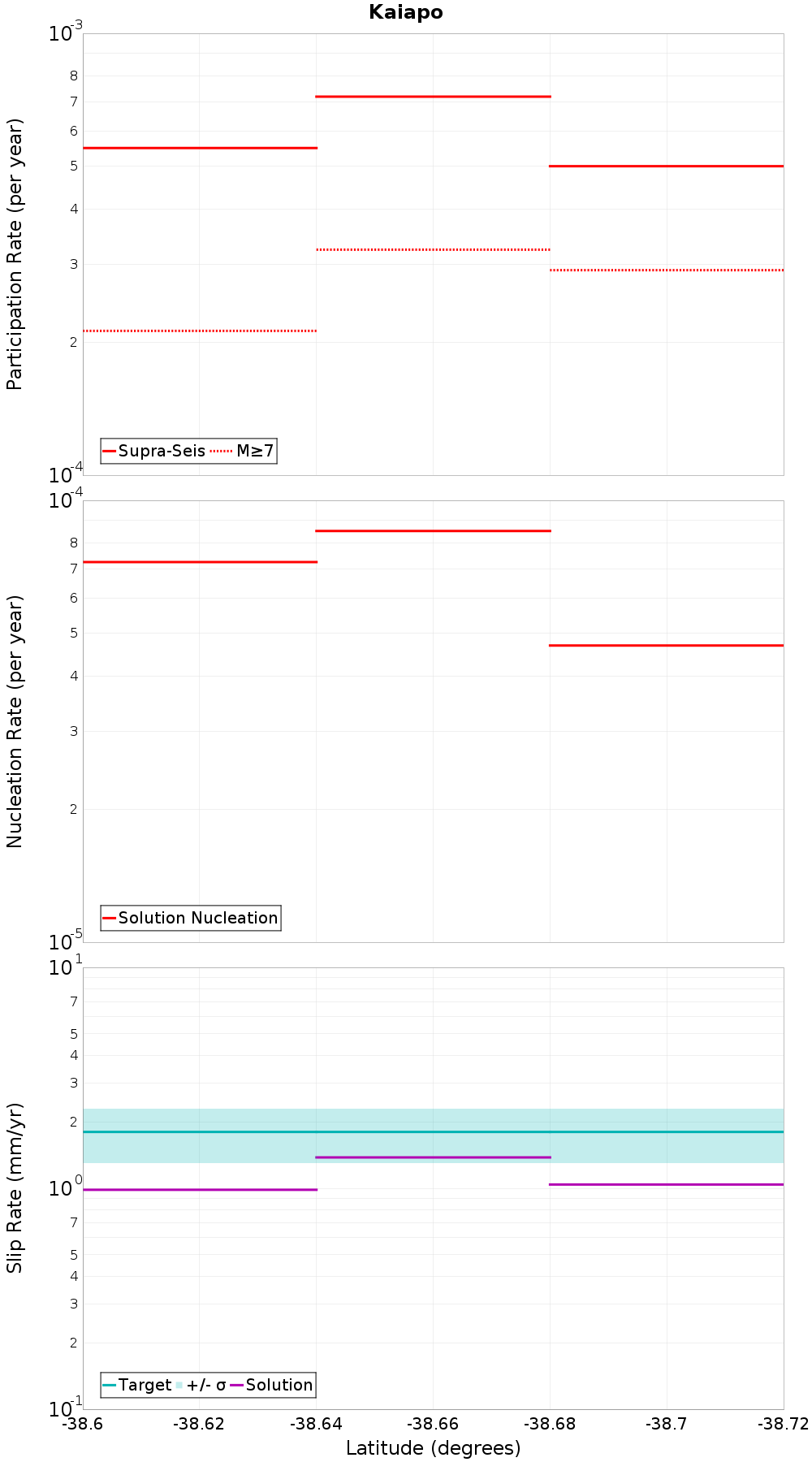

Along-Strike Values

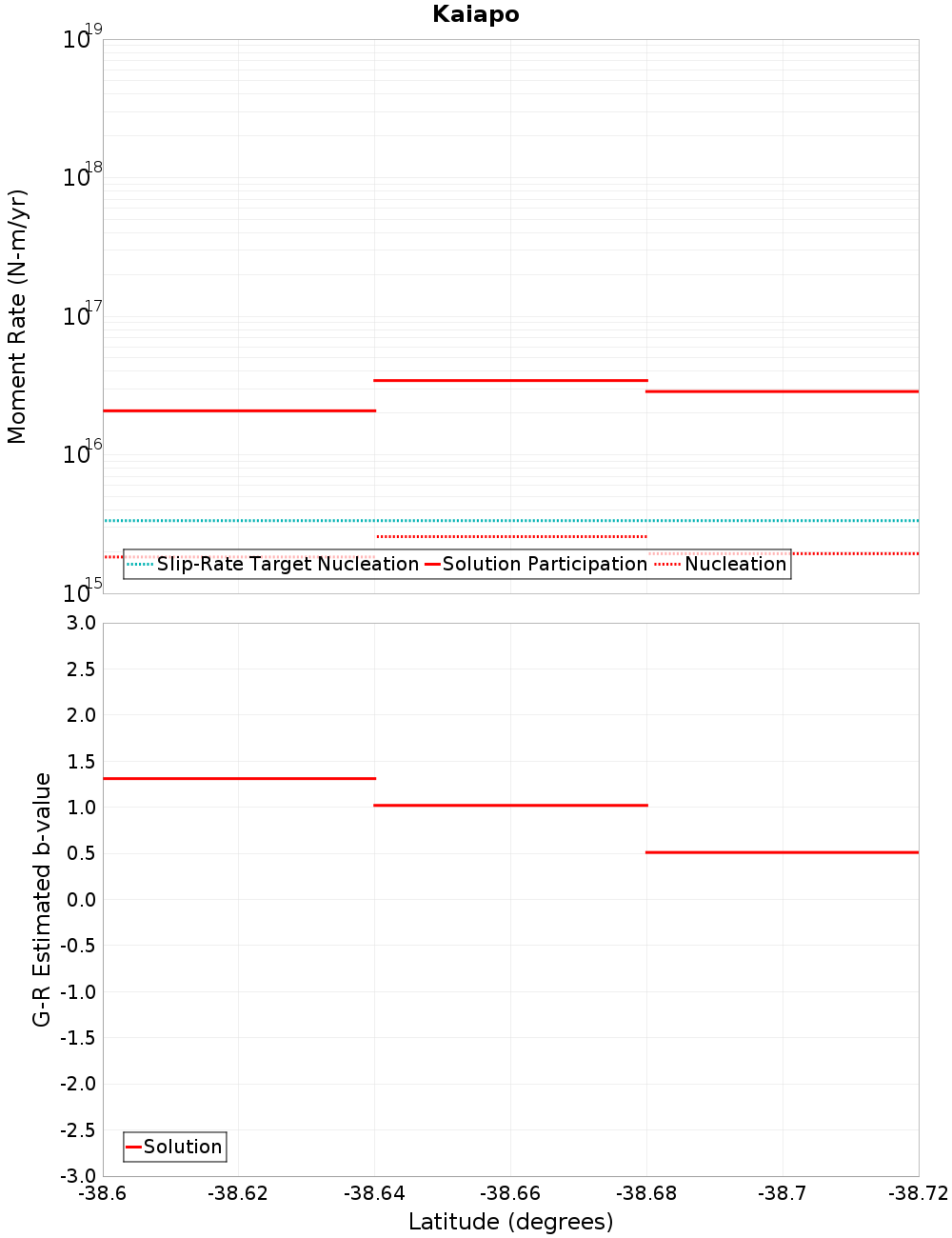

Moment-Rates and b-Values

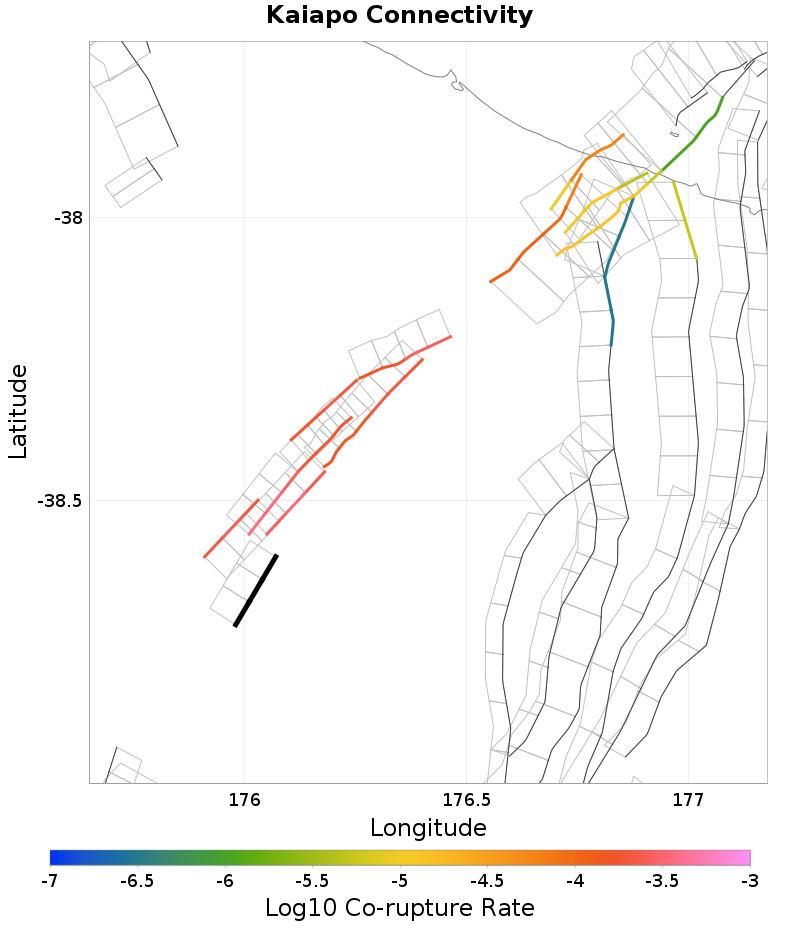

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Whangamata West, 0.25 km away |
| Orakeikorako, 4.37 km away |
| Puketerata, 5.96 km away |
| Puketerata North, 17.13 km away |
| Maleme, 19.42 km away |
Whangamata West, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 439 |
| Co-rupture Rate | 2.4821103E-4 |
Orakeikorako, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 592 |
| Co-rupture Rate | 3.5332362E-4 |
Puketerata, 5.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 202 |
| Co-rupture Rate | 3.5732068E-4 |
Puketerata North, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 291 |
| Co-rupture Rate | 1.9508645E-4 |
Maleme, 19.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 469 |
| Co-rupture Rate | 2.812722E-4 |
