Wharekauhau Details

PropertyValue
Rupture Count5,738
Ruptures Above Sect Min Mag5,735
Ruptures w/ Nonzero Rates21
Magnitude Range[6.91, 8.56]
Length Range[20, 1,013] km
Total Rate0.0010453991 /yr
Multi-Fault Rate0.0010453991 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults104

Table Of Contents

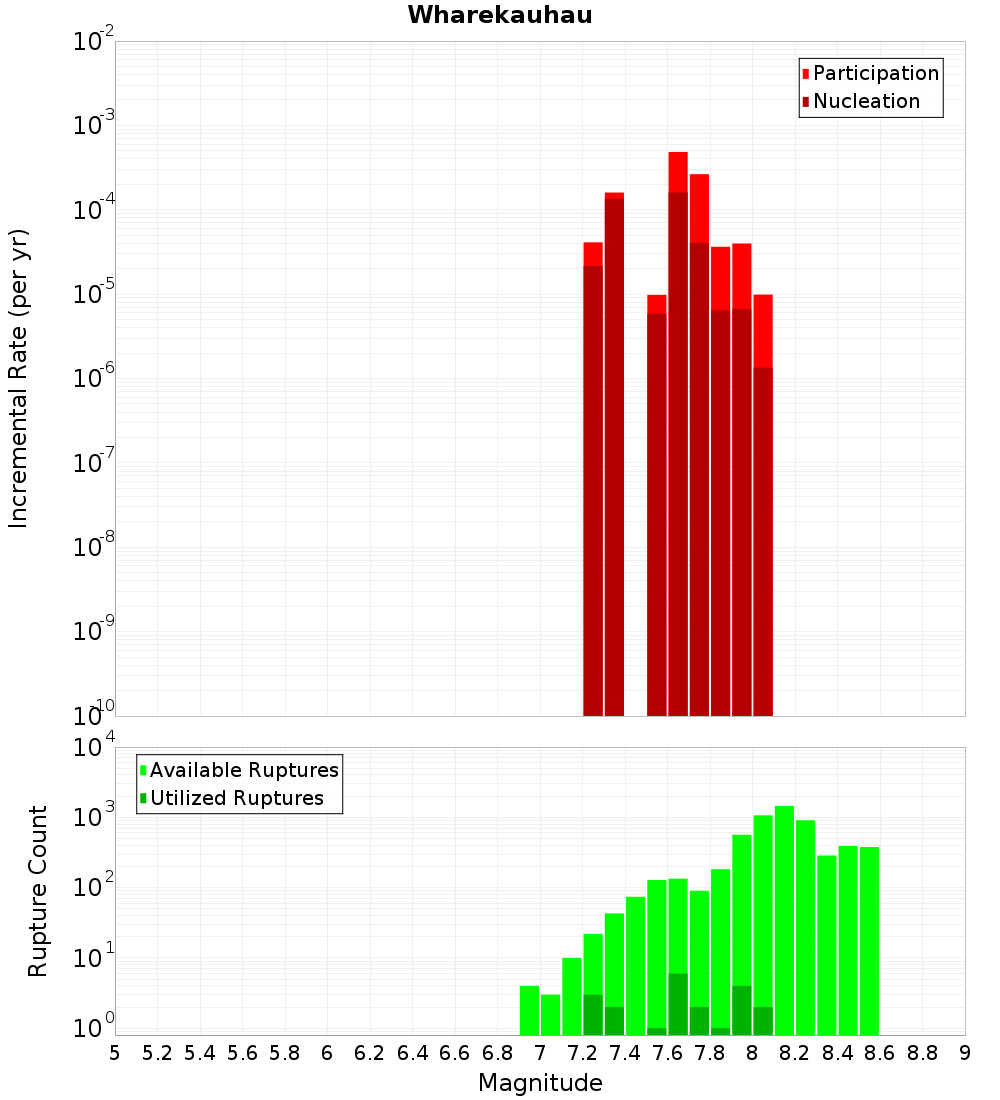

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

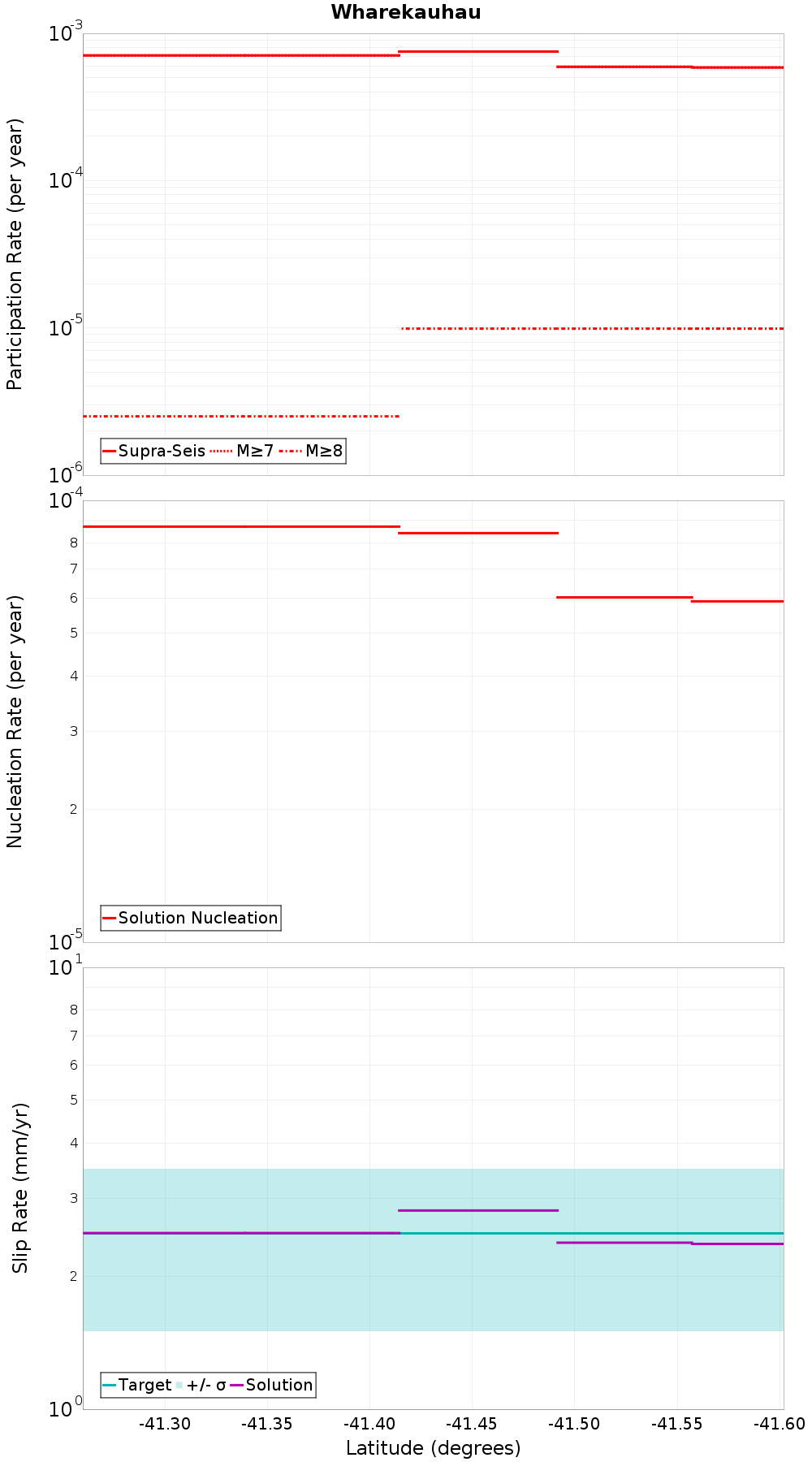

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 4, 0.09 km awayWairau 3, 11.5 km away
Aotea - Evans Bay, 0.17 km awayOtaraia, 12.78 km away
Wairarapa: 1, 0.2 km awayDry River - Huangarua: 1, 12.89 km away
Wairarapa: Needles, 0.3 km awayPukerua - Shepherds Gully: 3, 13.66 km away
Wairarapa: 2, 1.38 km awayCampbell Bank, 13.94 km away
Whitemans Valley, 3.03 km awayOhariu South 2, 15.14 km away
Wellington Hutt Valley: 5, 4.2 km awayPukerua - Shepherds Gully: 2, 15.16 km away
Moonshine, 4.93 km awayPukerua - Shepherds Gully: 1, 15.16 km away
Akatarawa, 6.44 km awayOhariu South 1, 16.29 km away
Wellington Hutt Valley: 3, 7.29 km awayCloudy 3, 16.55 km away
Wellington Hutt Valley: 2, 8.44 km awayVernon 4, 17.31 km away
Ohariu, 10.05 km awayBidwill, 17.72 km away
BooBoo, 10.67 km awayMartinborough, 19.44 km away
Wellington Hutt Valley: 1, 11.26 km away

Wellington Hutt Valley: 4, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?true
Co-rupture Count2,132
Co-rupture Rate4.95968E-4

Aotea - Evans Bay, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate1.6744333E-4

Wairarapa: 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?true
Co-rupture Count1,151
Co-rupture Rate4.8387275E-4

Wairarapa: Needles, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?true
Co-rupture Count2,997
Co-rupture Rate8.443059E-4

Wairarapa: 2, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count317
Co-rupture Rate0.0

Whitemans Valley, 3.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?true
Co-rupture Count552
Co-rupture Rate4.34485E-5

Wellington Hutt Valley: 5, 4.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?true
Co-rupture Count1,898
Co-rupture Rate4.081035E-9

Moonshine, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?true
Co-rupture Count479
Co-rupture Rate6.7095306E-7

Akatarawa, 6.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count505
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 7.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate6.7095306E-7

Wellington Hutt Valley: 2, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Ohariu, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?true
Co-rupture Count908
Co-rupture Rate0.0

BooBoo, 10.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 11.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 11.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate4.0993906E-4

Otaraia, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate0.0

Dry River - Huangarua: 1, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?true
Co-rupture Count192
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 3, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count44
Co-rupture Rate0.0

Campbell Bank, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 2, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Ohariu South 1, 16.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 16.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count2,018
Co-rupture Rate0.0

Vernon 4, 17.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?true
Directly Connected?false
Co-rupture Count277
Co-rupture Rate8.435677E-5

Bidwill, 17.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Martinborough, 19.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MDcuMHpwQk0y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
