Big Ben Details

Property	Value
Rupture Count	35
Ruptures Above Sect Min Mag	30
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.52, 7.81]
Length Range	[13, 155] km
Total Rate	9.678149E-5 /yr
Multi-Fault Rate	6.918096E-5 /yr (71.48%)
Directly-Connected Faults	2
All Co-Rupturing Faults	5

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

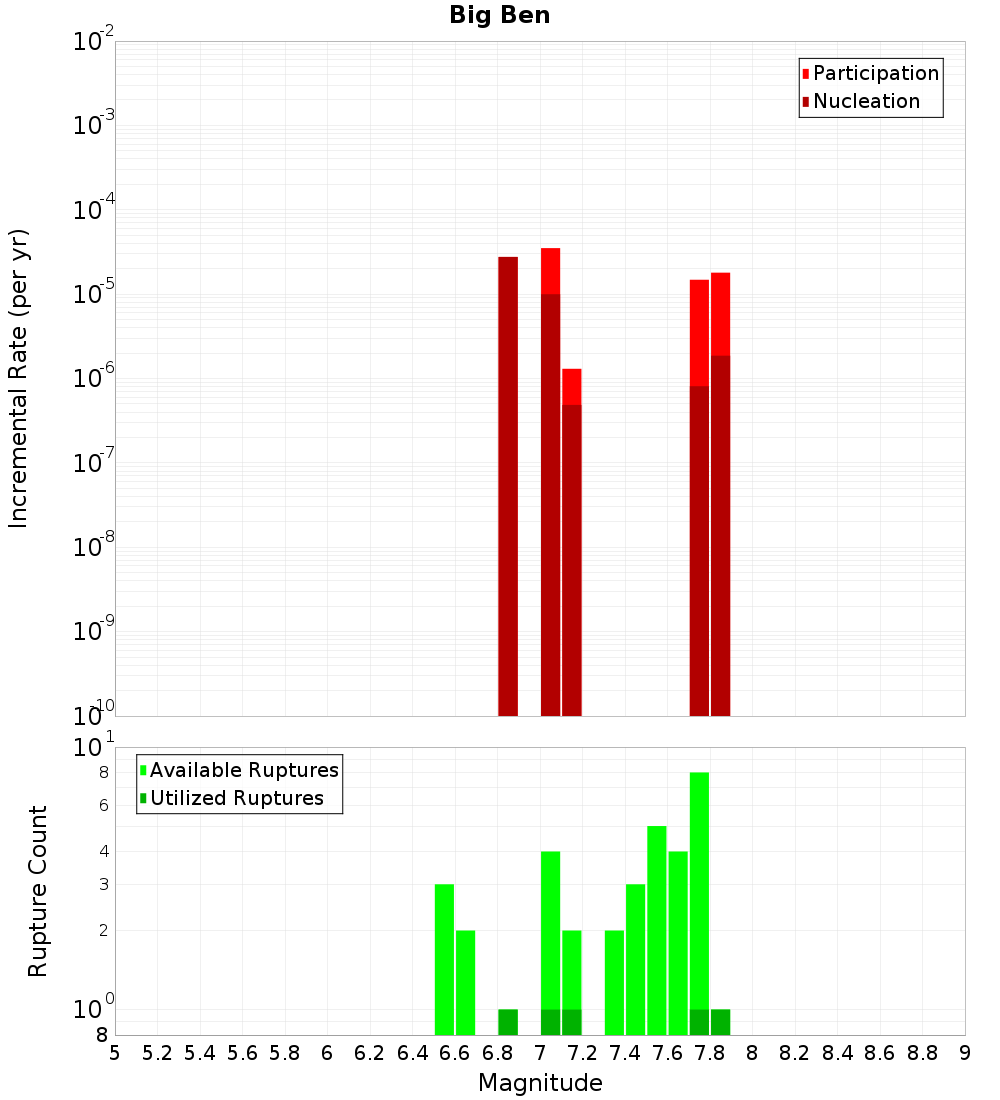

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

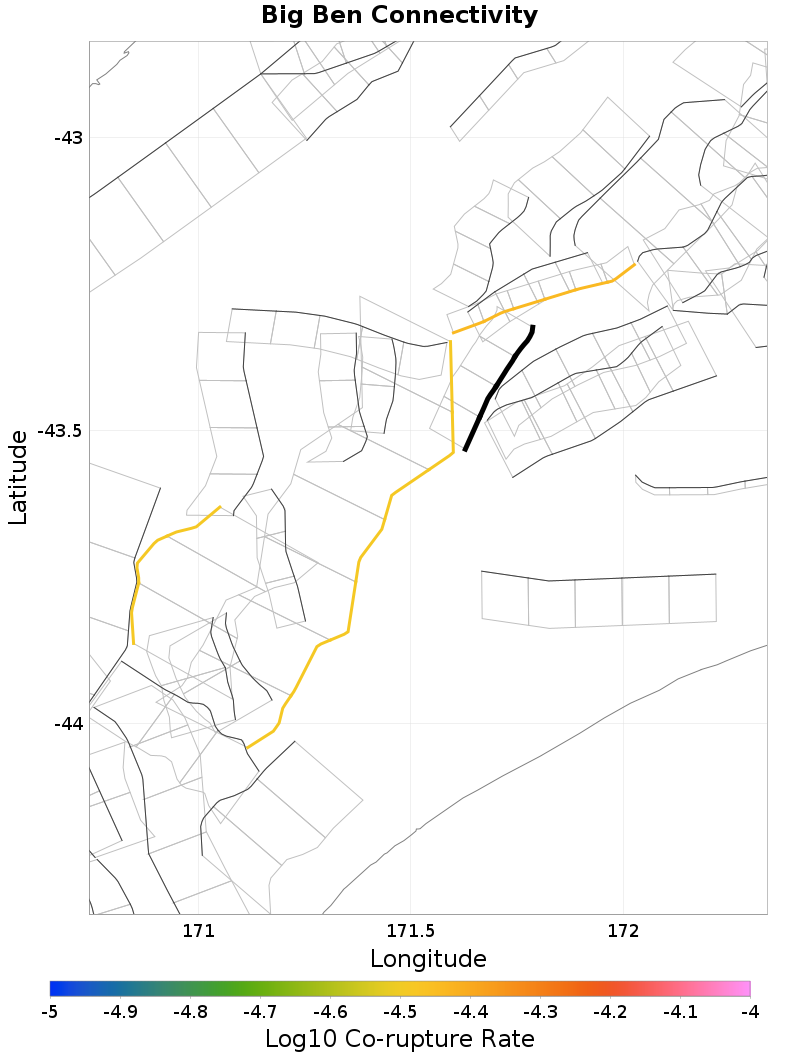

Connectivity

Nearby Sections

Fault Section
Torlesse, 0.37 km away
Kowai - View Hill, 0.83 km away
High Peak - Sheffield, 1.56 km away
Hutt Peel, 2.07 km away
Porters Pass, 2.18 km away
Double Hill, 2.59 km away
Hororata, 8.05 km away
Cheeseman, 9.71 km away
Redcliffe, 12.35 km away
Sailor, 13.73 km away
North Branch, 15.85 km away
Esk South, 17.22 km away

Torlesse, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Kowai - View Hill, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

High Peak - Sheffield, 1.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hutt Peel, 2.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	3.2773958E-5

Porters Pass, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	true
Directly Connected?	true
Co-rupture Count	7
Co-rupture Rate	3.6407007E-5

Double Hill, 2.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hororata, 8.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cheeseman, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Redcliffe, 12.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sailor, 13.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

North Branch, 15.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk South, 17.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
